Draw an electrical plan — outlets, switches, lights, and symbols
Open the Symbols panel, tap a wall to drop an outlet or switch, set its kind and Mount height, name each one with its breaker number, combine devices into one box, add lights and low-voltage symbols, and print a clean electrical plan with the names on it.
More videos
Label Outlets & Switches With Circuit Breaker Numbers on a Floor Plan
Name each outlet and switch with its breaker number, show the names on the plan, draw the circuit, and print it.
An electrical plan is the one drawing almost every renovation needs: where the outlets go, which wall the switch is on, where the lights hang. RoomSketch3D keeps all of it in the Symbols panel, the tab after Indoor and Outdoor on the right (or the Symbols pill on a phone).
There are two kinds of symbol, and they place differently. Wall devices (outlets and switches) are placed by tapping a wall, exactly like a door or window, and sit flush on that wall at a standard height you can change (Mount). Three other symbols also hang on a wall when you tap it: Wall Light, Under-Cabinet Light and Doorbell. Free symbols (ceiling, recessed, pendant and track lights, fans, smoke detectors, data jacks, cameras, vents) drop into the room like a piece of furniture and can be dragged anywhere. Outlets and switches (and the Floor Outlet) also show in the 3D view; the other symbols appear on the 2D plan and in exports, not in 3D.
Outlets and switches can share one spot, the way they are installed: a double outlet, a two-gang switch, a switch with a socket below it. See outlet and switch combinations. For everything electrical on one page (circuits, legends, exports, code rules, German plans) see electrical floor plan guide.
Everything you place shows up in exports and prints (the export dialog's Electrical symbols and Circuit lines boxes let you leave them out). The Electrical plan view, in View & Layers and at the top of the export dialog, hides the furniture so an electrician sees only the shell and the devices, and adds a Symbol legend & circuit table to the export.
Mapping your circuit breakers? Give each outlet and switch a name such as Breaker 12 and it shows next to the symbol on the plan and on every print. The step Label outlets and switches with breaker numbers below walks through it.
What you'll need
- •Any floor plan with walls (a single room is fine)
- •Desktop, iPad, or phone — the Symbols panel is on all three
Step by step
- 1
Open the Symbols panel
In the right-hand panel, tap the Symbols tab (after Indoor and Outdoor). Tabs at the top pick the outlet and switch pack: US, Europe or All (it opens on the one that matches your units and then remembers your pick). Lights, detectors, plumbing, HVAC, telecom, security and markers are shared by both packs. Search filters everything, and your own uploads appear under My Library.
Symbols is the tab after Indoor and Outdoor. Tiles are grouped by trade; search filters them. - 2

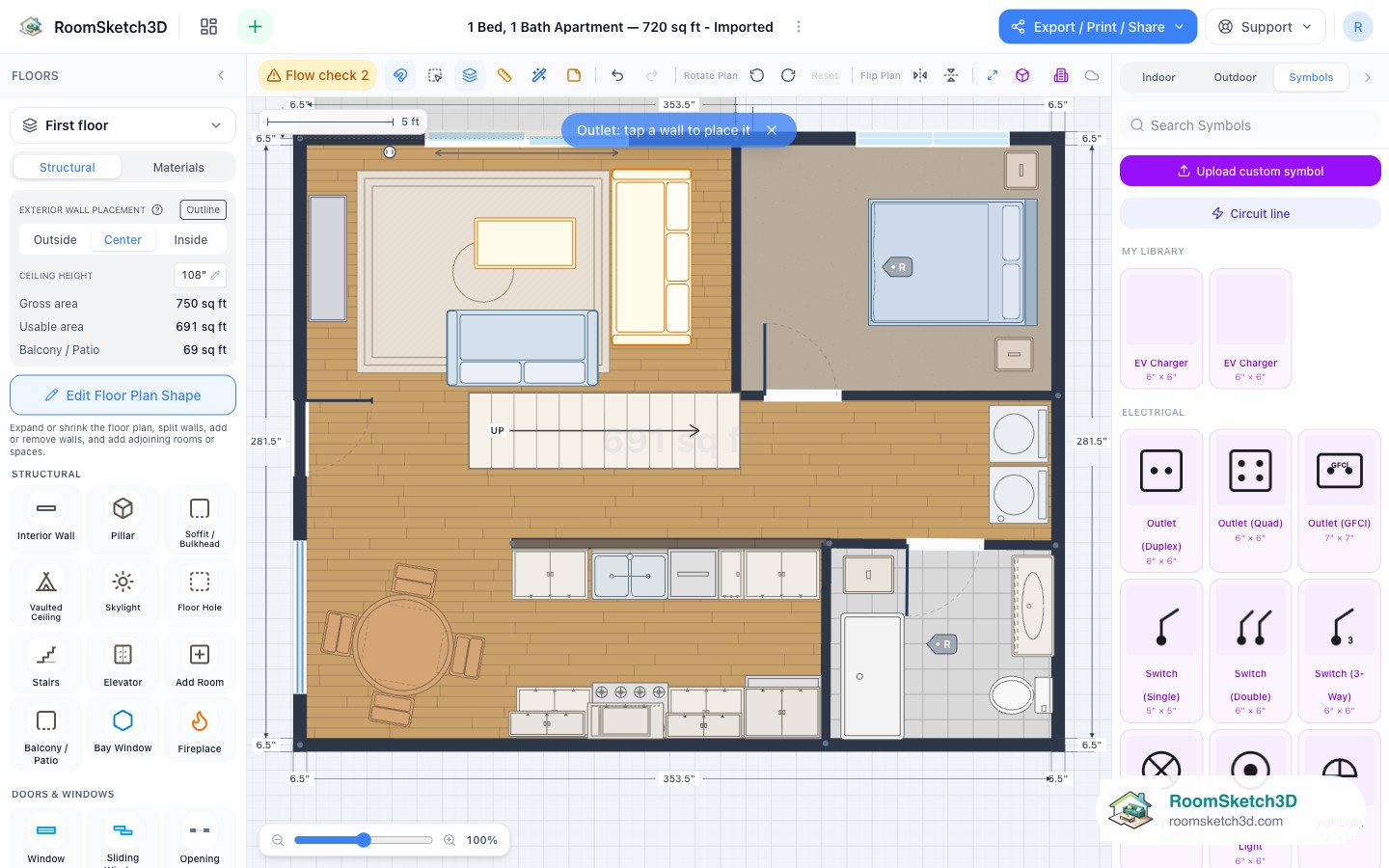

Place an outlet on a wall
Tap Outlet (Duplex) (or Outlet (Single) for a single receptacle), then +Add. The banner reads Outlet (Duplex): tap a wall to place it — tap the wall where the outlet goes and it snaps flush to that wall. Add as many as the run needs; most codes want a receptacle within six feet of any point along a wall, so roughly one every twelve feet. Outlet (Quad), Outlet (GFCI), Outlet (240V), Outlet (USB) and the other outlet types place the same way, and each draws its own standard symbol on the plan, so your electrician can tell them apart. The full list is in the FAQ below. Picked the wrong kind? Select the outlet and choose another kind from the drop-down in its settings; there is no need to place it again.
Outlets sit flush on the wall you tap, drawn at plan size. - 3
Add a switch beside the door
Tap Switch (Single) → +Add → tap the wall just inside the entry door, on the latch side where a hand naturally lands. Switch (Double), Switch (3-Way) and Switch (4-Way) are there for two-gang boxes and circuits controlled from two or three places, plus Switch (Dimmer) and Switch (Smart). Each draws its own symbol on the plan.
Switches beside the entry door, on the latch side. - 4

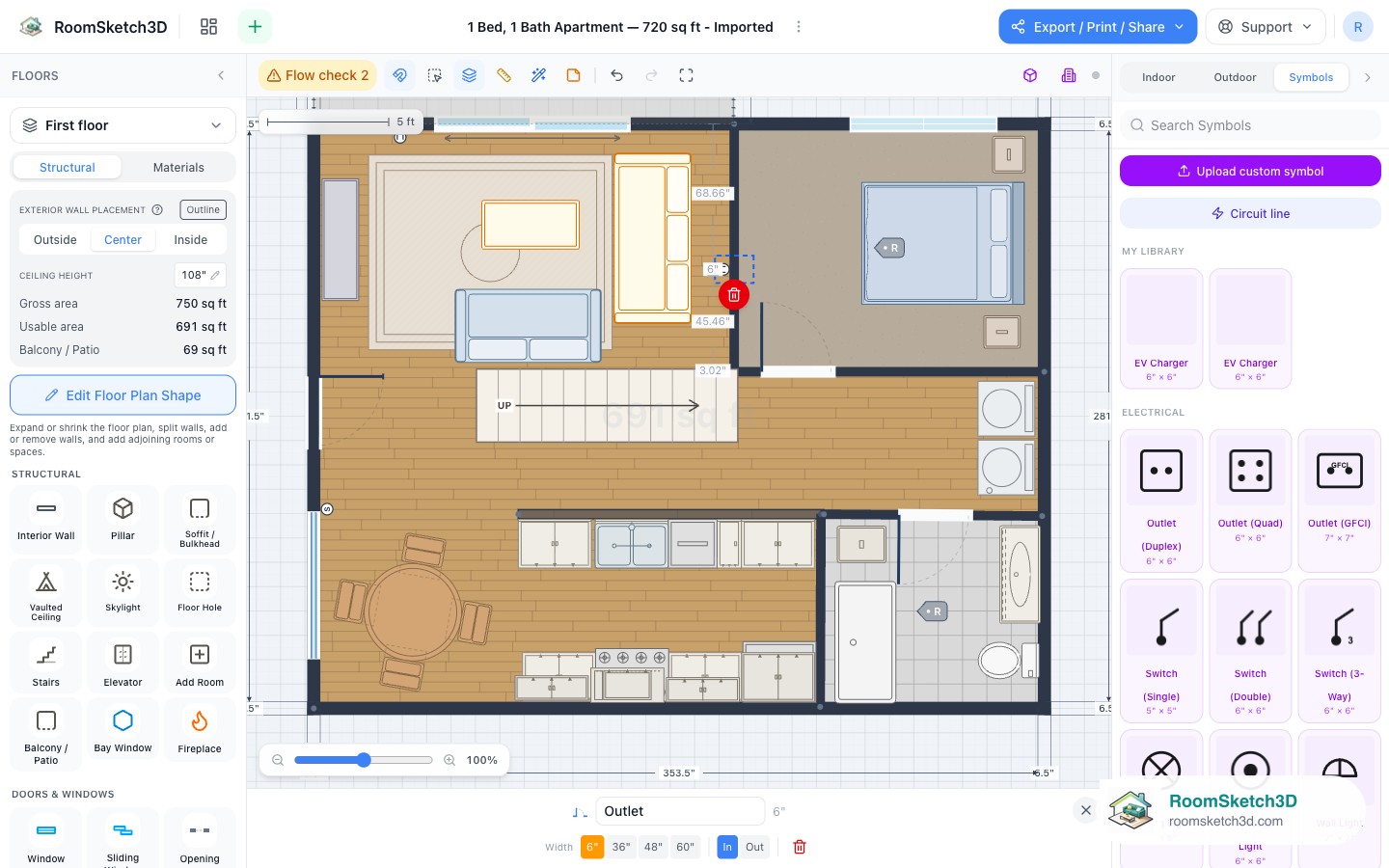

On an interior wall, choose the side
An interior wall has two rooms facing it. Tap the wall from the room the outlet or switch is for: it lands on the face you tapped from, so a bedroom switch tapped from inside the bedroom sits on the bedroom side. To move it to the other face later, pick In or Out in its settings card. The symbol flips to that side of the wall on the plan and in 3D. Here a double outlet behind a TV sits on the living-room face of a bedroom wall, so Out is picked.
In / Out picks the room an interior-wall device faces. - 5
Move or delete an outlet or switch
Drag a device along its wall to move it. It stays on that wall even if you drag past the corner; drag it over another wall to move it there. To delete one, tap its symbol: a round red delete button appears just above or below the symbol, so the symbol itself stays visible. Tap it (or the trash can at the bottom of the device's settings card, or press Delete). Undo brings it back.
Selected outlet: the red delete button sits just below the symbol. - 6
Set the kind, the height and the exact position
A selected outlet or switch opens its settings card (a floating card on a tablet or computer that you can drag by its top row; a panel along the bottom on a phone). Under the name: Along wall with two arrow boxes gives the distance to the nearest wall or opening on each side (← → or ↑ ↓, the way the wall runs on screen); type a number to move the device exactly. The padlock beside each box locks that distance, so the device keeps it when the wall changes and can't be dragged until you unlock it (see electrical floor plan guide#lock distance). In / Out picks the face. The kind drop-down changes a Duplex into a GFCI, a switch into a dimmer, or a switch into an outlet. Mount is the height of the bottom of the plate above the floor: 12 in for most outlets, 42 in for a GFCI, 46 in for a switch (about 48 in to its centre), and anything from 0 to 10 ft.
Kind, Mount and the Along wall distances in one card. - 7
Two or more devices in one box
To show a double outlet, a two-gang switch or a switch with a socket under it, tap Add outlet or Add switch in a device's card, or drag one device onto another until Drop to combine appears. Each device keeps its own kind and name; choose Side by side or Stacked (each with its own Mount). The whole walkthrough is in outlet and switch combinations.
Drag one device onto another to combine them. - 8
Label outlets and switches with breaker numbers
Select the outlet or switch (tap its symbol beside the wall). Its settings card opens, and the first box holds its name, which starts as Outlet or Switch. Tap the box, clear the old name, type the breaker number, for example Breaker 12, and press Enter (on a phone, tap the green check). Name every device on that breaker the same way. Only a name you typed is shown on the plan; a device still called Outlet stays unlabelled.
The name box is the first thing in the outlet's card. Type the breaker number and press Enter. - 9
Show the names on the plan
Names show whenever Show outlets, switches & symbols is ticked in View & Layers (the stacked-sheets button, first in the toolbar above the plan; the row is under Furniture & electrical). Ticking the Electrical plan view at the top of the menu turns it on too. Each name appears beside its symbol, without labelling every piece of furniture. It covers renamed lights, fans, data jacks and other symbols too, not just outlets and switches. This row shows or hides the devices themselves as well as their names: untick it and every outlet, switch, light, plan symbol and circuit line disappears from the plan (and can't be tapped) until you tick it again. Nothing is deleted, and the 3D view still shows the outlets and switches. The export dialog's Electrical symbols box starts the way this row is set, so tick it there if you hid them here and still want them in the file. The circuit lines also have their own indented row, Circuit lines, to hide just the wiring. It starts off on a new device and switches on by itself when you place a device or open a plan that has them, unless you hid it yourself. Show furniture labels doesn't show device names.
View & Layers → Show outlets, switches & symbols: the devices and their names. - 11
Check every device has its number
With the names on, read along each wall: every outlet and switch should carry its breaker number. Two outlets on the same breaker can share a name. Names sit clear of the symbol (not on a switch's lever), keep their size on the plan as you zoom, and shrink to no less than half size when you zoom out.
Names sit next to their symbols: Breaker 14 and Living lights. - 12
Print or export with the names
Open Export / Print / Share (top right) and choose PNG/JPG/PDF or Print. Under Options, keep Labels ticked: that is the switch that prints outlet and switch names (and room and furniture names). For a sheet without furniture, untick Floor plan and tick Electrical plan under Views; that also adds the Symbol legend & circuit table. Untick Room tints if you want no colour fills. Then use the Print tab, or Export as PNG or PDF. If you work on a phone, Labels starts unticked, so tick it first.
Labels prints the names; the Electrical plan view leaves out the furniture. - 13
Your printed breaker map
The exported plan shows every named outlet and switch with its breaker number beside the symbol, and a circuit line's name along its run. Stacked devices print their heights too. With Symbol legend & circuit table ticked, a Symbol legend under the drawing lists each kind of device with its count, and when the plan has circuit lines a Circuits table below it shows each circuit by name with the devices on it, in run order (for example Breaker 7 followed by Outlet (Duplex) ×3). Tape it inside the panel door, or hand it to your electrician.
The exported PNG: names and stacked heights print next to the symbols. - 14

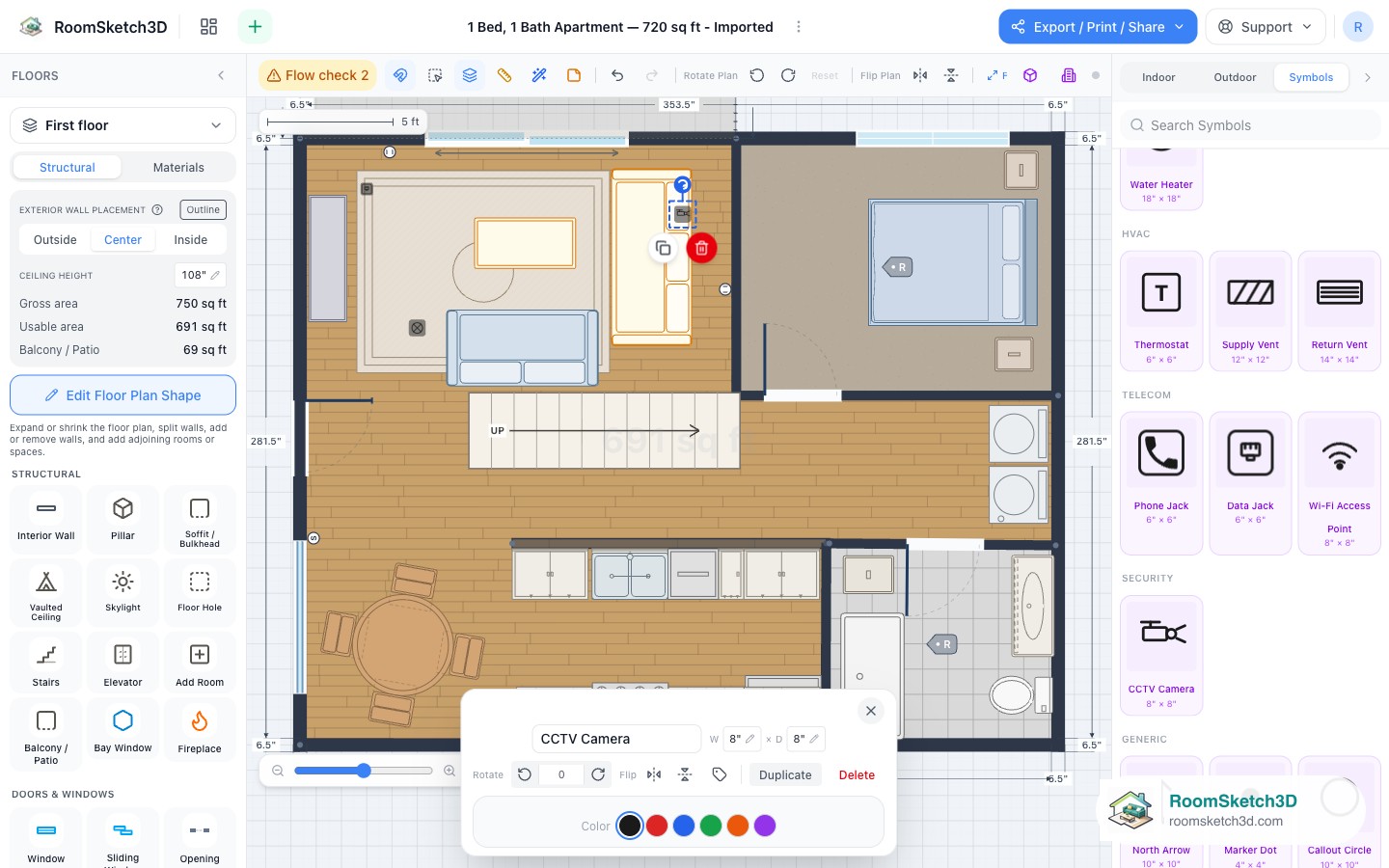

Drop lights and low-voltage symbols
Free symbols behave like furniture: tap Ceiling Light → +Add and it lands in the middle of the room; drag it to where the fixture hangs. Do the same for Recessed Light, Ceiling Fan, Smoke Detector, a Data Jack, a CCTV Camera, or an HVAC Supply Vent. Select any symbol to resize it, colour it, or rename it in its name box (a light can be Breaker 7 or Bedroom fan too). A renamed light, fan, data jack or any other symbol shows its name on the plan just like an outlet, while View & Layers → Show outlets, switches & symbols is on. A symbol you haven't renamed shows only its icon. Wall Light, Under-Cabinet Light and Doorbell are the exception to dropping in the room: tap a wall to place them, and they stay on that wall when dragged.
Lights, jacks, and cameras drop at the room centre and drag anywhere. - 15

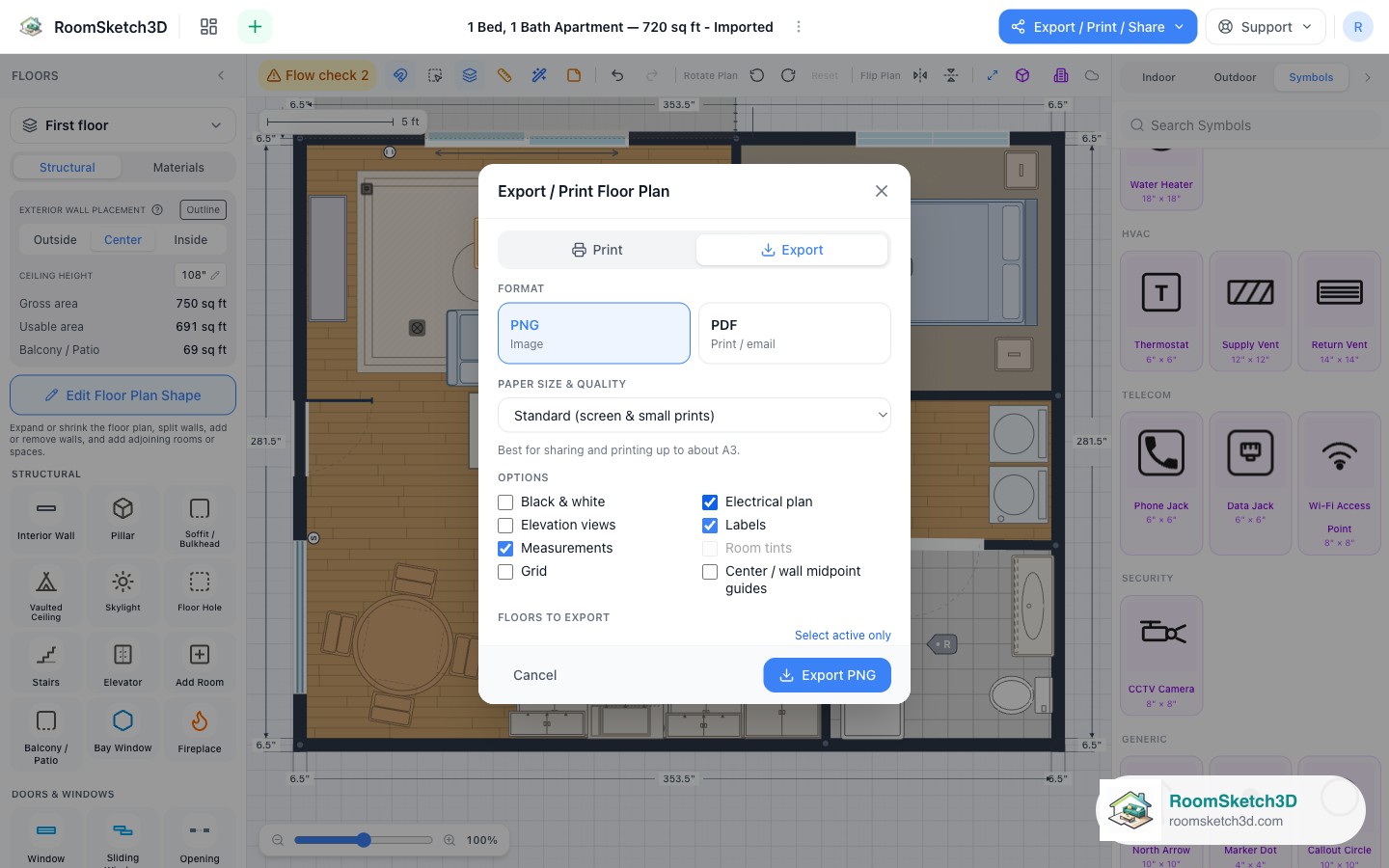

Export the electrical layer
Open Export / Print / Share → PNG/JPG/PDF or Print. Under Views, untick Floor plan and tick Electrical plan: furniture, room colour fills and interior dimensions are left out, leaving the shell, the symbols, and the light fixtures, and Symbol legend & circuit table is ticked. The symbol legend under the drawing lists every kind of outlet, switch, light and symbol on the plan, with how many there are. If you've drawn circuit lines, a Circuits table follows with each circuit and what's on it. (Until November 17, 2026 this was one Electrical plan checkbox under Options; the legend is now its own option you can add to any export.) Keep Labels ticked if your devices have names. Combine it with Black & white for a pure line drawing, or add Elevation views as extra pages. Symbols and circuit lines print on other exports too, as long as the dialog's Electrical symbols and Circuit lines boxes are ticked (they start the way View & Layers shows them).
Views → Electrical plan: the shell, the devices and the legend.
Tips
Outlets go on walls, lights go in rooms
If a symbol won't drop where you tap, check its kind: outlets, switches, wall lights, under-cabinet lights and doorbells need a wall under the tap; ceiling and low-voltage symbols need a tap-free +Add, then a drag.
Search by trade word
Type outlet, switch, vent, jack, or camera in the Symbols search — the library is filtered instantly, including your uploads.
Plan the switch where the hand lands
Inside the door on the latch side, about 48 inches up to the centre (the default Mount puts the bottom of the plate at 46 inches). For a room with two entrances use Switch (3-Way) at each.
Next: connect them
Once the devices are down, the Circuit line tool links them into runs, and you can name each run after its breaker too — see circuit lines.
One name, one breaker
Use the same wording everywhere (Breaker 12, not B12 on one outlet and Circuit 12 on the next), so the printed map reads like the labels in your panel.
Common mistakes
Placing an interior-wall outlet on the wrong face
The device goes on the face you tapped from, so tap the wall from inside the room it serves. Tapped from the hallway by mistake? Flip it with the In / Out toggle under Sides.
Exporting with furniture still shown
A furnished plan buries the symbols. Tick the Electrical plan view (and untick Floor plan) in the export dialog so the trades see only what they need.
Hunting for outlets in the Indoor tab
They live in Symbols. The Build panel holds structure (walls, doors, stairs); Symbols holds trade markup.
Typing the number after the old name
The name box keeps Outlet until you clear it, so typing straight in gives OutletBreaker 12. Select the old text first, then type.
Naming devices but leaving the layer off
Names are saved even when you can't see them. Turn on View & Layers → Show outlets, switches & symbols to see the devices and their names on screen, and keep Labels ticked when you print or export.
Frequently asked questions
Can I put an outlet on an interior wall?
Yes. Outlets, switches, mirrors, and wall safes place on interior walls as well as exterior ones. The inspector's In / Out toggle picks which side of the wall — which room — the device faces.
My outlets and switches disappeared from the plan. Are they deleted?
No. Open View & Layers and tick Show outlets, switches & symbols (or the Electrical plan view; unticking that view hides them too). While it's off, outlets, switches, lights, other plan symbols and circuit lines are hidden from the 2D plan and can't be tapped. They stay in your design and in the 3D view; while the row is off, the export dialog opens with Electrical symbols unticked, so tick it there to include them in a file. The row starts off on a new device and turns on by itself when you place a device or open a plan that has them.
How do I delete an outlet or switch?
Tap its symbol to select it. A round red delete button appears just above or below the symbol (it no longer covers it); tap it. The trash can in the device's panel at the bottom does the same, and Undo brings it back. Any circuit line it was on is trimmed or rejoined; see circuit lines.
Do the symbols show up in 3D?
Partly. Outlets and switches show on their walls in the 3D view at their Mount heights (a combination shows as one multi-gang plate or frame, each device in its own slot), and the Floor Outlet shows on the floor. Other symbols (lights, fans, detectors, jacks, cameras, vents, and your own uploads) appear on the 2D plan and in every export and print, but not in 3D.
How do I change an outlet's height?
Select it and type the height in Mount: the height of the bottom of the plate above the floor. Defaults are 12 in for most outlets, 42 in for GFCI, 18 in for 240V and weatherproof, and 46 in for switches.
Can I put an outlet and a switch in the same box?
Yes. Drag one onto the other, or select one and tap Add outlet or Add switch. See outlet and switch combinations.
How do I get a plan that shows only the electrical layout?
In Export / Print / Share → PNG/JPG/PDF or Print, under Views untick Floor plan and tick Electrical plan. It leaves out furniture and keeps the shell, symbols, light fixtures, labels and the Symbol legend & circuit table; untick Room tints for no colour fills. Untick Circuit lines for the devices without the wiring. See electrical floor plan guide for a separate plan per trade.
Is there a plumbing or HVAC set too?
Yes. The Symbols library includes shut-off valves, floor drains, hose bibs, a water heater, thermostat, supply and return vents, phone and data jacks, Wi-Fi access points, CCTV cameras, and generic markers — plus anything you upload yourself.
How do I label outlets and switches with breaker numbers?
Select the outlet or switch, clear the name box at the left of its panel, type the breaker number (for example Breaker 12) and press Enter. Turn on View & Layers → Show outlets, switches & symbols to see the names on the plan, and keep Labels ticked in Export / Print / Share → PNG/JPG/PDF or Print so they print. You can also name a circuit line after its breaker.
My outlet and switch names don't print. What's wrong?
Check four things. 1) In the Export / Print Floor Plan dialog, Labels must be ticked; it prints the names (on a phone it starts unticked). 2) The device needs a name you typed: one still called Outlet or Switch has no label. 3) Outlet and switch names need the latest version of the app (names on printed plans arrived on October 3, 2026), so reload the page or update the app. 4) An outlet with a dashed amber outline was dragged onto the plan before October 7 and isn't attached to a wall yet: select it and tap Attach to nearest wall. Names also print in PNG and PDF exports, and the DXF (CAD) export puts outlets, switches, their names and circuit lines on its ELECTRICAL layer.
Which outlets and switches are in the library?
US pack outlets: Outlet (Single), Outlet (Duplex), Outlet (Quad), Outlet (GFCI), Outlet (20A), Outlet (240V), Outlet (Weatherproof), Outlet (Switched), Outlet (USB), Outlet (Tamper-Resistant), Outlet (Isolated Ground), Outlet (AFCI), Outlet (Range), Outlet (Dryer) and Floor Outlet. US switches: Switch (Single), Switch (Double), Switch (3-Way), Switch (4-Way), Switch (Dimmer), Switch (Smart), Switch (Pilot Light), Switch (Key), Switch (Timer), Switch (Occupancy Sensor), Switch (Weatherproof) and Switch (Low Voltage). The Europe pack has earthed, unearthed, double, triple, switched, outdoor IP44, USB and 400V 3-phase sockets, plus one-way, 2-gang, two-way, intermediate, dimmer and push-button switches. Shared by both: ceiling, recessed, wall, pendant, track and under-cabinet lights, a ceiling fan, an Electrical Panel, smoke, CO and combined detectors, a doorbell, a motion sensor and a junction box.
The symbol I need isn't there. What can I do?
Pick the closest standard symbol and name it (for example an Outlet (Duplex) named Breaker 12 – 30A twist-lock), or draw your own and add it with Upload custom symbol in the Symbols panel. An uploaded symbol drops into the room like a light rather than onto a wall, so it doesn't appear in 3D, but it can be named, labelled and joined into circuit lines. Send the list of symbols you're missing through Support; those requests decide what's added next.
