Circuit lines — link symbols into named runs and route them along the walls

Tap each device in a run to draw a circuit line, and tap empty space to bend it along the walls (drag a bend to move it). Finish with Enter, Done, a double-click or a second tap on the last symbol; tap the first symbol again to save and stop. Then add devices or bends, move or remove them, pick any colour and solid or dashed. Lines follow moves, update when you delete a device, and print with your plan.

6 minUpdated 2026-11-17

More videos

Label Outlets & Switches With Circuit Breaker Numbers on a Floor Plan

Name each outlet and switch with its breaker number, show the names on the plan, draw the circuit, and print it.

A circuit line is the run an electrician draws to show which devices share one feed: outlets on one breaker, or a switch and the lights it controls. In RoomSketch3D you draw it by tapping the devices in order, and tapping empty space where the run should turn, so it follows the walls instead of cutting across the room. The line attaches to the symbols themselves, and each end sits right on its symbol. Lines are dashed by default and can be made solid, and each can have any colour.

Because it's attached, the line keeps up with the plan. Move a light and its run follows. Delete an outlet and it comes off its line, and the devices on either side join up. A finished line can be extended at either end, or have one device taken off it. The circuit's name stays upright when you rotate the plan, and the lines print on images, PDFs and prints (the export dialog's Circuit lines box starts the way View & Layers → Circuit lines is set). Export / Print / Share → Schedules (Excel) turns them into a cable list with the length of every run: see schedules room list and cable list.

Mapping breakers? Name each circuit after its breaker (Breaker 12) and give the outlets and switches on it the same name. Outlet and switch naming is covered in electrical plan outlets switches symbols.

What you'll need

  • •A plan with at least two symbols placed (see Draw an electrical plan)

Step by step

  1. 1

    Arm the Circuit line tool

    In the Symbols panel tap Circuit line. The button changes to Exit circuit line and a hint appears at the top of the plan: Click each symbol to connect them. Click empty space to add a bend; drag a bend to move it. Double-click, or click the last symbol again, to finish · Enter to finish · Esc to cancel. On a phone or tablet it reads Tap each symbol … Tap the last symbol again to finish · Done to finish · ✕ to cancel. The hint bar has a Done button and a ✕ on every device. In a narrower window, or with both side panels open, the hint wraps onto two or more lines so all of it stays readable.

    Armed: the hint bar explains bends and the ways to finish.
  2. 2

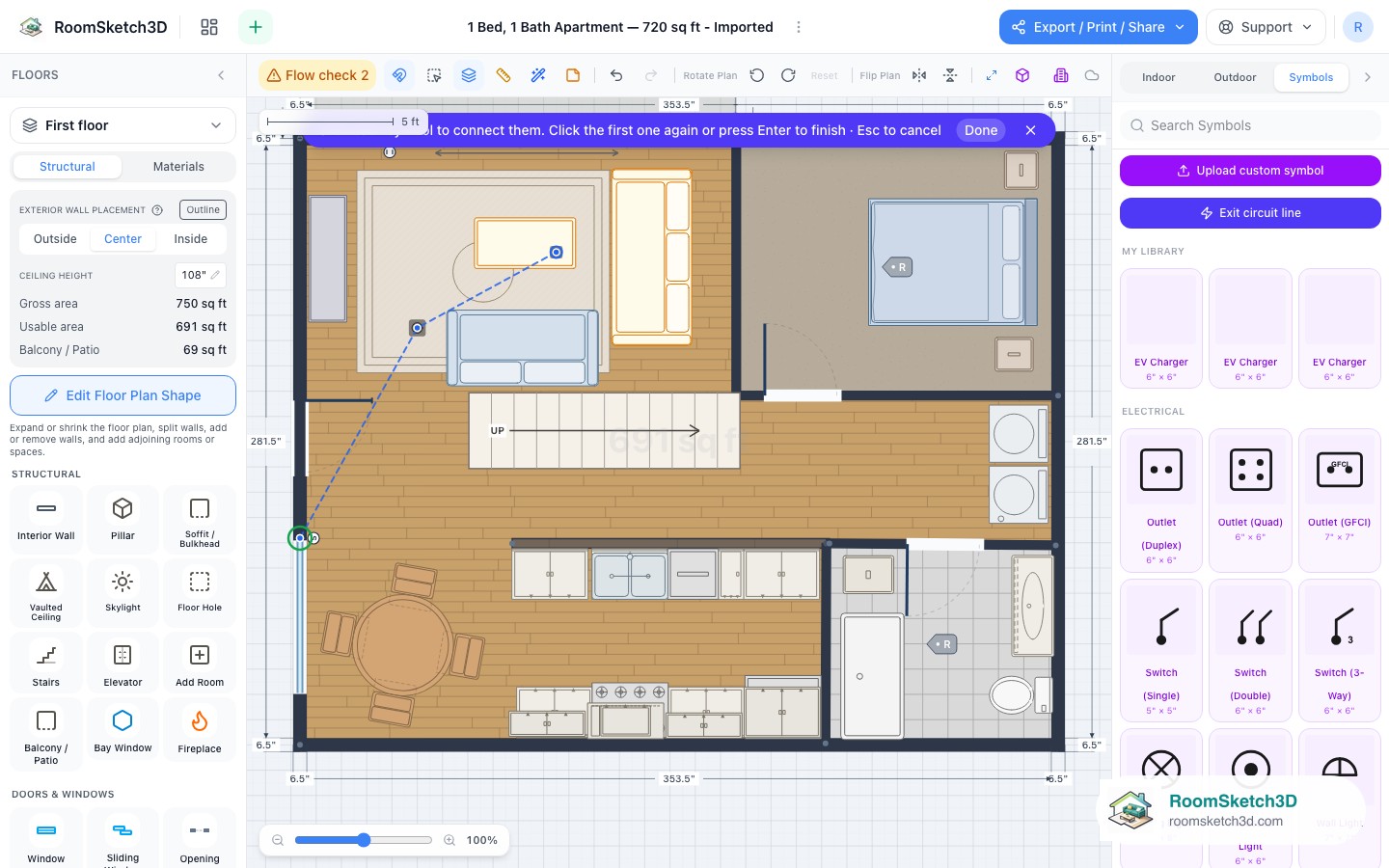

    Tap the devices in order

    Tap the symbols in the order the cable runs: for a lighting circuit, the switch and then the light it controls; for outlets, one outlet after another. Each tap extends a dashed draft line that ends on the symbol itself. The run is numbered automatically (Circuit 1, Circuit 2 …). The first tap has to be a symbol: tapping empty floor before it shows Tap a symbol to connect it and adds nothing. After the first symbol, a tap on empty floor adds a bend (next step). Symbols keep their size on the plan as you zoom, so zoom in on a busy wall before tapping one device of a group.

    Switch first, then the light it controls.
  3. 3

    Route the line along the walls: tap empty space for a bend

    Between two symbols, tap an empty spot where the run should turn. The line goes from the last point to that spot, then on to whatever you tap next. A bend close to straight across or straight up and down on your screen (within about 12 degrees) is squared up for you, so you get clean right angles even on a rotated plan. Here the outlet circuit runs down the right-hand wall, bends once in the corner, and continues along the bottom wall to the outlets at each end of the sofa. A line always starts and ends on a symbol; a bend after the last symbol is dropped when you finish. Put a bend in the wrong place? Drag its small square to move it while you are still drawing; no need to finish first.

    One tap in the corner: the run follows both walls.
  4. 4

    Bends around the room: a light circuit

    The same works for a lighting run. From the dimmer by the front door, a tap straight above it starts the run up the room; the preview shows the next leg squared to the bend, ready for a tap on the ceiling light. Bends cost nothing on the export: the circuit list only names the devices.

    Dimmer → bend → ceiling light, drawn with three taps.
  5. 5

    One switch to two lights: two lines from the same switch

    A Switch (Double) that runs a light and a fan, or one switch feeding several fixtures, is two lines from the same switch. Draw the first one (switch → light), then tap the switch again: since November 17, 2026 that saves the line and stops, with a blue note Line saved. Tap a symbol to start the next line. Tap the switch once more to start the second line from it, tap the fan, and finish. Repeat for each fixture. (Before, the second tap on the switch started the new line straight away; it now waits, so a line never keeps drawing by surprise.) Tapping the first symbol again is also how you close a loop: a line that is just that device plus bends runs back to it and is saved as a ring.

    Tapping the first symbol again saves the line; tap it once more to start the next.
  6. 6

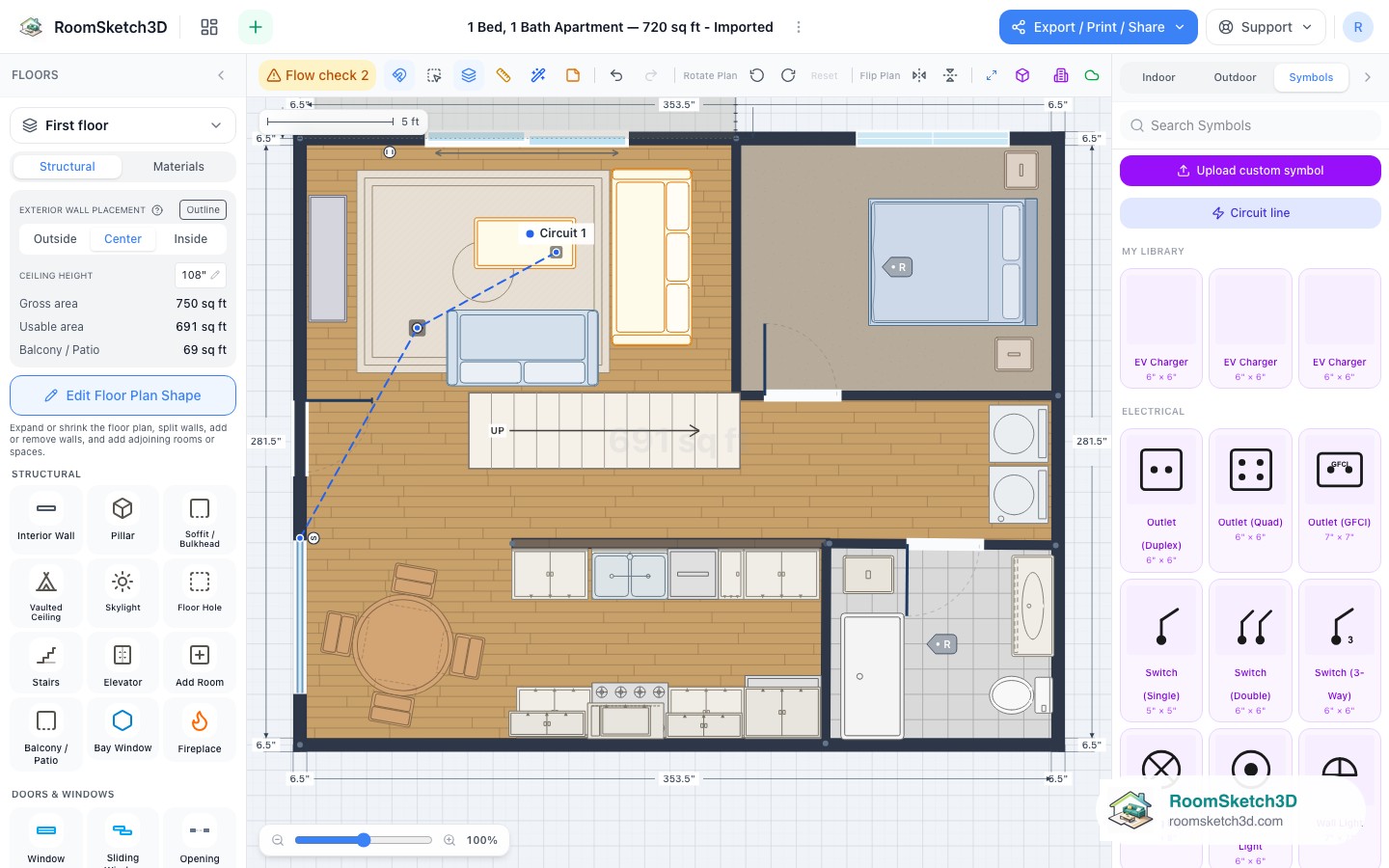

    Finish the run

    Press Enter, tap Done in the hint bar, double-click, or tap the last symbol again. The draft becomes a circuit with its name (Circuit 1) along the dashed line, placed clear of the devices and furniture. The tool stays on, so you can draw the next run straight away: here the outlets get a line of their own. When you've drawn them all, tap Exit circuit line (or the ✕ in the hint bar). A draft with only one device in it is dropped. Finish before the line reaches a second symbol and the bends you drew are kept, with the note A line has to end on a symbol. Tap a symbol to finish it, or ✕ to cancel, so an accidental double-click never erases a half-drawn run. Rotate the plan view and the names stay upright; zoomed out, circuit names shrink down to half size.

    Two lines from the double switch, plus an outlet run.
  7. 7

    Name the circuit after its breaker

    Tap the circuit's name on the plan (or tap the dashed line) to select it. Its settings card opens (floating on a tablet or computer, along the bottom on a phone) with the name box first: type the breaker number, for example Breaker 3, and press Enter. Clearing the name puts back Circuit N. The same card recolours the circuit (blue, red, green, orange, purple or black, or any colour with the rainbow circle after them, which opens your device's colour picker), sets Line to Solid or Dashed (dashed is the default), or deletes it.

    Name, colour, Solid / Dashed and Delete for the selected circuit.
  8. 8

    Add devices to a finished line

    Select the line (tap its name or the dashed line). A blue + (Add to this line) appears just past each end, and the line's card reminds you: Drag a + in the middle of the line to add a bend, and drag a bend to move it. Tap + at an end to add symbols. Tap a dot or bend to remove it, or drag a dot onto another symbol. Tap the + at the end you want to continue from.

    A selected line: + at each end, trash to delete it.
  9. 9

    Tap the new devices, then Done

    The hint changes to Tap symbols to add them to this line, or empty space to add a bend · Done to finish. Tap each device to add, in order (and empty spots for bends), then tap Done (or press Enter). They join the same circuit, with the same name and colour, so a breaker map stays one line per breaker. Esc stops without changing the line.

    Extending Circuit 3 to the outlet by the dresser.
  10. 10

    Add, move or remove bends on a finished line

    Select the line. Each stretch long enough to hold one shows a small + in its middle (it slides aside so a name plate never covers it): drag it to pull a bend out of that stretch. Drag a bend to move it; it lines up with the points on either side when it comes close. To remove a bend, tap it and then the red − (Remove from this line). This is how you tidy a line drawn straight across the room into one that follows the walls.

    A selected line: + at the ends, bends and dots along it, its card on top.
  11. 11

    Take a device off a line

    Select the line and tap the dot on the device you want off it. A red − button (Remove from this line) appears beside the dot: tap it. Bends come off the same way. The device stays on the plan; only the line changes. Take off an end device and its piece of line goes; take off a middle one and the devices either side join up. If only one device would be left, the whole line is removed. To move a line's end to a different device instead, drag the dot onto that symbol.

    Tap a dot, then the red −: Remove from this line.
  12. 12

    Delete a device: its lines update

    Delete an outlet, switch or light and it comes off every line it was on, in the same step. A device at the end of a line takes its piece of line with it. A device in the middle drops out and its neighbours join up, so the run stays one circuit. A line left with one device is removed. Deleting a wall removes the outlets and switches on it from their lines the same way. Undo brings back the device and its lines together.

    Delete the middle outlet (left) and its neighbours join up (right).
  13. 13

    Move a device and its line follows

    Drag a light across the room, or slide an outlet along its wall, and every line attached to it re-routes with it. An outlet or switch moved onto another wall keeps its lines too.

    Lines are attached to symbols, not to spots on the plan.
  14. 14

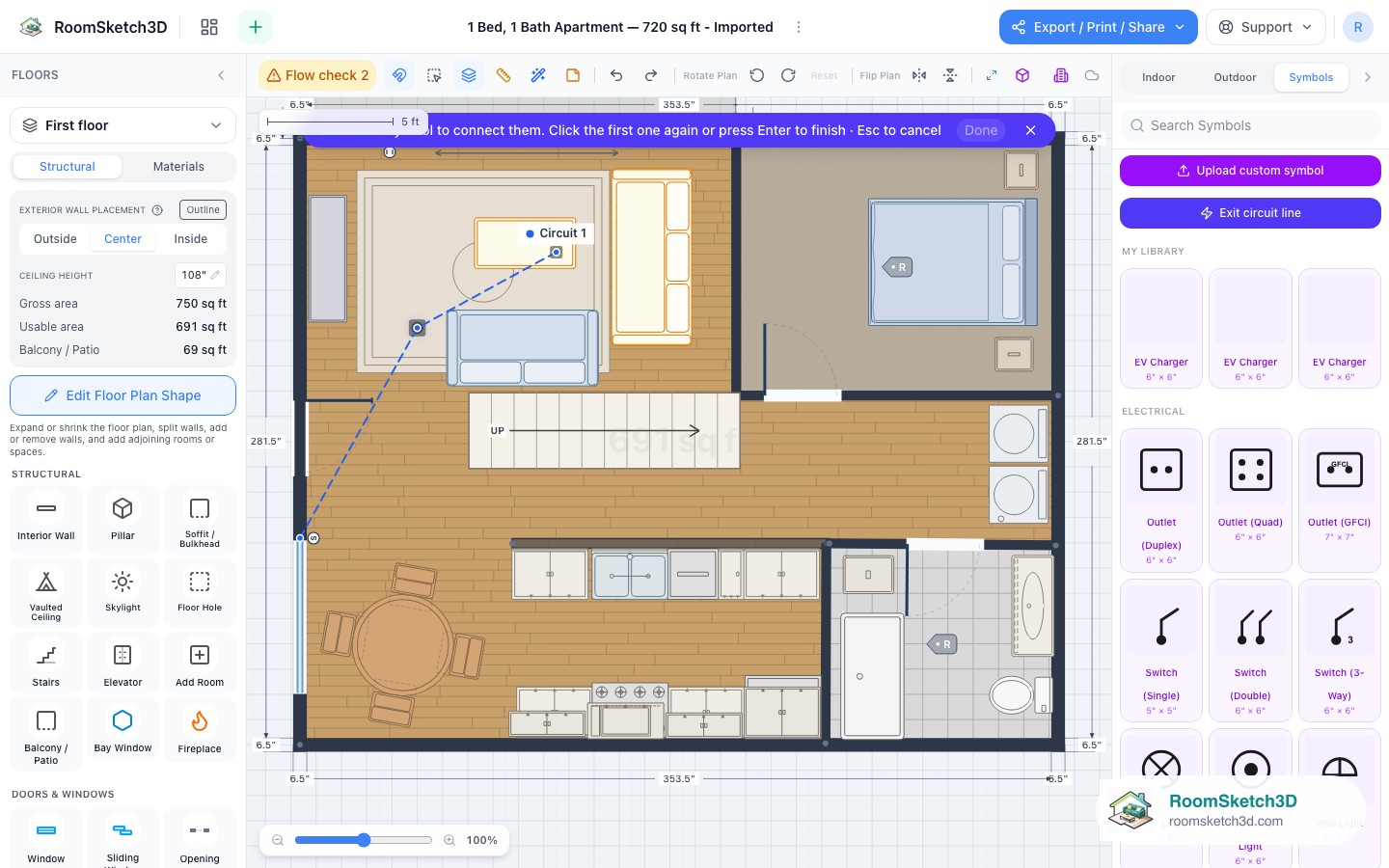

    Undo a hop while drawing

    Made a wrong connection? While the draft is open, Backspace, the toolbar Undo arrow, or Ctrl/Cmd+Z steps back one point at a time (a device or a bend); Redo puts it back. Esc cancels the whole draft (a second Esc leaves the tool). Nothing is saved until you finish or tap the first device again.

    Backspace / Undo pop one hop; Esc discards the draft.

Tips

Draw the run in wiring order

Panel side first, then device to device the way the cable would run, so the line reads like the real home run.

Double switch, two lights

Switch → first light, finish (tap the light again, Enter or Done), tap the switch to start again → second light, finish. You get two circuits, one per fixture; name them after what each half of the switch controls.

Finish without reaching for Done

With a mouse, double-click or click the last symbol a second time. The dashed preview also stops following the pointer once it leaves the plan.

Mix any symbol kinds

Outlets, switches, lights, valves, your own uploads: a circuit accepts any symbol, so a low-voltage run (jacks, cameras) works the same way.

One circuit per breaker

Use a new circuit for each breaker and name it after the breaker, so the print matches the labels in your panel. Forgot an outlet? Add it with the + at the end of that breaker's line rather than starting a new one.

Common mistakes

Expecting the first device to start the next line

Tapping the first device again saves the line and stops. To run another line from it, tap it once more.

Tapping empty floor first

A line has to start on a symbol, so a first tap on empty floor does nothing. Once the first symbol is in, empty-floor taps add bends: tap only where you want the line to turn.

Leaving the tool with a draft open

A draft that isn't finished is dropped when you tap Exit circuit line or ✕. Press Enter or tap Done first.

Deleting a device to take it off a line

Deleting removes the device from the plan too. To keep the device and only change the line, select the line, tap the device's dot and use Remove from this line.

Frequently asked questions

How do I show a double switch controlling two lights?

Arm Circuit line, tap the switch, then the first light, and finish (tap the light again, Enter or Done). Tap the switch to start the second line, tap the second light, and finish. You now have two circuits from the same switch.

How do I finish a circuit line?

Press Enter, tap Done, double-click, or tap the last symbol again. Tapping the first symbol again also saves it (as a loop if only bends follow it).

Can a circuit line be any colour?

Yes. Select it and tap the rainbow circle after the six preset colours; your device's colour picker opens and the line changes as you pick. One Undo puts the old colour back.

How do I add an outlet to a circuit I already drew?

Tap the line to select it, tap the blue + at the end you want to continue from, tap the new outlet (and any others), then tap Done. They join the same circuit with its name and colour.

How do I take a device off a circuit without deleting it?

Select the line, tap the dot on that device, and tap the red − (Remove from this line). If that leaves only one device, the line is removed.

What happens to a circuit line when I delete a device?

The device comes off every line it was on. An end device takes its piece of the line with it, a middle device's neighbours join up, and a line left with one device is removed. Undo restores the device and its lines in one step.

Do circuit lines move with the symbols?

Yes. A circuit line attaches to the symbols, so it follows when you move one, including an outlet or switch moved to another wall. To point one end of a line at a different device, select the line and drag that dot onto the other symbol.

Can I connect a custom uploaded symbol?

Yes. Uploaded symbols in My Library behave like built-in ones and can be part of any circuit.

How do I make a circuit line follow the walls instead of cutting across the room?

While drawing, tap empty spots where it should turn: each tap adds a bend, squared up when it's nearly horizontal or vertical. On a finished line, select it and drag the small + in the middle of a stretch, or drag a bend.

Can a circuit line be solid instead of dashed?

Yes. Select it and pick Line → Solid in its card. Lines are dashed by default; the export's circuit table shows each line's style next to its name.

Can a line end on one outlet of a double outlet?

Yes. In an outlet or switch combination every device is its own stop; tap the one the run belongs to. See outlet and switch combinations.

Do circuit lines print?

Yes, while the export dialog's Circuit lines box is ticked (it starts the way View & Layers → Circuit lines is set). They appear in PNG, PDF and print exports; with Symbol legend & circuit table ticked (the Electrical plan view ticks it), the sheet also lists each circuit (with its colour and solid or dashed style) and its devices under the symbol legend. The circuit's name prints when Labels is ticked in the Export / Print Floor Plan dialog. The DXF export draws each circuit as a polyline with its name on the ELECTRICAL layer.

My circuit lines disappeared. Where did they go?

Check View & Layers → Circuit lines, the indented row under Show outlets, switches & symbols (unticking the Electrical plan view also turns it off): with it off, the lines and their names are hidden and can't be tapped, while the devices stay. If the outlets and switches are gone too, tick Show outlets, switches & symbols. Nothing is deleted. Drawing a new circuit turns the Circuit lines row back on, and the export dialog's Circuit lines box starts the way the row is set.

How long is each circuit run?

Open Export / Print / Share → Schedules (Excel) on a computer and pick Cable runs: every stretch between two devices is a row with its length along the line, bends included, in your units. Download it as CSV or in one Excel file. Lengths are on the plan only; add the drops to each box and the run to the panel. See schedules room list and cable list.

Can I rename a circuit, for example to a breaker number?

Yes. Tap the circuit's name on the plan, or tap its dashed line, and type the new name in the box at the left of its panel. The same panel changes its colour or deletes it.
