Export, print & share — every option explained

One menu — Export / Print / Share — covers everything: crisp PNG images, smaller JPGs, PDFs, big-paper printing, CAD hand-off, a portable 3D model, a private backup file, and a public link anyone can view.

7 min readUpdated 2026-11-17

Everything lives under the Export / Print / Share button in the top bar. Its menu has Share with a link, PNG/JPG/PDF or Print, Photorealistic AI Renders, GLB, DXF and Backup. This guide walks through each option and when to reach for it: a PNG image for the sharpest picture, a smaller JPG for email and messages, a PDF for email and printing at a shop, Print straight from the app, a DXF for AutoCAD, a GLB 3D model, a Backup file you keep anywhere, and a public link for read-only viewing.

PNG, JPG, PDF and Print share one dialog, Export / Print Floor Plan, with a Print tab and an Export tab and the same options, so a plan styled once exports the same way everywhere. The dialog grows to fit what it holds, so on a computer screen every option shows without scrolling.

What you'll need

  • •A design you'd like to share or hand off
  • •About five minutes

In this guide

  1. 1

    PNG image — the sharpest picture

    Choose PNG/JPG/PDF or Print, then the Export tab and the PNG format (Image). PNG is lossless: every line and letter is stored exactly as drawn, which makes it the pick for slides, documents and anything you'll zoom into. Paper size & quality controls the resolution: Standard (screen & small prints) is best for sharing and printing up to about A3, and real paper sizes (A3, A2, A1, A0, Tabloid (11×17), ARCH D (24×36), ARCH E (36×48)) render more pixels, with Standard / High / Max quality, so the plan stays crisp on big paper. Above the options, Views has the same checkboxes as View & Layers (Floor plan, Interior design, Electrical plan and any view you saved), ticked the way they are on the plan; ticking or unticking one there switches its options below, for this export only. For an electrician's sheet, untick Floor plan and tick Electrical plan: the furniture, room tints and room-by-room dimensions drop out and the Symbol legend & circuit table is ticked. The Options choose what shows: Black & white (a pure line drawing), Furniture, Electrical symbols, Circuit lines, Symbol legend & circuit table (every kind of outlet, switch and symbol with a count, and the list of circuits, below the plan; until November 17, 2026 this was the Electrical plan checkbox), Labels, Exterior dimensions, Interior dimensions, Tape measurements, Room tints, Flooring, Tile layouts (when you saved one in the Tile Planner), Elevation views (the four exterior elevations as separate images), Grid, and Center / wall midpoint guides. Exterior dimensions is each outside wall's overall length; Interior dimensions breaks each wall's measurement where other walls meet it, so every room's inside width shows. They work independently: untick one for overall lengths only or room sizes only. Flooring (off to start, listed only when a room's flooring would print) prints the tile, wood or carpet you picked for each room instead of the soft room tint. The furniture, electrical, dimension, label, tape-measurement, sticky-note and tile-layout boxes start the way your View & Layers switches are set for this design, and furniture names and sizes print only if View & Layers shows them. See View & Layers for which box follows which layer. Pictures of both: exporting a plan image. When your plan has sticky notes, a Sticky notes option (ticked when View & Layers shows notes) adds a numbered pin for each note and saves the full note text as a second image (in a PDF or print it's page 2). See sticky notes. On a multi-floor design you pick which floors to export; each becomes its own file (and, with sticky notes, each floor's notes page comes as an extra image). The line under the floor list counts every file you'll get, notes pages and the four elevation images included (since November 8, 2026; before that it counted floors only).

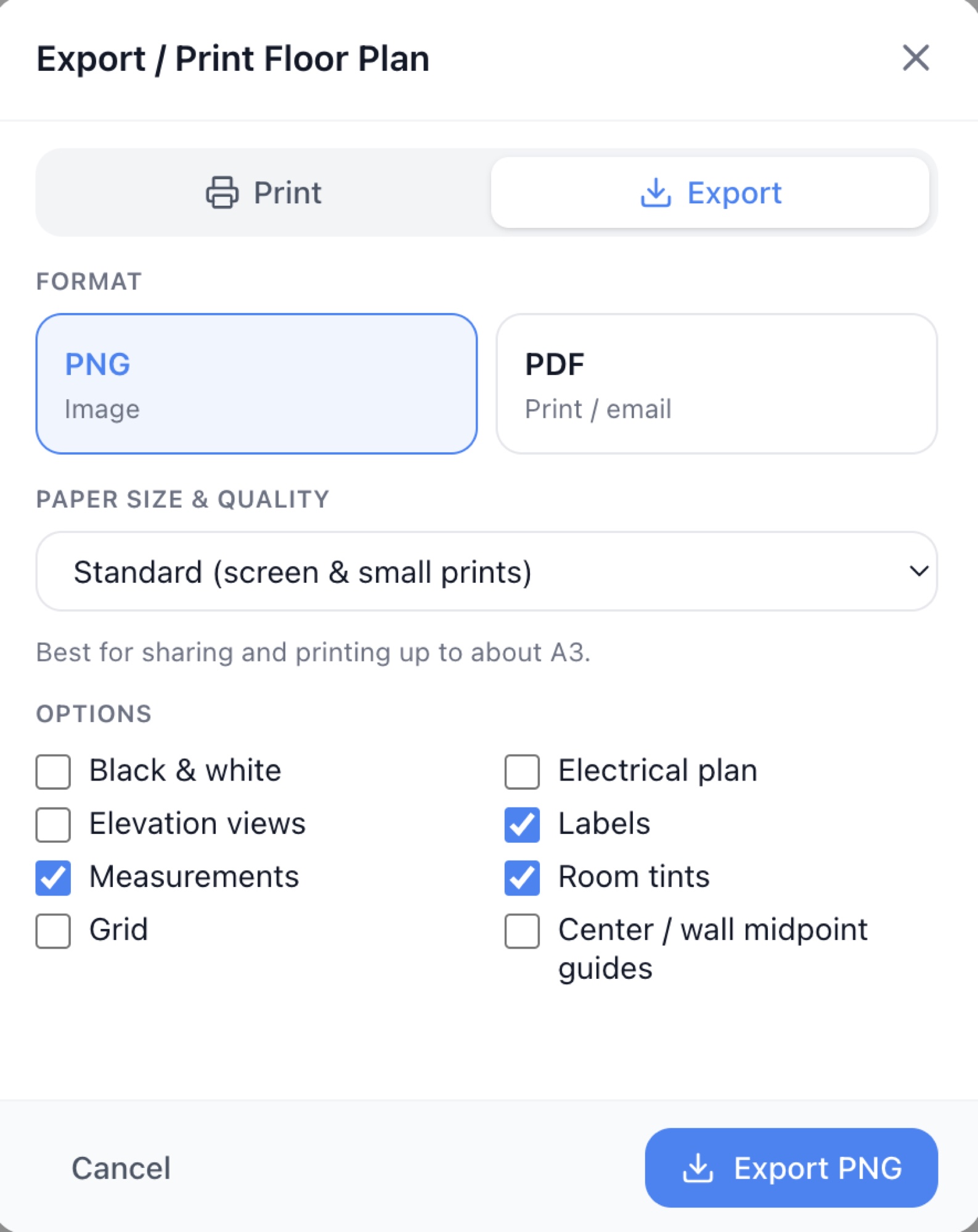

    PNG export: pick a paper size up to A0 / ARCH E, then the views and options that show on the plan.
  2. 2

    JPG image — a smaller file for email and messages

    Pick the JPG tile (Smaller image) and a JPG quality slider appears: 30 % to 85 %, starting at 85 %, the top (until November 8, 2026 it went to 100 %) (Higher quality gives sharper lines and a bigger file; lower quality, a smaller file). The button becomes Export JPG. Every PNG option works the same for JPG: paper size, Black & white, labels and dimensions, each floor as its own file, the sticky-notes page as a second image and the elevation views as separate images. A JPG can't be see-through, so the plan is laid on white (PNG exports are on solid white too). What we measured on the Medium 2-Bedroom Apartment template at the Standard size (3000 × 2793 pixels): PNG 419 KB, JPG 85 % 352 KB, JPG 60 % 235 KB, JPG 30 % 186 KB, and a PDF 335 KB. At 85 % the JPG looks the same as the PNG on screen; at 30 % small text and thin lines pick up blocky fringes when you zoom in. A floor plan is mostly flat colour, which PNG already stores well, so JPG saves less than it does on a photo, and at 100 % the JPG (1,188 KB) was nearly three times the PNG, which is why the slider now stops at 85 %: for perfect lines, export a PNG instead. Pictures and the full comparison: exporting a plan image.

    JPG: the quality slider starts at 85 %, and the button reads Export JPG.
  3. 3

    PDF — one file to email or print

    Switch the format to PDF (Print / email). The same Paper size & quality choices apply: leave it on Standard for an email attachment, or pick the paper you'll print on (A3, A1, ARCH D…) and a quality; the line under the buttons shows the detail you'll get (for example Up to ~220 DPI). The PDF is a high-resolution picture of your plan on a page, so for large prints choose the real paper size rather than enlarging a Standard file. The page follows the paper you pick: our Standard PDF came out as a Letter-size landscape page and the A3 one as an A3 page, and the plan inside is stored without JPG-style compression, so its lines stay as crisp as a PNG's (A3 + High: 486 KB on our test plan). Elevation views adds the four exterior elevations as extra pages. Click Export PDF.

    PDF: choose the paper size and quality, then Export PDF.
  4. 4

    Print — straight from the app

    The Print tab sends the plan to your printer, laid out to fill the page rather than a tiny thumbnail. Your paper size is chosen in your printer's dialog; Print quality (Standard / High / Max) sets how much detail is rendered, so pick a higher setting for large-format prints (A2 and up). The same options apply, and Elevation views adds the four exterior elevations as extra pages (five pages in total). On iPhone and iPad, Print opens the share sheet: choose Print (AirPrint) there.

    Print: pick the quality here and the paper in your printer's dialog.
  5. 5

    AutoCAD DXF — hand-off to the pros

    DXF (Layered 2D CAD drawing · AutoCAD) saves the 2D plan in the layered CAD format AutoCAD and other drafting tools read — it also opens in LibreCAD and most CAD software. Walls, doors, windows, furniture and dimensions each sit on their own layer, and your outlets, switches, their names and circuit runs go on an Electrical layer, and wall AC units (mini-splits, floor consoles, PTACs) on an HVAC layer. Walls are drawn open across doorways, the way a drafter draws them, and all of it is drawn in inches at true size with dimensions on the exterior walls. DXF captures the 2D plan (not 3D or textures); if you need native DWG, open the DXF in AutoCAD and Save As DWG. This option is on the desktop web app — it's a CAD workflow.

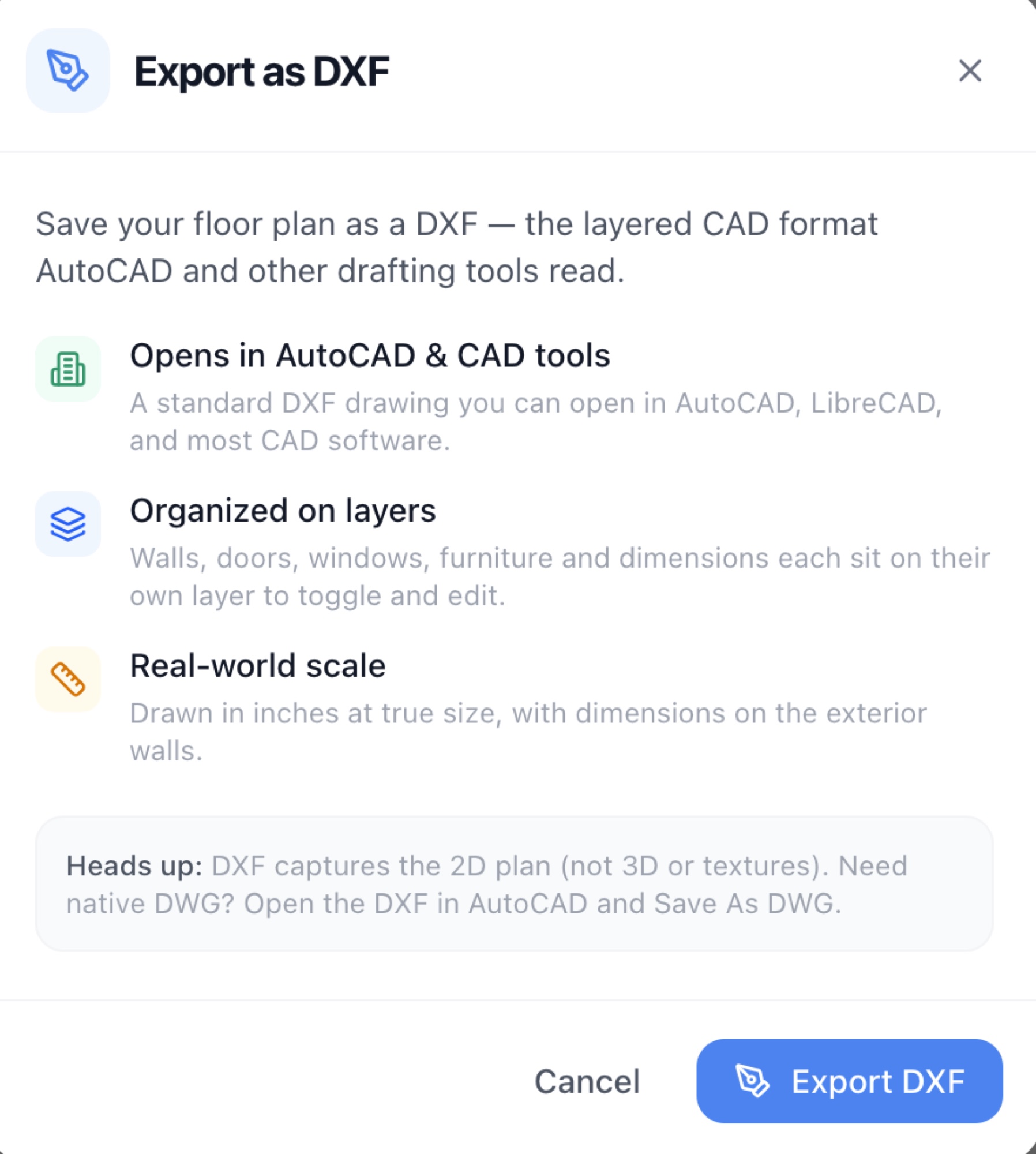

    A layered, true-scale drawing your architect can open directly.
  6. 6

    GLB — a portable 3D model

    GLB (3D model · AR · Blender · SketchUp) downloads the full 3D scene — walls, doors, windows, stairs, furniture; the same geometry the 3D view renders — as a `.glb` file at real-world size, in metres. Open it in Android Scene Viewer to place it in a real room with AR (on iPhone and iPad, Quick Look needs a USDZ file, so convert it first, for example with Apple's Reality Converter on a Mac), or import it into Blender, SketchUp, three.js, or Babylon.js for further editing and rendering; it comes in at the right size with no rescaling. Building the file takes a few seconds on a furnished plan; a toast tracks progress.

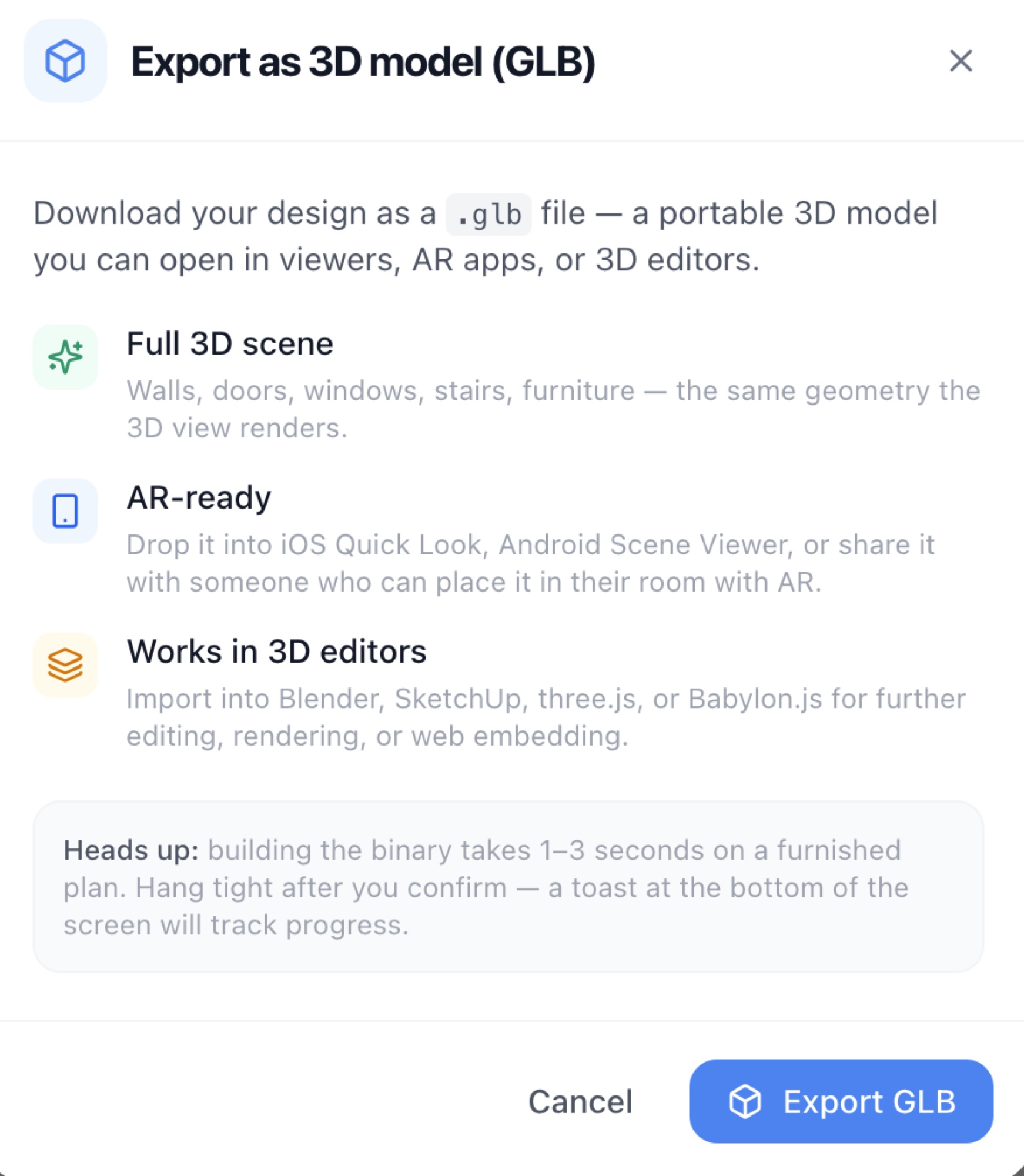

    One file that works in AR viewers and every major 3D editor.
  7. 7

    JSON — your own backup

    Backup downloads the complete design as a single `.json` file: room shape, walls, doors, windows, all furniture, and your view settings, exactly as they are now. Keep it on your computer, Google Drive, or Dropbox — anywhere outside our cloud — and bring it back any time with From Backup on Home (under Start a new floor plan), into your account or someone else's; the export dialog says the same, Home ▸ From Backup. Pick a file that isn't a design backup and Home says Invalid design file instead of importing it. One heads-up: the file is a plain-text snapshot, so treat it as privately as any backup.

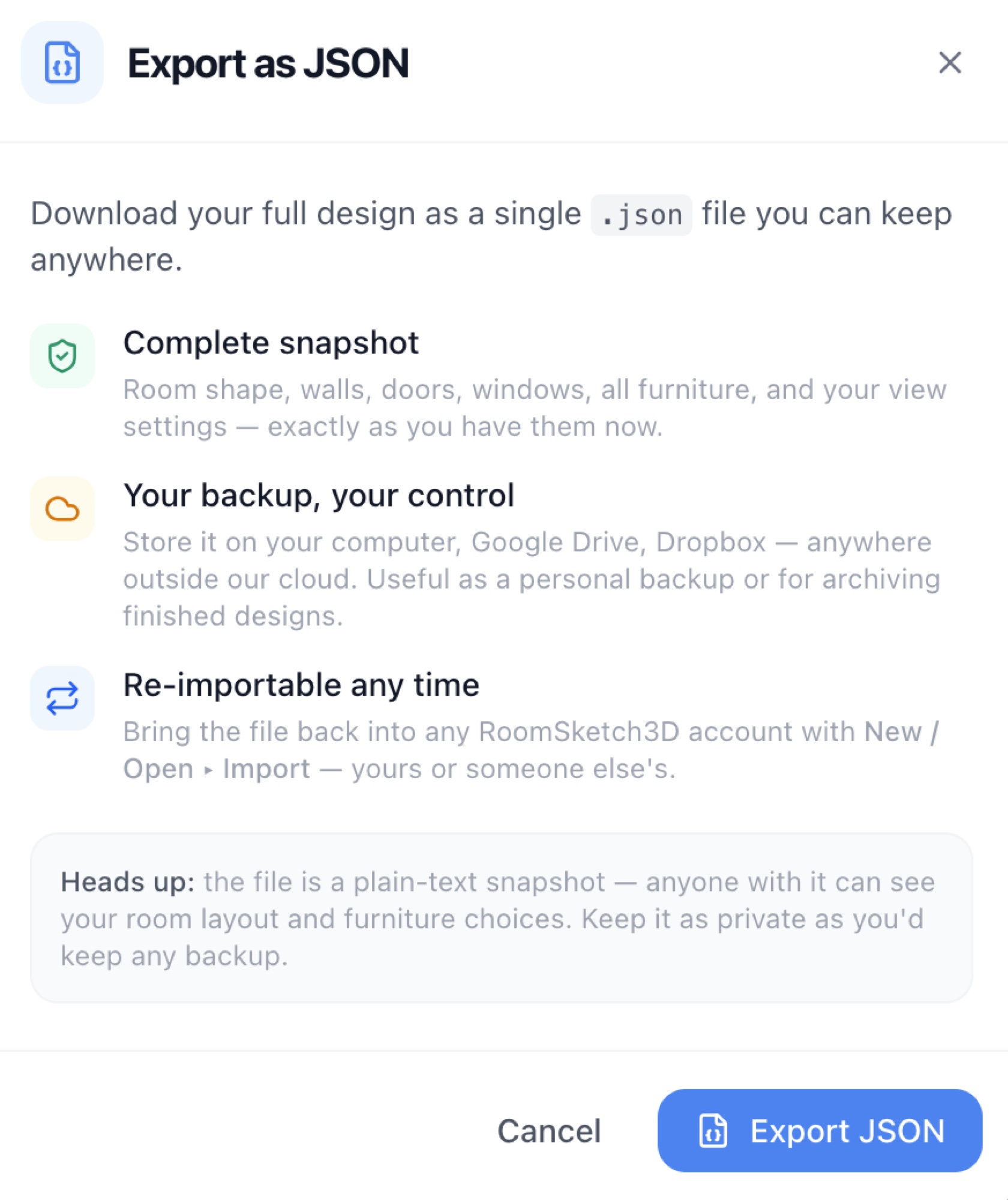

    A complete, re-importable snapshot you store wherever you like.

Tips

Match the format to the reader

Family or a group chat → public link (always current, nothing to attach), or a JPG if they need a picture. A slide or a document → PNG. Contractor on site → PDF or a printed copy. Architect → DXF. Another design tool or AR → GLB. Your own archive → JSON.

The Black & white toggle is made for printing

It strips the colors to a pure line drawing — cleaner on paper, kinder to toner, and closer to what contractors expect to mark up.

A public link beats re-sending files

The link always shows the design's current state — update the plan and everyone with the link sees the latest version, no re-export needed.

Common confusions

Exporting Standard PNG for a poster

Standard resolution is tuned for screens and prints up to about A3. For anything bigger, pick the real paper size (A0, ARCH E…) and High or Max quality so the export stays crisp, as a PNG, a JPG or a PDF.

Using the JSON file to share a viewable plan

JSON is a backup/transfer format — it needs to be imported into the app to be seen. To let someone just look at your design, send a public link; to give them a picture, export a PNG, JPG or PDF.

Looking for DXF on your phone

DXF export is a desktop CAD workflow, so it lives in the desktop web app's Export / Print / Share menu — you won't find it in the mobile apps.

Frequently asked questions

Which options include the furniture?

PNG, JPG, PDF, and Print include the furniture while the dialog's Furniture box is ticked (it starts ticked when View & Layers shows furniture; ticking only the Electrical plan view unticks it). The GLB carries the full 3D scene with furniture. The DXF includes furniture outlines on their own layer. The JSON stores everything, since it's a complete snapshot.

Why isn't my flooring on the exported plan?

Tick Flooring in the PNG/JPG/PDF or Print options. It starts unticked, so exports show the soft room tints unless you ask for floors. It's only listed when a room's flooring would print, and it's greyed out with Black & white. Ticking the Interior design view at the top of the dialog ticks it for you. The 3D view and GLB always show your floors.

Can I export every floor of a multi-story design?

Yes. The export dialog lets you tick which floors to include (Select all, or Select active only); each selected floor downloads as its own file.

Can someone with my public link edit my design?

No. Public links are strictly read-only — viewers can look around but nothing they do touches your design. Only you, signed into your account, can edit it.

How do I get the four elevation views into an export?

Tick Elevation views: a PNG or JPG export adds them as four separate images, and the PDF and Print add them as extra pages (five pages total). The option is in the web app (in a browser), not in the iPhone and Android apps. There's also an Elevation views screen (the building icon in the toolbar above the plan) to look at each side and name it; it has no download button of its own, so export through this option.

Which is the smallest file: PNG, JPG or PDF?

At the default settings they're closer than you might expect, because a floor plan is mostly flat colour that every format stores well. On the Medium 2-Bedroom Apartment template at the Standard size we got PNG 419 KB, JPG (85 %) 352 KB and PDF 335 KB. For a clearly smaller file, pick JPG and lower the quality: 60 % gave 235 KB and 30 % gave 186 KB. If the reader needs a picture rather than a page, the JPG is the one to send. Keep the paper size on Standard for email: bigger paper sizes add pixels and make every format bigger (A3 + High: PNG 672 KB, JPG 478 KB, PDF 486 KB). The slider stops at 85 % (since November 8, 2026) because higher settings made the JPG bigger than the PNG: 100 % gave 1,188 KB.
