Labels, room tags, sticky notes — and naming any object
Pick how room labels read (marker, name, size, area) and how big, tap a label to rename or colour the room, add labels for open-plan areas, drop sticky notes, and give any door, chair, or wall a name of your own.
RoomSketch3D names rooms for you the moment walls enclose them — Kitchen, Bedroom, Bath — and can show each room's size and floor area on its label. You choose how much a label says (a small marker, the name, the name and size, or the name, size and area) and how big the text is, and the choice is saved with the design and printed in its exports. Tap a label and the room card opens, to rename the room, give it a colour, or jump to its flooring.
A plan you hand to someone else usually needs a little more: a name on the nook that isn't a room, a note about the wall you're not sure of, a door called by the room it opens into.
There are three tools for that, and they all travel with the plan into your exports: room labels you place yourself, sticky notes (they print as numbered pins, with the full text on a Notes page), and an editable name on any object.
Step by step
- 1
See the automatic room names
Any space closed off by walls gets a name, an area, and its own flooring as soon as it's enclosed; you don't need to add a door first. New designs show every room's name on a white plate. Rooms in the ready-made templates come named (Living & Kitchen, Bedroom, Bathroom); a room you draw yourself reads Room until you name it. Designs saved before November 17, 2026 keep the look they had on that device (small letter markers, or full labels), so nothing changes by itself. Choose a label style (next step) to change it.
A new design: every room shows its name. - 2
Choose how room labels read: Label style
Open View & Layers (the stacked-sheets button, first in the toolbar after Flow check). Under Show room labels there's a row that reads Label style: Name · Medium; tap it and two sets of buttons open: - Show: Marker (a small tag with the first letter), Name, Name + size (inside width × length) or Name + size + area (and the floor area inside the walls). - Text size: Small, Medium or Large. Under them: Saved with this design and used in its exports. The style belongs to the design, so it looks the same on every device and in every PNG, JPG, PDF or print of it. These buttons replace the old Keep labels expanded and Show room dimensions and area rows. More on the rest of the sheet: View & Layers.
The same bedroom in each style: Marker, Name, Name + size, Name + size + area. - 3
Make labels bigger or smaller
Text size scales every room label: Large for a phone screen or a plan you'll print and pin on a wall, Small for a busy plan with many small rooms. Only the room labels change; furniture names and wall measurements keep their size. The label still grows and shrinks as you zoom.
Small vs Large text, same room, same zoom. - 4
Tap a label: the room card
Tap (or click) a room's label in any style, a marker included. The label is outlined in blue and the room card opens, floating over the plan on a computer and as a sheet at the bottom on a phone: - Name: type a new name; it's kept when you press Enter or leave the box. Clear it to go back to the automatic name. - The room's inside size and floor area (10′ 7″ × 12′ 7″ · 133 sq ft). - Color: Automatic (the soft tint RoomSketch3D picks), ten colours, or the rainbow circle at the end for any colour you like. The colour fills the room on the plan and in exports. - Flooring opens Surfaces → Flooring Material with this room picked; Focus zooms in on just this room (press Escape or Exit focus to come back); Auto-design suggests a furnished layout for it. Close it with the ×, or click empty floor. With a mouse you can also double-click a label to rename the room in place, or right-click inside the room for Rename room and Room color… (right-click menus).
Tap a label: the room card, with the label outlined in blue. - 5
Any colour: the rainbow circle
The last circle in the colour row, the rainbow one, opens your system's colour picker for any shade. The room changes colour on the plan as you move through the picker, and the colour is kept (as one Undo step) when you close the picker. The same rainbow circle is the any colour button everywhere in the app: furniture, doors, awnings, circuit lines and rooms. Automatic goes back to the default tint.
The rainbow circle: any colour you like. - 6
Move a room's label
With a mouse, press on the label and drag it where it reads best; a click without moving opens the room card. On a tablet or phone, tap the label first to select it, then drag it. A finger that lands on a label you haven't tapped never moves it: a swipe across it just moves the plan, the same as for furniture. Tap an empty spot on the plan to let go of the label again. Exports print each room label where you put it. Before November 17, 2026 they always printed in the middle of the room.
A real export: Living & Kitchen prints where it was dragged, Reading nook where it was placed. - 7

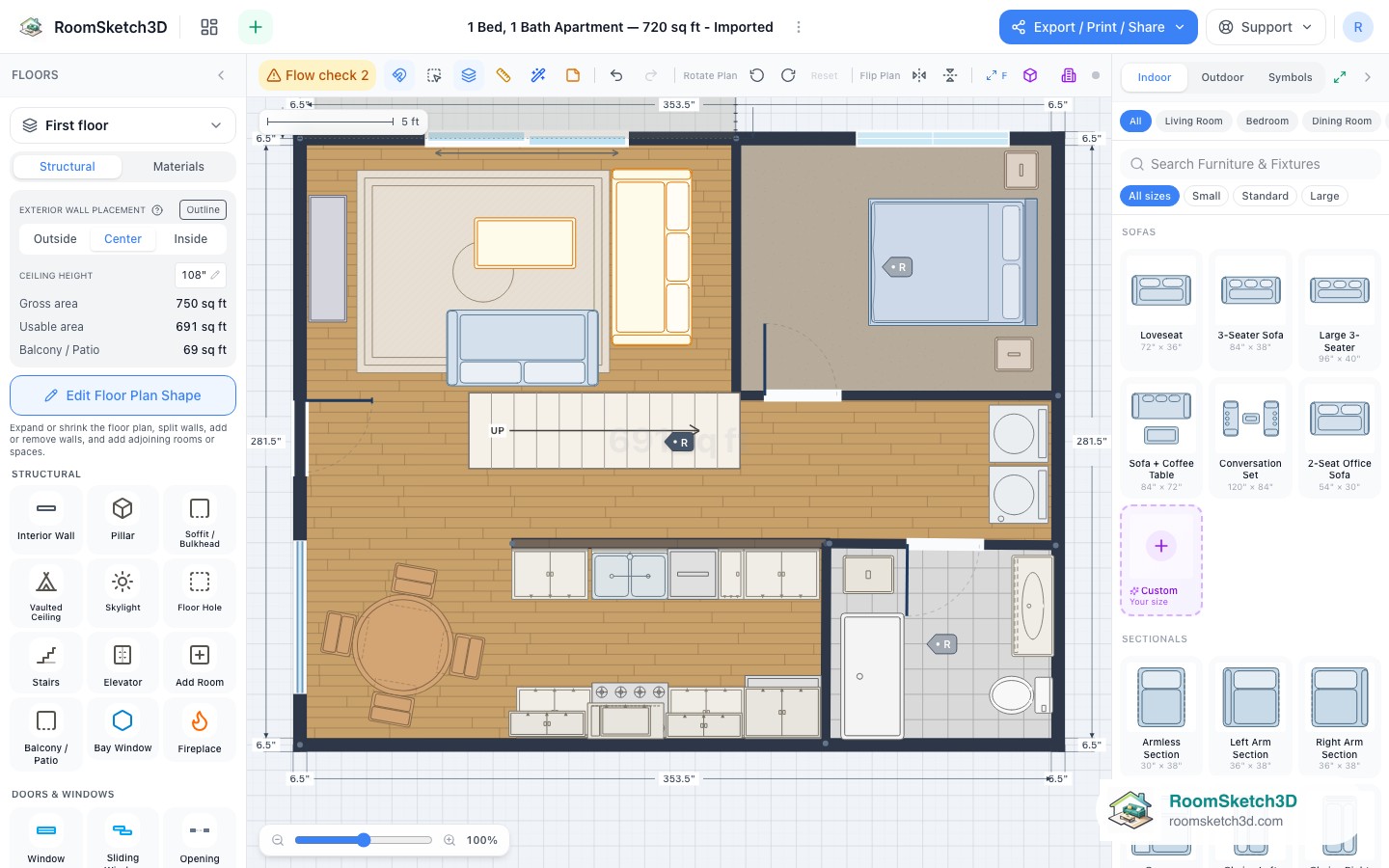

Add your own label
Open View & Layers and tap Add label under Show room labels, or right-click (long-press on touch) anywhere on the plan and choose Add label from the menu. The label lands on the plan and its card opens with the Name box ready: type the name and press Enter. Drag the label to wherever it reads best. Labels always render right-side-up, even on a rotated plan, and follow the label style and text size you chose.
View & Layers → Add label, or right-click / long-press the plan. - 8
Your own labels open the same card
Tap a label you placed yourself and it opens the same kind of card as a room: Name, the note Open-plan area, no walls of its own, a Label color row (seven colours plus the rainbow circle) that tints the label, Flooring for the spot where the label sits, and a red Delete. Close it with × or by clicking empty floor. Use these labels for a reading nook, the dining end of an open-plan room, or a future island.
A label you placed: name, label colour, Flooring, Delete. - 9

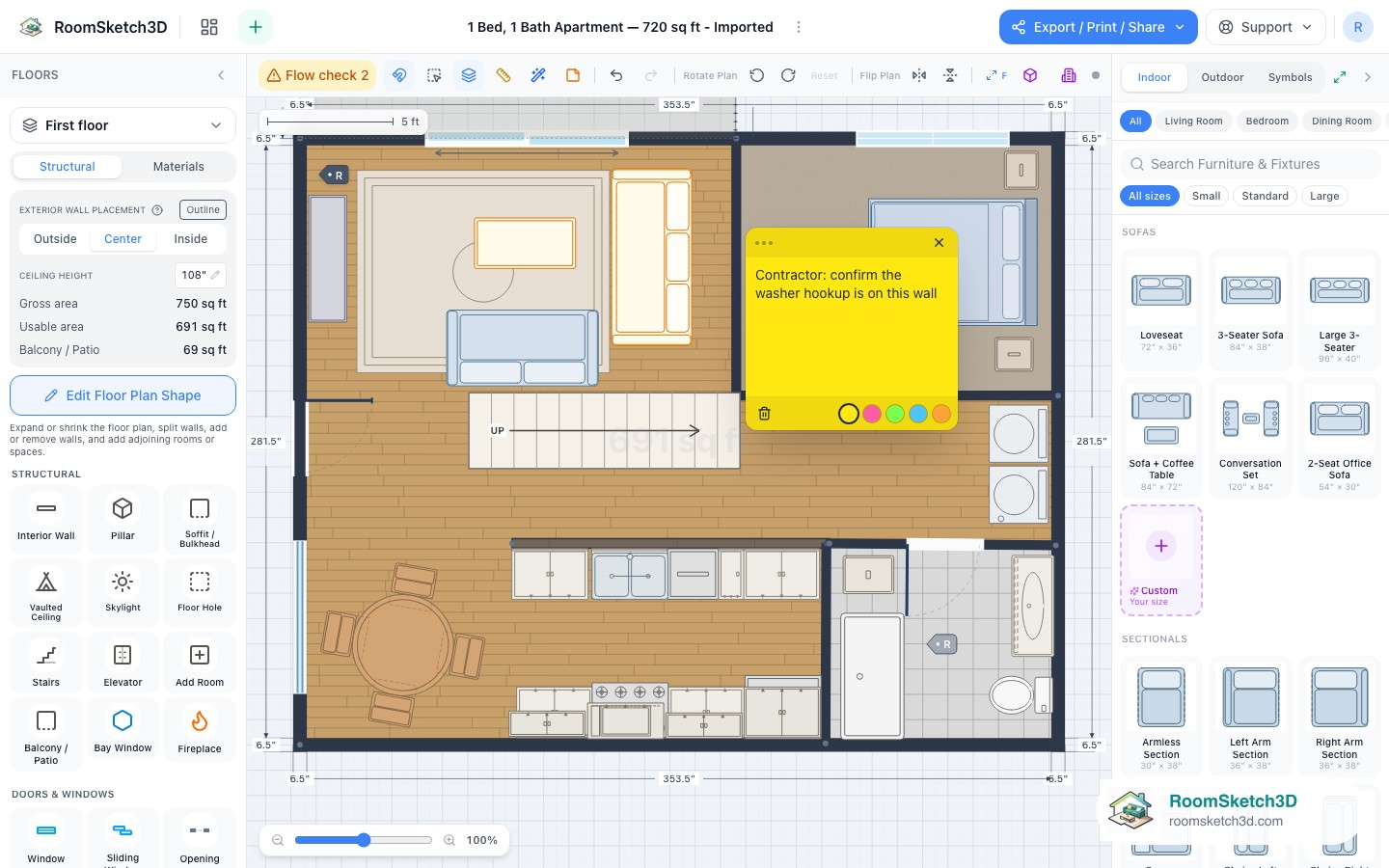

Drop a sticky note
Tap Sticky notes in the toolbar — the hint reads Tap anywhere on the plan to place a note — tap the spot, and write in the Write a note… box: a measurement to confirm, a question for the contractor, a reminder for yourself. Use Note color to colour-code, drag a note to move it, tap it to reopen, and Exit notes when you're done. Notes tuck behind open panels so they never cover the tools.
Notes are for the next person who opens the plan. - 10

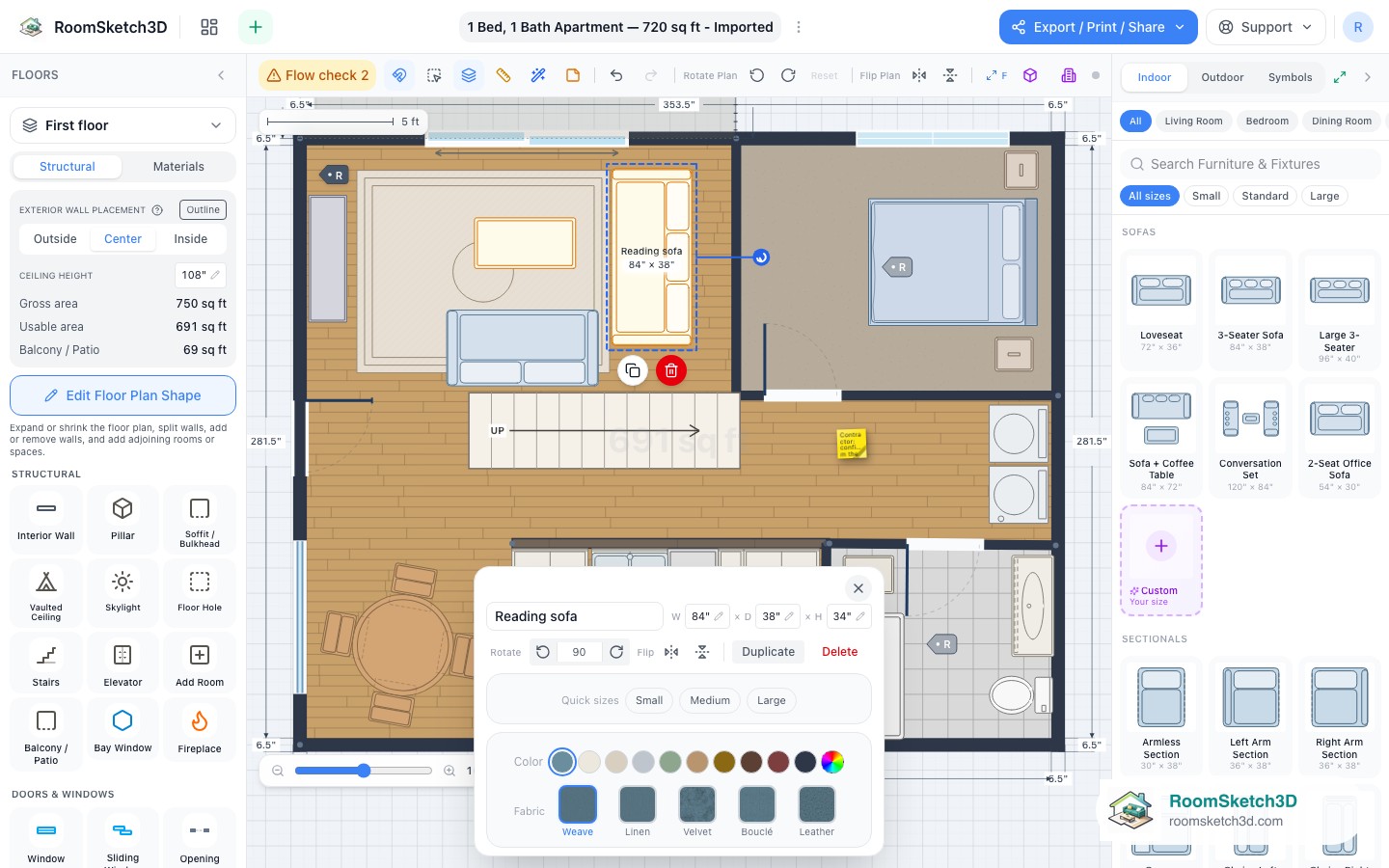

Name anything
Select any object — furniture, a door, a window, an awning, a staircase, a pillar, an elevator, a wall, a balcony, a skylight, a zone — and the title at the top of its inspector is an editable Name field. Type Kids' room door or Reading sofa, then tap the ✓ (or press Enter) to save it. Tapping away, closing the phone keyboard, tapping × or pressing Escape keeps the old name. Clear the text to go back to the standard name. A name you give a piece sticks when you resize it.
The inspector title is a name field — for any object. - 11

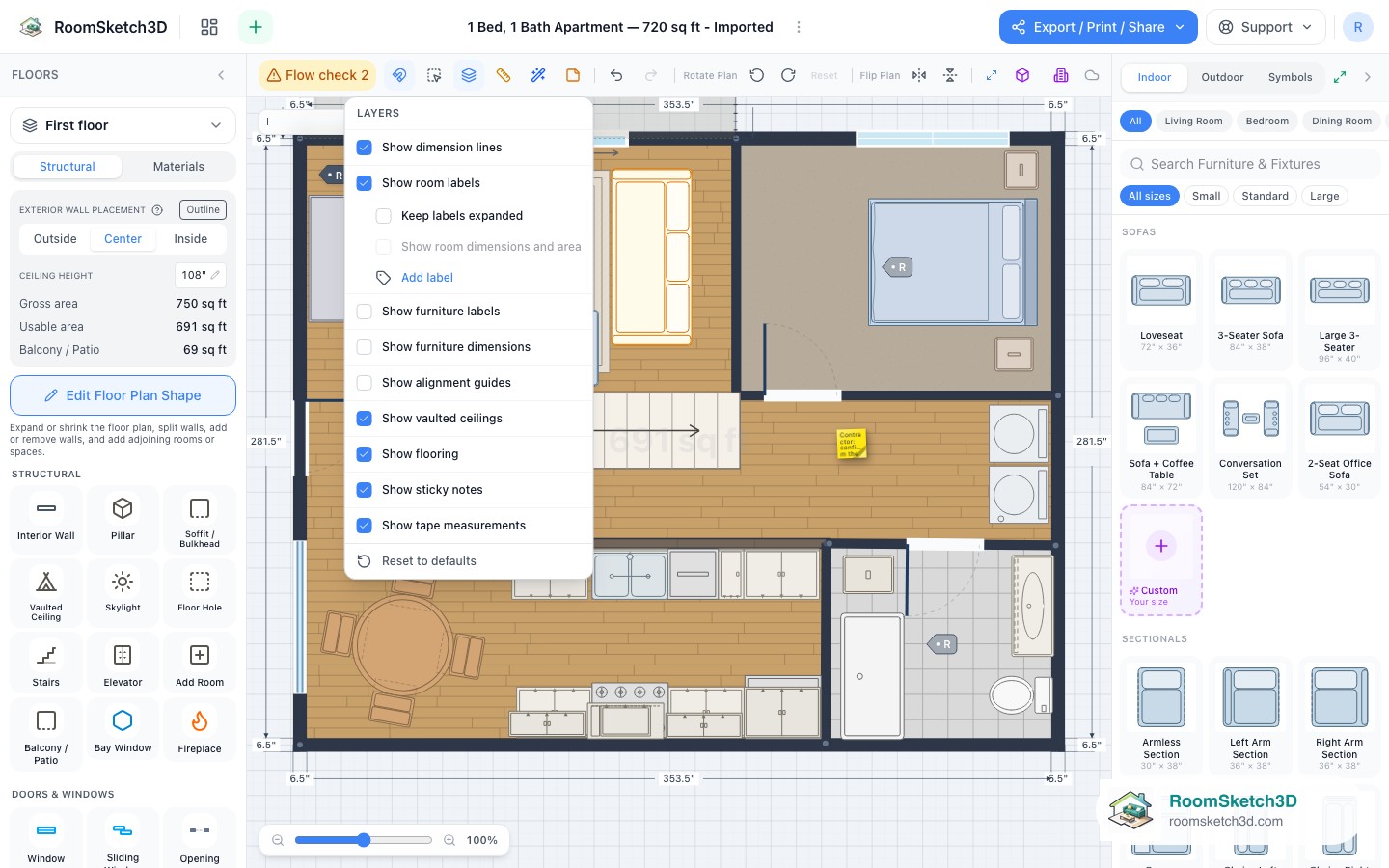

Control what shows on screen
In View & Layers, Show room labels and Show furniture labels (Labels group) and Show sticky notes (Drawing aids group) switch each kind on or off while you work. Hiding only hides; nothing is deleted. All three views (Floor plan, Interior design, Electrical plan) include room labels. Show sticky notes starts off and switches on by itself when you add a note or open a plan that has notes, so if notes you know are there don't show, tick it once. Your choices are saved with the design. What goes into a file is set in the export dialog (next step). Every switch is explained in View & Layers.
Room labels, furniture labels and sticky notes are layers you can switch. - 12
Print or export with your notes
Open Export / Print / Share → PNG/JPG/PDF or Print. When your plan has at least one note with text, the options include Sticky notes, ticked by default. Leave it on and every note is printed. Your labels and object names print when Labels is ticked, room labels in the style and size you chose, where you placed them.
Sticky notes: on by default whenever your plan has notes. - 13
Notes become numbered pins on the plan
Instead of note cards covering your cabinets, each note prints as a small numbered pin, in the note's colour, right where you placed it. Pins are numbered the way you read the printed page, top to bottom and left to right. Empty notes are skipped.
Pins 1 and 2 on the exported plan. Room names and furniture labels print too. - 14
The full text goes on a Notes page
Each note's full text is listed by number under the heading Notes, however long the note is. In a PDF or a printout it's page 2, right after the plan. A PNG export downloads a second image next to the plan (its name ends in -notes.png). When you export several floors at once, each floor's plan is followed by its own notes. To leave notes out, untick Sticky notes in the dialog.
The Notes page: pin numbers with each note's full text.
Tips
Label the spaces that aren't rooms
A reading corner, the drop zone by the door, the future island — a tag makes the intent obvious to whoever reads the plan.
Notes beat emails
Put the question on the wall it's about. When you share a public link, the note is right there in context.
Names make Flow Check readable
"Kids' room door blocked by Reading sofa" is easier to act on than "Door 3 blocked by 3-Seater Sofa".
Common mistakes
Hiding labels and thinking they're gone
The Layers toggles only hide; the labels are still on the plan and still export if Labels is on in the export dialog.
Hiding notes on screen to keep them off the printout
View & Layers → Show sticky notes only changes the screen. To leave notes out of a PDF, PNG, or print, untick Sticky notes in the export dialog.
Tapping away after renaming an object
An object's new name is saved only when you tap the ✓ or press Enter. Tapping elsewhere, closing the keyboard or tapping × keeps the old name. In the double-click rename box for a room, use Save or Enter. (The room card's Name box is different: it keeps what you typed when you press Enter or leave the box.)
Pressing Escape to save
Escape throws the edit away in the object name field and the double-click room rename box. Use Enter or the ✓ / Save.
Looking for Keep labels expanded
It's gone. Pick Name + size + area in View & Layers → Label style to show every room's name, size and area at once, on every device and in exports.
Frequently asked questions
My room label moved when I touched the plan on my iPad. How do I stop that?
Since mid-November 2026 it can't happen by accident: on a tablet or phone a room label moves only after you tap it to select it. Swiping across a label you haven't tapped moves the plan instead. To move a label on purpose, tap it, then drag it. If a label already sits in the wrong place, tap it and drag it back. With a mouse, press and drag as before.
Can I rename the automatically detected rooms?
Yes. Tap the room's label to open the room card and type in Name, then press Enter. With a mouse you can also double-click the label, or right-click inside the room and choose Rename room (that menu also has Room color…; see Right-click menus and mouse navigation). Or add your own label anywhere with View & Layers → Add label.
My room names only show a letter. How do I see the full name?
The design uses the Marker style. Open View & Layers, tap Label style under Show room labels and choose Name, Name + size or Name + size + area. Or tap a marker to open that room's card.
How do I make room names bigger?
View & Layers → Label style → Text size → Large. It's saved with the design and used when you export or print.
How do I show each room's size and square footage on the plan?
Choose Name + size + area in View & Layers → Label style. Each label then shows the inside width × length and the floor area inside the walls, on screen and in exports.
How do I change a room's colour?
Tap its label and pick a colour in the room card, or the rainbow circle for any colour; Automatic goes back to the default tint. With a mouse, right-click inside the room → Room color… does the same.
Why does my label print in a different place than on screen?
Since November 17, 2026 exports print each room label where you dragged it, the same as the screen. If an older export showed it in the middle of the room, export again.
Do sticky notes print or appear in exports?
Yes. In a PDF, PNG, or printout each note becomes a small numbered pin on the plan, and the full text of every note is listed by number on a Notes page (page 2 of a PDF or print, or a second image for a PNG). It's on by default whenever your plan has a note with text; untick Sticky notes in the export dialog to leave them out.
I don't see the Sticky notes option in the export dialog.
It only appears when the plan has at least one note with text in it. An empty note isn't printed. Notes started printing in late September 2026. If you've had the app open since before then, reload the page (or update the app) once.
Why pins instead of the notes themselves?
A note can run to hundreds of characters, and printed as a card it would cover the walls and cabinets it's about. A numbered pin marks the exact spot, and the Notes page gives you the whole text.
Can I name a door or a wall, not just furniture?
Yes. Every object with an inspector — doors, windows, awnings, stairs, pillars, elevators, walls, balconies, skylights, zones — has an editable name field at the top of its inspector.
How do I label an open-concept area that has no fourth wall?
Drop a Room label. Automatic room names only appear for spaces that are fully enclosed by walls, so an open kitchen-dining-living area gets one name at most. Add a room label for each zone (View & Layers → Add label, or right-click / long-press the plan and choose Add label) — 'Dining', 'Living' — and drag it where you want it. Labels don't need walls, don't affect Flow Check, and appear in exports. The area figures in the side panel still count the enclosed room as one space.
