Select, multi-select, copy, paste, and delete

Shift-click or ⌘/Ctrl-click to add pieces, drag a box (Select multiple, or empty floor in CAD-style), use the blue bar to copy, delete, line up or flip the group, paste from the Clipboard pill (also in another design), and use the chooser when items are stacked.

5 minUpdated 2026-11-17

Selecting sounds trivial until a plan has forty pieces in it. RoomSketch3D has one set of rules for all of them: tap a thing to select it, gather several with Shift-click (or ⌘-click on a Mac, Ctrl-click on Windows), a drag box or the Select multiple button, and when two things share a spot, a chooser lets you pick by name.

Once several pieces of furniture are selected, Arrange on the blue bar lines them up in a row or a column, or flips the whole group left to right or top to bottom, so a dining set or a seating corner mirrors in one tap.

Multi-select is not limited to furniture. Interior walls, pillars, bulkheads, staircases, elevators, vaulted-ceiling areas, and skylights can be gathered into the same selection and moved, copied, or deleted together. Outside walls never move as part of a group, but a box can take them for one job: copying a room that sticks out from the house (a bay, a porch, a wing) into another design.

Whatever you copy waits in a Clipboard pill on the plan, with a count, until you paste it, in this design or in another one you open next.

Step by step

  1. 1

    Select one thing

    Tap any piece — furniture, a door, a window, an interior wall, a staircase. Its inspector opens along the bottom (size, rotation, name, options) and a small bar appears right beside the piece with Duplicate and a red Delete, so you don't have to hunt for either.

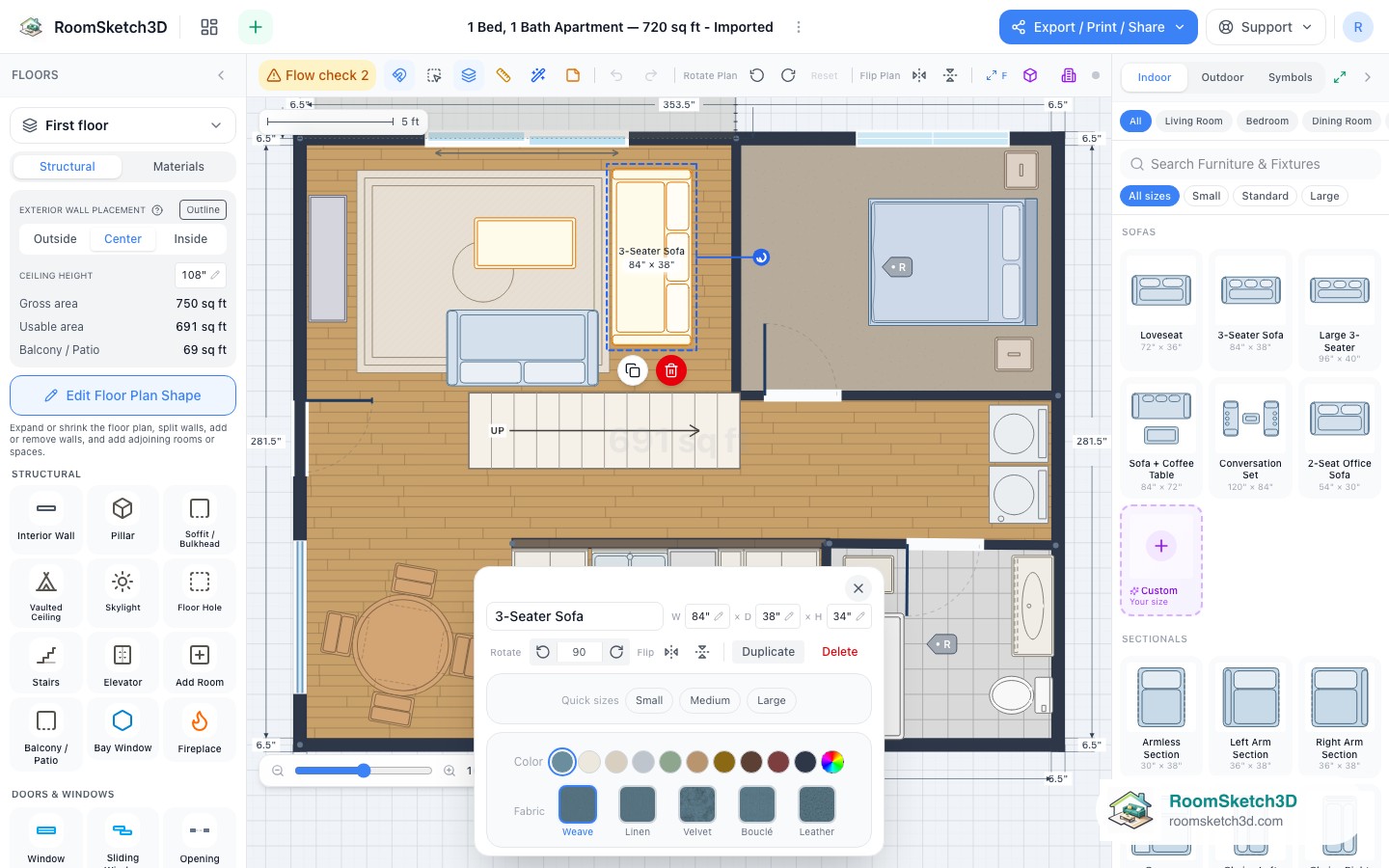

    One tap: inspector below, Duplicate/Delete bar beside the piece.
  2. 2

    Select multiple

    Tap the toolbar's Select multiple button, the dashed box with a pointer (its tooltip reads Select multiple (drag a box, or click items)). The bar says Drag a box or tap items to select. Now drag a box across the plan, starting on empty floor, or tap items one by one to add them. The bar shows N selected — drag to move; drag any selected piece and the whole group moves together. On a phone or tablet this button is the way in; on a computer, Shift-click and ⌘/Ctrl-click (below) are quicker. The button is lit blue whenever multi-select is on, however you got there: the button, a Shift/⌘/Ctrl-click, a CAD-style drag box, or pasting copies.

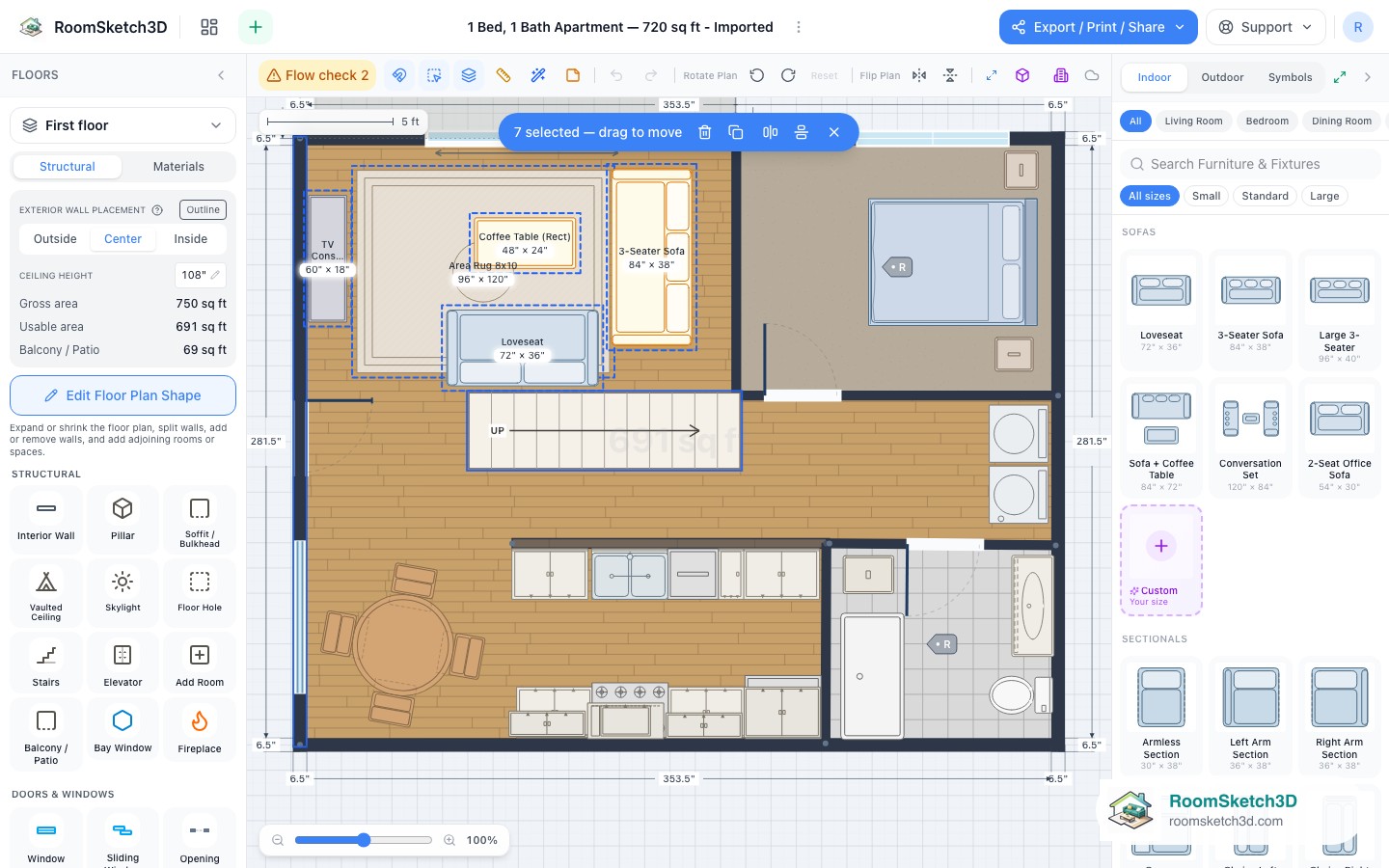

    Drag a box from empty space; tap to add more.
  3. 3

    Add pieces with Shift-click or ⌘/Ctrl-click

    On a computer you don't need the button. Click one piece, then hold Shift (or ⌘ on a Mac, Ctrl on Windows) and click another: both are selected, the blue bar appears with 2 selected — drag to move, and the Select multiple button in the toolbar lights up. Keep holding the key and clicking to add more. To take a piece out again, hold the same key and click it once more. It has to be a clean click. Holding Shift or ⌘ while you drag a piece still does what it always did (Shift locks the drag to straight lines), so you never add a piece by accident while moving one. Walls, stairs and the other structure that box-select picks up can be added the same way. Once you're in multi-select, a plain click on a piece also adds it, so a stray click can't throw away a careful selection; use the key + click to remove one. A plain click on empty floor clears the selection and leaves multi-select.

    Shift- or ⌘-click adds pieces; the Select multiple button (ringed) lights up.
  4. 4

    Drag a box on empty floor (CAD-style navigation)

    If you use CAD-style navigation (Settings → General → Mouse & trackpad, see mouse and trackpad navigation), dragging on empty floor with the mouse doesn't move the plan, so it now draws a selection box straight away, as in most CAD programs. Multi-select switches on as the drag starts, so the button lights up and the bar counts the pieces as the box grows; let go and everything inside the box is selected. A box that catches nothing goes back to normal selecting. With Standard navigation, dragging empty floor still moves the plan, so use the Select multiple button (or Shift/⌘-click) to box-select. Touch screens are unchanged: tap the button, then drag a box with your finger.

    CAD-style: drag on empty floor and the box selects; 5 selected while still dragging.
  5. 5

    Structure comes too

    If the box crosses an interior wall, a pillar, or a staircase, it joins the selection — you'll see it counted in the bar. Move the mix as one, or delete a whole zone in a single step. Outside walls are never moved or deleted with the group; tap an outer wall on its own to move it, type its length, or split it (see Edit walls on the plan). The one exception is copying: an outside wall whose both ends are inside the box joins the selection so a projecting room can be copied (see below).

    Interior walls and structure are selectable alongside furniture.
  6. 6

    Copy, paste, delete

    With a selection active, tap Copy selected items (or Ctrl/Cmd+C), then paste with Ctrl/Cmd+V or the Paste items button. Copies land in the nearest clear floor, clear of walls, columns and other furniture, the originals included (on a plan with no room left, they wait just outside the house), and arrive selected so you can drag them straight into place. Delete selected items removes the whole group; Undo brings it back.

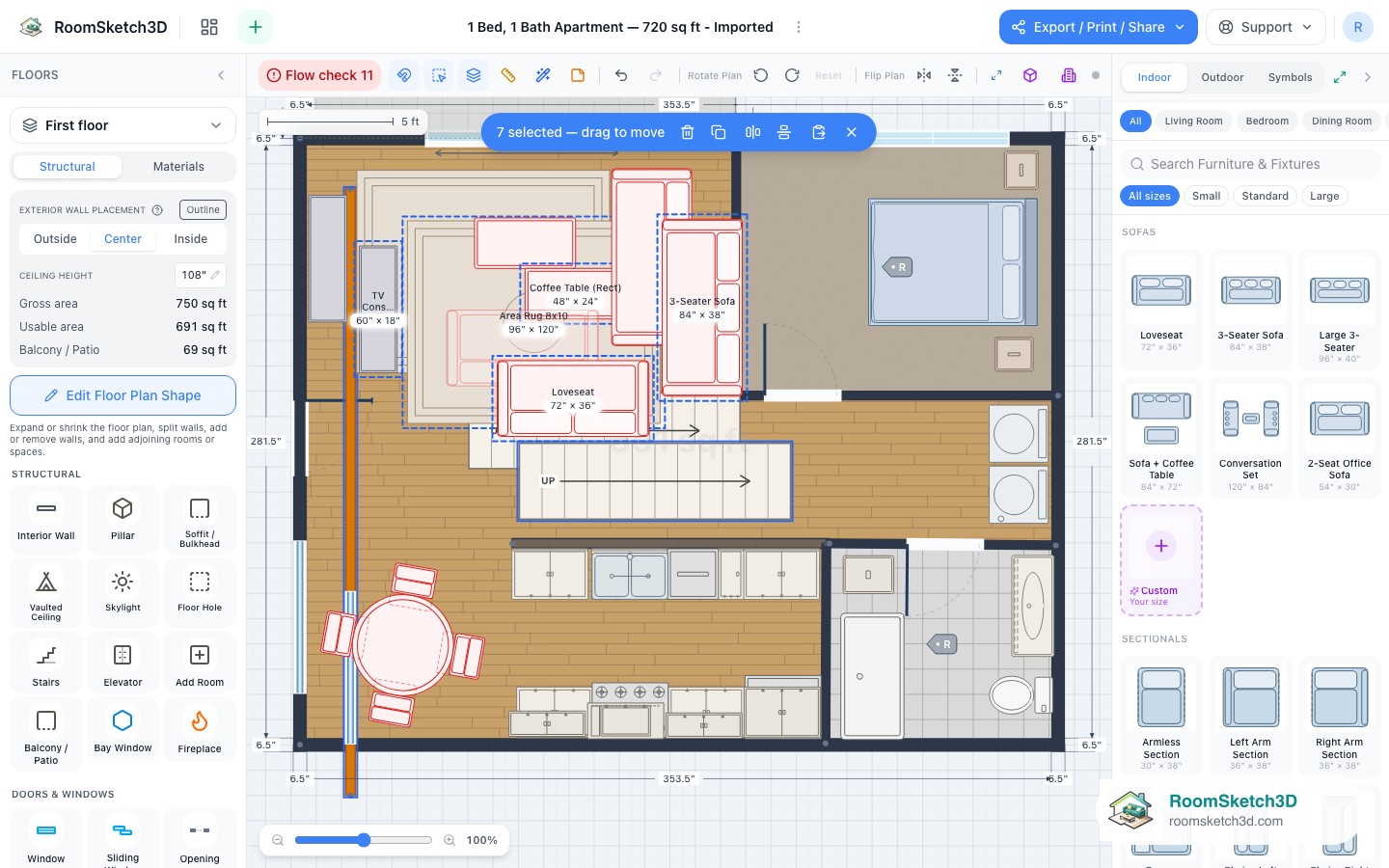

    Pasted copies land in clear space, selected and ready to drag.
  7. 7

    Find your copies: the Clipboard pill

    There is no clipboard window to open. As soon as you copy, a Clipboard pill appears on the plan with the count, e.g. Clipboard (6): bottom-right next to the 3D preview pill and the compass on a computer, top-right on a phone or tablet. Tap it for Paste N items (the copies land in the middle of your view, selected and ready to drag) or Clear clipboard. The pill disappears when nothing is copied, and while the full 3D view is open.

    Copied something? It waits in the Clipboard pill.
  8. 8

    Paste into another design

    What you copy stays on the clipboard when you leave the editor. Copy in one design, go back to Home, open the other design, and tap the Clipboard pill → Paste. Furniture, interior walls, stairs, pillars and the rest all make the trip, keeping their positions relative to each other. The clipboard is kept on the device you copied on, so paste on the same phone, tablet or computer (and browser). It holds one copy at a time: copying something new replaces it.

    On a phone the pill is top-right; tap it to paste.
  9. 9

    Copy a room that sticks out: bay, porch, wing

    To bring a whole projecting room into another design, box it so both ends of each of its outside walls are inside the box, tap Copy (the note reads e.g. Room copied: 3 walls and 3 items), open the other design and tap Clipboard → Paste room. The room floats in as one piece; drag it onto an outside wall and it snaps on, turned to stand outside the plan. Slide it, or type the distance from either end of the wall, then tap Done. The outline grows round it and its windows, doors, interior walls and furniture keep their places. Full walkthrough: Copy a room from one design into another.

    A pasted room snapped onto an outside wall: slide, then Done.
  10. 10

    Arrange: line up or flip the group

    With two or more pieces of furniture selected, the blue bar shows Arrange. Tap it for four choices: Line up in a row, Line up in a column, Flip group left to right and Flip group top to bottom. (These used to be two small icons with no labels on the bar.) Arrange works on the furniture in the selection; interior walls and other structure in the same selection stay where they are.

    Arrange, on the blue bar once two or more pieces are selected.
  11. 11

    Flip the group left to right

    Tap Arrange → Flip group left to right. The group mirrors in place, on the same patch of floor: chairs on the left of a table end up on its right, a sideboard on the left wall moves to the right wall, and every piece is turned so it still faces the right way (the chairs still face the table). The spacing between pieces doesn't change, and pieces with a hand, like an L-shaped sectional, mirror too. Nothing piles up.

    Flip group left to right: same spacing, chairs still facing the table.
  12. 12

    Or top to bottom

    Flip group top to bottom does the same up and down: the armchair at the top end of the table moves to the bottom end, still facing the table, and whatever was near the bottom of the group moves to the top. Left and right mean left and right as you see the plan: if you've turned the plan with Plan Settings → Rotation, the flip follows the screen, not the compass.

    Flip group top to bottom: the armchair now sits at the other end.
  13. 13

    Line up in a row or a column

    Line up in a row puts the selected pieces on one straight line across the plan; Line up in a column puts them on one line up and down. If they all face the same way, they line up by their backs, so pieces of different depths stay flush against the same wall. Pieces that would land on top of each other are laid out side by side, keeping the gaps they had. A piece hung on the wall above another (a wall cabinet over a base cabinet) centres over it instead of being pushed aside.

  14. 14

    Undo a flip or line-up

    One Undo (toolbar arrow or Ctrl/Cmd+Z) puts the whole group back where it was, and the pieces stay selected, so you can go straight to another Arrange choice. (Only a piece the undo removes, say one you had just added, drops out of the selection.)

  15. 15

    Pick the right one when items overlap

    Tap where two or more things sit on top of each other — a rug under a coffee table, a window behind a fireplace, a pillar over a staircase, two interior walls meeting at a T — and a Select item chooser lists each one by name. Pick the one you meant. The same chooser appears for wall-mounted pieces like a Murphy bed or an awning over a window.

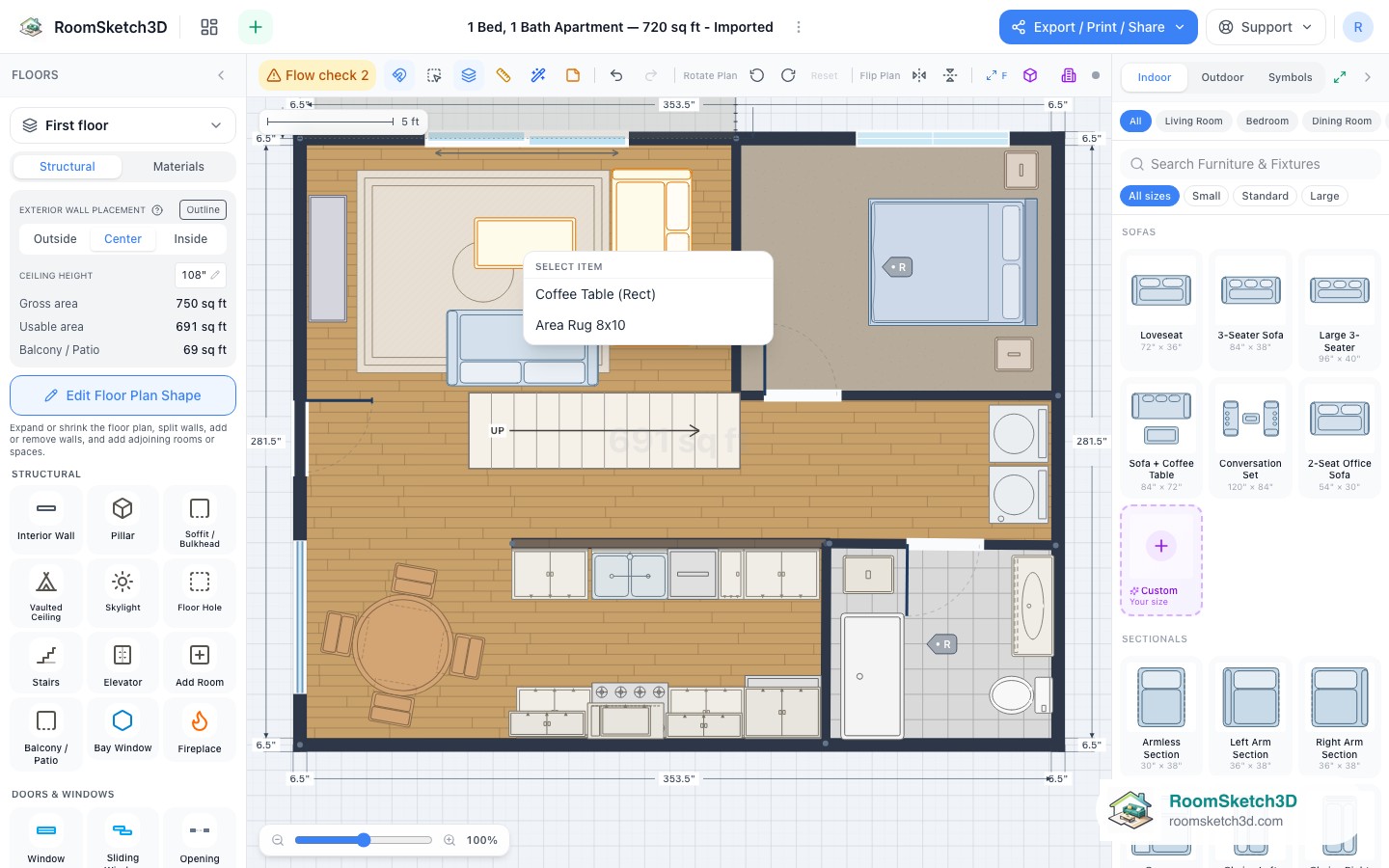

    Stacked items? The chooser lists them by name.
  16. 16

    Back to single selection

    Any of these leaves multi-select and the button goes back to normal: - Click the lit Select multiple button again. - Tap the ✕ on the blue bar (Exit select mode). - Click empty floor (on a computer; not on a piece). - Press Escape twice: the first press clears the selection (the bar reads Drag a box or tap items to select), the second leaves. Escape also closes the inspector for any selected structure (soffit, vault, elevator, bay window, skylight, floor opening) the same way it does for furniture.

Tips

Start the box on empty floor

Dragging from on top of a piece moves that piece instead. Begin the marquee just outside the plan or in an empty corner.

Mac: ⌘-click adds, Ctrl-click is the menu

On a Mac, Ctrl-click is the system right-click, so it only opens the piece's right-click menu (since November 17, 2026 it no longer also opens the piece's card behind the menu). Use ⌘ or Shift + click to add to the selection. On Windows, Ctrl-click adds.

Copy a whole zone

Box-select a reading corner — chair, lamp, rug, side table — copy it, and paste it into the guest room. Then nudge with the arrow keys.

Arrow keys move only the selection

Handy when a big piece (a bed) makes dragging grab the wrong thing: select, then nudge with the arrows.

Mirror a whole corner

Box-select a dining set, a desk with its chair and lamp, or a sofa grouping, then Arrange → Flip group left to right to try it on the other side of the room in one tap. Don't like it? One Undo.

Common mistakes

Clicking empty floor to deselect one piece

In multi-select, a plain click on empty floor clears the whole selection and leaves multi-select. To drop just one piece, hold Shift (or ⌘ / Ctrl) and click that piece.

Expecting exterior walls to move with the box

They never move or delete as part of a group. Tap an outer wall on its own to drag it in or out, type its length, or split it right on the plan. A box only takes outside walls for copying a projecting room, and only walls whose both ends are inside it.

Pasting and losing the copies

They land in the nearest clear floor, which may be off to one side of a crowded room, or just outside the house when the plan is full. They arrive selected — look for the N selected bar and drag.

Flipping the whole plan when you meant one group

Plan Settings → Rotation → Flip plan mirrors everything: walls, doors, windows and all furniture. To mirror just a few pieces, select them and use Arrange → Flip group instead.

Not checking the doorway after a flip

A flipped group keeps its spacing but can land a piece in a door swing or in front of a window. Glance at Flow Check after flipping; it flags a blocked door.

Flipping with a locked piece in the group

If any selected piece is locked, nothing moves and a message says it's locked in place. Unlock it (select it and tap the padlock), then flip. See lock wall lengths and furniture.

Frequently asked questions

How do I select several pieces at once?

On a computer, click the first piece, then hold Shift (or ⌘ on a Mac, Ctrl on Windows) and click the others. Or tap Select multiple in the toolbar and drag a box or tap each piece. With CAD-style navigation, just drag a box on empty floor. Hold the key and click a selected piece again to take it out.

Why does Ctrl-click on my Mac open a menu instead of adding the piece?

On a Mac, Ctrl-click is a right-click, so it opens the piece's menu. Use ⌘-click or Shift-click to add pieces to the selection.

How do I get out of multi-select?

Click the lit Select multiple button, tap ✕ on the blue bar, click empty floor, or press Escape twice (the first press clears the selection).

Can I select interior walls together with furniture?

Yes. Box-select or tap to add interior walls, pillars, bulkheads, stairs, elevators, vaulted ceilings, and skylights along with furniture, then move, copy/paste, or delete them together. Exterior walls stay put.

Where do pasted items go?

Into clear space near the originals — never on a wall or column and never stacked on the source pieces — and they arrive selected so you can drag them immediately.

Can I copy a whole room — a bay, a porch, a wing — into another design?

Yes. Tap Select multiple and drag a box round the projecting room so both ends of each of its outside walls are inside the box. Its outside walls come along with their windows and doors, plus any interior walls and furniture you boxed with them. Tap Copy, open the other design, tap the Clipboard pill → Paste room (or press Ctrl/Cmd+V, tap Paste on the blue bar, or long-press → Paste). The room floats in as one piece: drag it onto an outside wall and it snaps on, turned to stand outside the plan; slide it along the wall to where it belongs, then tap Done. The outline grows round it and everything keeps the positions it had. Only a run of outside walls that projects from the house can be copied — not the whole outline (duplicate the design for that) and not a single straight wall. Step by step: Copy a room from one design into another.

I copied something — where is the clipboard?

There is no clipboard screen to open. As soon as you copy, a Clipboard pill appears with the count — beside the 3D preview pill, top-right on a phone or tablet and bottom-right next to the compass on a computer. Tap it for Paste (the copies land in the middle of your view) or Clear. The pill disappears when the clipboard is empty. What you copied stays on the clipboard when you leave the editor, so you can open another design and paste it there: furniture, interior walls, stairs and the rest all travel (on the same device and browser). A room that sticks out from the house can be copied with its outside walls too (copy a room between designs); to reuse a whole outline, duplicate the design from Home instead.

Can I copy on my computer and paste on my phone?

No. The clipboard is kept on the device (and browser) you copied on. To get a room onto another device, open the design there and copy it there, or copy and paste on one device and open the result anywhere: the design itself syncs.

How do I select a window that's behind a fireplace?

Tap the spot. When items overlap, a Select item chooser lists each one by name; pick the window.

I pressed flip on a multi-selection and everything collapsed onto one spot. What happened?

There used to be no flip on a multi-selection: the two small unlabelled icons on the blue bar were align buttons, and aligning a row could pile the pieces onto one spot. Both are fixed. The icons are now one labelled Arrange menu with a real Flip group left to right and Flip group top to bottom, which mirror the group in place with the same spacing, and lining up never stacks pieces on each other. If anything ever lands wrong, one Undo puts it back.

How do I flip a group of furniture?

Tap Select multiple, drag a box around the pieces (or tap each one), then tap Arrange on the blue bar and choose Flip group left to right or Flip group top to bottom. The group mirrors where it is, each piece still facing the right way.

How do I line up chairs or cabinets?

Select them with Select multiple, tap Arrange, and choose Line up in a row (one line across) or Line up in a column (one line up and down). Pieces that face the same way line up by their backs.

Why don't I see Arrange?

It appears once two or more pieces of furniture are selected. With one piece, use the Flip buttons in its own inspector (rotate, flip, and mirror). Walls and structure alone don't get Arrange.

Does Flip group work when the plan is rotated on screen?

Yes. Left to right and top to bottom always mean what you see on screen, whatever angle you've turned the plan to in Plan Settings → Rotation.
