Hand your plan to a pro — AutoCAD DXF export
One click produces a layered, dimensioned CAD file your architect or contractor can open directly in AutoCAD.
When a project moves from planning to building, an architect, kitchen designer or contractor will often ask for a CAD file rather than a picture. RoomSketch3D's DXF export turns your floor plan into a layered 2D drawing at true size: double-line walls left open at every doorway, door swings, windows, furniture footprints with their names, wall AC units, soffits and other structure, stairs, and dimension lines, each on its own named layer.
This page covers where the export is, what the dialog asks, what ends up in the file (we exported the L-Shape Kitchen and Medium 2-Bedroom Apartment templates and opened them to check), and the few things to know before you send it: the drawing is always in inches, its dimensions measure along the wall centrelines, and it's the 2D plan only.
What you'll need
- •A design you're ready to hand off
- •The web app on a computer
Step by step
- 1

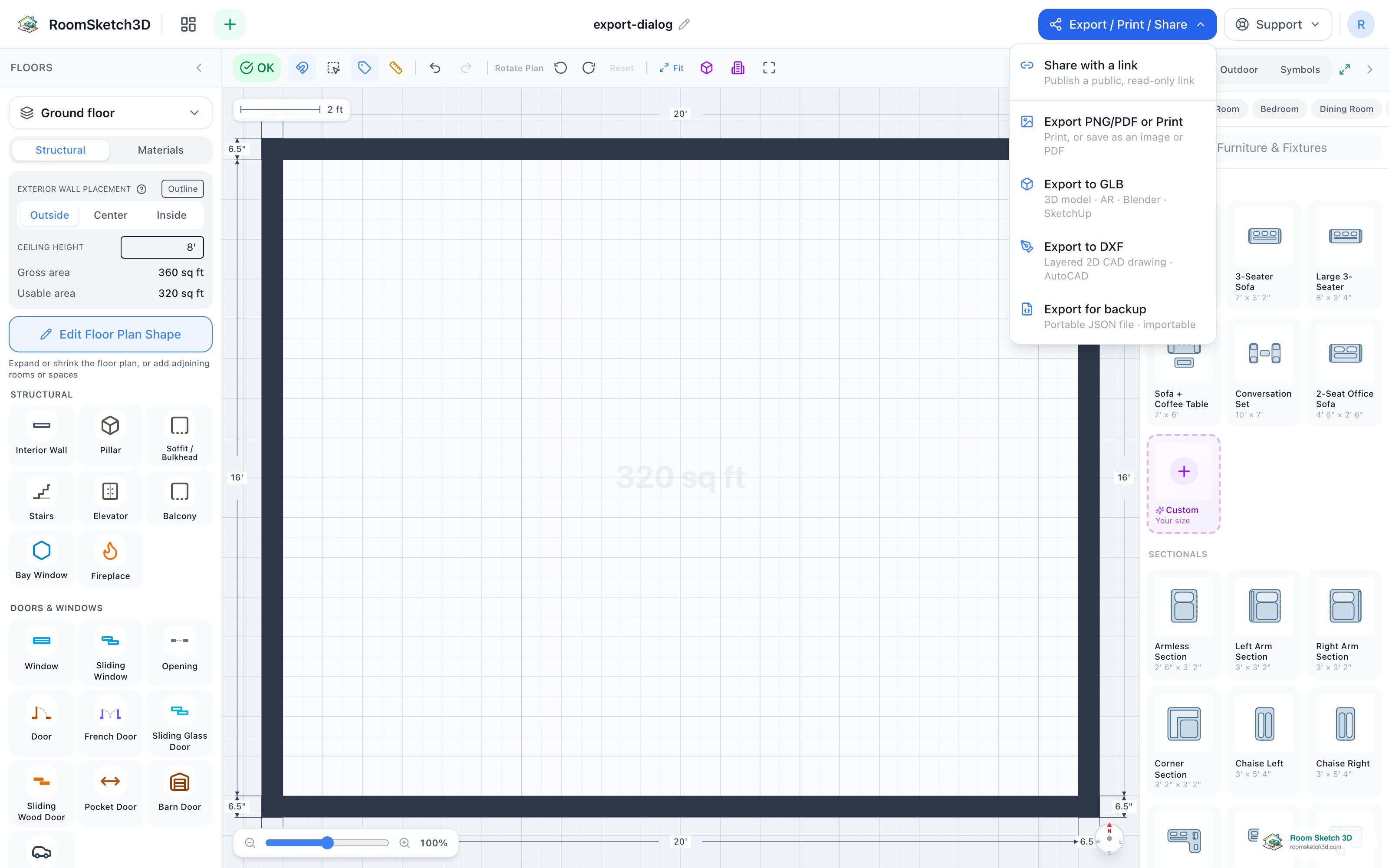

Open the design in the web app on a computer
DXF export lives in the web app's full-width menu, so open your design in a browser on a computer (or a tablet held wide). The iPhone, iPad and Android apps and a narrow phone-width browser window don't show the DXF option. The file is built from what's on screen, including edits you haven't saved yet, so finish the plan first. Its name comes from the design's name: a design called L-Shape Kitchen downloads as `L-Shape_Kitchen.dxf` (spaces and symbols become underscores).
- 3
Check the dialog and press Export DXF
The Export as DXF dialog sums up the file: it opens in AutoCAD, LibreCAD and most CAD software; walls, doors, windows, furniture and dimensions sit on their own layers; and it's drawn in inches at true size. On a design with several floors it also lists Floors to include (all ticked at first; Active floor only narrows it) and you get one DXF per floor, named `design-floor.dxf`. Press Export DXF and the file downloads.
The heads-up note is worth reading: DXF is the 2D plan only, and AutoCAD can save it on as DWG. - 4
Open the file in your CAD program
Open the DXF in AutoCAD, LibreCAD, DraftSight or a DXF viewer. It's saved in the AutoCAD 2007 DXF format, which current CAD programs read, and it opens framed on your plan. Walls are double lines at their real thickness, left open across every doorway (each door and full-height opening is a gap in the wall lines, as a drafter draws it; windows and raised pass-throughs keep the wall), hinged doors show the swing arc, windows are two thin lines in the wall, each furniture piece is its footprint rectangle with its name, and soffits, pillars and vaulted-ceiling outlines are on a structure layer. Dimension lines run outside each outside wall, plus the overall width and length further out, in feet and inches (12'-0").
The Medium 2-Bedroom Apartment template as a DXF: walls in black and grey, furniture in yellow, doors in green, windows in blue, dimensions in red, names as text. - 5
Switch layers off to clean the drawing up
Everything is sorted onto named layers, so the person receiving the file can hide what they don't need. Item names sit at each piece's centre on the TEXT layer, and in a kitchen, where wall cabinets sit over base cabinets, the names pile up; switch TEXT off and the outlines read cleanly. The layers are:
Layer What's on it WALLS-EXT / WALLS-INT Outside and interior walls at real thickness (a thin partition is a single line) DOORS / WINDOWS / OPENINGS Door leaves and swing arcs, window lines, doorway and pass-through jambs FURNITURE / FIXTURES Footprints of furniture; fixtures and symbols TEXT Item names DIMENSIONS Wall-run and overall dimensions STRUCTURE Soffits, pillars, columns and obstacles, vaulted-ceiling outlines and ridge lines STAIRS / ELEVATORS / LEVELS Stair outline and treads, elevator shafts, sunken or raised floor areas with their +/- height ROOMS The plan outline along the wall centrelines (a reference line) ELECTRICAL Outlets, switches, their names and circuit runs (only when the plan has them) HVAC Wall AC units: mini-split heads, floor consoles and PTACs, each as its footprint on the wall plus a line for the louvred front (only when the plan has one) TEXT layer off: walls, door swings, furniture footprints and dimensions without the names. In a kitchen this is the view where stacked wall and base cabinets read cleanly. - 6
Check the AC units and the door openings
Two things in the file are worth a look before you send it. Wall AC units (Mini-Split (Wall), Mini-Split (Floor Console) and PTAC Unit) are on their own HVAC layer, drawn as the box the unit takes on its wall, on the face you hung it on, with a line for the louvred front. The layer only exists when the plan has an AC unit, so a plan without one exports exactly as before. An HVAC or mechanical contractor can isolate the layer to check positions and clearances. Door openings are real gaps in the walls: every door and full-height opening (including a door on a wall that was split into pieces) breaks the double lines, so the drawing reads like a construction plan and the gaps line up with the door swings. In the bedroom here, the PTAC sits under the window on the top wall, the mini-split is on the left wall, and the bedroom's doorway is a clean gap in the bottom wall.
HVAC layer (light blue): the PTAC under the window and the mini-split on the side wall. The doorway is open in the wall lines.
Tips
Working in metric? Convert after opening
The DXF is always drawn in inches, even if your plan shows centimetres, and the file says so in its units setting. A metric drafter can scale the drawing by 25.4 to get millimetres (1 inch = 25.4 mm) or set the drawing units when inserting it, and every length stays exact.
Send a PDF with it
The DXF is for the person who will draw on it. Add a PDF or PNG from Export / Print / Share → PNG/JPG/PDF or Print for everyone else: it shows colours, materials and labels, and opens on any phone.
Need DWG?
The dialog's own advice: open the DXF in AutoCAD and use Save As → DWG. RoomSketch3D doesn't write DWG directly.
Hide clutter before printing from CAD
Switch off TEXT for a clean outline drawing, or FURNITURE and FIXTURES for an empty shell to draw new work over.
Common mistakes
Reading the DXF dimensions as wall faces
The dimension lines in the DXF run along the wall centrelines. The L-Shape Kitchen reads 12'-0" × 14'-0" in the DXF, while the plan in the app shows 12' 6.5" outside and 11' 5.5" inside (the walls are 6.5" thick); the Medium 2-Bedroom Apartment reads 30'-0" in the DXF against 30' 6.5" outside on the plan. The geometry is exact, so in CAD you can dimension the inside faces yourself; just don't quote the centreline figure as the room's clear width.
Expecting 3D, colours or notes
DXF captures the 2D plan only: no 3D, textures, wall colours or paint, and your on-plan notes are left out. Use the GLB export for the 3D model and PNG/PDF for a coloured plan.
Looking for it on a phone
The option isn't in the iOS or Android apps or in the phone-width menu. Open the same design at app.roomsketch3d.com on a computer; your designs are the same everywhere.
Expecting DXF to re-import
DXF is a hand-off to CAD, not a RoomSketch3D design. To move or back up a design, use Backup (the JSON file), which imports back with everything intact.
Frequently asked questions
Where is the DXF export?
In the web app on a computer: Export / Print / Share → DXF (Layered 2D CAD drawing · AutoCAD), then Export DXF. It isn't in the phone apps or the narrow phone-width menu.
What units is the DXF in?
Inches, at true size, whatever units you use in the app. A 12-foot wall is 144 units long. Metric users can scale by 25.4 for millimetres.
What about a design with several floors?
The Export as DXF dialog lists Floors to include. Every floor is ticked at first; you get one DXF per floor, named after the design and the floor.
Which layers are in the file?
ROOMS, WALLS-EXT, WALLS-INT, DOORS, WINDOWS, OPENINGS, FURNITURE, FIXTURES, STAIRS, LEVELS, ELEVATORS, STRUCTURE, DIMENSIONS and TEXT, plus ELECTRICAL when the plan has outlets, switches or circuit runs, and HVAC when it has a wall AC unit. Each has its own colour so they're easy to tell apart.
Are AC units in the DXF?
Yes, since November 3, 2026. Mini-split heads, floor consoles and PTACs go on an HVAC layer as their footprint on the wall plus a line for the louvred front. A portable AC is a furniture piece, so it's on FURNITURE.
Do the walls stop at the doors?
Yes. Every door and full-height opening is a gap in the wall lines, so the drawing reads like a construction plan. Windows and raised pass-throughs keep the wall lines, as they should.
Why don't the DXF dimensions match the plan?
The plan's numbers are face-to-face (inside) and outer-face measurements; the DXF labels each outside wall along its centreline. Both come from the same geometry, so measuring between wall faces in CAD gives the plan's inside numbers.
Are interior walls dimensioned?
Interior walls are drawn at their real thickness, but the automatic dimension lines cover the outside walls and the overall size only. Add interior dimensions in CAD.
Which programs open it?
AutoCAD, LibreCAD, DraftSight and most CAD software and DXF viewers. It uses the AutoCAD 2007 DXF format, a widely supported version.
