Design in classic black-and-white blueprint style
Settings → General → Plan style → Black & white. Editing highlights keep their colour, 3D keeps its colours (use Line art in the 3D view for a black-and-white drawing), and every export follows the style.
Colour helps you decide; black and white is what most people want to hand over. Builders, landlords, permit desks, and printers all read a line drawing more easily. RoomSketch3D can draw the whole plan that way — not only at export time, but while you work.
Why it matters: a colour plan photocopied or printed on an office laser turns pale tints into grey mush, and coloured walls and furniture fills compete with the dimensions a contractor needs to read. A black-and-white drawing keeps walls solid black, furniture as clean outlines and text crisp at any size, so it survives copying, faxing, marking up with a pen and being read on a phone on a job site. It's the same look people mean by a "blueprint" today (see floor plan vs blueprint vs elevation).
There are two switches, and they do different things: Settings → General → Plan style changes how the editor draws every plan for you, and the Black & white box in the export dialog changes just one exported file.
Step by step
- 1

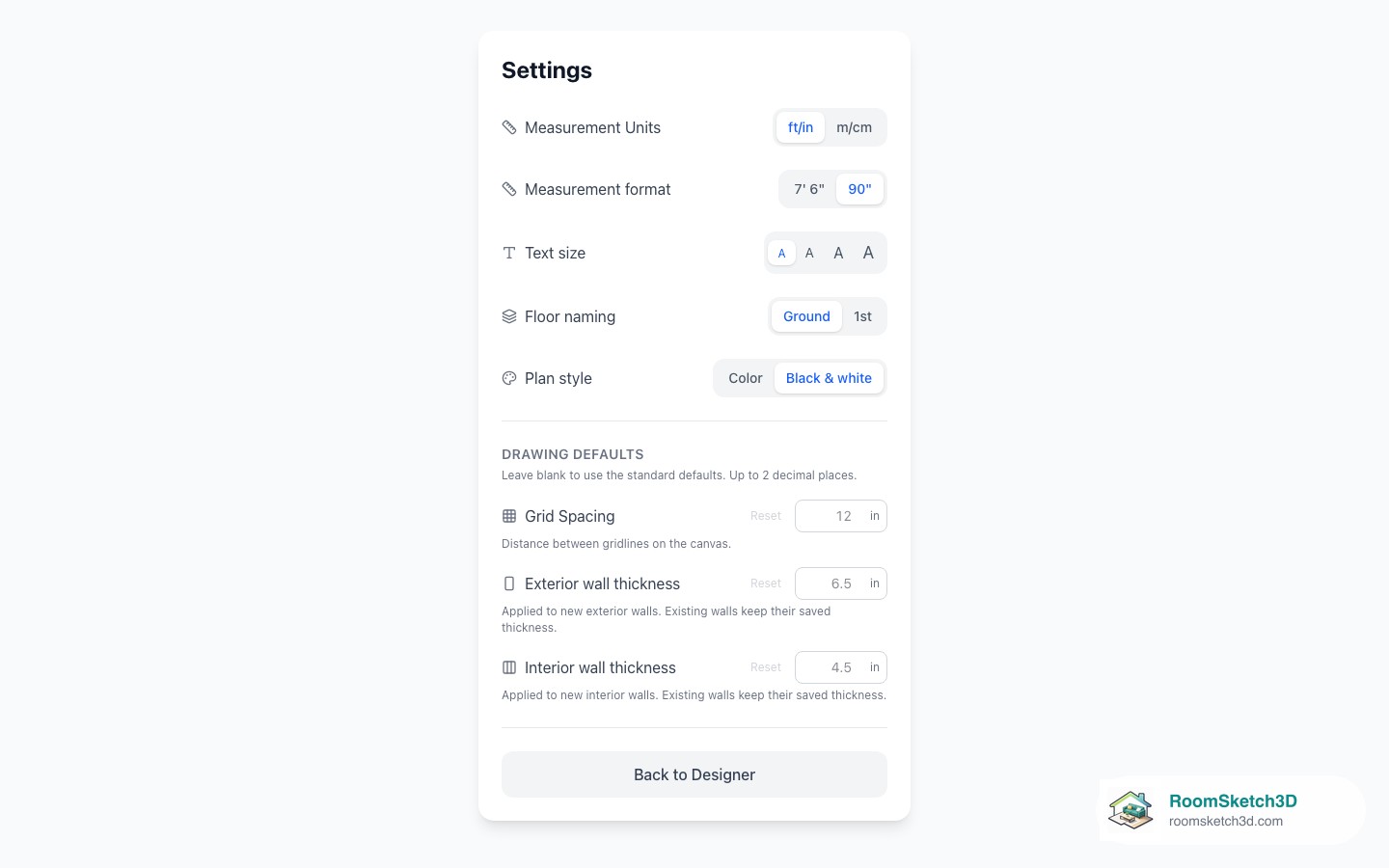

Switch the plan style
Open your profile menu → Settings → General tab. Under Plan style choose Black & white (or Color). Tap Back (top left) and you return to the exact design you were editing.
Settings → General → Plan style. - 2

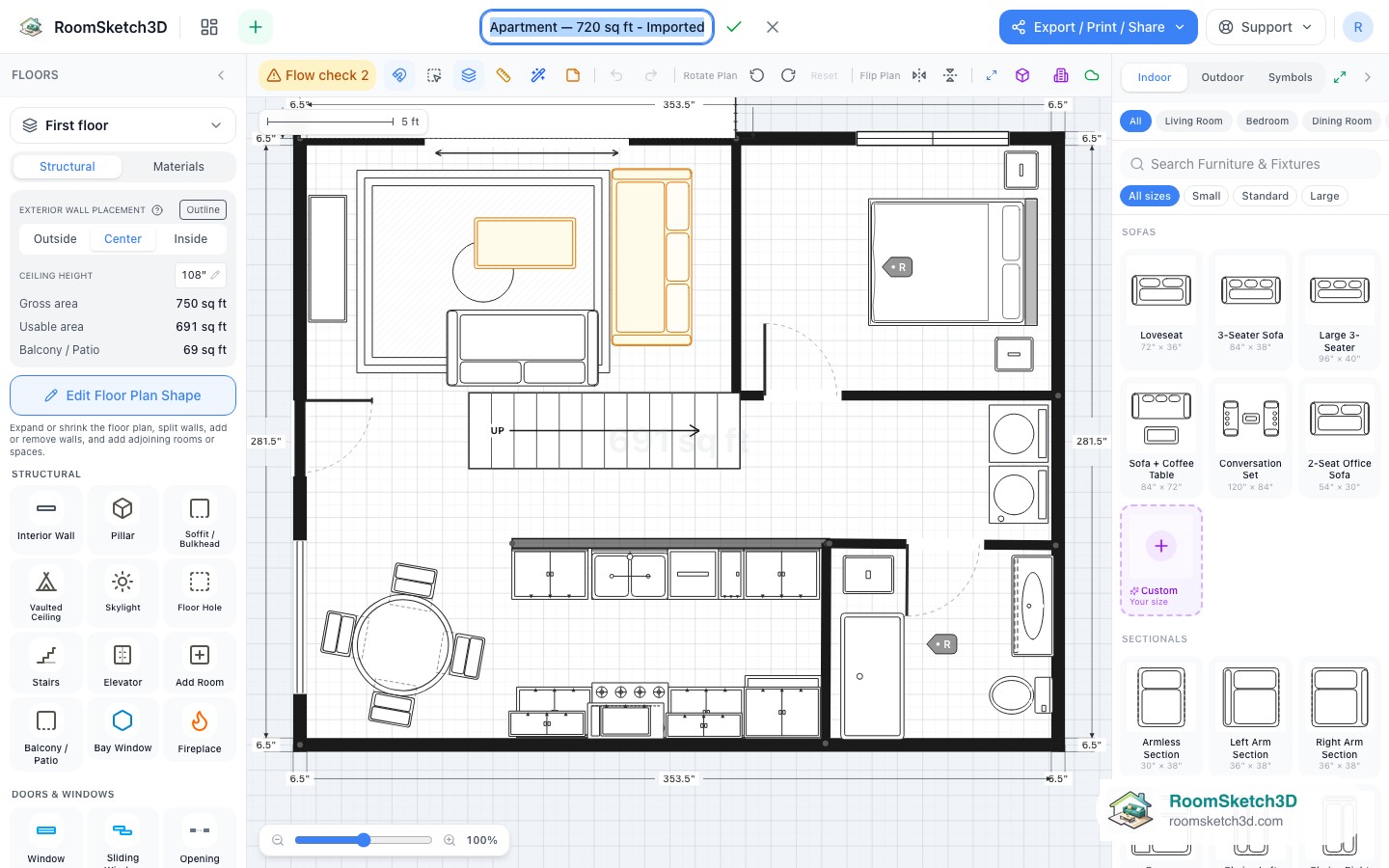

Work in ink-on-paper
Walls, doors, stairs, furniture, fireplaces, wall beds, and labels redraw as a crisp black-and-white drawing. Selection highlights and Flow Check warnings keep their colours so editing stays clear.
The editor itself becomes a blueprint. - 3

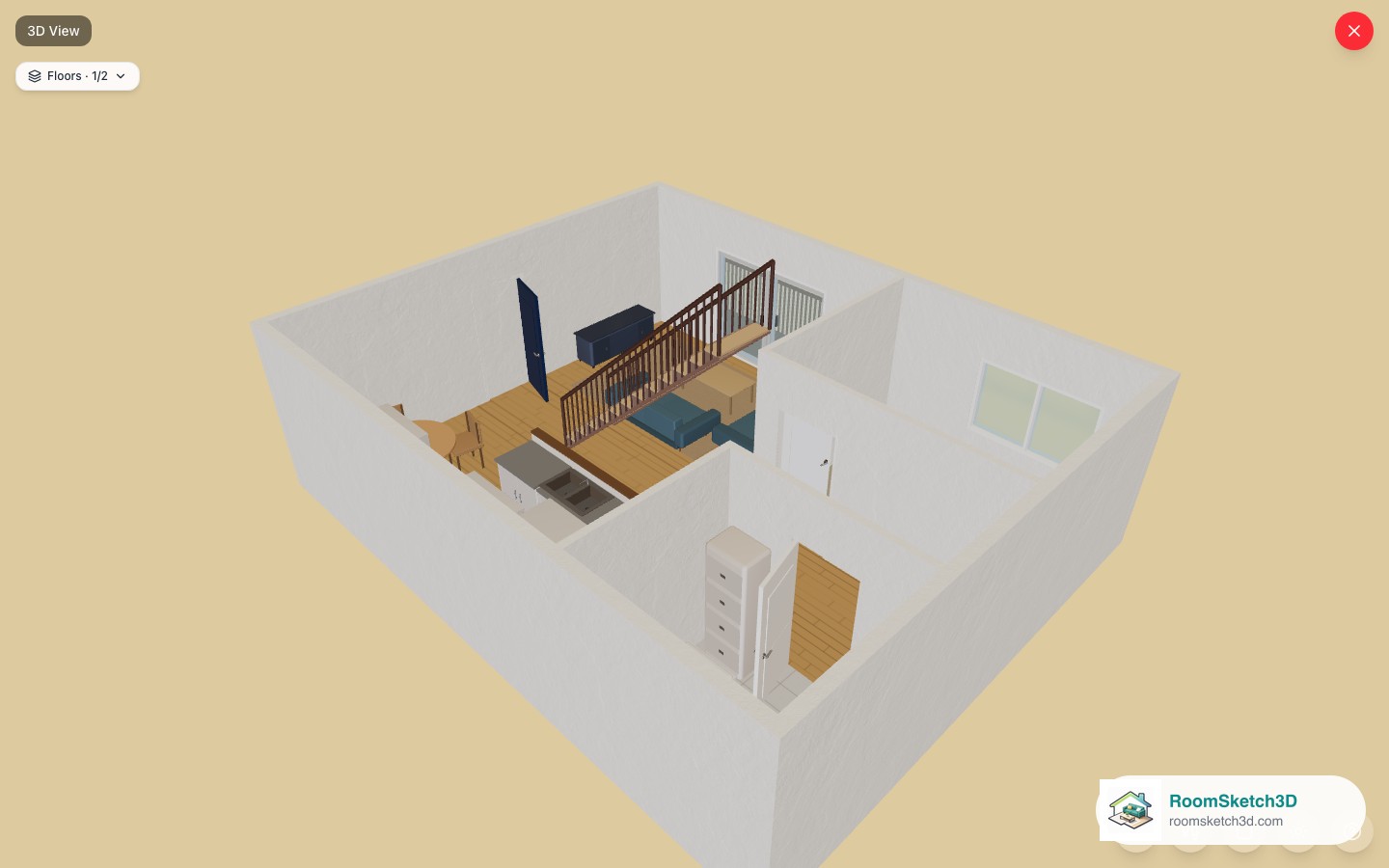

3D stays in colour
The plan style is a 2D drawing style; the 3D view keeps your paint, flooring, and furniture materials. Want the 3D view in black and white too? Tick Line art in the 3D view (beside Dollhouse on a computer or tablet, in View options on a phone); see See your 3D view as a line drawing.
Only the 2D drawing changes. - 4

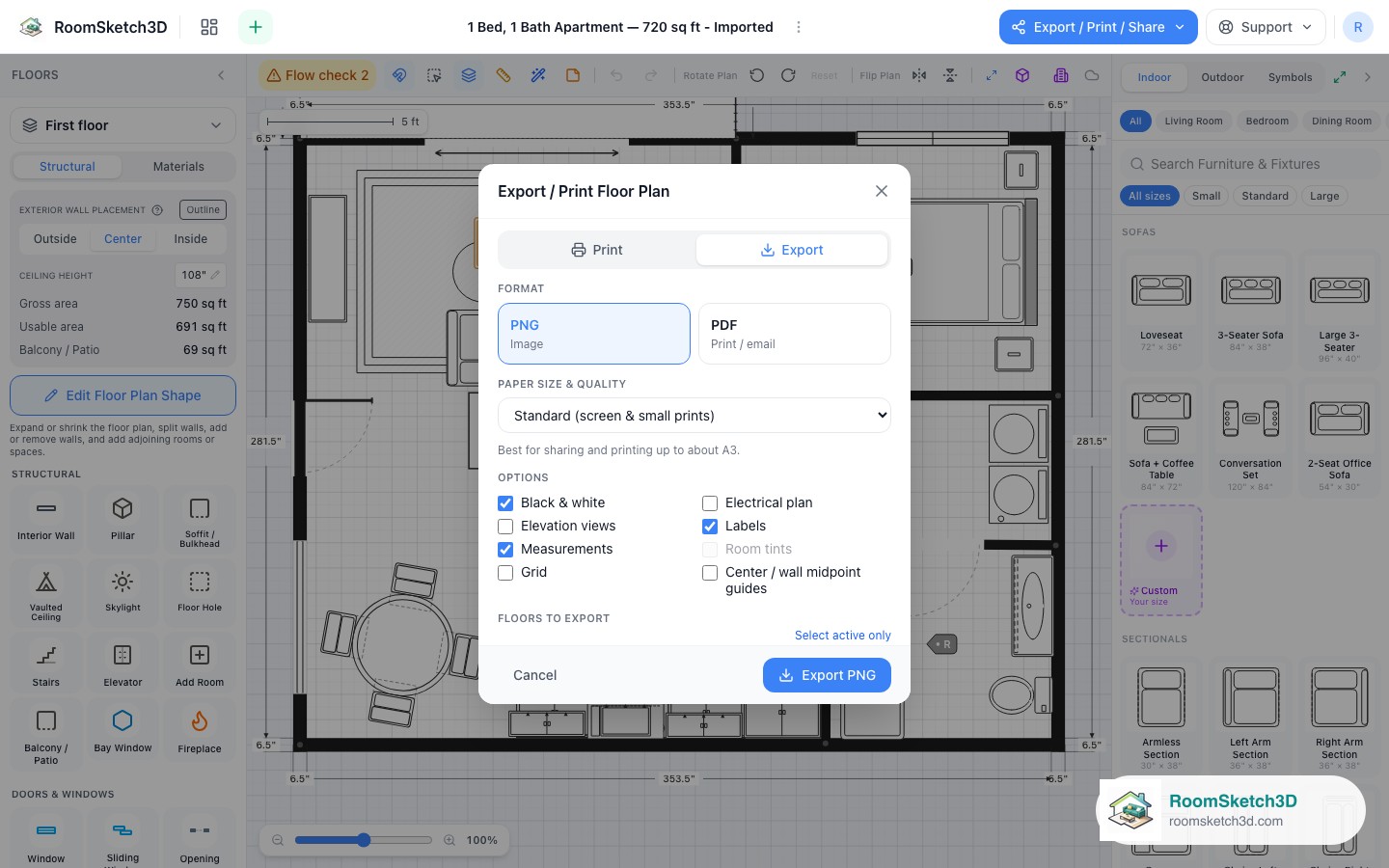

Exports and prints follow
PNG, PDF and print exports follow your plan style: the Black & white box, the first item under Options in the Export / Print Floor Plan dialog, starts ticked when your plan style is Black & white. Tick or untick it there for a one-off export the other way, without changing your plan style. For a black-and-white electrician's sheet, also tick the Electrical plan view under Views at the top of the dialog and untick Floor plan: the furniture drops out and Symbol legend & circuit table is ticked.
Exports match; the dialog can override per file.
Tips
Print in black and white, design in colour
Leave the setting on Color and use the export dialog's switch when you print — or flip the setting for a day of drawing-desk work.
Room tints are optional
In the export dialog, Room tints adds a soft fill behind each room even in monochrome; turn it off for a pure line drawing.
Choose what prints
The same dialog decides what goes on the drawing: Labels, Exterior and Interior dimensions, Tape measurements, Grid and Center / wall midpoint guides. For a builder, keep dimensions and labels and drop the grid; for a furniture layout, the opposite.
Add elevations for a full set
Tick Elevation views in the same dialog to add the four outside walls as extra PDF pages or separate PNG images, in the same style.
Common mistakes
Expecting 3D to go monochrome
Plan style affects the 2D plan only. For a black-and-white 3D drawing, turn on Line art in the 3D view (3d line art view).
Changing the setting when you meant one file
Plan style is an app setting: it stays black and white for every design until you switch it back. For a single black-and-white print, leave the setting alone and tick Black & white in the export dialog instead.
Frequently asked questions
Does Black & white change my exports?
Yes. Exports and prints match the active plan style. The export dialog also has its own Black & white switch for a single file.
Can I still see selections and warnings?
Yes. Selection highlights and Flow Check warnings keep their colours in Black & white mode.
Is the setting per design or for the app?
It's an app setting in Settings → General → Plan style and applies to every design until you change it.
Can I export black and white with the electrical symbols only?
Yes. In the export dialog, under Views, untick Floor plan and tick Electrical plan, then tick Black & white under Options: you get a monochrome drawing of the walls, the symbols and the circuit lines, with the Symbol legend & circuit table below it. (Until November 17, 2026 this was an Electrical plan checkbox under Options.) See electrical plan outlets switches symbols.
Does Black & white affect AutoCAD (DXF) export?
No. Plan style and the Black & white box apply to the PNG, PDF and print exports. DXF is a layered CAD drawing that your CAD program colours by layer.
