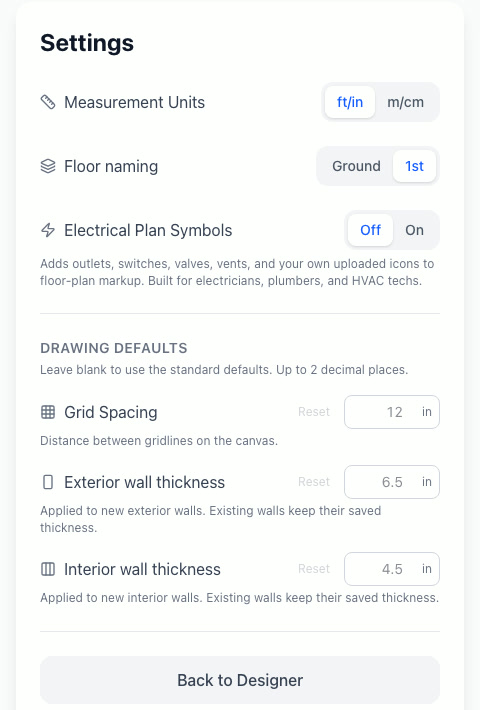

Every setting, explained
Open Settings from the avatar at the top right. It opens on General (language, text size, floor naming, mouse & trackpad, plan style), then Measurements & Defaults (units, format, grid spacing, wall thickness) and Account (your email and Premium status, Link a computer, Signed-in devices, Delete Account). Here's what each one does.
Settings let you tailor RoomSketch3D to how you work. Open them from the round account button at the top right of Home or the editor → Settings. Settings is split into three tabs, so nothing needs scrolling to reach: - General: Language, and the Design editor settings: text size, floor naming, Mouse & trackpad (on a computer) and plan style. - Measurements & Defaults: Measurements (units and format) and Floor plan defaults (grid spacing, exterior and interior wall thickness). - Account: who you're signed in as and your Premium status, Link a computer (phone and tablet apps only), Signed-in devices, and the Danger zone with Delete Account.
Since November 16, 2026 Settings opens on the General tab, with the tabs in that order (it used to open on Account, which came first). Changes save to your account straight away and follow you to every device you sign in on: set metric on your phone and the computer shows metric too. The one exception is Mouse & trackpad, which is kept on each computer. (The editor has its own Plan Settings for one design, such as ceiling height, wall placement, rotation and layout; those are covered in the editor guides, not here.)
Step by step
- 1
Open Settings
Click the round account button at the top right and choose Settings. Three tabs run across the top: General, Measurements & Defaults and Account; the selected one is blue, and Settings opens on General. Back at the top left returns you to wherever you came from: Home or your design.
Settings opens on General; Measurements & Defaults and Account are the next two tabs. - 2
General tab: Language
Open the General tab. Language is first: pick the language of the app's buttons, menus and catalog: English, French, Spanish, German, Portuguese, Hindi, Russian, Japanese or Marathi. Your designs don't change. The language you start in. A new account starts in the language the sign-in page was showing when you signed up, however you sign up (Google, Apple or an emailed code). For new users, the Android app opens in your phone's language when it's one of these nine, and the iPhone and iPad app does the same from its next update; otherwise they open in English. In a web browser the app opens in English, or in the language last picked on that device. Signing in to an account you already have always brings back that account's language. You can change it here at any time.
General ▸ Language: the app's interface language. - 3
General tab: Text size
In Design editor on the General tab. Four sizes, from 100% up to 150% (the four A buttons grow left to right). It makes the room names, furniture names and dimensions on your plan larger and easier to read.
General ▸ Text size: labels and dimensions on the plan, up to 150%. - 4

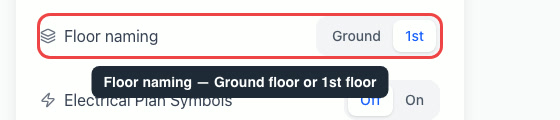

General tab: Floor naming
Choose how new floors are named: Ground (Ground floor, First floor, Second floor — UK and most of the world) or 1st (First floor, Second floor, Third floor — US). Floors you already have keep their names.
General ▸ Floor naming: Ground-floor or 1st-floor convention. - 5
General tab: Mouse & trackpad (CAD-style)
On a computer, Design editor also has Mouse & trackpad: Standard or CAD-style. - Standard (what everyone starts on): scrolling or a two-finger swipe zooms the plan, and dragging on empty floor moves it. - CAD-style, for people used to CAD programs: scrolling or a two-finger swipe moves the plan, and pinching or Ctrl/⌘ + scroll zooms. Drag with the middle mouse button to move the plan; dragging on empty floor no longer moves it. Touch screens work the same either way, and the row only shows on a device with a mouse or trackpad (not on a phone or tablet without one). Unlike the other settings, this one is saved on this device, not to your account: set it on each computer. Right-click menus for furniture, walls and rooms work in both modes.
General ▸ Mouse & trackpad: CAD-style makes scrolling move the plan. - 6
General tab: Plan style
Color or Black & white. Black & white redraws the whole plan as a crisp ink-on-paper drawing while you work, and exports match. The 3D view stays in colour. See Black & white plan style.
General ▸ Plan style: colour or black & white. - 7

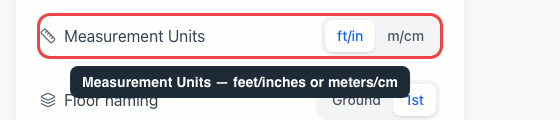

Measurements & Defaults tab: Measurement Units
Open the Measurements & Defaults tab. Switch between ft/in (feet and inches) and m/cm (meters and centimeters). This is display only — it never changes your design; a 12-foot wall is the same as a 3.66-meter wall.
Measurements & Defaults ▸ Measurement Units: feet/inches or meters/centimeters. - 8
Measurements & Defaults tab: Measurement format
Choose how a length is written. The two buttons show the real notation: 7' 6" (feet and inches) or 90" (inches only); in metric, metres and centimetres or centimetres only. See Switch units.
Measurements & Defaults ▸ Measurement format: 7' 6" or a plain 90". - 9
Floor plan defaults
The Floor plan defaults section, on the Measurements & Defaults tab under Measurements, sets the values stamped onto every new plan you create. Leave a field blank to use the standard value; numbers take up to 2 decimal places. Existing plans keep the values they were drawn with. Full walkthrough: Floor plan defaults.
The Measurements & Defaults tab: how numbers are shown, and the defaults for new plans. - 10

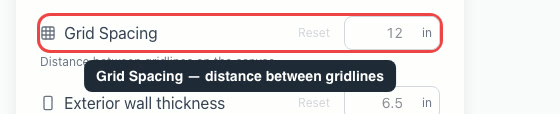

Grid Spacing
The distance between gridlines on the canvas (default 12 in, or 50 cm in metric). Larger spacing for site planning, smaller for fine detail. The grid is visual only — snapping isn't affected.
Grid Spacing: distance between gridlines on the canvas. - 11

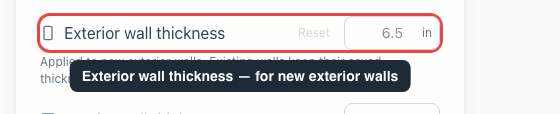

Exterior wall thickness
The default thickness for new exterior walls (default 6.5 in). Thicker for masonry, thinner for lightweight construction. This is only the starting value — once a wall is placed, you can change any wall's thickness individually by selecting it. Existing walls keep their saved thickness.
Exterior wall thickness: applied to new exterior walls. - 12

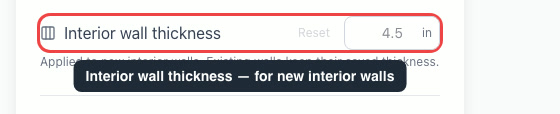

Interior wall thickness
The default thickness for new interior walls (default 4.5 in). As with exterior walls, this is just the starting value — after placing a wall you can adjust its thickness individually. Existing walls keep their saved thickness; click Reset next to any field to return it to the standard default.
Interior wall thickness: applied to new interior walls. - 13
Account tab: who you're signed in as
Open the Account tab, the third one. The card at the top shows your name, the email you're signed in with and a Premium (or Free) badge. If your sign-in didn't share a name, the card shows the start of your email (the part before the @) instead; with Apple's Hide My Email it shows User. Your designs and your purchase belong to that email. On a Free account the card also has an Upgrade button. See Your account.
The Account tab: the email under your name is the account you're in (blurred here). - 14
Account tab: Link a computer (in the apps)
In the iPhone, iPad and Android apps, Link a computer sits right under the account card: open app.roomsketch3d.com/link on a computer, tap this row, scan the code and tap Sign in, and the computer opens your account without a password or email code. It's not shown in a web browser, since the phone's camera does the scanning. Full guide: Sign in on a computer with your phone.
Link a computer appears on the Account tab in the phone and tablet apps. - 15
Account tab: Signed-in devices
Signed-in devices lists everywhere your account is signed in: the browser and system (for example Chrome on Mac) or the RoomSketch3D app, roughly where and its internet address, and when it was last active. The device you're using has a This device badge. Sign out on any other row signs that one out; Sign out of all other devices signs out everywhere else after a confirmation. The refresh button at the top right of the list picks up a device that just signed in. A signed-out device is sent to the sign-in page the next time it does anything.
Signed-in devices: sign out one device, or every device but this one. - 16
Account tab: Danger zone (delete your account)
At the bottom of the Account tab, Delete Account permanently deletes your account and all your designs, after a confirmation. It can't be undone. Read Your account first.
Danger zone, at the bottom of the Account tab: permanent account deletion.
Tips
Settings follow your account, not the device
Units, format, text size, floor naming, plan style and the floor plan defaults are saved to your account. Change them once and every phone, tablet and computer you sign in on uses the same choices. Mouse & trackpad is the exception: it's kept on each computer, since a desk with a CAD mouse and a laptop trackpad may want different ones.
A link can open a tab directly
Each tab has its own address: app.roomsketch3d.com/settings?tab=account, ?tab=general or ?tab=measurements. The new-sign-in security email uses this to open Signed-in devices straight away.
Check Signed-in devices now and then
It takes a few seconds to glance at Account ▸ Signed-in devices and sign out an old laptop or a computer you borrowed. Your designs stay put.
Frequently asked questions
Why does Settings open on General now instead of Account?
Since November 16, 2026 the tabs are in the order people use them most: General, Measurements & Defaults, then Account, and Settings opens on General. Your account card, Signed-in devices and Delete Account are on the Account tab, unchanged.
How do I make scrolling move the plan instead of zooming, like in CAD?
Settings → General → Mouse & trackpad → CAD-style. Scrolling or a two-finger swipe then moves the plan, pinch or Ctrl/⌘ + scroll zooms, and the middle mouse button drags the plan. It's saved on that computer only, and touch screens aren't affected.
Does changing units change my design?
No — units are display only. The geometry is identical; only the numbers shown change.
Why don't new wall thicknesses apply to my existing plans?
Floor plan defaults stamp onto new plans only. Existing walls keep the thickness they were drawn with — select a wall to change it.
How do I change the app's language?
Avatar (top right) → Settings → General tab → Language. RoomSketch3D is fully translated into French, Spanish, German, Portuguese, Hindi, Russian, Japanese, and Marathi — including the catalog and search — and your choice sticks across sessions.
Which language does a new account start in?
The one on screen when you signed up. In the Android app (and the iPhone and iPad app from its next update) that's your phone's language if the app speaks it, otherwise English. An account you already had keeps its own language when you sign in. Change it any time in Settings → General → Language.

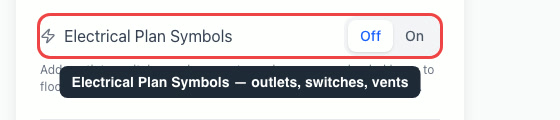

Where did the Electrical Plan Symbols setting go?
It's no longer a setting. Electrical, plumbing, HVAC and other plan symbols are always available in the Symbols tab of the catalog panel, next to Indoor and Outdoor. See Electrical plans.
Where did Profile go?
It's part of Settings: your name, email and Premium status are in the card at the top of the Account tab, with Delete Account at the bottom of the same tab; Language is on the General tab. Sign out is in the avatar menu itself.
How do I make the text and dimension labels bigger?
Settings → General tab → Text size. It scales every label on the plan — room names, furniture names, and the dimension chains — up to 150%, and the choice is saved to your account so it follows you to every device. On a phone or tablet you can also use the device's accessibility zoom or larger-text setting; the app respects it.
Where are units and wall thickness now?
On the Measurements & Defaults tab: Measurement Units and Measurement format at the top, Floor plan defaults (grid spacing, exterior and interior wall thickness) below.
I don't see Link a computer in Settings.
It's only in the iPhone, iPad and Android apps, on the Account tab. In a web browser, the computer side is the Sign in with your phone button on the sign-in page (or app.roomsketch3d.com/link).
Why does Settings show part of my email instead of my name?
Your sign-in didn't share a name (Apple shares it only the first time, and an email code never does), so the card shows the start of your email instead. With Apple's Hide My Email the start is random letters, so it shows User. Either way, the full email under it is what identifies the account.
