Re-scale a floor plan from one known measurement (and line up an upper floor)
Open Plan Settings → Layout → Outline Editor → Re-scale, drag two crosshairs onto a span whose real length you know, type it, choose This floor or All floors, and tap Update Floor Plan. On an upper floor, Reposition this floor slides the whole floor into line with the one below.
Traced and AI-imported plans sometimes arrive at the wrong size: the shape is right, but every dimension is off by the same factor, because the scale was set from a mis-read label or a guessed wall. You don't redraw. You re-scale the whole plan from one span you can measure, and every wall grows or shrinks by the same factor.
Re-scale changes where things are, not how big the real objects are. Walls get longer or shorter and everything on the plan moves with them, but a wall stays as thick as it was, a door stays 36″ wide and a sofa stays a sofa. In a design with several floors you choose This floor (the default) or All floors.
The same editor has a second tool for multi-floor designs: Reposition this floor. It doesn't change any size; it slides a whole upper floor sideways so it sits over the floor below. Both are covered here, on a real template (the Three-Story Townhouse, 20′ wide and 40′ deep).
What you'll need
- •A design open in the editor
- •One distance you know for certain (a wall, a doorway, a room's width)
Step by step
- 1
Spot the problem

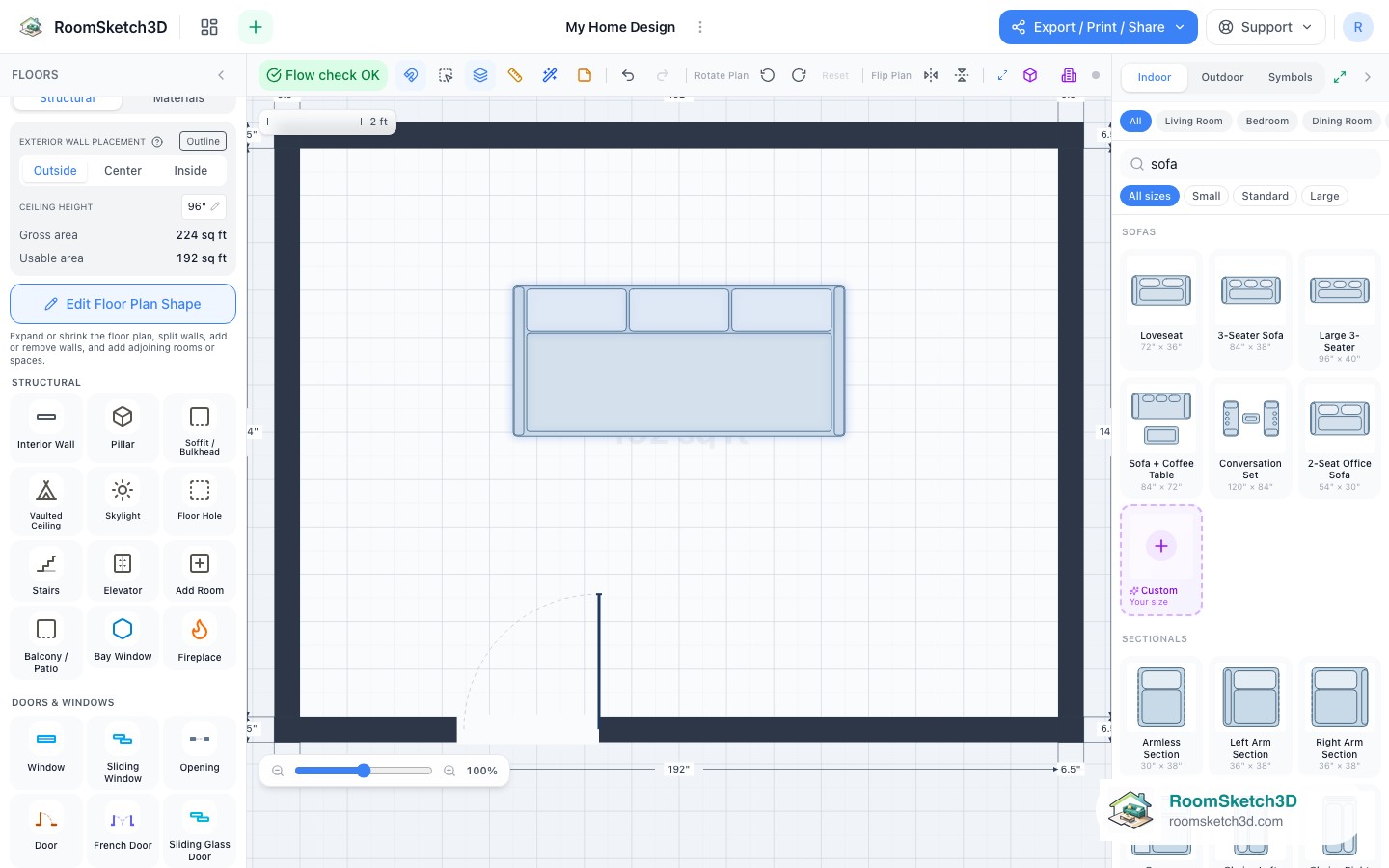

Check one measurement you trust against the plan. Here the Townhouse reads 20′ 6.5″ across the outside of its walls, with Gross area 833 sq ft. Suppose the real house is 30′ wide: then every dimension is two-thirds of what it should be, and one re-scale fixes all of them. Any measurement you trust works: a wall length from the listing or survey, a doorway you measured, the distance between two corners. If only one or two walls are wrong, don't re-scale. Fix those walls on the plan instead (tap the wall and type its length; see Edit walls on the plan).
The shape is right; if the numbers are off by one factor, re-scale. - 2
Open Plan Settings → Layout → Outline Editor
On a computer, Plan Settings sits at the top of the Structural tab in the left panel; if the side panel is closed, tap the Plan Settings tab on the left edge. On a phone, tap PLAN SETTINGS in the top row; a tray opens with the same four tabs: Layout, Rotation, Walls and Ceiling. Stay on Layout and tap Outline Editor. The ⓘ beside it gives a one-line summary of what the editor is for, and the Gross area and Usable area of the floor sit right under it. If Outline Editor is greyed out with Close your plan's outer walls first, the outline still has a gap: close it on the plan first.
Phone: PLAN SETTINGS → Layout → Outline Editor. On a computer it is the same panel, in the Structural tab. - 3
Tap Re-scale

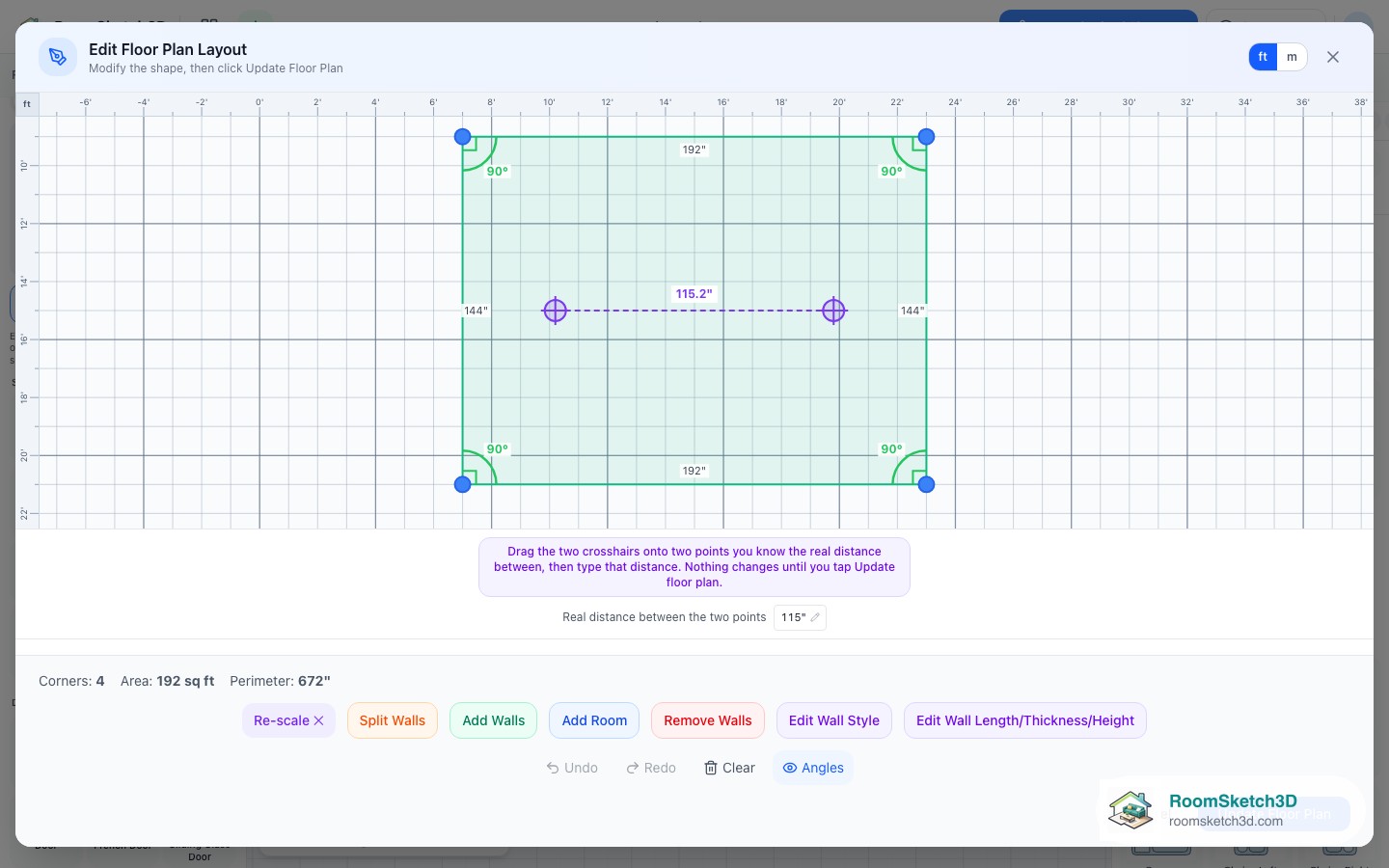

In the editor's bottom bar, tap Re-scale. The plan becomes read-only (corners can't be dragged), two purple crosshairs appear across the middle of the floor joined by a dashed line with its current length (here 12′), and the dock under the plan reads: Drag the two crosshairs onto two points you know the real distance between, then type that distance. Nothing changes until you tap Update floor plan. In a design with more than one floor, the dock also shows Re-scale: This floor | All floors (more on that below). Tap Re-scale again (it shows ✕ while on) to leave without changing anything. If Re-scale is pale and nothing happens when you tap it, a wall length on this floor is locked: see the next step.
Re-scale mode: two crosshairs, the instructions, and the floor choice. - 4
Re-scale greyed out? Unlock the walls first
Re-scale changes every wall length on the floor, and a locked length must not change. So while any wall length or measurement on this floor is locked, the Re-scale button is greyed out. Its tooltip says Re-scale is off while any wall's length is locked. Unlock walls on the plan first., and a blue note at the top of the editor says Walls with a padlock have a locked length, so their corners can't be moved or their angles changed here. Re-scale is off while any wall is locked. To unlock a wall, close the Outline Editor, select the wall on the plan and tap the padlock next to Length. Locked outer walls show a padlock in the editor, and their corners have no circle. Locked interior walls and locked measurement pieces turn Re-scale off too, but don't show a padlock here; look for them on the plan (a blue padlock next to Length when you select the wall, or a small padlock in a measurement's label). To re-scale: tap Cancel, select each locked wall on the plan and tap the padlock next to Length (Unlock this length), then open the Outline Editor again. Re-scale works once nothing on the floor is locked. Lock the walls again afterwards if you want: the lock keeps the new, re-scaled length. See Lock wall lengths.
One locked wall: the note at the top explains it, and Re-scale (bottom bar) is greyed out until you unlock it on the plan. - 5
Put the crosshairs on a span you know

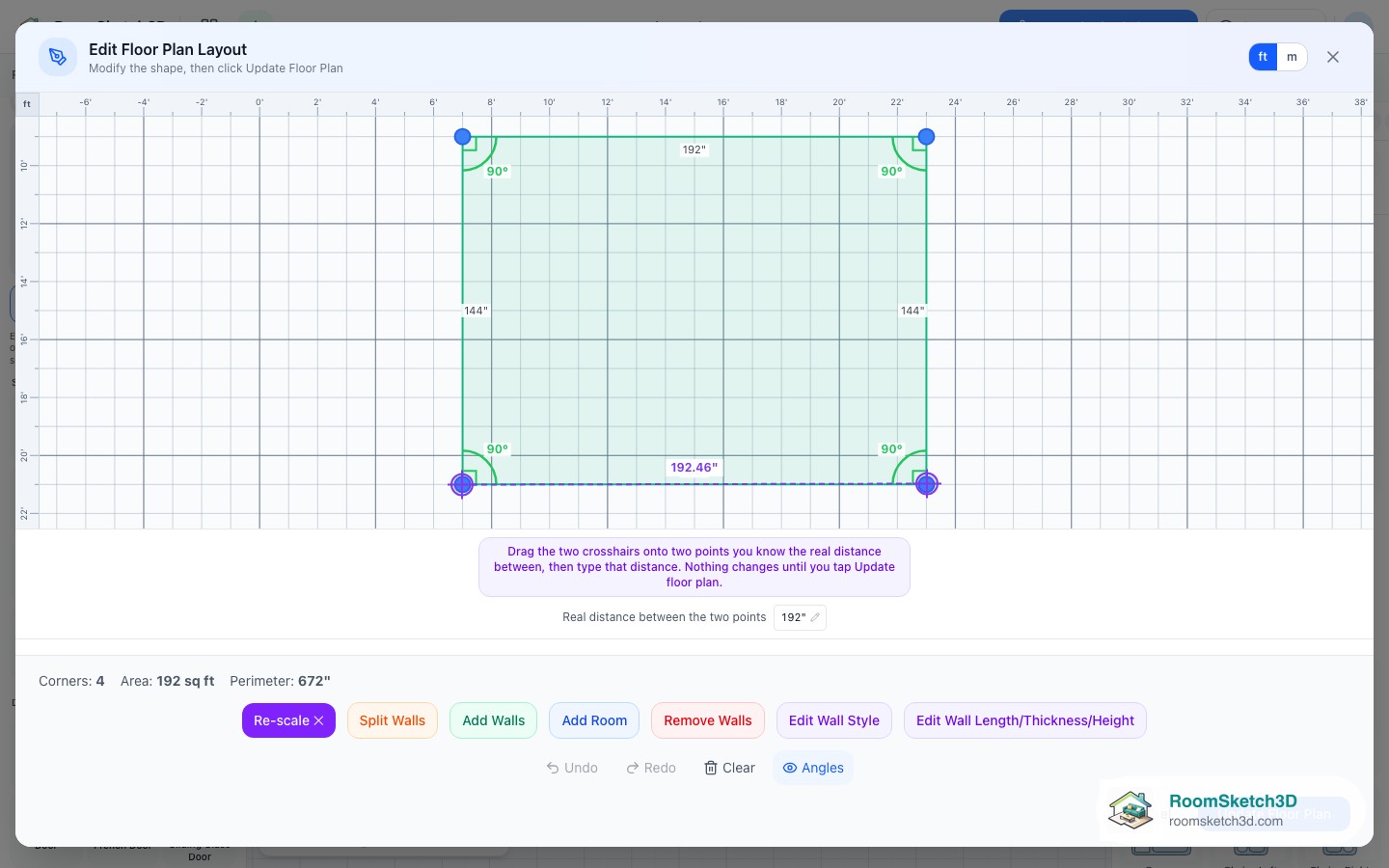

Drag each crosshair onto one end of the span you can measure. Here they sit on the two top corners, and the dashed line reads 20′. On a phone or tablet a magnifier appears under your finger while you drag, so you can land precisely. The crosshairs don't snap to corners or walls, so zoom in (scroll or pinch) and check the purple length on the dashed line: it should read the plan's own figure for that span. If it reads 20′ 0.93″ when the wall says 20′, nudge a crosshair; a small miss turns into a small error in the factor (here 149% instead of 150%). Measure a span the plan measures the same way: the outline corners in this editor are the wall centrelines (see the FAQ on areas below), so for a wall measured to its outside face, put the crosshairs on the outer edges instead.
Both crosshairs on the corners: the dashed line reads 20′. - 6
Type the real distance and check the percentage

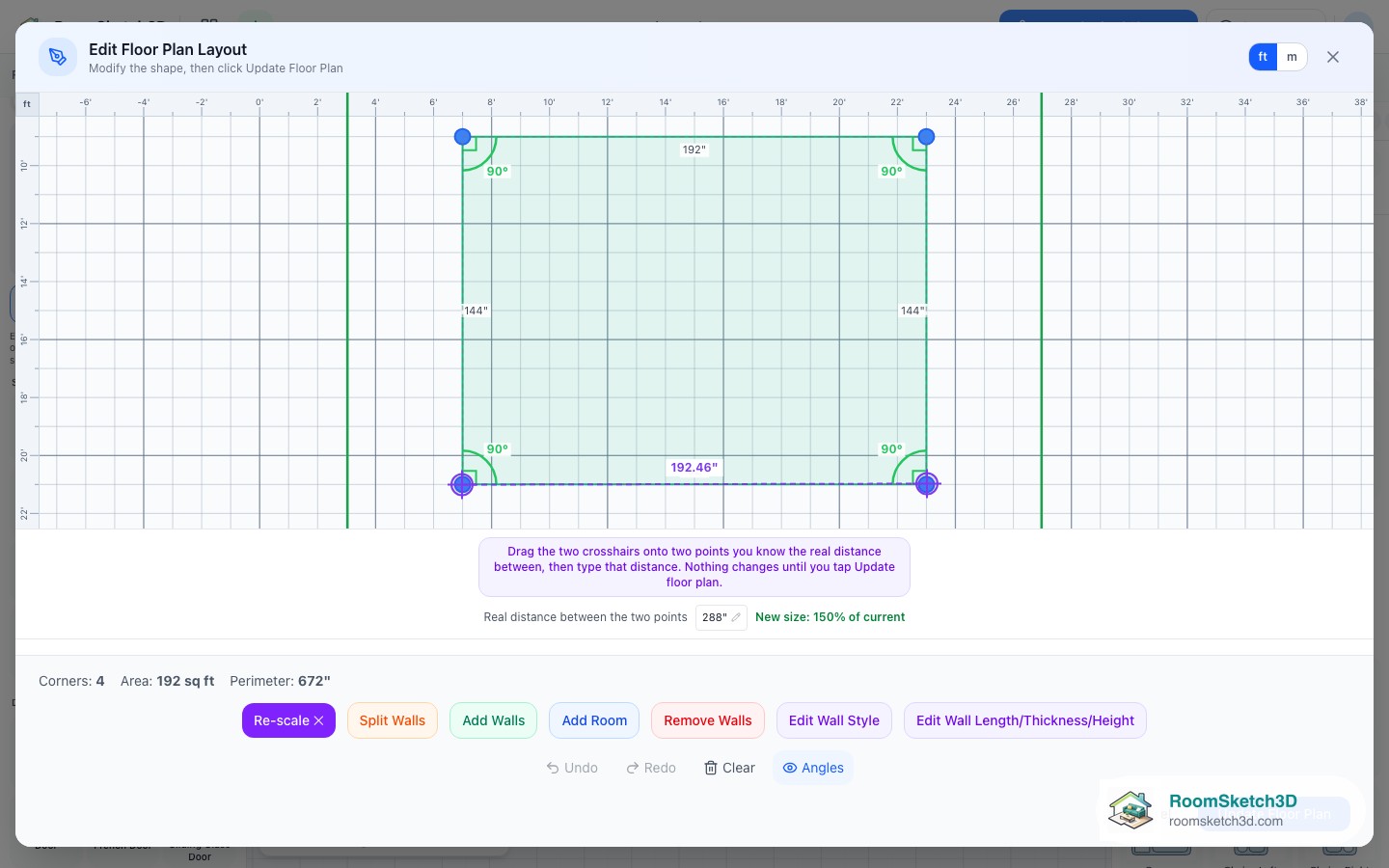

Tap the box beside Real distance between the two points. It opens as two boxes, feet and inches (metres and centimetres in metric); type the true length and press Enter or the ✓. The dock shows New size: N% of current and two green lines preview the new size on the plan. Here 30′ for a 20′ span gives New size: 150% of current. Read the percentage before you go on. Most real scale mistakes come out as a clean-looking ratio (a plan traced at half size shows 200%; one set from a metre-for-foot mix-up shows about 328% or 30%). A figure like 101% means the plan was nearly right, and a wall-by-wall fix may be better than re-scaling everything.
30′ for a 20′ span: New size 150% of current. - 7
Choose This floor or All floors
In a design with more than one floor, pick what the new size applies to. This floor (selected when you open Re-scale) changes only the floor you're on: use it when one floor was imported or traced at the wrong size and the others are right. All floors changes every floor, and the furniture on each, by the same factor around the same point, so floors that were lined up stay lined up. The dock then says All 3 floors and their furniture are re-scaled together. Undo restores only this floor. That last sentence matters: after an All floors re-scale, one Undo puts back only the floor you were on. If you might want to go back, check the result straight away, floor by floor. A design with one floor doesn't show the choice at all.
All floors: every floor and its furniture, by the same factor. - 8
Re-scale on its own: save other outline changes first
Re-scaling saves only the new size. If you already dragged a corner, used All 90° or repositioned the floor in the same Outline Editor session, a yellow note appears in the dock: Re-scaling saves only the new size. Other changes made in this session are discarded — save them first with Update Floor Plan, then re-scale. So do it in this order: make your outline changes, tap Update Floor Plan, open the Outline Editor again, and then re-scale. Or the other way round: re-scale first, update, then reopen the editor for the corner fixes. (At the moment the note can also appear after you've only tapped a corner without moving it; if you're sure you changed nothing, it's safe to go on.)
The yellow note means this session holds other changes that Re-scale would drop. - 9
Tap Update Floor Plan, then check the plan

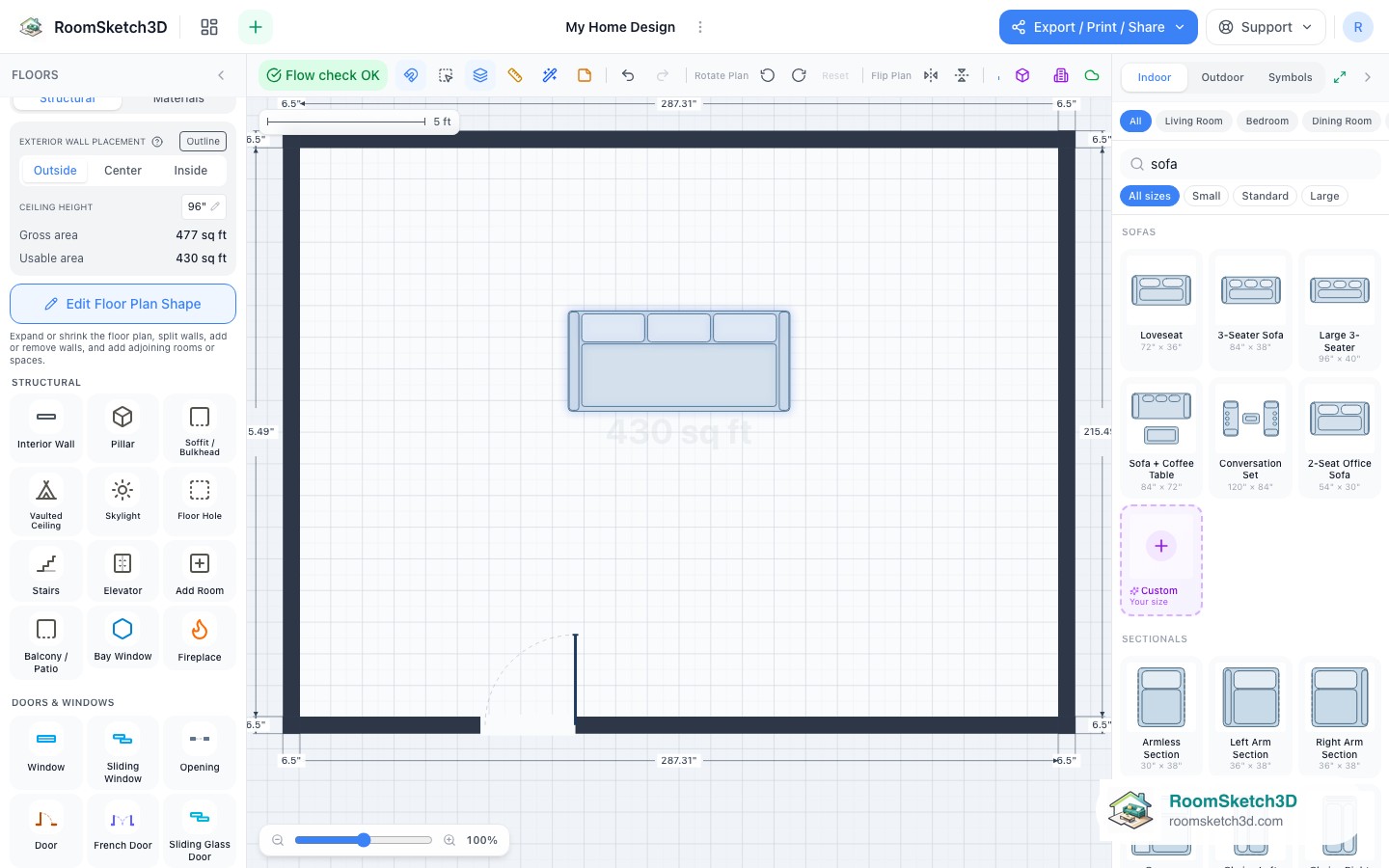

Tap Update Floor Plan (on a phone the button says Save). It stays greyed out until you've typed a length. The plan refits to its new size. Here the floor is now 30′ 6.5″ across the outside, and Plan Settings reads Gross area 1849 sq ft and Usable area 1752 sq ft.
What changed and what didn't:
Re-scaled with the plan Kept at its real size Wall lengths and every corner Wall thickness (6.5″ stays 6.5″) Where furniture, fixtures, stairs, notes and measurements sit Furniture, cabinet and appliance sizes Where doors and windows sit along each wall Door and window widths A staircase's run (its length on the plan) Stair width, wall and ceiling heights Then check three things. Room names and floors: right now, re-scaling can reset room names to Room and room floors to the default finish (the tags in this picture read R); re-type the names by tapping each room's label and re-pick floors in Materials. Furniture: it moved outward with the walls, so look for gaps or pieces that now float in a room; Smart Flow Check flags anything inside a wall. Stairs: a staircase keeps its width but its run stretches or shrinks with the plan, so check its steps in 3D after a big change. Measure the span again: the plan now agrees with the tape.
After 150%: walls longer, the car the same size. Room tags now read R: re-check names and floors. - 10
On a phone: the same Re-scale dock
The phone editor fills the screen. Re-scale, Reposition this floor and the other tools are in the bottom bar, the dock with This floor | All floors and Real distance between the two points appears above it, and Save stands in for Update Floor Plan. To close without saving, tap the ✕ at the top right.
Phone: the same dock; Save commits, ✕ closes without saving. - 11
Upper floor not over the one below? Reposition this floor
On any floor that has a floor below, the Outline Editor shows that floor as a guide: a blue fill with its label (here SECOND FLOOR · Use as a guide while drawing this floor) and a Stair box where the stairs from below arrive. The bottom bar adds Reposition this floor. Use it when an upper floor is the right size but sits in the wrong place: for example it was imported or drawn a few feet off, so walls don't stack in 3D and the stairs come up into a wall. Reposition never changes the floor's size or shape.
Upper floor: the floor below shows as a blue guide, with Reposition this floor in the bar. - 12
Drag the floor into place; Revert Move, Cancel or Update
Tap Reposition this floor (it shows ✕ while on). Corners lock, the guide turns grey, and a press inside the outline drags the whole floor; a press outside it pans the view. When one of your corners comes within about 6″ of a corner, an interior-wall end or a stair end of the floor below, it snaps onto it, which makes a clean line-up easy. Three ways out: - Revert Move (appears once you've moved the floor) puts the floor back where it started this session. Any other outline changes you made in this session stay. - Cancel (on a phone, the ✕ at the top right) closes the editor and throws away everything from this session, the move included. - Update Floor Plan (Save on a phone) keeps the move. This floor's interior walls, doors and windows, furniture and notes go with it. A known quirk today: while you drag, only the green outline moves on screen and this floor's interior walls appear to stay behind. They do move with the floor when you tap Update Floor Plan, so judge the position by the outline.
Moved 3′: the green outline is the new position, the grey one the floor below. Revert Move, Cancel or Update Floor Plan. - 13
On a phone: Reposition this floor
On a phone the same button sits in the bottom bar next to Re-scale. Drag with one finger inside the outline; pinch to zoom. Revert Move joins the bar after you've moved the floor, Save keeps the move and the ✕ at the top right throws it away.
Phone: Reposition this floor, then Save. - 14
After a reposition: check the stairs and the rooms
Stairs belong to the floor they start on, so moving the upper floor doesn't move the staircase coming up from below. On the upper floor's plan, the place where the stairs arrive shows as a faint DN to Second floor outline. Before the move it sits in the open hall; after moving this floor 3′ to the right it runs under the laundry wall (right half of the picture). If that happens, the move was in the wrong direction or too far: Undo, or open the editor again and line the floor up with its corners on the guide's corners. Then tap the 3D view to see the floors stacked and the stairs arriving in the open. As with re-scaling, a reposition can currently reset this floor's room names to Room and their floors to the default finish (the tags on the right read R). Re-check names and floors after you tap Update Floor Plan.
Before (left): the stairs arrive in the hall. After moving 3′ (right): they run under a wall, and the room tags have reset.
Tips
Use the longest span you can
A 30-foot wall gives a more accurate factor than a 3-foot doorway: a 1″ placing error is 0.3% on 30′ but almost 3% on 3′. Overall length or width of the house is usually the best span you have.
Fix the scale (and the position) before you furnish and name rooms
It works either way, but a plan at the right size makes every furniture decision honest from the start, and doing it before you name rooms and choose floors means nothing has to be redone if names or finishes reset.
Re-scale on its own
Re-scaling saves only the new size. If you've made other outline changes in the same Outline Editor session, the editor warns you they'll be dropped. Tap Update Floor Plan for those first, then open the Outline Editor again to re-scale.
Worked example: 180″ that should be 240″
An L-shaped plan reads 180″ (15′) inside its top wall, but you know that room is 240″ (20′) wide. Put the crosshairs on the two inside corners of that wall, type 240″, and the dock shows New size: 133% of current. Every wall grows by a third; the sofa doesn't.
Upper floor imported on its own? Use This floor
Floors can be imported one at a time, so one floor's scale can be wrong on its own. Re-scale just that floor with This floor, then use Reposition this floor to line it up with the floor below.
Locked walls turn Re-scale off
Re-scaling changes every wall length, so the Re-scale button is greyed out while any wall length or measurement on this floor is locked. Unlock them first (the padlock next to Length when you select the wall on the plan), re-scale, and lock them again. For All floors, locks on another floor block it too; the app says so and offers re-scaling this floor only.
Common mistakes
Resizing furniture to "fix" a small plan
The furniture was right; the plan was wrong. Re-scale the plan and the furniture stays true.
Using a measurement you didn't take
Listing dimensions are often rounded. Measure the span yourself if you can.
Measuring one way and typing another
The crosshairs measure exactly where you put them. If you place them on the outline corners (wall centrelines in most plans) but type a tape measurement taken inside the room, the factor is off by a wall's thickness. Put the crosshairs on the same faces your tape touched: for an inside measurement, the inside faces of the walls.
Re-scaling to line up floors
If an upper floor is the right size but in the wrong place, re-scaling won't help: use Reposition this floor. Re-scale only when the numbers are wrong.
Choosing All floors when only one floor is wrong
All floors multiplies every floor by the same factor, including the ones that were already right. Use This floor for a single floor that came in at the wrong size.
Frequently asked questions
Why is Re-scale greyed out?
A wall length or measurement on this floor is locked. Re-scale would change it, so the button stays off until nothing on the floor is locked; its tooltip says Re-scale is off while any wall's length is locked. Unlock walls on the plan first. Close the Outline Editor, select each locked wall on the plan, tap the padlock next to Length, and open the editor again. Locked interior walls and measurement pieces count too, even though the editor only draws padlocks on outer walls.
Does Re-scale change my furniture?
Not its size. Each piece keeps its real dimensions, but it moves with the plan so it stays in the same part of its room: after a 150% re-scale a bed whose centre was 5′ from the plan's centre is 7.5′ from it. Re-check placement and clearances afterwards; Smart Flow Check flags anything that ended up inside a wall.
Does it re-scale every floor?
You choose. In a design with several floors the Re-scale dock asks This floor or All floors, starting on This floor, so an upper floor imported at the wrong size can be fixed without touching the floors that were already right. Pick All floors when the whole design came in at the wrong scale; the floors stay aligned. Undo fully reverses a This floor re-scale; after All floors, Undo restores only the floor you're on.
Why isn't the new area exactly 2.25× after a 150% re-scale?
Because wall thickness doesn't scale. The outline (and the Outline Editor's Area) does go up exactly 2.25×: 800 → 1800 sq ft on the Townhouse. But Gross area is measured to the outside of the walls and Usable area to the inside, and the 6.5″ walls stay 6.5″. So Gross goes from 20′ 6.5″ × 40′ 6.5″ = 833 sq ft to 30′ 6.5″ × 60′ 6.5″ = 1849 sq ft (2.22×), and Usable from 19′ 5.5″ × 39′ 5.5″ = 768 to 29′ 5.5″ × 59′ 5.5″ = 1752 sq ft (2.28×). See the Outline Editor for what each area measures.
Do doors and windows get wider?
No. Their widths are real sizes and stay as they were; their positions along each wall follow the wall, so a door in the middle of a wall is still in the middle of it.
My room names changed to "Room" after Update Floor Plan. Is that expected?
No, it's a known problem: re-scaling or repositioning a floor can reset room names to Room and room floors to the default finish. The walls, furniture and sizes are fine. Tap each room's label to name it again and re-pick floors in Materials. To avoid redoing work, fix the scale and position before you name rooms and choose floors.
What's the difference between Re-scale and Reposition this floor?
Re-scale changes the size of the plan (every length by the same factor) and is for a plan that came in too big or too small. Reposition this floor keeps the size and shape and only slides the floor, and is for an upper floor that doesn't sit over the floor below. Reposition only appears on floors that have a floor below.
Where did the Edit Floor Plan Shape button go?
It's gone. Everyday wall changes happen right on the plan: tap a wall to move it, type its length, or split it. One-off outline fixes, including Re-scale, are in Plan Settings → Layout → Outline Editor. See Edit walls on the plan.
When would I need this?
Any time a trace or AI import came in too big or too small — typically because the scale was set from an unreliable label. One known span corrects everything.
The import now sets the scale by tapping a room. Does Re-scale work that way too?
No, Re-scale is unchanged: it still uses the two crosshairs and the real distance between them. The room tap (Room size) is only in the import's Calibrate step, before the design exists. To re-scale from a room's size, put the two crosshairs on the room's opposite inside wall faces and type its inside size, wall to wall.
