Importing and tracing an existing floor plan
Already have a floor plan on paper or as a scan? Import the image, trace over it, and you've got an accurate, editable, 3D-ready version.
Have a paper, PDF, or scanned floor plan? Import the image, trace over it, and you've got an accurate, editable, 3D-ready version.
Tracing takes four short steps, with your plan underneath the whole time: Calibrate (set the scale from a room size you know, or with a tape measure on any known length), Outline (the outside walls), Walls (the inside walls) and Doors & windows. Then Create design, which builds exactly what you traced.
The scale is the one number everything else hangs on: get it right and every wall, door and room comes out at its real size; get it wrong and the whole plan is too big or too small by the same factor. So this guide spends a little longer on Calibrate, including when to use Room size, when the Tape measure is the better tool, and how to re-check the scale once your walls are drawn. Prefer to let AI do the first pass? See Import a floor plan image (AI).
Step by step
- 1
Tap Floor Plan Image or PDF on Home and pick your file
On Home, under Start a new floor plan, tap Floor Plan Image or PDF (Trace it yourself or let AI draft it). Your file picker opens straight away: choose a JPG, PNG or WEBP picture, or a PDF. Paper plans? Photograph them with your phone first, as straight-on as you can. In the editor, the house button at the top left takes you to Home.

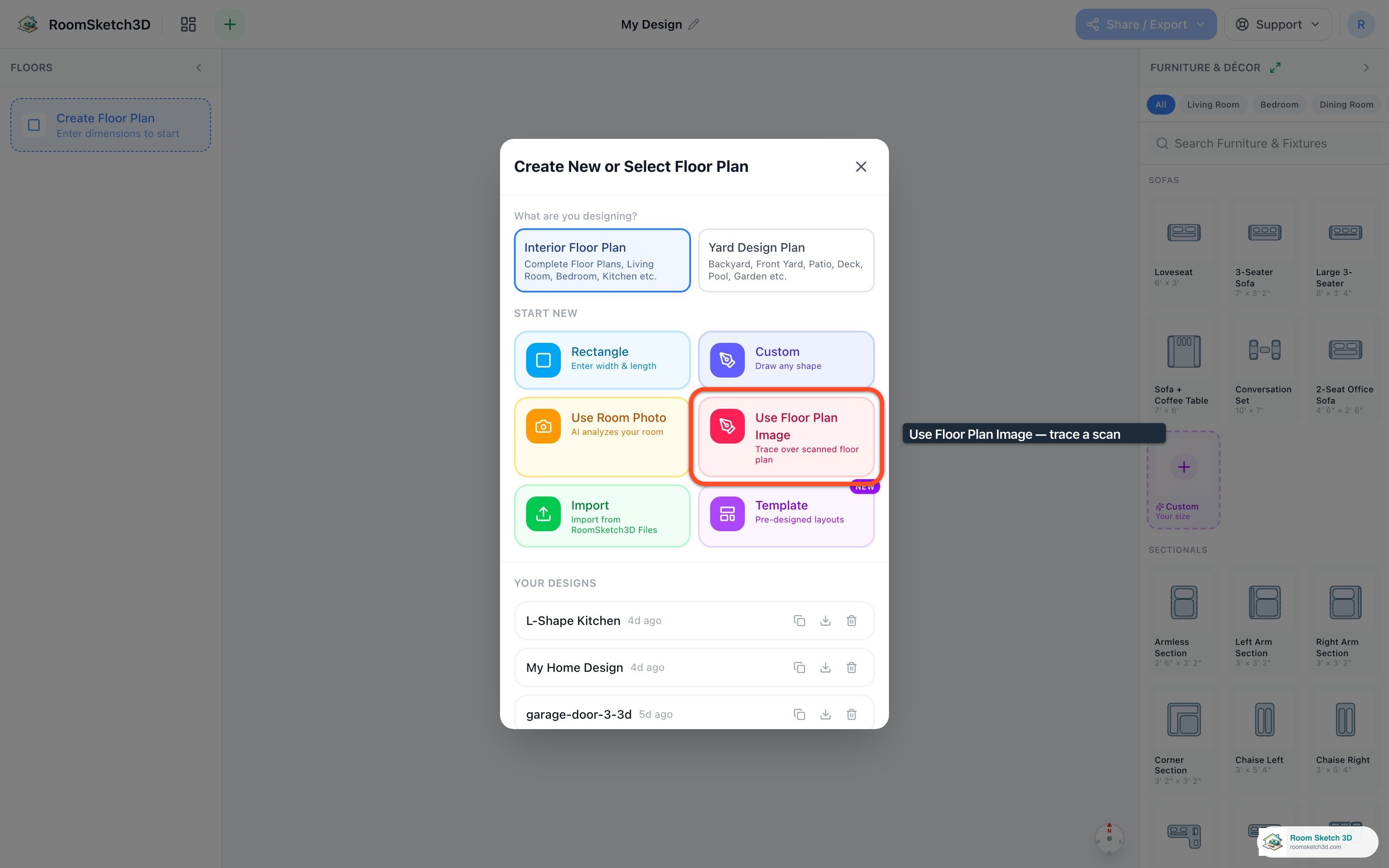

Start from the Floor Plan Image or PDF tile on Home. - 2
Check the picture, crop it, then tap Next
The Import floor plan window shows your picture. Crop it to just the plan you want (leave out other floors, titles and screenshot edges). For a PDF with several pages, use ‹ › under the picture to go to the right page. Wrong file? Choose different. Then tap Next.
Crop to just the plan you want, then Next. - 3
Name it and choose Trace it myself
Type a Design name, pick Trace it myself (Draw over the plan for full control) and tap Next. The trace editor opens on Calibrate. If the image is on its side, the rotate buttons in the bar below the plan turn it a quarter turn at a time.
Trace it myself gives you full control. - 4
Calibrate: Room size (tap inside a room whose size you know)
The header reads Step 1 of 4 · Calibrate and the Calibrate scale panel opens on Room size, with three numbered steps. On a hand trace there are no walls yet, so step 1 reads Tap inside a room on the plan whose size you know. Tap the middle of that room (an empty spot, away from labels and furniture symbols). Two arrows appear, side to side and top to bottom, read straight off your drawing: each one runs out until it meets a drawn line. Step 2, Which size do you know?: tap ↔ Side to side or ↕ Top to bottom. Step 3, Type it — measured inside, wall to wall.: type the room's inside size in ft / in (or switch to m/cm) and tap Set scale →. Inside, wall to wall, is what a tape measure reads in the room and what most plans print as a room's size.
A hand trace opens on Room size: tap inside a room whose size you know. - 5
Check the arrows reach the walls
Before you type, look at the arrows. On a hand trace they're read from the picture alone, so anything drawn inside the room can stop them short: a door leaf, a room label, the ruled lines of notepaper, or the grid printed on many CAD and listing plans. In this sketch the side-to-side arrow stops on the bedroom door's leaf and the top-to-bottom arrow stops on the 12′ x 12′ label, so neither is the room's real width or length. If an arrow doesn't run from wall to wall, tap a different spot in the room (a clear stretch between the walls), or use the Tape measure (next step). Two more reliable routes: set the scale with the tape measure now, draw your walls, then come back and Recalibrate, when the room arrows follow your traced walls instead (see below).
These arrows stop short (a door leaf, a label), so this spot won't give the room's size. - 6
Calibrate: or use the Tape measure
Tap Tape measure at the top of the panel. Drag the two markers ① and ② onto the ends of something whose length you know: usually a wall or dimension line with its measurement written on the plan. A magnifier shows while you drag. Type that length under Real distance (ft/in or m/cm) and tap Set scale →. Use the longest labelled length you can find; small placement errors matter less over a long distance. Here the markers sit on the ends of the plan's 30′ overall dimension line. If you'd already tapped a room and picked a size, switching to Tape measure carries it over: the markers start on the ends of that arrow, with your typed size, ready to fine-tune.
Tape measure: two markers on a known length, type it, Set scale. - 7
Outline: put the first corner down
After Set scale the header reads Step 2 of 4 · Outline and the panel Draw the outline · 0 corners, with a round marker in the middle of your plan. The marker is only where you start: it isn't a corner yet, and the heading doesn't count it. Either drag it onto a corner of the outside wall, or simply tap that corner: the marker jumps to where you tapped and becomes corner 1, and the heading reads 1 corner. Start at any outside corner; the top-left one is easy to find again when you finish. (Until November 8, 2026 the marker counted as a corner, the heading read 1 corners, and a first tap drew a wall from the middle of the plan to where you tapped.)
The marker in the middle isn't a corner. Tap the first corner (or drag the marker there) and it becomes corner 1. - 8
Outline: draw the outside walls
From corner 1, drag its blue + tab to the next corner and let go: that draws a wall. Or just tap the next corner: each tap after the first adds the next wall, and the heading counts the corners as you go. Keep going around the outside and finish on the first corner, or tap Close shape. Walls snap straight; for an angled wall, switch the 90° / Any control below the plan to Any. To fix a wall or corner, tap it and drag it; with one selected, the trash can deletes it and + adds a corner. Trace along the middle of the drawn walls. Tap Next →.
Outline closed: four corners on the outside walls. - 9
Walls: draw the inside walls
Tap Add a wall if the round marker isn't already showing, drag it to where an inside wall starts (it snaps to nearby walls), then drag its + tab to each corner and let go, or tap each corner. Tap Done drawing when that wall is finished, and Add a wall again for the next one. A wall that ends on another wall finishes there by itself. Draw straight through doorways; doors come next. Exterior walls show in blue, interior walls in purple, and the heading counts them (Walls · 4 exterior · 5 interior).
Inside walls in purple, drawn straight through the doorways. - 10
Re-check the scale with your walls drawn (Recalibrate)
Once the walls are traced, the room-size check gets much more reliable. Tap ← Back to the Outline step and tap ↺ Recalibrate. Your walls are kept and Calibrate opens on Room size again, but now every room your walls enclose has a Tap here marker, and the arrows follow your traced walls, measuring between the faces drawn on the plan, so labels, door leaves and grid lines no longer stop them. Tap the room, pick Side to side or Top to bottom, type its inside size and Set scale →. Here we typed the bedroom's printed 12.7 ft (12 ft 8.4 in) and the finished plan read 12′ 8.5″ inside. Then tap Next → through Outline and Walls; your tracing is unchanged.
After Recalibrate the rooms have markers and the arrows run wall to wall. - 11
Doors & windows
Tap the type you want (Door, Window…), then tap the wall where it goes. Tap one to select it and drag the dots at its ends to fit the opening; drag its middle to slide it along the wall (even onto another wall). The trash can deletes the selected one. Stairs: tap the bottom step, then drag the blue + tab to the top step. Every door shows its swing on the plan. A selected door has three buttons beside it: In / Out flips which side it opens to, L / R moves the hinge to the other end, and the trash can deletes it. Each shows the current setting; tap until the arc matches the one drawn on your plan. The same buttons are in its row of the Placed list.
A selected door: In / Out, L / R and delete, right beside it. - 12
Match each door's swing to the drawing
Here one tap on In made it Out, and the door now opens into the bedroom, over the arc drawn on the plan. A door's swing matters later: Flow Check warns when furniture sits in a door's swing.
Out: the swing now matches the drawing. - 13
Create the design
Tap Create design — the floor plan loads in the editor, ready to furnish. It's built exactly as you traced it: walls where you put them, doors opening the way you set them. The only tidying: walls within about 3° of straight are made exactly straight, corners round to the nearest ½ inch (1 cm), and a plan whose outline leans by the same small angle throughout (a slightly crooked photo) is turned level. The new design uses Exterior Wall Placement: Outside, like a plan you draw, so room sizes are inside clear sizes. To fix a length afterwards, tap the wall on the plan and type it.
Built as traced: the calibrated bedroom reads the size typed.
Tips
Calibrate with the longest known dimension
Pick two points as far apart as possible — small errors in clicking are amplified less over a longer distance. With Room size, that means the biggest room whose size you trust, not a closet.
Gridded or ruled plan? Tape measure first, Room size later
On a plan printed on a grid, or a sketch on lined paper, the first Room size arrows often stop on the grid or ruled lines. Set the scale with the Tape measure on a labelled length, trace the walls, then Recalibrate with Room size to double-check: with walls drawn, the arrows follow your walls.
Trust the snap
Most floor plans are right-angled. Leave the switch below the plan on 90°; choose Any only for genuine diagonals, then switch back.
Zoom in for the corners
Pinch or scroll to zoom in for precise work, and drag an empty spot to move around. The fit button shows the whole plan again.
Outline too big after creating? Remove the floor behind a gap
If the finished plan takes in floor that isn't part of the house (a yard, a courtyard, the next flat), tap each outside wall around it and its trash can so it becomes a dashed gap, then select one of the gaps and tap the red trash can on its bar (Take the floor behind this gap off the plan; it used to be a Remove area button). The floor that goes is shown in red first; tap Delete to confirm and it's gone, your rooms stay, and the interior wall along the cut becomes the outside wall. See Gaps in an outside wall.
Common mistakes
Typing the outside or centre-to-centre size
Room size wants the inside size, wall face to wall face. A dimension string along the outside of a plan usually measures to the outside face of the walls, so use the Tape measure for those and put the markers where the dimension's ticks are.
Typing a size the arrows don't span
If an arrow stops on a label or door leaf, typing the room's full width against it scales the whole plan too big. Only type the size once the arrow runs from wall to wall.
Frequently asked questions
What image formats work?
JPG, PNG, WEBP and PDF.
How accurate is the trace?
Within ±1% if calibration is done carefully. The image is the source of truth; the trace just digitizes it.
Do hand traces get the room markers too?
Not on the first Calibrate: there are no walls yet, so you tap inside a room and the arrows are read from the picture. After you've drawn the walls, ← Back to Outline and ↺ Recalibrate shows a Tap here marker in every room your walls enclose, with arrows that follow your walls. AI drafts get the markers straight away because the AI has already drawn the walls, and they show the room's name when the AI read one.
Why are some lengths slightly different from the plan I imported?
When you tap Create design, the plan is squared up lightly: walls that are within about 3° of straight become exactly straight, so corners meet square, and corners round to the nearest ½ inch (1 cm in metric). A length can therefore differ a little from the trace, usually by a fraction of an inch. Walls you drew at a clear angle, like a 45° corner, stay angled. To change one, tap the wall on the plan and type its length.
Will tracing bring in the furniture drawn on my plan?
No. When you trace it yourself you draw the structure: walls, doors, windows, openings, fireplaces and stairs. To have the furniture drawn on the plan turned into catalog pieces, choose Let AI draft it instead and tick Also read the furniture drawn on the plan on the next page; a Furniture page then lets you keep or remove each piece. See Import a floor plan with AI.
Can I keep the image visible while I redraw, and hide it later?
Inside the trace editor the image stays underneath your walls the whole time — trace the outline, add interior walls, doors, and windows over it, and adjust corners as often as you like. Once you tap Create, the design is built from your walls. The image is kept with that floor: in the editor, open View & Layers and turn on Show original plan (traced photo) to see it faded through every room, under the walls, so you can check or keep tracing against it, and turn it off to hide it. If a wall is off after creating, tap it on the plan and drag it or type its length (outer and interior walls alike); if everything is the wrong size, re-scale from one known measurement (Plan Settings → Layout → Outline Editor → Re-scale).
