Importing a design from a JSON file
A JSON file is a complete, portable copy of a design. Import one to restore a backup or bring a design onto another account.
A JSON file is the complete, portable copy of a RoomSketch3D design — every floor, wall, opening, piece of furniture, material and setting. Import one to restore a backup, move a design between accounts, or open an editable copy someone sent you.
The import lives on Home, under Start a new floor plan, as From Backup (web app). It creates a new design on your account; the file itself is unchanged.
Below, a furnished Medium 2-Bedroom Apartment goes out as a backup file and comes back in as a new design, so you can see each screen along the way, what travels in the file, and what to do when an import doesn't start.
Step by step
- 1
Get the file (if you don't have one yet)
A backup file comes from Export / Print / Share → Backup in the editor, or, quicker, from the Export button (the down-arrow) on a design's row on Home: both save a `.json` file named after the design to your downloads. If someone is sending you a design, they do this on their account and send you the file. A design with more than one floor: both ways save every floor. The down-arrow on Home saves the whole design; in the editor, Backup opens Export as JSON with a Floors to include list (every floor ticked, 2 floors will be included in the file) and Export JSON, so you can also leave a floor out. We checked on November 11, 2026: a two-storey design saved with Home's down-arrow came back with both floors, walls and furniture on each. One caveat: before the November 9, 2026 fix, the down-arrow on Home saved only one floor of a multi-floor design. A Home-row backup of a multi-floor design made before then still holds just one floor, so make a fresh backup of that design now. It's small: the furnished two-bedroom apartment here is a 37 KB file, small enough to email. Inside it's plain text: a version number, the date it was exported, and the design (name, every floor's walls and openings, furniture with positions and sizes, materials and settings).
On Home, the down-arrow on a row saves that design as a backup file. - 2
Open From Backup

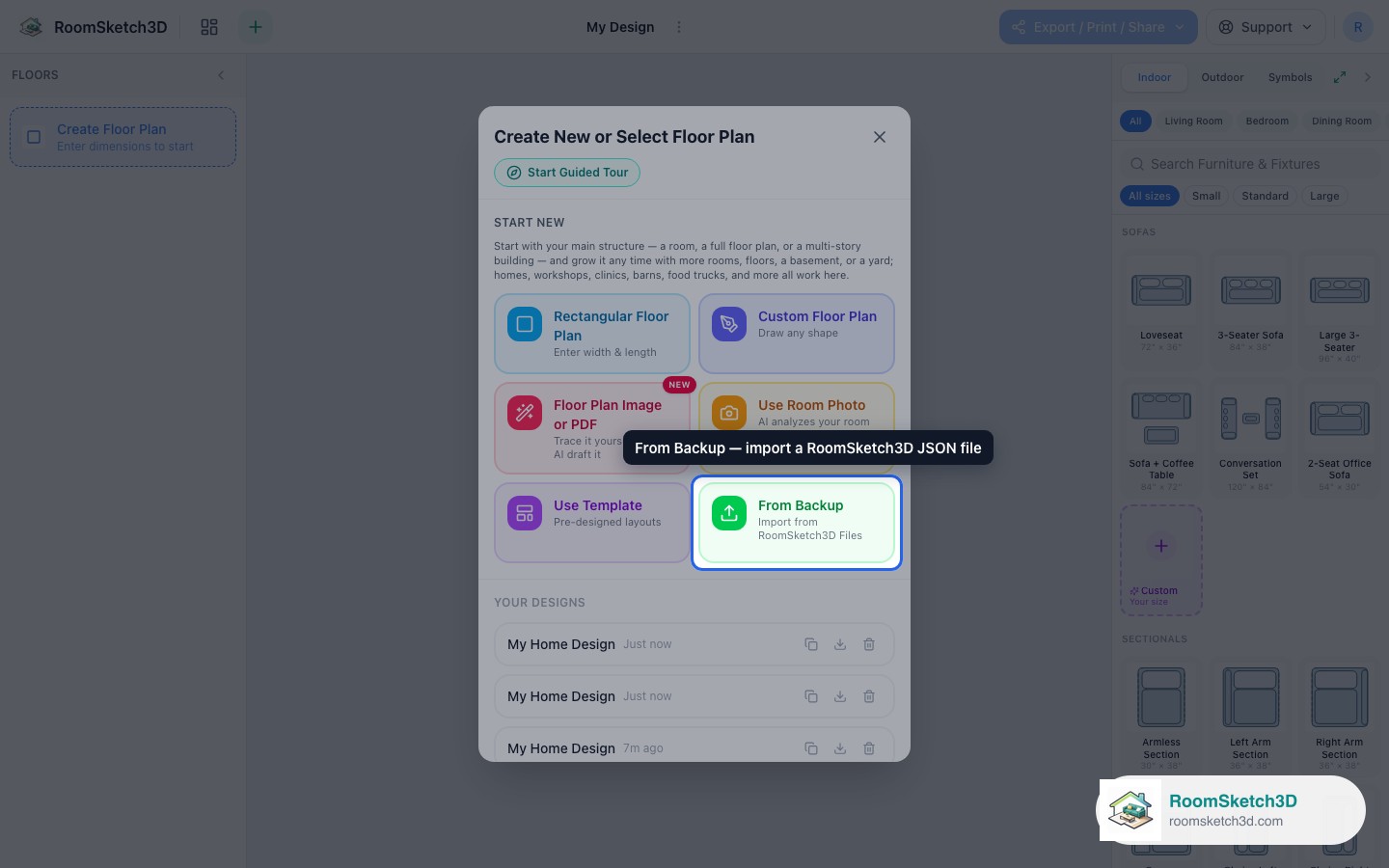

On Home, under Start a new floor plan, choose the From Backup tile — Import from RoomSketch3D Files. In the editor, the house button at the top left takes you to Home. The tile opens your device's file picker straight away. It's in the web app on a computer, tablet or a phone's browser; the iPhone, iPad and Android apps don't show it, so open app.roomsketch3d.com in a browser and sign in with the same account.
From Backup is the last of the six ways to start on Home. - 3
Pick the file

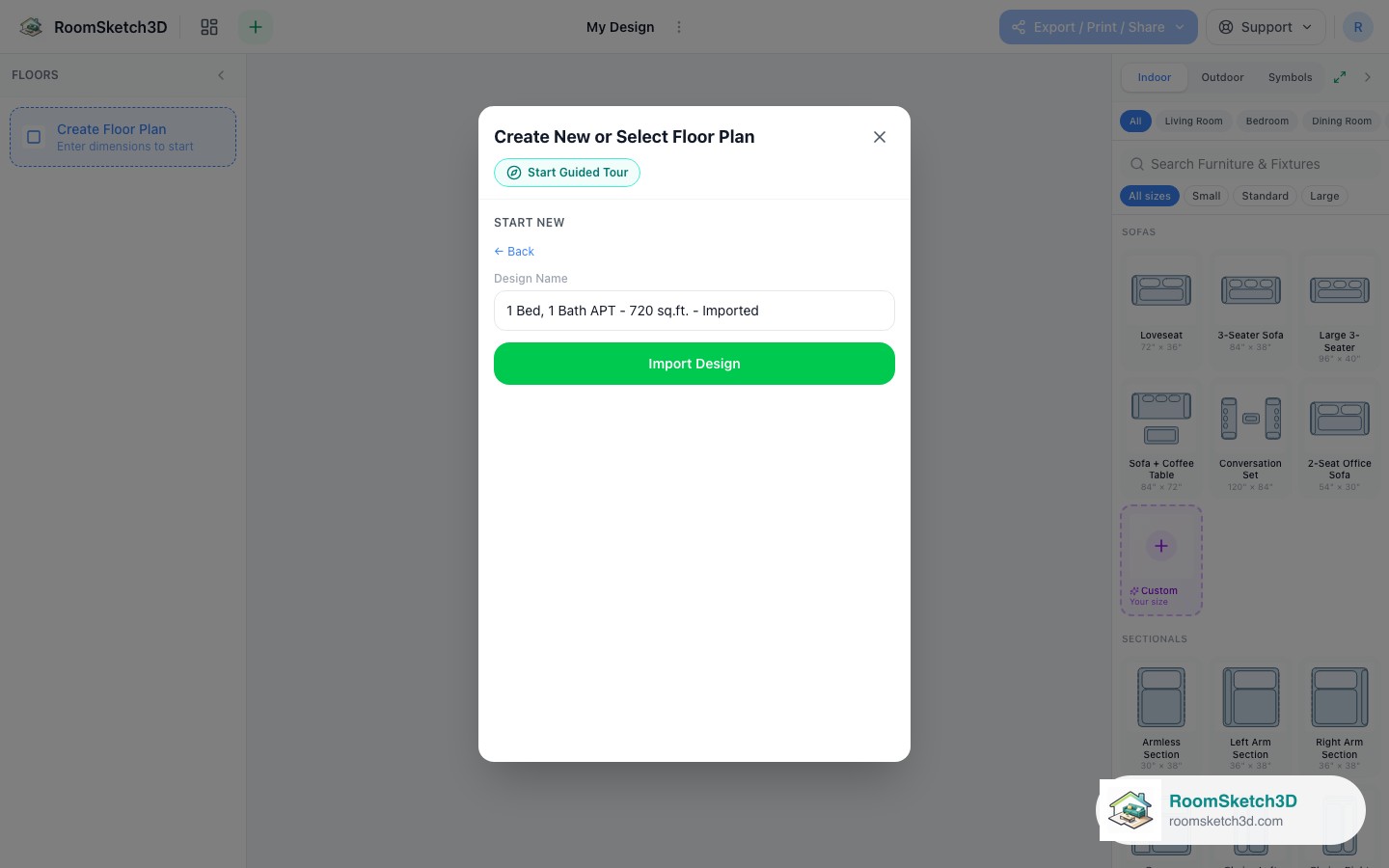

Choose the .json file. The next screen has just two things: the Design Name box, filled in from the file as name - Imported (change it if you like), and the Import Design button. A file whose design was itself imported before doesn't get the word twice: since November 8, 2026 a backup of Showcase Home — Modern Farmhouse - Imported - Imported - Imported fills in as Showcase Home — Modern Farmhouse - Imported (we tried exactly that file on November 9, 2026), so names no longer grow each time a design goes out and back in. There's no preview; the plan itself opens in the next step. Home checks the file first, with the same reader the import uses, so a file that isn't a RoomSketch3D backup never gets this far (see the next step).
Rename it here if you like, then Import Design. - 4
If it says Invalid design file
When the file you picked isn't a RoomSketch3D backup (a JSON file from another program, a damaged or half-finished download, or an image renamed to .json), you stay on Home and a red note under the start tiles says Invalid design file. Nothing is imported and nothing on your account changes. If the file can't be read at all (it was moved, or the download is still running), the note says Failed to read file instead. The same note shows on the editor's own new-design window if you pick a backup there. To fix it: - Check you picked the file that came from Backup (Export / Print / Share) or from a design's Export button on Home. A `.glb` or `.dxf` from the same design isn't a backup. - Make sure the download finished: open the file in a text editor; it should start with `{` and contain `"version"` and `"design"`. - If you edited the file by hand, a missing comma or bracket makes it unreadable. Export it again from the original design if you can. Then tap From Backup again and pick the right file.
A file that isn't a design backup: Home stays put and says Invalid design file. - 5
Import Design

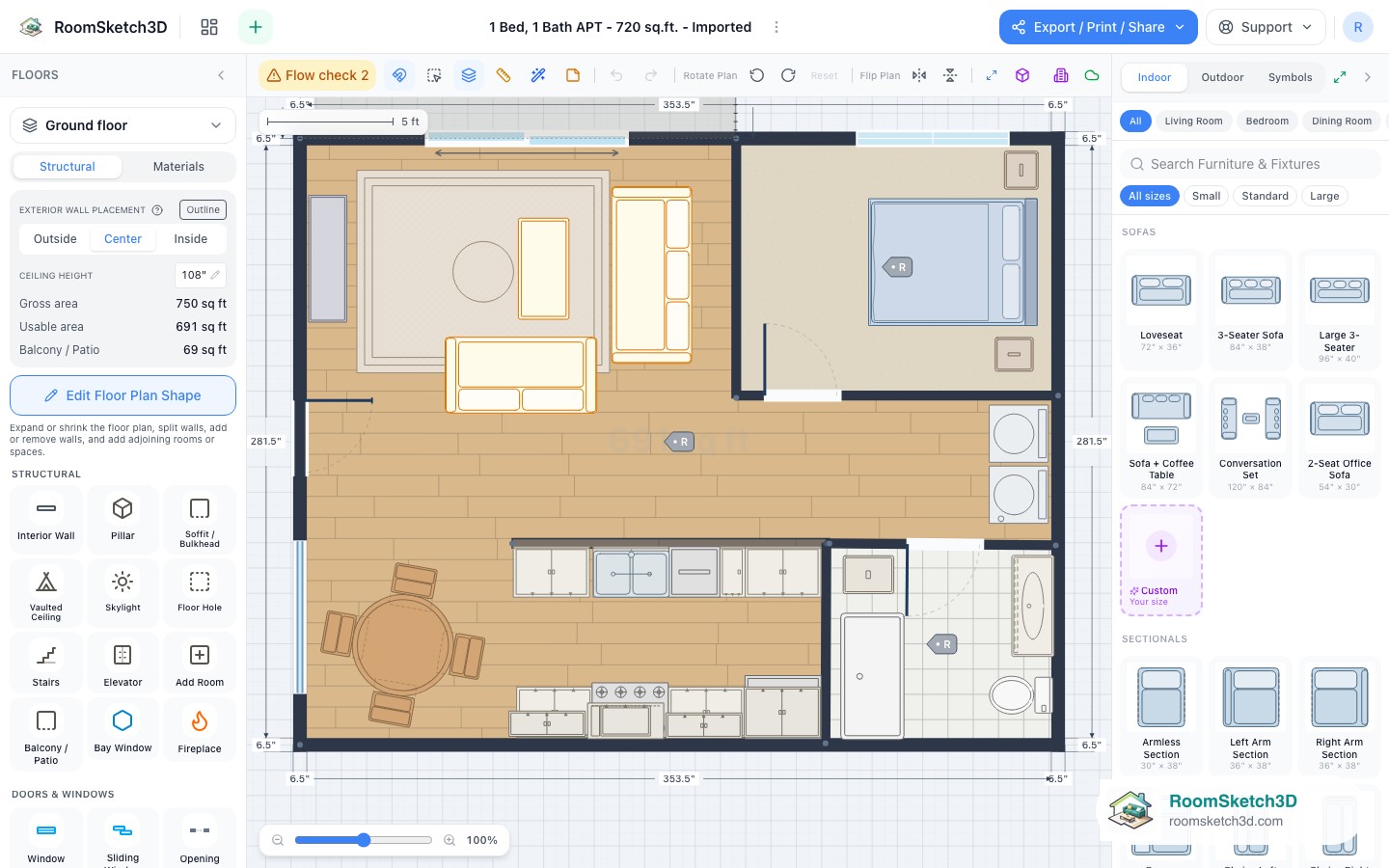

Press Import Design. The plan opens in the editor with every floor, piece and material in place, saved to your account like any other design. The original file is untouched, so you can import it again later. The new design gets its own name and its own place in Your Designs on Home; it isn't linked to the design the file came from, so changes to one never show up in the other. Check the totals on the left (here Gross area 811 sq ft, Usable area 750 sq ft): they match the original exactly, because the walls come back to the fraction of an inch.
The imported plan, complete, with its new name in the top bar. - 6
Check it in 3D
Press View in 3D to confirm everything came through — floors, walls, furniture and finishes all travel in the file. A quick orbit in Dollhouse shows the rooms from above: beds, kitchen run, island and sofa all where they were. On a multi-floor design, switch floors in the Floors panel to check each one.
In 3D: everything came back where it was.
Tips
Moving between accounts
Export from one account (Export / Print / Share → Backup), sign in to the other, import. Both accounts then have their own independent copy.
Older files
Files exported by earlier versions import fine; the app upgrades the structure on the way in.
Keep backups somewhere else
Your designs already save to your account automatically. A backup file is a second copy that doesn't depend on the account: keep it in cloud storage or email it to yourself before big changes.
Compare options safely
Importing the same file twice gives you two independent copies: a quick way to try two layouts from the same starting point (Duplicate on Home does the same without a file).
Common mistakes
Importing the wrong kind of file
From Backup takes RoomSketch3D JSON only. For a floor-plan image or PDF use the Floor Plan Image or PDF tile; for a photo of the room use Use Room Photo.
Expecting images inside
Traced photos and exported images aren't in the JSON — only the plan data.
Looking for From Backup in the phone app
The iPhone, iPad and Android apps don't have the tile. Use the web app in any browser (a phone's browser works), then open the imported design in the app: it's on the same account.
Trying to import a GLB or DXF
Those are one-way exports for 3D and CAD programs. Only a Backup (JSON) file comes back into RoomSketch3D as an editable design.
Frequently asked questions
What's in the JSON file?
Everything that defines the design — floors, room geometry, walls, doors, windows, furniture, materials and settings. No images.
Does importing overwrite anything?
No. It creates a new design on your account. The file is unchanged and can be imported again.
Can I import a file someone else exported?
Yes — that's how to get an editable copy of another person's design. Public links are view-only; JSON is editable.
Can I edit the JSON by hand?
Carefully. It's standard JSON; dimensions, positions and labels are safe to change. Don't change IDs.
Where is the Import tile?
Home → Start a new floor plan → From Backup (Import from RoomSketch3D Files), in the web app.
It says Invalid design file. Why?
The file isn't one RoomSketch3D can read as a design, so Home doesn't import it. Make sure it came from Backup (or the Export button on Home), that the download finished, and that it wasn't edited into invalid JSON. Export it again if in doubt. (Before November 3, 2026, Home showed nothing at all for a file like this.)
It says Failed to read file. What now?
Your device couldn't open the file: it may have been moved or deleted after you picked it, or still be downloading. Wait for the download to finish, then pick it again from its folder.
Why did my imported design's name end in - Imported - Imported?
Before November 8, 2026 every import added - Imported to the name in the file, so a design that went out and back in several times collected one each time (and so did its exported file names). Now an import adds it once and tidies any repeats: My Plan - Imported - Imported comes back as My Plan - Imported. To fix an older design's name, tap the design name at the top of the editor (or the ⋮ beside it → Edit) and type the new name; importing doesn't rename designs already on your account.
My backup of a two-storey house came back with one floor. Why?
It was almost certainly saved with the down-arrow on Home before November 9, 2026. Until then, Home's down-arrow saved only one floor of a multi-floor design (the editor's Backup always saved every floor). That was fixed on November 9, 2026: a backup made from Home now holds every floor. The design on your account still has all its floors, so make a fresh backup of it, from Home or with Export / Print / Share → Backup in the editor, and import that file instead. If you also kept an editor Backup from back then, it has every floor too.
How big is a backup file?
Small: tens of kilobytes for a furnished apartment (the two-bedroom example here is 37 KB), because it's only measurements and settings, no pictures.
Does the imported design keep its floors, materials and settings?
Yes. Every floor, wall, door, window, piece of furniture, paint and flooring choice comes back, along with settings such as the plan's rotation.
