Exporting your design as a JSON file
A JSON export is a complete, portable copy of a design — the same file the JSON import reads. Use it as a backup or to move a design somewhere else.
A JSON export is the complete, portable copy of a design: every floor, wall, door, window, piece of furniture, material and setting, in one small file. It's the format for a backup you keep yourself, for moving a design to another account, and for sending an editable copy to someone (a public link is view-only).
The export is in the Export / Print / Share menu as Export for backup. Re-import it any time with New Design → From Backup.
Step by step

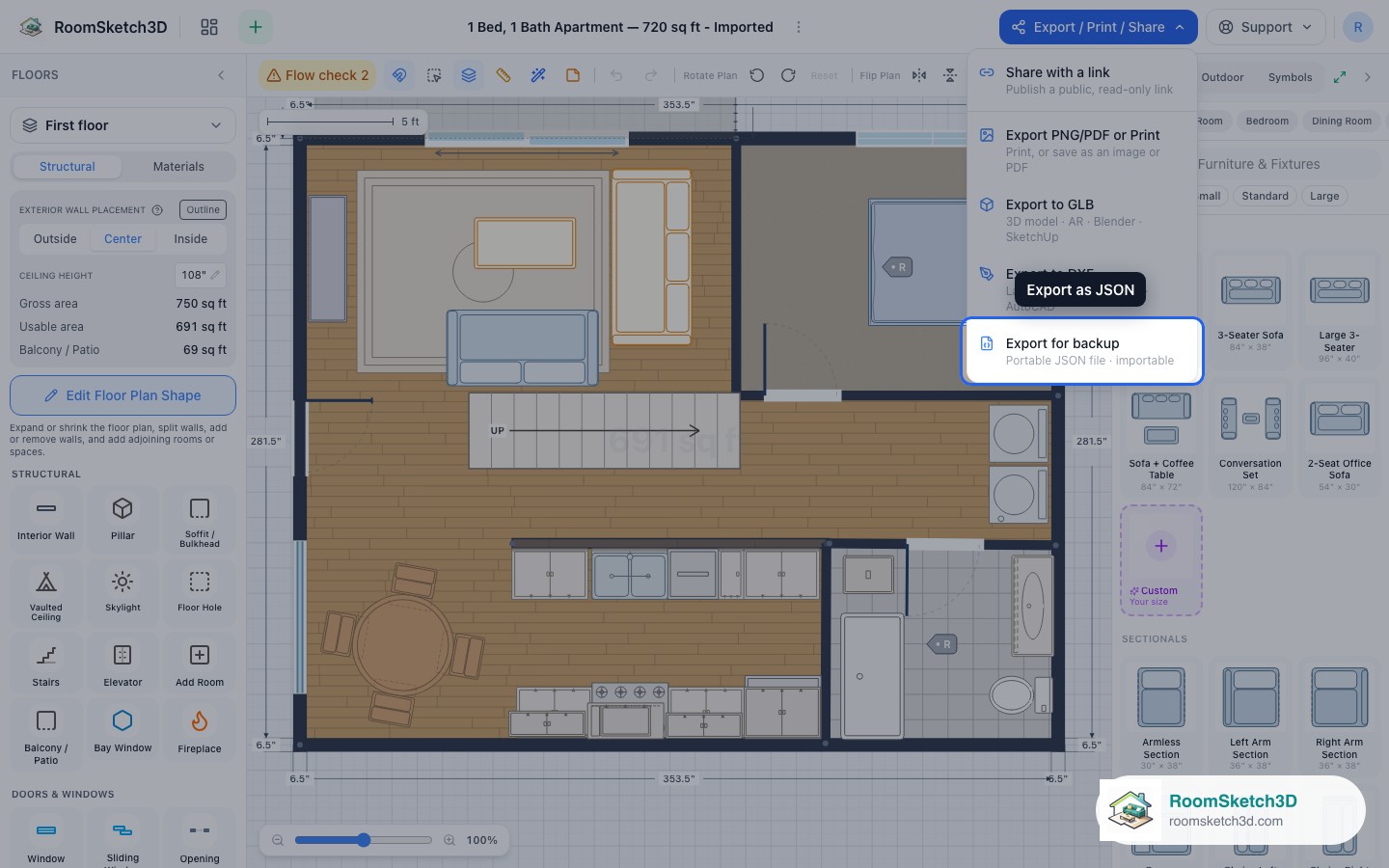

- 1
Open Export for backup
With the design open, click Export / Print / Share in the top bar and choose Export for backup — the JSON option. (The other items export images, PDFs, DXF or a GLB model; those aren't re-importable.)
- 2

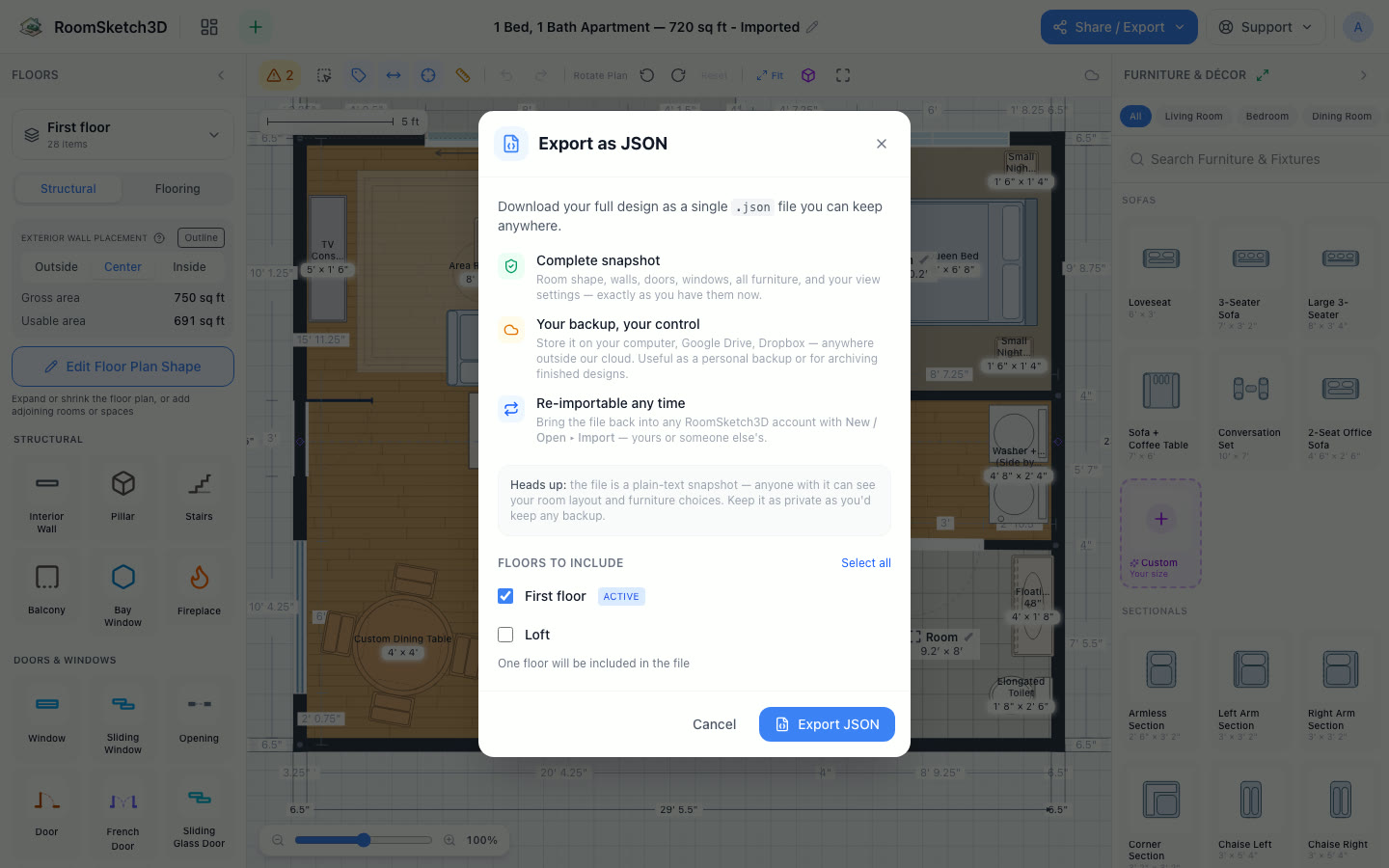

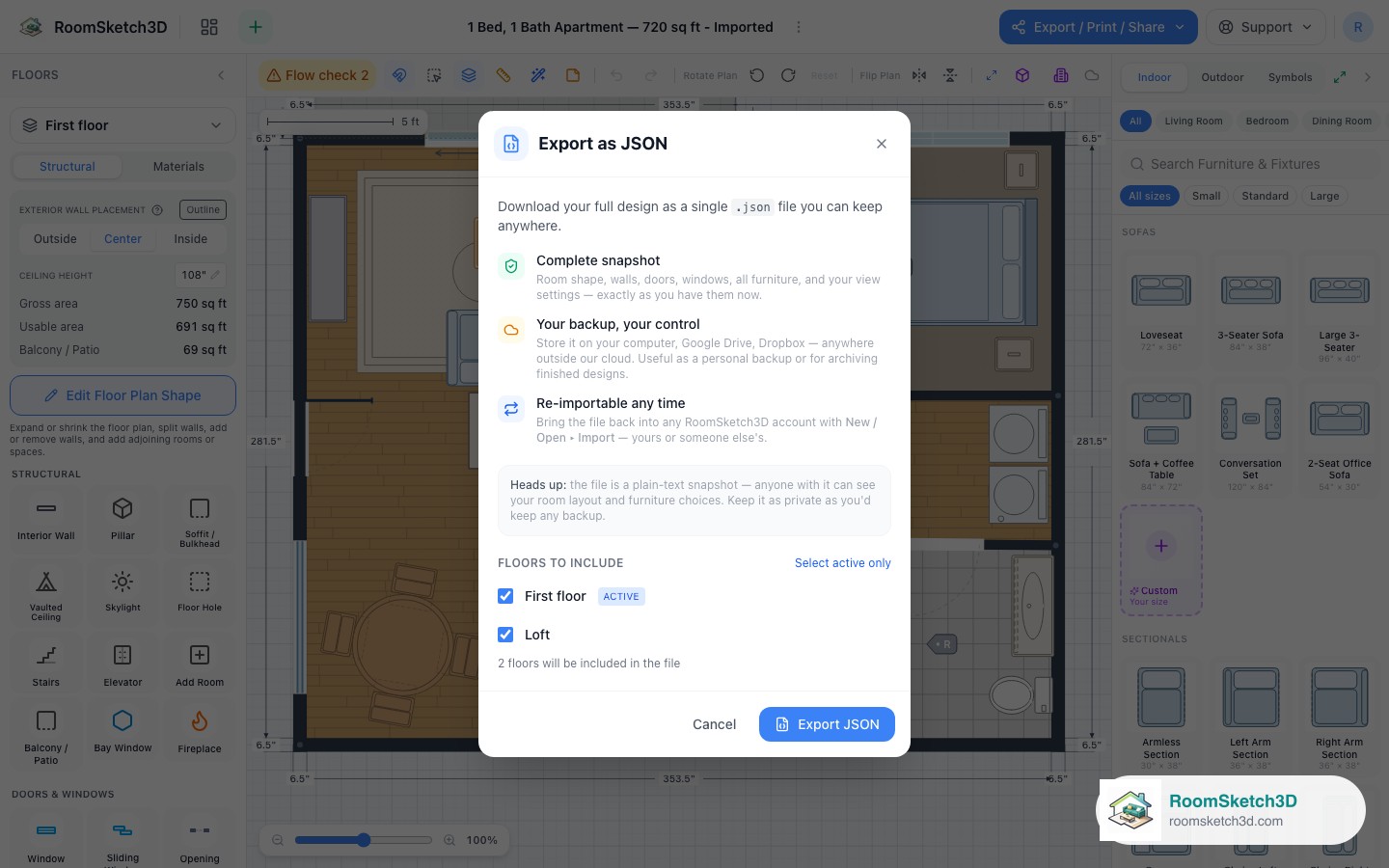

Confirm the export
The dialog explains that the file is a complete, re-importable snapshot of the design. Press Export. The file is named after the design and saves to your downloads; typical size is 50–500 KB.
- 3

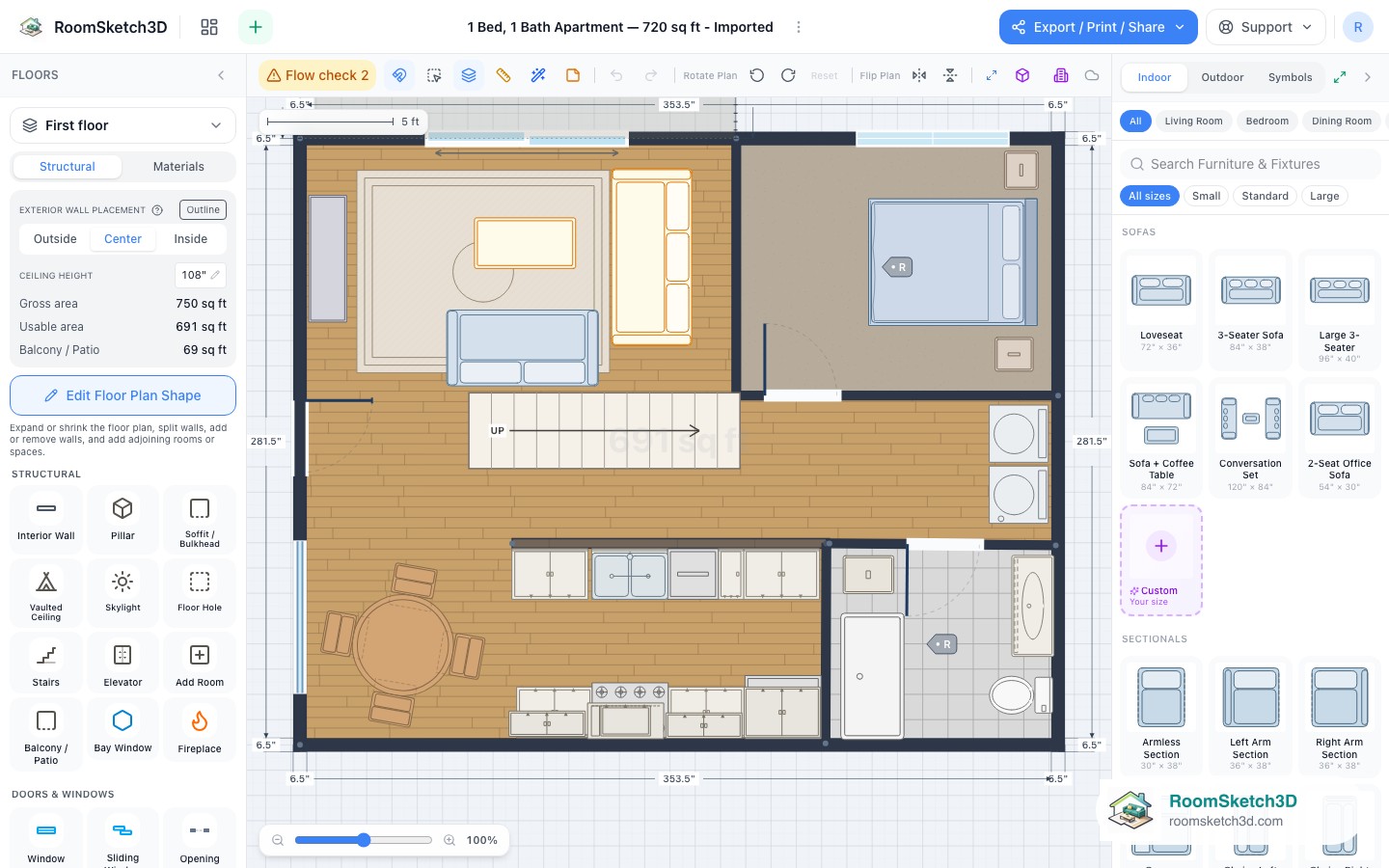

Keep it somewhere safe
You're back on the plan; the JSON is on your device. Put it in cloud storage or email it to yourself. Nothing on your account changed — the design keeps saving to the cloud as usual, the file is an extra copy.
- 4
Re-import later
From the New Design window choose From Backup (Import from RoomSketch3D Files), pick the file, and press Import Design. It opens as a new design with everything intact — floors, furniture, materials and settings. See Import a JSON file.
Tips
Before big changes
Export a JSON before you gut a layout. Undo covers the session; the file covers you across sessions and accounts.
Sharing an editable copy
Send the JSON to a designer or a friend with their own account. They import it and edit their own copy; yours is untouched.
Common mistakes
Expecting images or photos inside the file
The JSON holds the plan's data, not traced photos or exported images. Keep those separately.
Editing IDs by hand
The file is plain JSON and you can adjust dimensions or labels, but changing item IDs can break the import.
Frequently asked questions
Where is Export as JSON?
Export / Print / Share → Export for backup. It's the same JSON export under its current name.
What's in the file?
Everything that defines the design — floors, room geometry, walls, doors, windows, furniture, materials and settings. No images.
Can someone else open it?
Yes — anyone with a RoomSketch3D account can import it as their own editable copy via New Design → From Backup.
Does exporting change or remove the design from my account?
No. It writes an extra copy to your device; the design stays on your account exactly as it was.
How big is the file?
Usually 50–500 KB, even for multi-floor designs.
