Building a multi-story floor plan
Real homes have more than one floor. Find the floor menu, add storeys (and basements) that stack automatically, connect them with stairs that cut their own stairwell upstairs — and sort out the usual snags when a floor or an opening seems to be missing.
More videos
How to Add a Second Floor and Stairs to Your Floor Plan
Add a floor above, place a U-shaped stair that connects itself, see the opening upstairs and in 3D, and delete stairs on their own floor.
Most homes aren't a single floor. RoomSketch3D lets you stack multiple storeys — a second floor, a loft, a basement — that line up automatically and connect with stairs you can walk up in 3D.
The workflow: build the ground floor, add the next floor from the floor menu, then place the stairs on the lower floor — they connect to the floor above and cut the stairwell there by themselves. If something seems to have gone missing along the way, jump to the questions at the end: they cover the snags people actually hit.
Two things trip people up more than anything else. First, Copy ground floor now asks what to bring along: the outer walls always come, and you tick doors & windows, interior walls, wall length padlocks and pillars. Second, a floor's name and its place in the stack are separate: renaming a floor never moves it up or down. If you drew the downstairs on the upper level (or the other way round), the step Drew a floor on the wrong level? below shows how to put it right.
Step by step
- 1
Build the ground floor
Draw your ground floor as usual — exterior walls, rooms, doors, windows, and fixtures. This is the floor every other storey stacks on, so get its outline right first.
- 4
Add a floor — above, or below for a basement
Open the floor menu and tap Add floor. First choose where it goes: Add above (a new upper floor, stacked on top) or Add below (a basement under the ground floor).
Where should this floor go? Above for an upper storey, below for a basement. - 5
Choose how to start it
For a floor above you get four starting points: Copy ground floor (the same outline, plus whichever doors, windows, interior walls, padlocks and pillars you tick: the quickest full second storey, explained in the next step), Import from image or PDF (trace the upstairs plan from a picture and pin it onto the floor below — see Import an upper floor from an image), Draw from scratch (draw the outline right on the plan), or Add a loft (a smaller partial floor, open on one side). Tap one, then the button at the bottom (Add floor, Start drawing, Add loft or Continue, depending on your choice). A basement offers a copy of the floor above it or drawing from scratch; either way the button reads Add basement.
Four ways to start an upper floor. With Draw from scratch picked, the button reads Start drawing. - 6
Copy ground floor: choose what comes along
Copy ground floor is picked when the box opens, and under it an Also copy list shows exactly what the new floor gets:
Checkbox What it brings Starts Outer walls (always) The ground floor's outline: every outer wall with its thickness, height, curve, paint and any open stretch Always on (greyed) Doors & windows Doors, windows, openings, sliding, French, pocket, barn, Dutch and garage doors, and bay windows, on the outer walls and on any interior walls you copy Off Interior walls The interior wall layout, so the rooms upstairs start where they are downstairs Off Wall length padlocks The padlocks on wall lengths you locked. A locked measurement that depends on a wall you didn't copy is left behind On Pillars Columns and posts, at the same spots Off A row only appears when the ground floor has that thing: no interior walls downstairs, no Interior walls box.
What never copies, whatever you tick: furniture, stairs, balconies and patios, sticky notes, tape measurements and people for scale (the box says so under the list). Outlets, switches, fireplaces and other wall fixtures don't come with Doors & windows, and neither do room names, flooring, floor openings, elevators, skylights or sunken areas: you add what the upper floor really has.
The copy always comes from the ground floor, the floor at the bottom of the anchor (whatever you've renamed it), even if you're on another floor when you tap Add floor. For a house where every storey has the same footprint and stacked windows, tick Doors & windows and Interior walls, then delete the front door and garage doors upstairs.
Also copy: the outer walls always come; tick what else the new floor should start with. - 7
What the copied floor looks like
Tap Add floor. The new floor opens in the Outline Editor over the ground floor (next step); tap Update Floor Plan and you're on the new floor with what you ticked. In this test on the Medium 2-Bedroom Apartment template, with all four boxes ticked, the first floor came out with the same 30 × 26 ft outline, the windows, the front door, the three interior walls with their doors and the pillar in the living room, and none of the beds, sofas or kitchen units. One fix shipped with the checkboxes on November 16, 2026: when the ground floor had a locked wall length, saving the copied outline (even unchanged) used to fail with That would change a locked measurement. A floor you're adding is now always created, padlocks included, and a floor already copied that way is no longer stuck. Plans with locked walls can add floors normally.
The copy: outline, windows, doors, interior walls and the pillar. Furniture stays downstairs. - 8

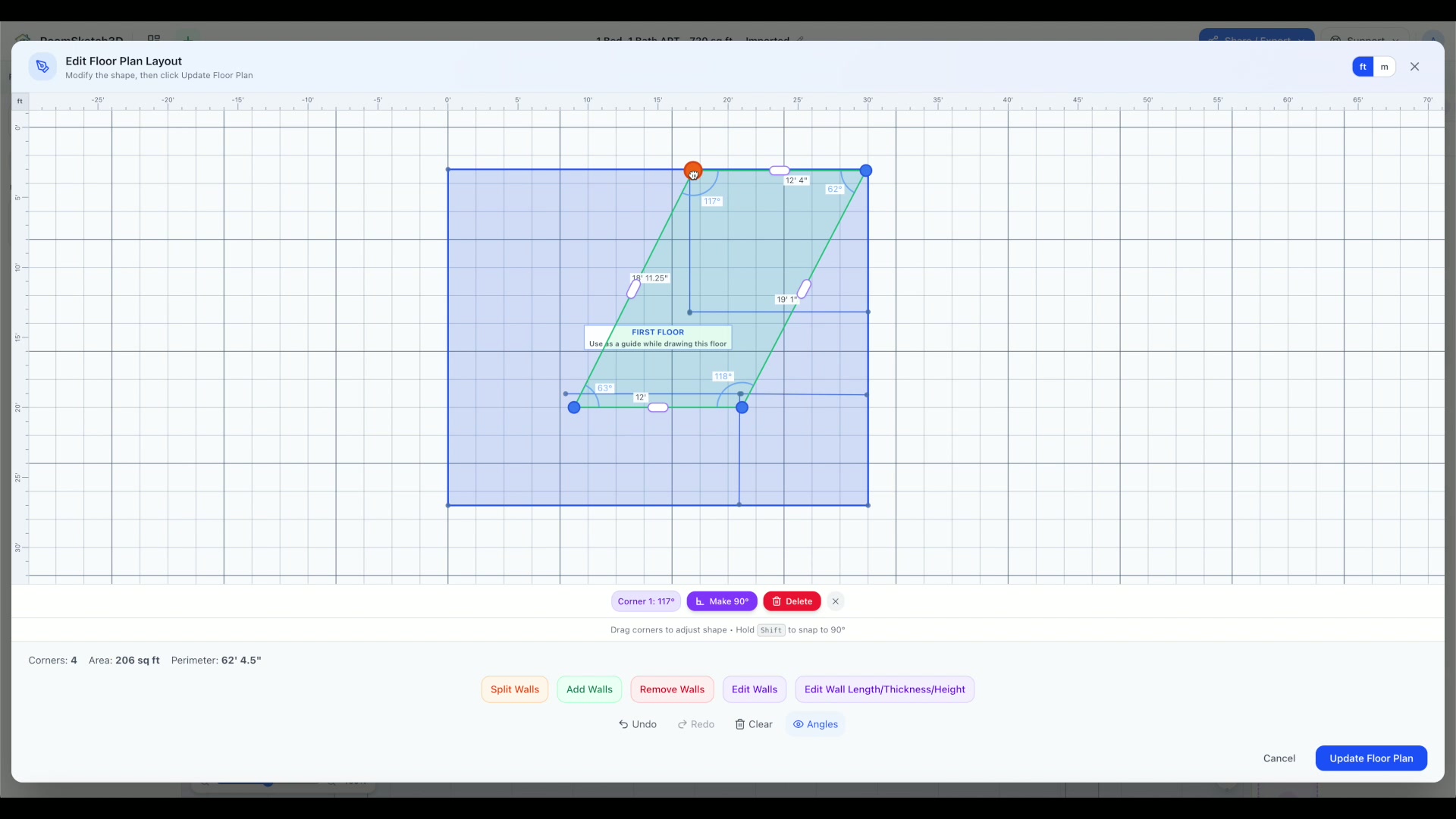

Shape a copied floor or a loft over the one below
Copy and Add a loft open the new floor in the Outline Editor with the floor below drawn underneath as a guide (Ground floor — use as a guide while drawing this floor). Drag corners to shape it — for a loft, position it above the part of the home you want to overlook — then tap Update Floor Plan (Save on a phone). After that, reshape the floor's walls right on the plan, like any other floor.
Copy or Add a loft: the floor below shows underneath as a guide in the Outline Editor. - 9
Draw from scratch: draw the new floor right on the plan
Draw from scratch (the button reads Start drawing) puts you on the plan of the new, empty floor with the Exterior Wall tool ready and a note at the top: Click where your plan's first corner goes. Drag to move around. Tap the first corner, drag the blue + for each wall (or type its length right after drawing it), and end on the first corner to close the outline; it works exactly like Draw Your Own. The floor below shows in grey under the new floor right away, so you can trace its walls, and the corners you draw snap to its corners; you don't need to touch View & Layers. It shows only while you draw the outline: once the outline closes, the grey floor follows View & Layers → Show other floors again (off unless you turned it on). When the outline closes, the floor is created and you build it out like any other.
Draw from scratch: the floor below shows in grey while you draw the new outline. - 10

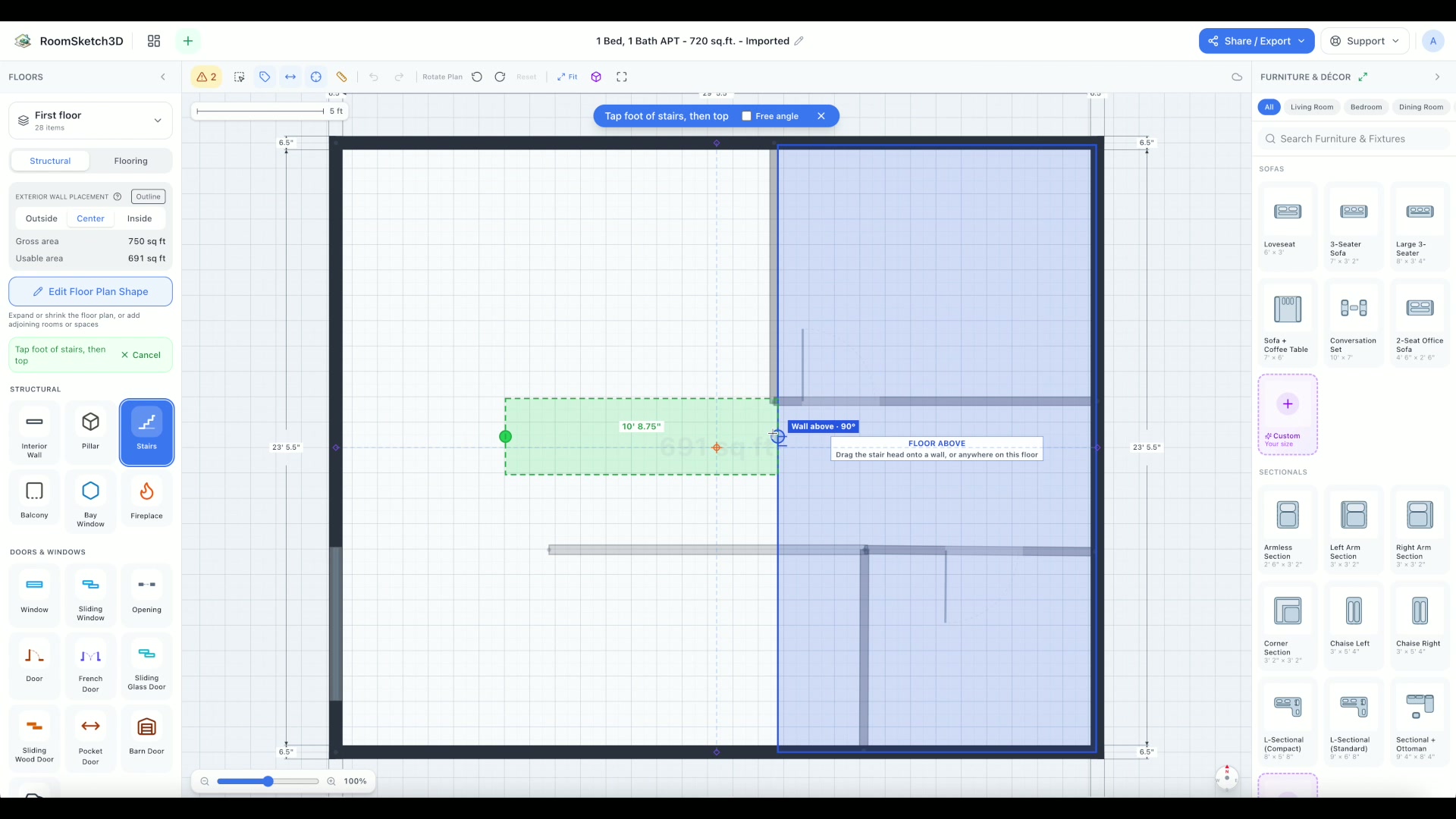

Place the stairs on the lower floor
Switch back to the lower floor in the floor menu — a stair belongs to the floor its bottom step is on. In the left panel's Structural section tap Stairs, pick a shape, then tap the foot of the stairs and the top. The new stair connects to the floor above automatically: while it's selected, the floor above is tinted blue with a FLOOR ABOVE label so you can drag the stair head to where the stairs should arrive, and its panel shows Where does this stair go? with the upper floor picked. Full details (sizes, U-stair Gap, deleting): Adding stairs.
A new stair on the ground floor, lined up with the floor above. - 11
How high each floor sits, and why the stair's Rise jumps when it connects
Each floor sits on the one below at that floor's ceiling height + 30 cm (12″), the depth the app allows for the floor structure (joists or slab plus the floor finish). A connected stair climbs exactly that, so its Rise reads the floor-to-floor height, locked and marked AUTO. Before it was connected it showed auto with just the wall height. On a ground floor with 3.05 m walls that's auto (3.05 m) not connected and 3.35 m AUTO once connected to the first floor; with 8 ft walls it's 8 ft and then 9 ft. Slab between floors in the floor menu doesn't change this: it's only how thick the floor between storeys looks in 3D (setting it to 30 cm left the stair at 3.35 m in our test). There's no box to type a floor's height either: it always follows the ceiling height of the floor below.
Connected to the floor above: Rise = the ground floor's 3.05 m ceiling + 30 cm = 3.35 m. - 12
Set the floor-to-floor height you need
To get a specific floor-to-floor height (and stair rise), set the lower floor's ceiling height to it minus 30 cm (12″): 1. Switch to the lower floor in the floor menu and open Plan Settings → Ceiling. 2. Set Ceiling height: 2.75 m for a 3.05 m floor-to-floor, 8 ft 6 in for 9 ft 6 in. It applies to every wall on that floor (if some walls have their own heights, the app asks first: Set ceiling height). 3. Reload the page, or close the design and open it again. The floor above moves to its new height when the design opens; until then it, and the stair's rise, keep the old value. 4. Select the stair: its Rise reads 3.05 m AUTO, and in 3D the upper floor sits 3.05 m up. Check which number you have first. A room height (floor to ceiling) is the ceiling height itself: keep it, and the stair rise is that plus 30 cm. A storey height or floor-to-floor (finished floor to finished floor) is what you subtract 30 cm from. More on the stair side, with pictures of each step: Adding stairs.
Ceiling height 2.75 m on the ground floor: after reopening, the floor above sits 3.05 m up. - 13
Check the stairwell upstairs
Switch to the upper floor. Where the stairs arrive you'll see a faint DN — to Ground floor symbol: that's the stairwell, and in 3D the upper floor has an opening over the top of the flight. For an L- or U-shaped stair the opening follows the stairs' own shape, every flight and the landing, instead of a rectangle round the whole staircase (since November 16, 2026). The symbol is there to plan around; the stairs can't be edited from upstairs. Tap it and a message says which floor the stair belongs to, with a Switch to Ground floor button (named after that floor) that takes you there to move, resize or delete it. If a Design Check note says a stair "isn't connected to another floor", select it and pick a floor under Where does this stair go?.
Upstairs, the stairs from below show as a faint “DN — to Ground floor” symbol. Tap it to see which floor owns it, then Switch. - 14
Build out the upper floor
Add the upper floor's interior walls, doors, windows, and fixtures — everything works exactly as it does on the ground floor. For a loft, make the open edge a railing so it overlooks the floor below: tap that wall, choose Railing, then pick a style such as Pony Wall. Keep interior walls out of the stairwell — Design Check warns if a wall upstairs stands where the stair needs its opening.
- 15
See the other floors while you work
Turn on View & Layers (stacked-sheets icon in the toolbar) → Show other floors (the last row, under Drawing aids) and the floor above and the floor below are drawn lightly across the plan while you edit any floor — their outer and interior walls at their real thickness, and their stairs — so you can line up a staircase or a wall with the level above or below. It's off until you turn it on. To hide just one of those floors, open the floor menu: while Show other floors is on, each other floor has an eye button (Hide this floor's outline on the plan); tap it again to bring it back. While a stair is selected, the floor it connects to is always shown in blue.
View & Layers → Show other floors shows the floors above and below across the plan. - 16
Drew a floor on the wrong level? Renaming won't move it
It's easy to do: you start drawing on the ground floor, then realise it's actually the upstairs, add a floor and draw the downstairs on that. Renaming the two floors (say Erdgeschoss and 1. Etage, or Ground floor and First floor) changes only their labels. A floor's level comes from its place in the stack, so the names now read right but the downstairs still sits on top in 3D and in the floor menu. Open the floor menu and read it top to bottom: it's Stacked top → bottom (as in the 3D view). In the example, the floor renamed Ground floor is listed on top, above First floor: the order is upside down.
Renamed but not moved: Ground floor is still listed on top, so it's the upper storey. - 17
Fix it: move the upper floor down
The floor at the bottom of the house is the anchor: it has no arrows and can't be moved or deleted. So move the other floor instead. In the floor menu, on the floor that holds your downstairs drawing (here Ground floor, listed on top), tap the down arrow (Move down (below ground = basement)) once. It drops beneath the anchored floor, and the menu now reads First floor, then a Below ground line, then Ground floor: the right order. What changes and what doesn't: - Nothing on either floor is redrawn: walls, furniture, doors and notes stay exactly as drawn, and the floors stay lined up over each other. - Stairs keep their link to the floor they go to, and their rise follows the new floor-to-floor height. A stair drawn on the downstairs floor now climbs up to the upper floor, as it should. - The downstairs floor is now shown under the Below ground line in the floor menu, because it sits under the anchored floor. In 3D the house stands correctly, garage and porch at the bottom. - The anchored floor (now your upstairs) is still the one Copy ground floor copies, the only floor that offers Detached unit, and the one without a trash button. Add floor → Add below adds a floor under the lowest floor. If you add a Yard, it sits level with the anchored floor, so it would line up with your upstairs. If those last points matter for your project (you want a yard, or you want to keep copying the real ground floor), it can be quicker to redraw the smaller of the two floors in the right place: add a floor above or below the real ground floor and draw it with Draw from scratch, with the other floor shown underneath as a guide. To bring pieces across, drag a box round them on one floor with Select multiple (the dashed-box button on the toolbar), press Ctrl/⌘ + C (copied to clipboard), switch floors in the floor menu and press Ctrl/⌘ + V. The copies land at the same spot on the plan, nudged about 2 ft, and stay selected so you can drag them into place. Furniture, interior walls and pillars copy this way. Keep the box inside the outer walls: the outline itself doesn't paste onto another floor, since each floor keeps its own.
One tap on the down arrow: the downstairs floor now sits under the upstairs one. - 18
Check the order in 3D
Open 3D View. If only one floor shows, open Floors at the top left of the 3D view and tap the other floor's eye to show it. After the move the bedrooms sit upstairs and the garage, covered porch and deck at ground level, which is how the house really stands.
Both floors shown in 3D: the downstairs is back at ground level. - 19

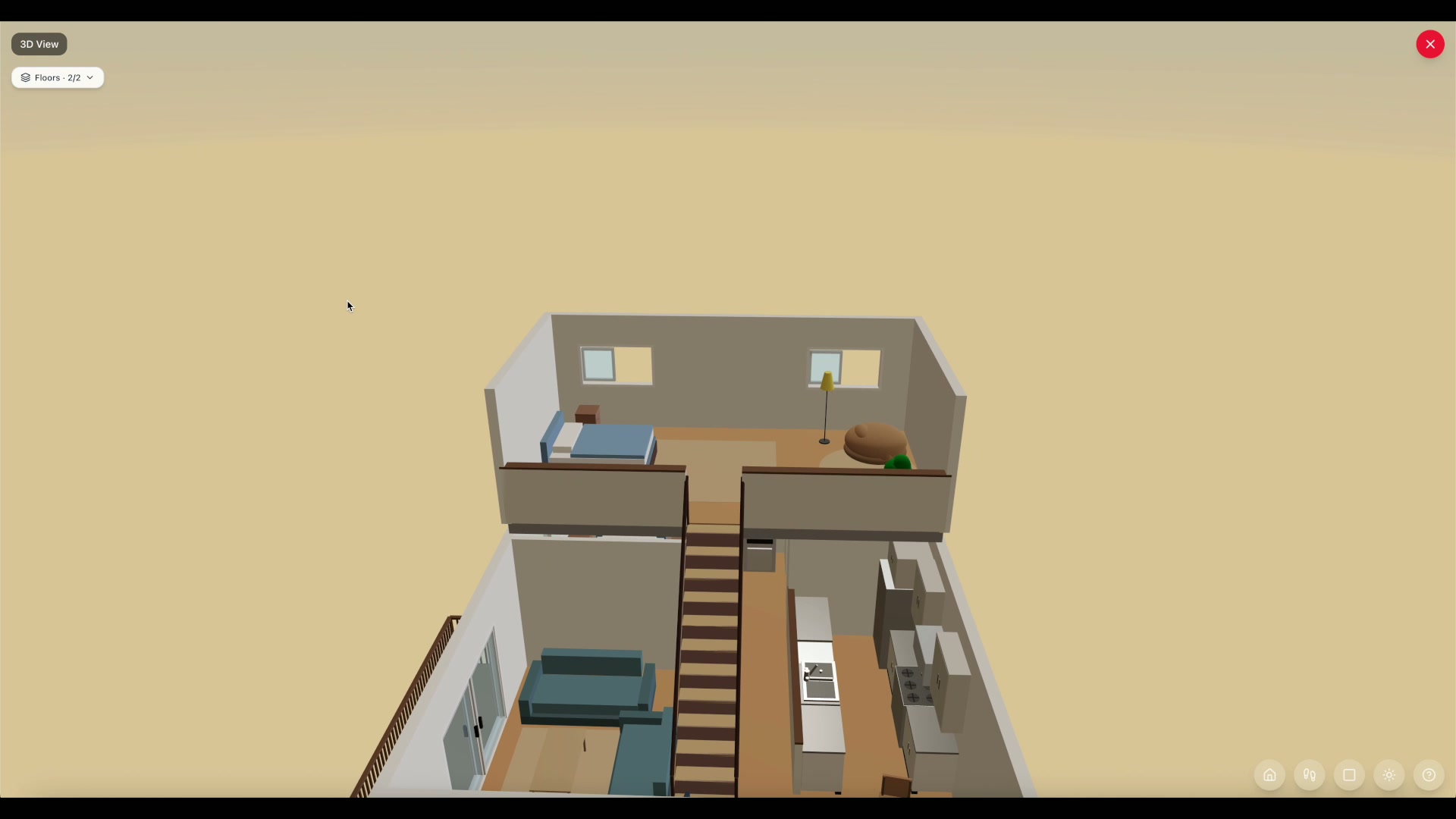

Walk between floors in 3D
Switch to 3D View. The floors render stacked, the stairs connect them, and in walk mode you can climb between floors.
The finished two-story home in 3D — loft, staircase, and ground floor together. - 20
Export per floor or the whole house
Export a per-floor PNG for each level, or the whole house as a 3D model (GLB).
Tips
Add the floor, then the stairs
Add and shape the upper floor first, then draw the staircase on the lower floor — it connects to the floor above by itself and the blue floor-above guide shows exactly where it arrives.
Use the underlay to align walls
Trace the upper floor's exterior walls directly over the guide underlay so the storeys stack cleanly and the roofline looks right in 3D. Already drawn and slightly off? Plan Settings → Layout → Outline Editor → Reposition this floor.
Name your floors
Rename floors from the floor menu's pencil ("Loft", "Basement", "Upstairs") so you always know which one you're on — the name on the floor button is the floor you're editing. A name is only a label: to change which level a floor is on, use the up / down arrows.
Copy what really repeats
On a house whose storeys share the outline and the window positions, tick Doors & windows and Interior walls under Also copy, then delete what's only downstairs (the front door, garage doors). For a loft or a smaller upper floor, leave them unticked and draw what's there.
Watch the save indicator
A save indicator in the top bar shows when your work is stored — handy reassurance while you're juggling several floors.
Common mistakes
Renaming floors to fix their order
A name is a label. If the downstairs ended up on top, renaming the two floors leaves it on top in 3D, in the floor menu and for the stairs. Use the floor menu's down arrow on the floor that holds the downstairs drawing instead.
Copying everything onto a loft
Copy ground floor with Doors & windows and Interior walls ticked suits a full storey over the same footprint. For a loft or a smaller upper floor, use Add a loft or Draw from scratch, or copy just the outline, so you aren't deleting walls and doors that aren't there.
Drawing stairs on the upper floor
A stair belongs to the floor its bottom step is on. Draw it on the lower floor and it links to the floor above and cuts the opening there by itself.
Frequently asked questions
Can I design a two-story house?
Yes. Add a second floor from the floor menu; it stacks on top of the ground floor automatically. You can add more storeys and a basement too.
Where are my floors? How do I switch between them?
Open the floor menu — the button showing the current floor's name at the top of the left panel (in the top row on a phone). It lists every floor in the design; tap one to switch to it. Whatever you draw goes on the floor named on that button.
My ground floor disappeared — where did it go?
It's almost certainly still there. The ground floor can't be deleted (it has no trash button), so: 1. Open the floor menu and look at the list — you may simply be on the upper floor, which can look empty. 2. Check the names. Floors can be renamed, so the ground floor may be listed under another name ("Grundfloor", "EG", "1st floor"…). With Settings → General → Floor naming → 1st, the bottom floor is called First floor and the one above it Second floor; with Ground, it's Ground floor, then First floor. 3. Check you opened the right design. If you imported or duplicated a plan, there may be two designs with similar names on Home — the floors you added live in only one of them. It isn't in the View & Layers menu, which only shows or hides things like labels and the other floors' outlines.
Why is there no stair opening (cutout) on my upper floor?
The upper floor gets its stairwell only when all of these are true: - the stair is placed on the floor below (not on the upper floor itself); - the design has the upper floor — the stair's panel shows Where does this stair go? only once there's more than one floor; - the stair is connected: select it on the lower floor and check Where does this stair go? — if Not connected is picked, tap the upper floor's name. A stair placed when there was no floor above connects automatically as soon as you add one. Once connected, the upper floor shows a faint DN symbol and 3D shows the opening over the top of the flight.
I can see the stairs on the upper floor but I can't select, move or delete them
That faint DN — to Ground floor symbol is a view of the stair from the floor below, shown so you can plan around the stairwell. Tap it: a message says This stair belongs to Ground floor — edit or delete it there, with a Switch to Ground floor button. Tap Switch (or pick that floor in the floor menu), select the stair there, then move it, resize it, or delete it with the red trash button.
How do I delete stairs?
Switch to the floor the stairs start on, tap the stair (if something sits on it, pick Staircase from the Select item list), then tap the red trash button on it or at the end of its panel. That also removes the opening upstairs. Details: Adding stairs.
Why did my stair's height change when I connected it to the floor above?
Not connected, the stair's Rise shows auto with the wall height (for example auto (3.05 m)). Connected, it climbs to the floor above, which sits at the lower floor's ceiling height + 30 cm (12″): so it reads 3.35 m AUTO. To get 3.05 m, set the lower floor's ceiling height to 2.75 m (Plan Settings → Ceiling), then reload the page or reopen the design. See Adding stairs for screenshots of each step.
Can I type the height between floors?
Not directly. Each floor sits at the ceiling height of the floor below + 30 cm (12″), so set the lower floor's ceiling height to the floor-to-floor height you want minus 30 cm, then reopen the design. Slab between floors doesn't change the spacing; it's how thick the floor between storeys looks in 3D.
What does Slab between floors do?
It sets how thick the floor between storeys is drawn in 3D: the slab under an upper floor and around a stairwell (25 cm / 10″ to start, up to 122 cm / 48″). It's saved with the design, shows in cm on a metric plan, and doesn't move the floors or change a stair's rise.
How do floors connect?
With stairs. Place a staircase on the lower floor and it auto-links to the floor above, leaving the opening; change the link any time under Where does this stair go?. In 3D walk mode you can climb between floors.
Can I see the other floors while I'm working on one floor, to line up the stairs?
Yes. Turn on View & Layers → Show other floors (it starts off) and the floors above and below are drawn lightly across the plan while you edit any floor — outer and interior walls at their real thickness, and stairs. To hide one of them, tap its eye button in the floor menu. When you select a stair, the floor it connects to is always drawn in blue so you can line the top of the stairs up with it.
How do I add a basement?
Floor menu → Add floor → Add below. Or move an existing floor below the ground floor with its down arrow — it then shows under the Below ground line.
How do I rename a floor?
Open the floor menu and tap the pencil next to the floor, type the new name, then Save (or press Enter).
Can I export each floor separately?
Yes — export a per-floor PNG for each level, or the whole house as a 3D GLB model.
How do I line up an upper floor with the floor below?
Switch to the upper floor and open Plan Settings → Layout → Outline Editor (on a computer, Plan Settings is the panel at the top of the left panel; on a phone, the Plan Settings button in the top row). In the editor tap Reposition this floor: the floor below shows as a grey guide and the corners lock, so you can only move the floor, not reshape it. Drag the floor until its exterior walls sit over the guide (corners snap onto the guide's corners when they're within a few inches), then tap Update Floor Plan. Revert Move puts it back where it started. If the floor is the wrong size, tap Re-scale in the same editor and choose This floor. Stairs connect floors through 'Where does this stair go?' in the stair's panel — the stairwell opening is then cut through every floor in between, and the stair's Rise follows the floor-to-floor height automatically. Check the join in 3D from the dollhouse view.
Can I reorder floors or move a floor up or down?
Yes — open the floor menu and use the up / down arrows next to a floor. The ground floor stays where it is; moving a floor below it makes that floor a basement. Floor names follow your naming convention (Ground / First… or First / Second…) from Settings → General → Floor naming, unless you've renamed them. Renaming never moves a floor: only the arrows change its level.
I drew the ground floor and the first floor on each other's levels. How do I swap them?
Renaming them only swaps the labels. Open the floor menu, find the floor with your downstairs drawing (it's listed on top) and tap its down arrow once: it moves under the other floor, and the order is right in the floor menu and in 3D. The bottom floor of the house can't be moved itself, so the floor you moved is shown under a Below ground line, and the other one stays the anchor (Copy ground floor and Detached unit work from it, and a Yard sits at its level). Step by step, with pictures, in Drew a floor on the wrong level? above.
What does Copy ground floor copy?
The outer walls always, plus what you tick under Also copy: Doors & windows (doors, windows, openings, garage doors and bay windows), Interior walls, Wall length padlocks (ticked to start) and Pillars. Only the rows the ground floor has are shown. Furniture, stairs, balconies, sticky notes, measurements and people for scale are never copied, and nor are outlets, switches, fireplaces, room names or flooring.
Adding a floor said "That would change a locked measurement". What now?
That was a bug, fixed on November 16, 2026: a copy of a ground floor with locked wall lengths could be refused when you saved its outline, even unchanged. Add the floor again: a floor you're adding is always created now, with its padlocks. A floor that was already copied that way is no longer stuck either. Plans with locked walls can add floors.
Where did Edit Floor Plan Shape (Edit Floor Shape on a phone) go?
It's gone. Walls are edited right on the plan, on every floor: tap an outer wall to drag it in or out, type its length, or split it, and use Add Room or Exterior Wall in the Build panel to grow the plan (see Edit walls on the plan and Add exterior walls right on your plan). The editor itself is still there for one-off outline jobs, under Plan Settings → Layout → Outline Editor: drag or square a corner, Re-scale, and on an upper floor Reposition this floor. It works on a draft, so nothing changes in your design until you tap Update Floor Plan, and Cancel (the × on a phone) throws the draft away. Adding a floor with Copy or Add a loft also opens it, with the floor below as a guide; Draw from scratch draws on the plan instead.
