Editing room size, walls, and vertices
Already drew the room? Here's how to nudge walls, drag corners, and type exact dimensions to get it perfect.
Three ways to change a room's size and shape, all right on the plan: type an exact length, drag a whole wall, or split a wall to make a new corner. Moving an outside wall stretches the walls beside it, so the outline stays closed; turn its link off to move it alone. For the rare job of dragging a single corner freely, there's the Outline Editor.
Step by step
- 1
Type a length
Select any wall, tap the length in the small panel beside it (or the Length field in its settings panel) and type the value. A yellow pin marks the end that stays put and an arrow the end that moves; tap the arrow to swap. With an outside wall the link button on its bar starts on (Joined walls move too), so the wall at the moving end comes along. Turn the link off and only that wall changes: a shorter length then leaves a dashed gap at the end that moved (tap the gap's + to fill it). An interior wall's link starts off. Full walkthrough: Set an exact wall length. Which end moves matters. Measure from a corner you trust (usually one where two walls meet at a known right angle) and keep the pin there; the arrow end is the one that gives. Type the new length in feet and inches (or metres and centimetres) and tap the check.
Tap the length to type it: the yellow pin stays put, the arrow end moves. - 2
What happens to the rest of the room
With the link on (the usual setting), the walls at the moving end come along. In the example the top wall went from 14 ft 6½ in to 16 ft 6½ in: the right-hand wall moved 2 ft to the right with its window, the bottom wall stretched to match, and the room's inside width grew from 13 ft 5½ in to 15 ft 5½ in. The outline stays closed and the furniture stays where it was, so check its spacing afterwards. The totals in Plan Settings (Gross area, Usable area) update as you go: a quick check that the room is now the size you measured.
After: the right wall moved 2 ft with its window; the bottom wall stretched to match. - 3
Drag the whole wall
Select a wall, then drag it in or out, or drag the crosshair at either end to change its length along its line. The wall moves as a unit and the rooms on either side resize. With an outside wall's link on (the usual setting) the walls joined to it stretch and no gap opens; with the link turned off it moves on its own and dashed gaps open where its neighbours stayed. Outer walls follow the toolbar's snapping button; interior walls have their own magnet beside them. See Gaps in an outside wall.
- 4
Make a new corner: split the wall
To turn a rectangle into an L, or make a bump-out, select the wall and tap the scissors on its bar (behind ⋯ for an interior wall), drag the pin to the spot (or type its distance) and tap the scissors on the wall. Then drag one of the two pieces in or out. Two splits and one drag make a bay or an alcove. See Split, slide and resize walls.
With the link turned off a piece moves alone; with the link on (the start) its neighbours stretch. - 5
Drag a single corner (Outline Editor)
On the plan you move walls: drag a wall, or the crosshair at either end of a selected outside wall to make it longer or shorter along its line. When you do want to drag one corner freely, for an angled wall say, open Plan Settings → Layout → Outline Editor, drag the corner (hold Shift on a computer to snap to 90°), and tap Update Floor Plan. Tap a corner there to see its angle, square it with Make 90°, or Delete it. See The Outline Editor.

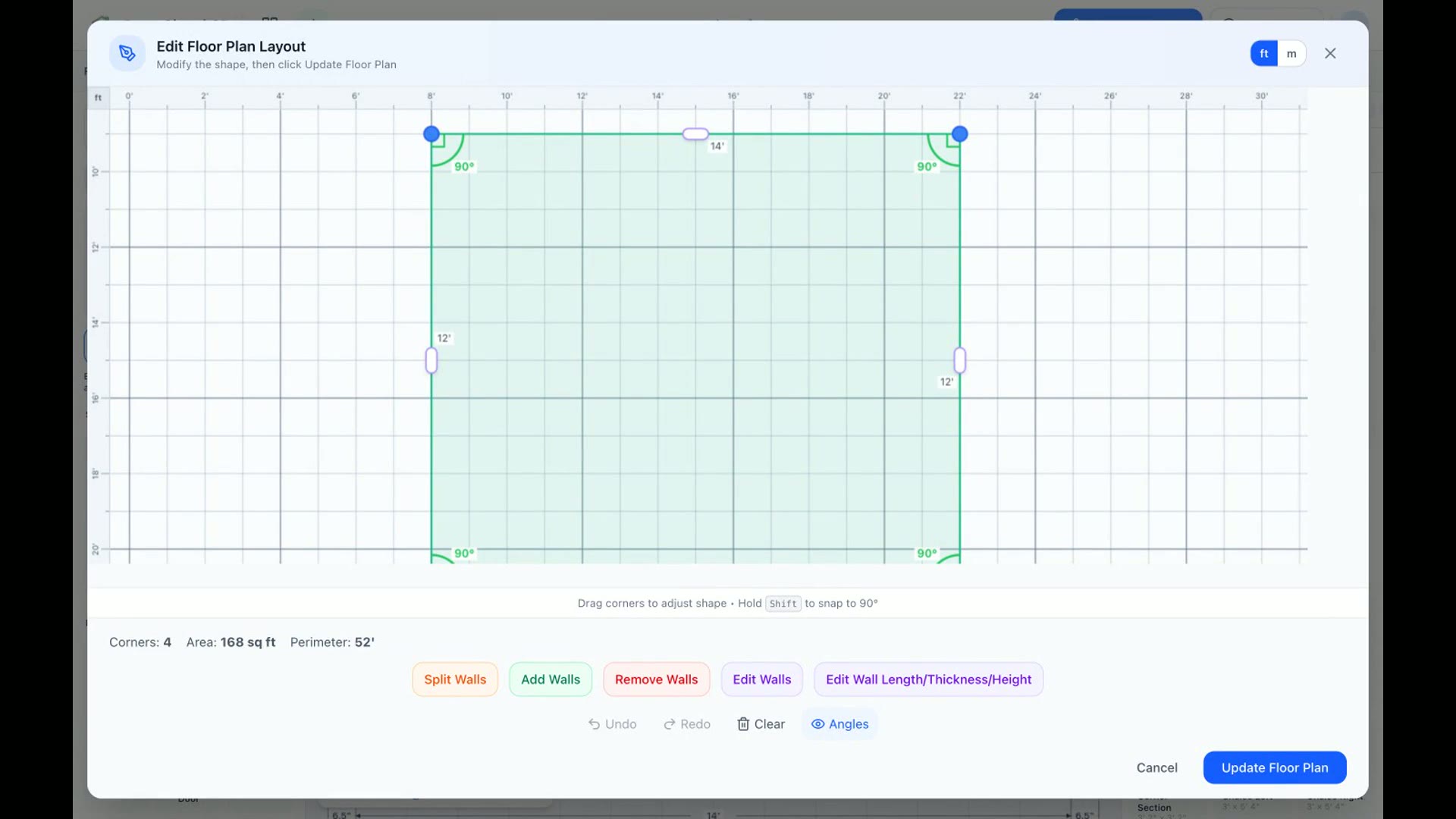

The Outline Editor: every corner is a handle. - 6
Delete or add walls
To open up a side, select an outer wall and tap the trash can on its bar (or Remove in its panel): it leaves a dashed gap, and tapping the gap's + puts the wall back. To grow the plan, use Build → Add Room for a rectangle, or Build → Exterior Wall to draw an extension of any shape (see Add exterior walls right on your plan). Everything is covered in Edit walls on the plan.
Tips
Measure inside, compare with the inside numbers
A selected outside wall's length and the inside measurements along the room are different numbers, because walls have thickness. Measure your room inside, wall face to wall face, and compare with the inside dimension lines; adjust until those match.
Work from one corner
Pick one corner as your fixed reference and keep the pin there for every wall you type. Fixing walls one by one from the same corner stops small errors from piling up around the room.
Lock what's finished
Once a wall's length is right, tap the padlock beside its length so a later drag or typed length elsewhere can't change it by accident. See Lock wall lengths and furniture.
Common mistakes
Turning the link off without meaning to
With the link off, a shorter wall leaves a dashed gap at the moving end, and a dragged wall opens gaps where its neighbours stayed. If you see dashed gaps you didn't want, Undo, check that the link button is blue, and try again.
Fixing a crooked plan by dragging corners
Small errors are better fixed by typing each wall's measured length than by dragging. Dragging by eye adds new errors; the Outline Editor is for deliberate angles, not tidying.
Frequently asked questions
A traced wall came out slightly crooked — how do I straighten it?
Select the wall, tap the length in the small panel beside it and type the length you measured; the yellow pin shows which end stays put (see Set an exact wall length). Turn on View & Layers → Show corner angles to see which corner is off — square corners show in green. Interior walls snap to horizontal or vertical as you drag their ends.
Why did the wall next to the one I changed move too?
Outside walls start with their link on (Joined walls move too), so the wall at the moving end follows and the outline stays closed. Tap the link button on the wall's bar to turn it off for that change.
Which end of the wall changes when I type a length?
The arrow end. The yellow pin marks the end that stays; tap the arrow to swap them before you type.
Do doors and windows move when I change a wall?
They stay on their own wall, so when a wall moves they move with it: in the example the window on the right-hand wall moved out 2 ft with its wall. Check the distances from the corners afterwards.
