Walk mode in 3D
Walk mode = first-person camera. WASD on desktop; on-screen joystick on mobile. Best way to check sightlines and clearance.
Walk mode puts you inside the plan at eye level — the best way to check sightlines, doorway widths and how a layout feels to move through. It's the same on every platform: keyboard and mouse on a computer, an on-screen joystick and a drag-to-look gesture on a phone or tablet.
Step by step
- 1
Enter walk mode
In the 3D view press the footprints button (Walk through) at the bottom right. On a plan with more than one room you first get the room beacons: click the room you want to start in, or any spot on the floor (even outside) to stand there. Picking a room (or a one-room plan) puts you in an open spot inside it, about 18" off the walls and clear of furniture, facing the longest clear view across the room, not a wall or the back of the sofa. A hint shows WASD to move · drag to look · Shift to run · Esc to exit and fades after about 4 seconds, or as soon as you start moving.
- 2

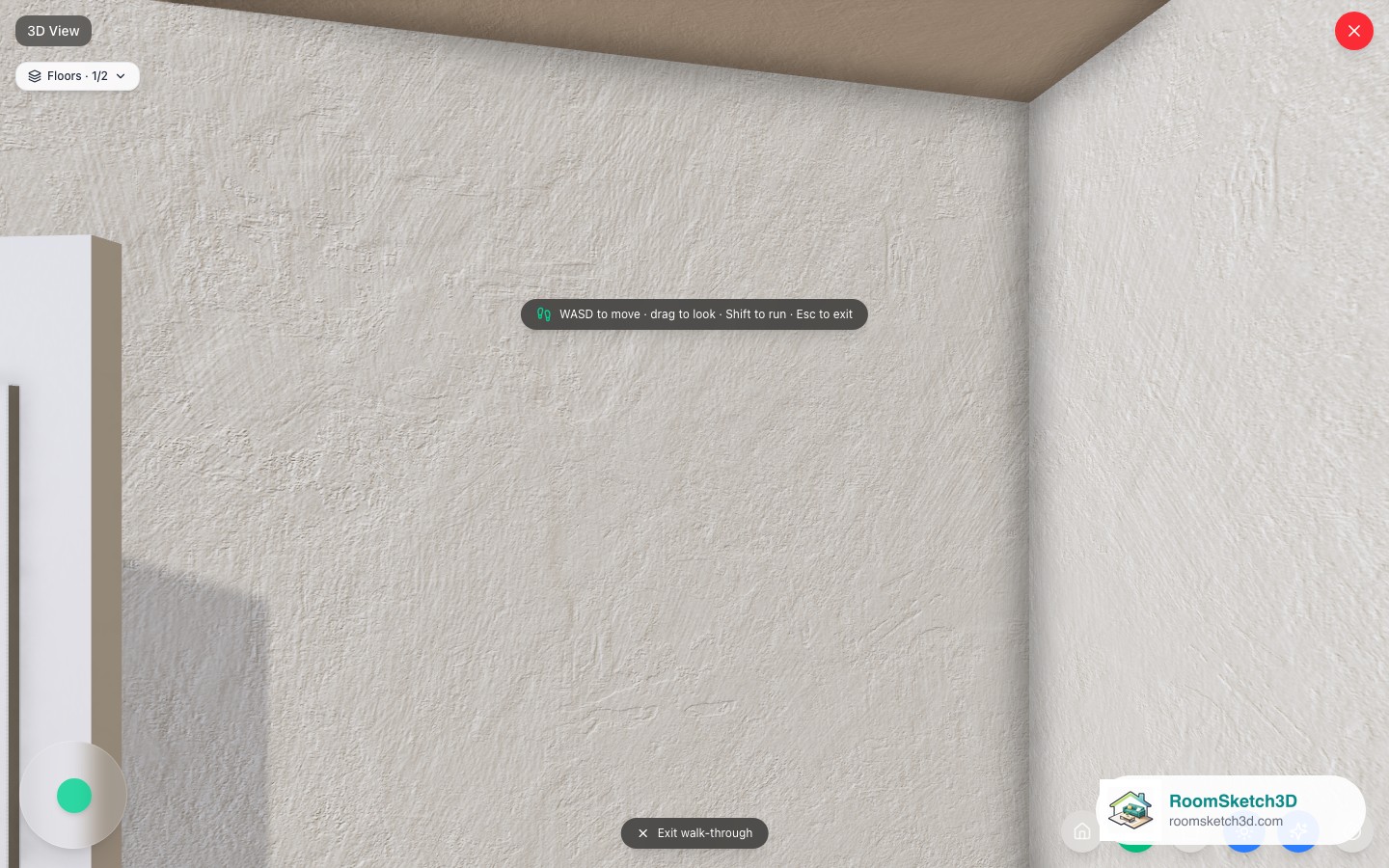

Move: W A S D or the arrow keys
W / ↑ forward, S / ↓ back, A / ← step left, D / → step right. Walls stop you and doorways let you through, so you get a real sense of how the plan flows.
- 3

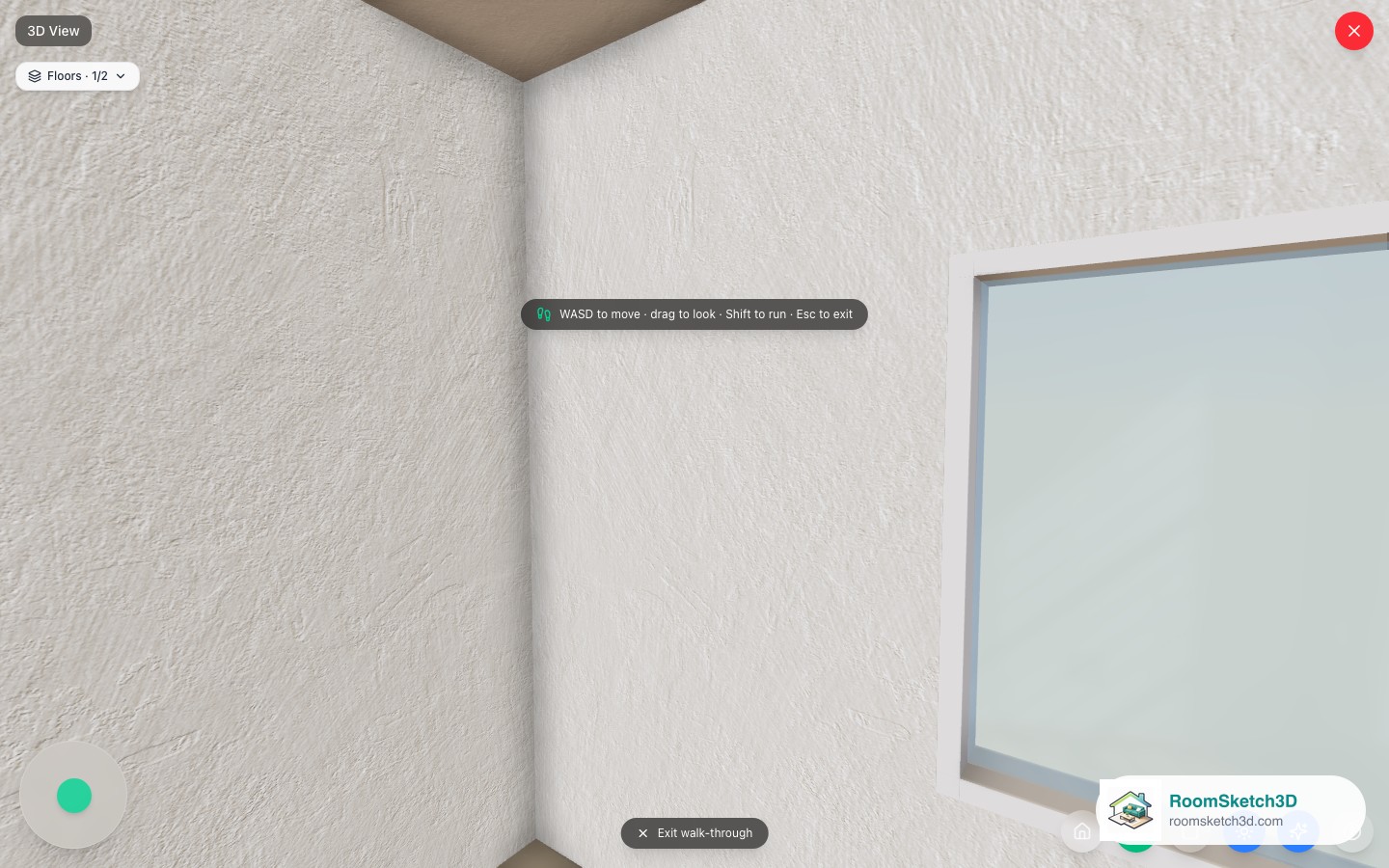

Look: drag
Hold the mouse button (any button) and drag: sideways turns you, up and down tilts your view. On a phone, drag anywhere on the screen with one finger.
- 4
Run: hold Shift
Hold Shift while you move to go twice as fast — handy for crossing a large floor.
- 5

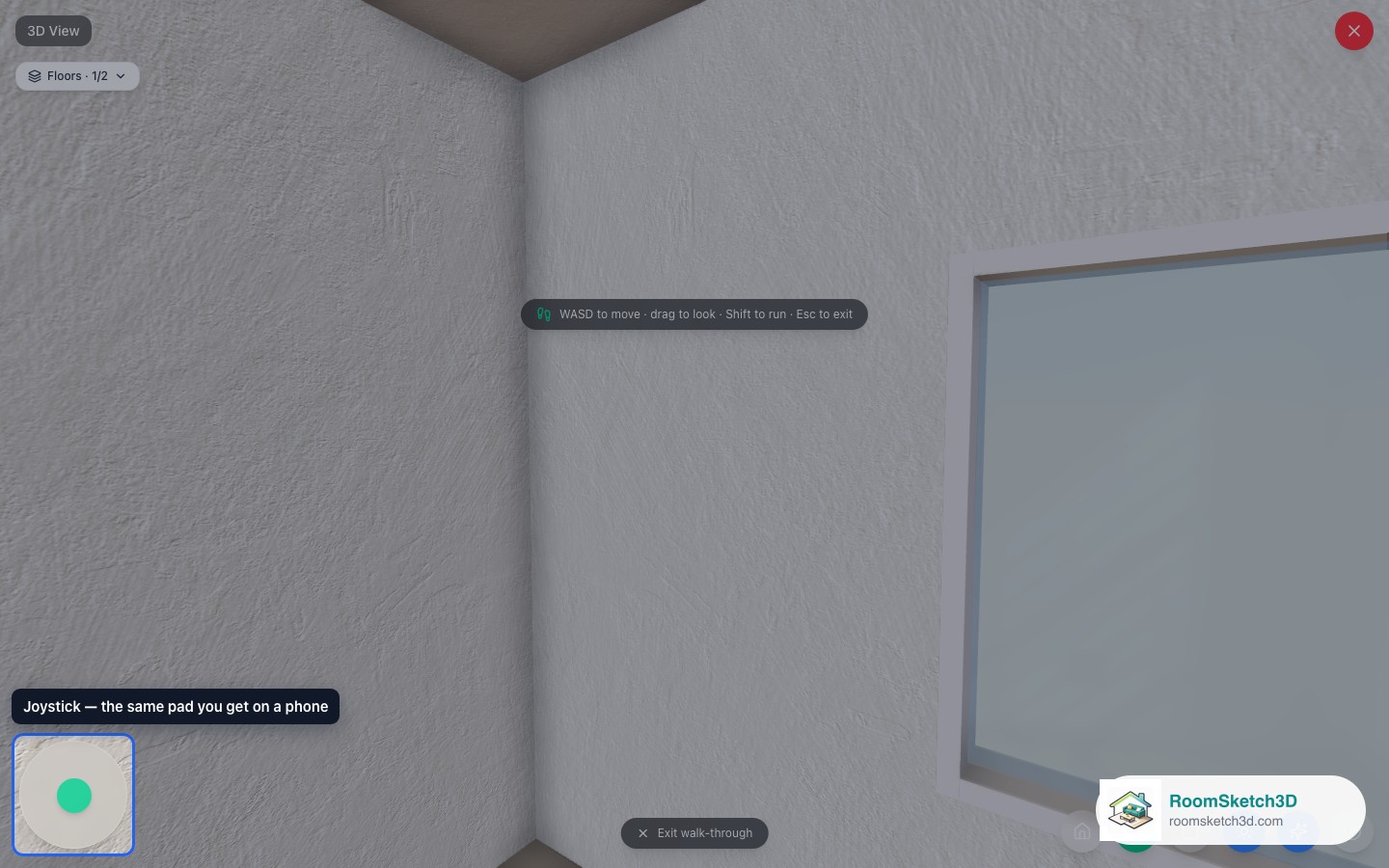

The joystick
The round pad at the bottom left is the joystick. On a phone or tablet it's how you move: drag the green knob in any direction and you walk that way; let go to stop. It works with a mouse on a computer too.
- 6
Sit down
Walk up to a chair, sofa, sectional, recliner, office chair, stool, bench, bean bag, patio chair, lunch-table bench or bleacher row. When one is in front of you and within about 10 ft, a blue Sit marker appears on it. Click or tap Sit and you're seated, at seated eye level and facing the way the seat faces: the view from the sofa to the TV, from the desk chair, or from the back row. Move (a movement key or the joystick) and you stand up in front of the seat. Furniture sets (a sofa set or a table with chairs) have no Sit marker: place the pieces separately to sit on them.
- 7
Walk up onto a stage
Stage risers and stage steps are something you stand on, not bump into. Walk onto a riser from any side, or up its steps for a gentler climb, and your view rises with the deck; walk off the edge to step down. Any other raised piece only lets you step up about 9 in (one stair step), so you still walk around tables and beds.
- 8

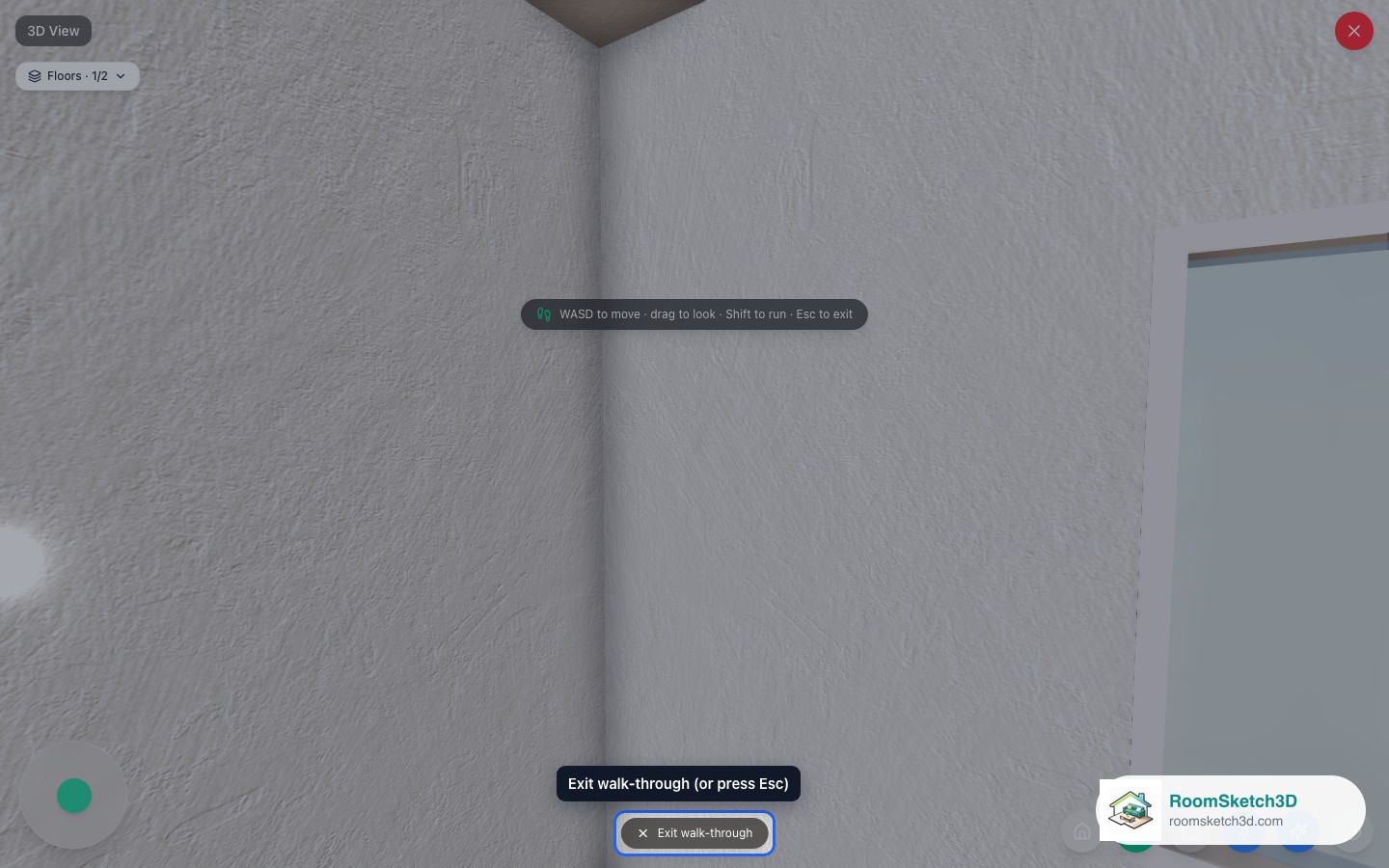

Exit
Exit walk-through at the bottom (or Esc) takes you back to the room beacons on a multi-room plan, or to the orbit view on a single-room plan. The red ✕ at the top right returns to the 2D plan.
Tips
Walk the whole home
Start at the front door and walk every room. Sightlines, doorway angles and tight passages show up here long before they would on paper.
Check heights
Walk mode is at a standing eye height, so counter, window-sill and shelf heights read true.
Common mistakes
Typing WASD with the search box focused
If you came straight from the catalog, click the 3D scene once so the keys go to the walker.
Pressing Esc to leave 3D
Esc only leaves walk mode. Use the red ✕ for the plan.
Frequently asked questions
How do I start walking?
In 3D press the footprints button (Walk through); on a multi-room plan click the room beacon you want to start in.
What are the keys?
W/A/S/D or the arrow keys to move (A and D step sideways), drag to look, Shift to run, Esc to exit. The mouse wheel also moves you forward or back. There are no other movement keys (no Q or E).
How do I walk on my phone?
Drag the joystick knob at the bottom left to move, and drag anywhere else on the screen to look.
Can I walk through walls?
No — walls block you and doorways let you through, so the walk reflects the real plan.
Can I sit on the sofa and see the room from there?
Yes. Walk up to the sofa (or any chair, bench, stool or bleacher row) until a blue Sit marker appears on it, then click or tap Sit. Move to stand up again.
Can I walk up onto a stage?
Yes. Stage risers and stage steps are walkable: step onto the riser from any side or climb its steps, and your eye level rises with you.
How do I get out?
Exit walk-through (bottom of the screen) or Esc; then the red ✕ to return to the 2D plan.
