3D camera controls

Drag to rotate, right-drag to pan, scroll to zoom, Reset camera to get the whole plan back, and switch the ceiling off for a clean top-down look.

4 min readUpdated 2026-11-17

Press View in 3D and your plan becomes a room you can move around in. Every camera control is a mouse gesture, a row of the View options menu in the bottom-right corner (Ceiling, Furniture, Shadows, High quality and more), or one of the round buttons under it. Along the top are Dollhouse, Line art, AI Render, Save image and the red ✕. This page walks through each one.

If you want to stand inside the plan at eye level rather than orbit around it, that's walk mode; the controls here are for the orbit view.

Step by step

  1. 1

    Enter and leave 3D

    View in 3D is the cube button in the canvas toolbar. The first time, the 3D view opens full-screen with the plan framed in the middle. After that it opens where you left it: close 3D to move something on the plan, open it again, and you're looking from the same spot (Reset camera takes you back to the framed overview). The red ✕ at the top right (Close 3D view) takes you back to the 2D plan; Esc does not close the viewer, it only steps out of walk mode. Next to it, Save image keeps a picture of the view (see Save a picture of your 3D view) and AI Render opens Render Studio at this view.

  2. 2

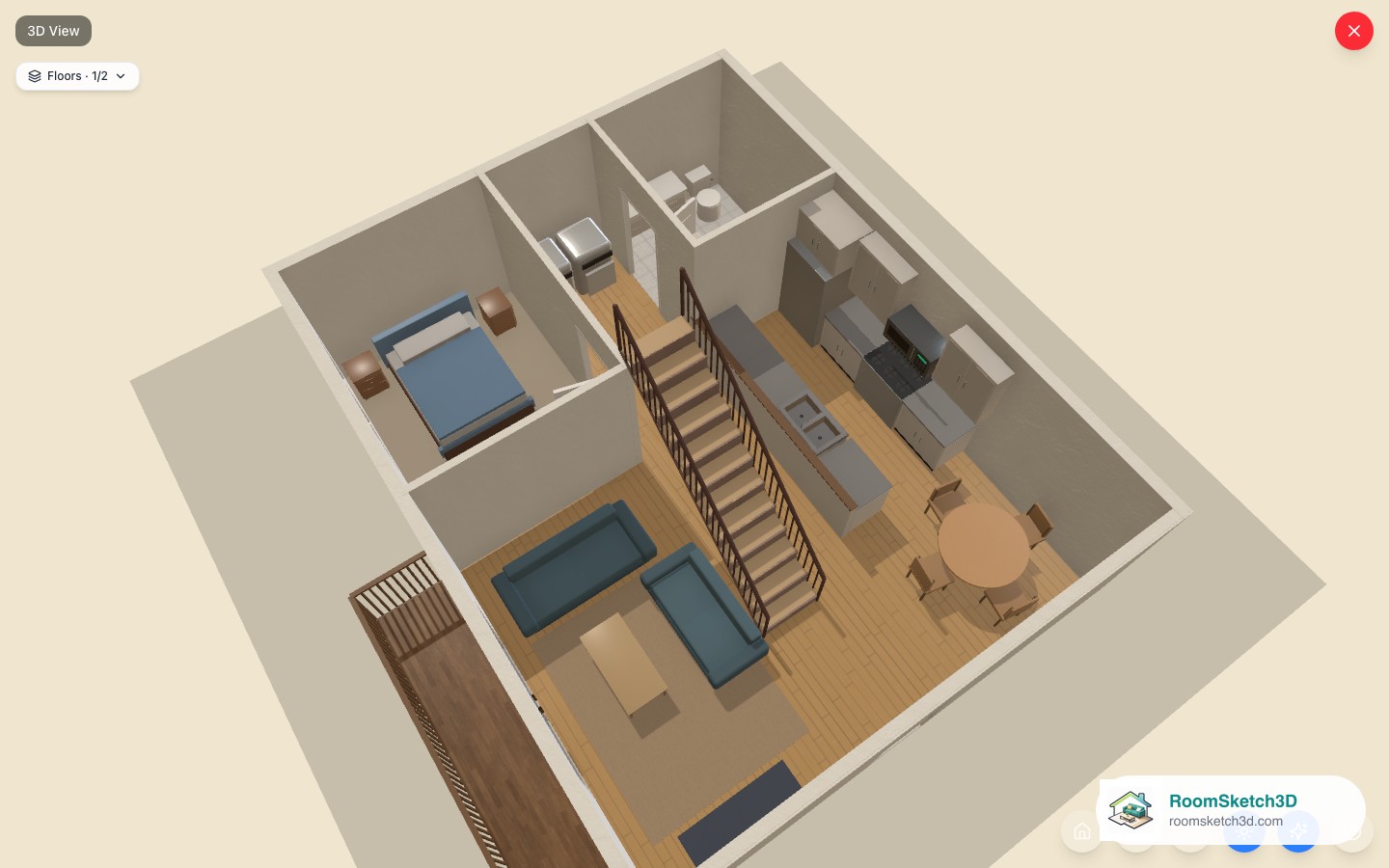

    Rotate: left-drag

    Hold the left mouse button and drag. Sideways swings the camera around the plan; up and down changes the angle, from a low eye-level view to almost straight overhead (the camera stops just short of the horizon, so you can't go under the floor). On a trackpad, one-finger drag.

  3. 3

    Pan: right-drag

    Hold the right mouse button and drag to slide the whole scene, so the part you care about sits in the middle of the screen. On a trackpad, two-finger drag; on a touch screen, two fingers.

  4. 4

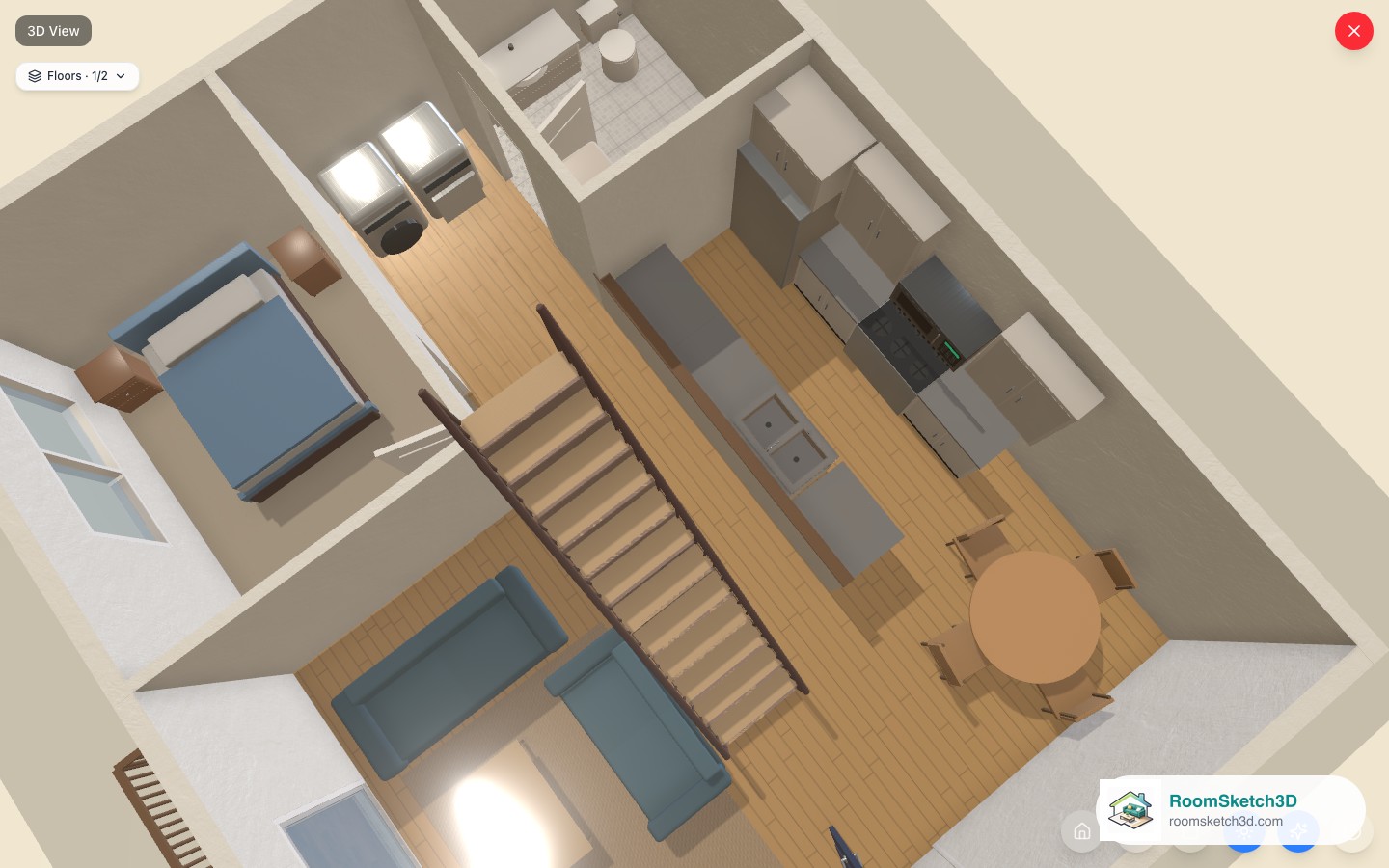

    Zoom: scroll

    Scroll forward to move in close to a piece, scroll back to pull out to the whole floor. Pinch on a trackpad or touch screen. Zoom has sensible limits at both ends so you can't lose the plan.

  5. 5

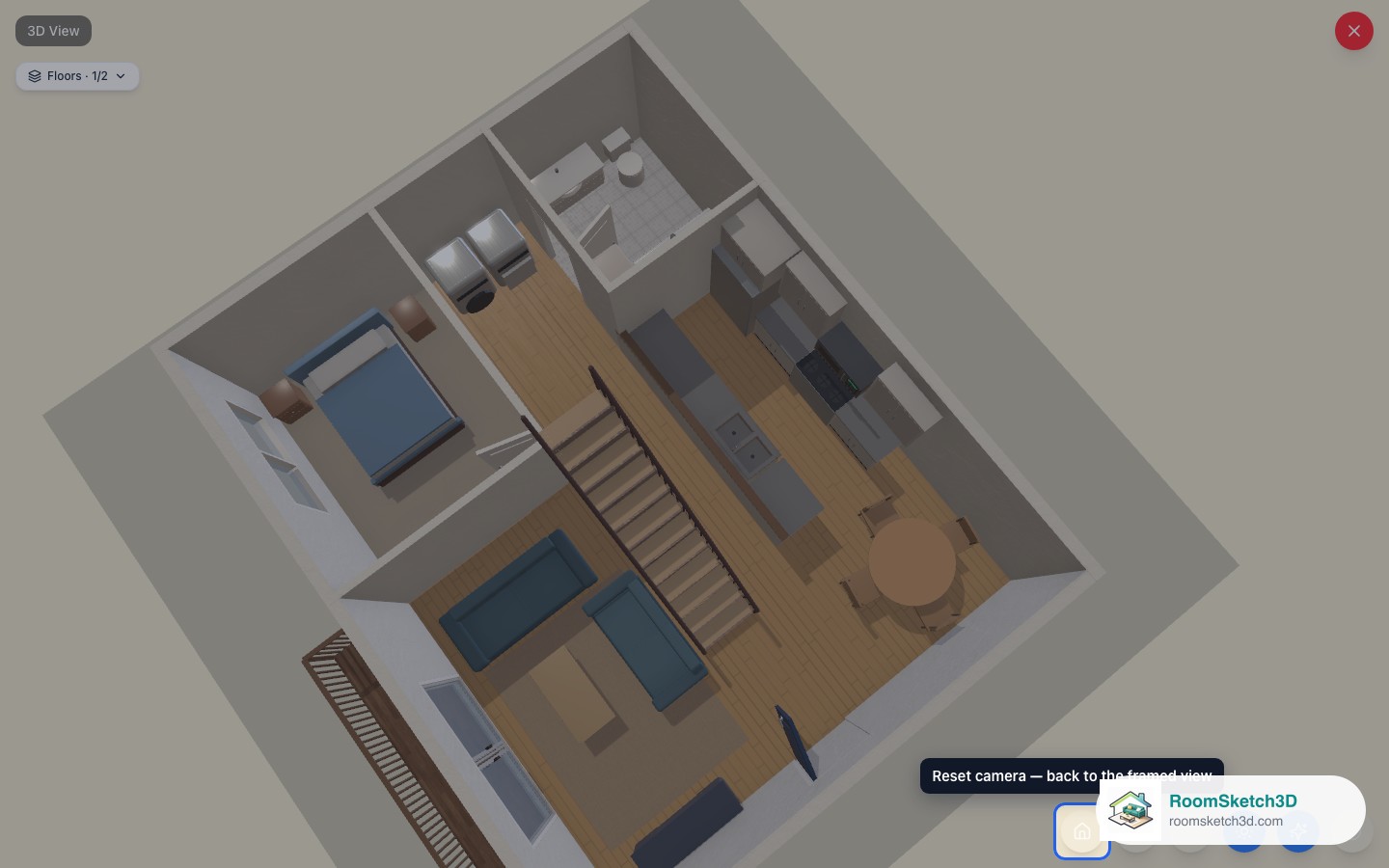

    Reset camera

    The house button — Reset camera — puts the camera straight back to the framed view of the whole plan. Use it whenever you've orbited or zoomed into a corner you can't find your way out of.

  6. 6

    View options: Ceiling, Furniture, Shadows, High quality

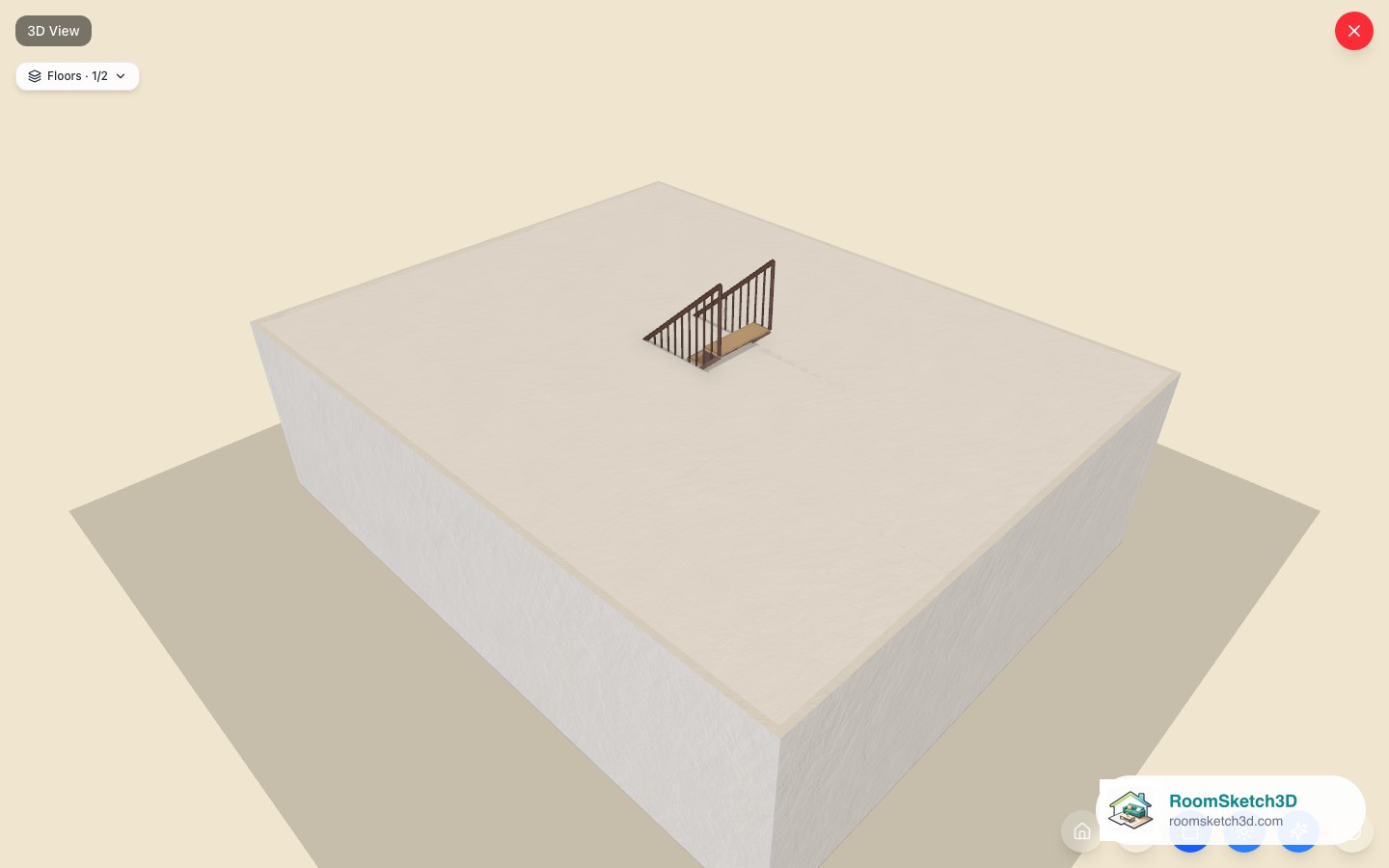

    Tap View options at the bottom right, just above the round buttons, and a menu of checkboxes opens upward; a blue tick means the option is on. The menu stays open while you tick, so you can flip several; tap View options again or anywhere outside it to close it. Until November 2026 these were separate switches in a row along the bottom. - Ceiling: unticked when the 3D view opens, so you can look straight down into every room; tick it to put the ceilings on. In Dollhouse the row isn't listed, because the dollhouse never shows ceilings. - Yard (only in a design with a yard around the house): hides or shows the lot, fences, zones and garden pieces. It's the same setting as View & Layers → Show yard on the plan. - Furniture: shows or hides every placed piece. The 3D view opens the way View & Layers → Show furniture is set on the plan. - Outlets & switches (only when the design has them): opens the way Show outlets, switches & symbols is set on the plan. - Shadows: cast shadows; leave it off on a slower machine. - High quality: soft ambient shading and a sharper picture, at the cost of speed. - Line art (phones only, the last row): see the next step. None of these change your design; they only change what this 3D view draws.

    View options: Ceiling unticked as the 3D view opens, Furniture and Outlets & switches ticked.
  7. 7

    Line art: see it as a drawing

    Line art turns the whole view into a black-and-white line drawing, like an interior sketch. On a computer or tablet it's the switch at the top left, beside Dollhouse. On a phone it's the last row of the View options menu, after High quality. While it's on, shadows and high quality are switched off for you; untick it to get your colors back. Save image keeps the drawing. More in See your 3D view as a line drawing.

    The same view with Line art off (left) and on (right).
  8. 8

    Controls help and the floors menu

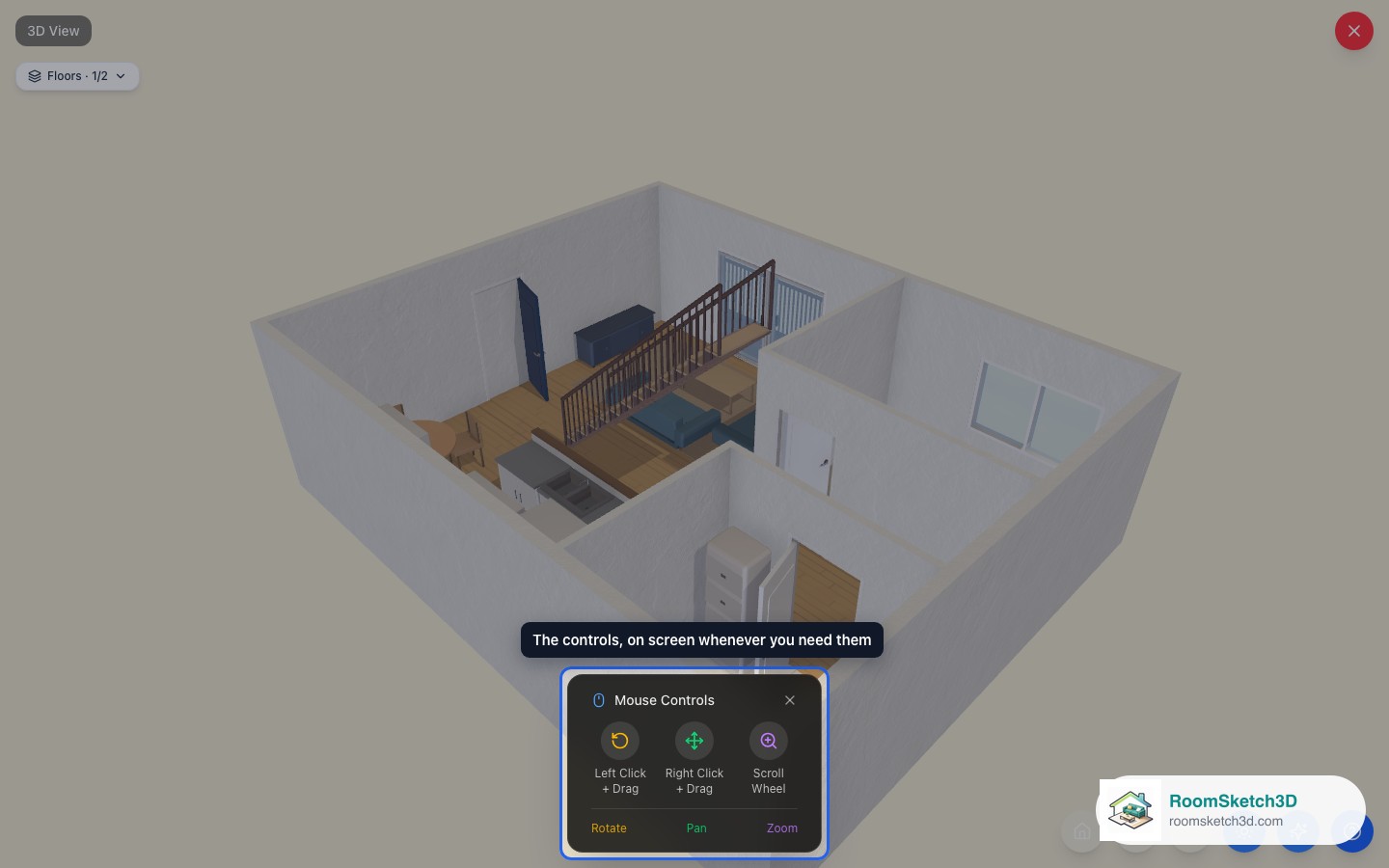

    The ? button shows the controls on screen (Left Click + Drag · Right Click + Drag · Scroll Wheel, or the touch equivalents on a phone). On a multi-floor plan, Floors at the top left lets you show or hide each floor and shows which one is active.

Tips

Look down into rooms

With the ceiling off (how the 3D view opens), left-drag downward to lift the camera overhead. It's the quickest way to judge a whole layout at once.

Slow machine?

Shadows off and standard quality make the biggest difference. See Browser support and performance.

Common mistakes

Pressing Esc to leave 3D

Esc only exits walk mode or the room picker. Use the red ✕ at the top right to return to the plan.

Dragging on the buttons

Start a drag on the scene itself, not on View options or the round buttons at the bottom right.

Frequently asked questions

Why doesn't the 3D view start from the overview any more?

It reopens at the spot you last looked from, so you can check a change on the plan and come straight back to the same view. Press the house button (Reset camera) for the full overview.

How do I rotate the 3D view?

Hold the left mouse button and drag (one finger on a touch screen). Sideways orbits around the plan; up and down changes the angle.

How do I pan?

Hold the right mouse button and drag, or two-finger drag on a trackpad or touch screen.

How do I zoom?

Scroll the mouse wheel, or pinch on a trackpad or touch screen.

I'm lost — how do I get the whole plan back?

Press the house button at the bottom right (Reset camera).

How do I see inside the rooms from above?

Make sure Ceiling is unticked in View options at the bottom right (it is when the 3D view opens), then drag downward to raise the camera overhead. Dollhouse shows every floor with the near walls cut away.

Can I see the 3D view as a black-and-white drawing?

Yes. Tick Line art: at the top left beside Dollhouse on a computer or tablet, or as the last row of View options on a phone. Untick it to go back to color.

Where did the Ceiling, Shadows and High quality switches go?

Into one menu: tap View options at the bottom right of the 3D view. It also has Furniture, Outlets & switches (when the design has them) and Yard (when it has a yard).

Why is there no furniture in my 3D view?

The 3D view opens the way your plan looks, so if View & Layers → Show furniture is off on the plan, 3D opens without furniture. Tick Furniture in View options, or switch the layer back on in the plan. Nothing was deleted.

Where is the walk / first-person view?

The footprints button, next to Reset camera. See the walk mode guide.

How do I save a picture of the 3D view?

Tap Save image at the top right (on a phone, the picture icon left of the red ✕). See Save a picture of your 3D view.
