Importing a floor plan with AI tracing

Give the app a picture or PDF of a floor plan (a blueprint, a listing plan, or a neat sketch) and AI drafts the walls, doors, windows, fireplaces and stairs for you. Tick one box first and it also reads the furniture drawn on the plan. Then quick checks: set the scale (tap a room whose size you know and type it), check the walls, check the doors and windows, and (if you asked for it) keep or drop the furniture. Tap Create design and it's a normal, fully editable design.

5 min readUpdated 2026-11-17

If you already have a floor plan (an architect's drawing, the plan from a listing, or a hand-drawn sketch) you don't have to rebuild it from scratch. Import it and either trace over it yourself or let AI draft it: the AI reads the picture and traces the outside walls, the inside walls, the doors, windows and openings, and the fireplaces and stairs. If your plan has furniture drawn on it, one optional box also has the AI read the sofas, beds, tables, kitchen counters, appliances, bathroom fixtures and room names, and turn them into real catalog pieces.

The AI path is marked Experimental on purpose: it does most of the work, but you stay in charge. After the AI has read your plan you go through short steps, Calibrate, Walls, Doors & windows and, when you asked for the furniture and it found some, Furniture, with your original plan underneath, so you can fix anything it got wrong before it becomes your floor plan.

What you'll need

  • •A clear image of a floor plan (JPG, PNG or WEBP) or a PDF
  • •One size you know: a room's inside width or length (often printed on the plan), or any labelled length such as the building's overall width
  • •About five minutes

Step by step

  1. 1

    Tap Floor Plan Image or PDF on Home

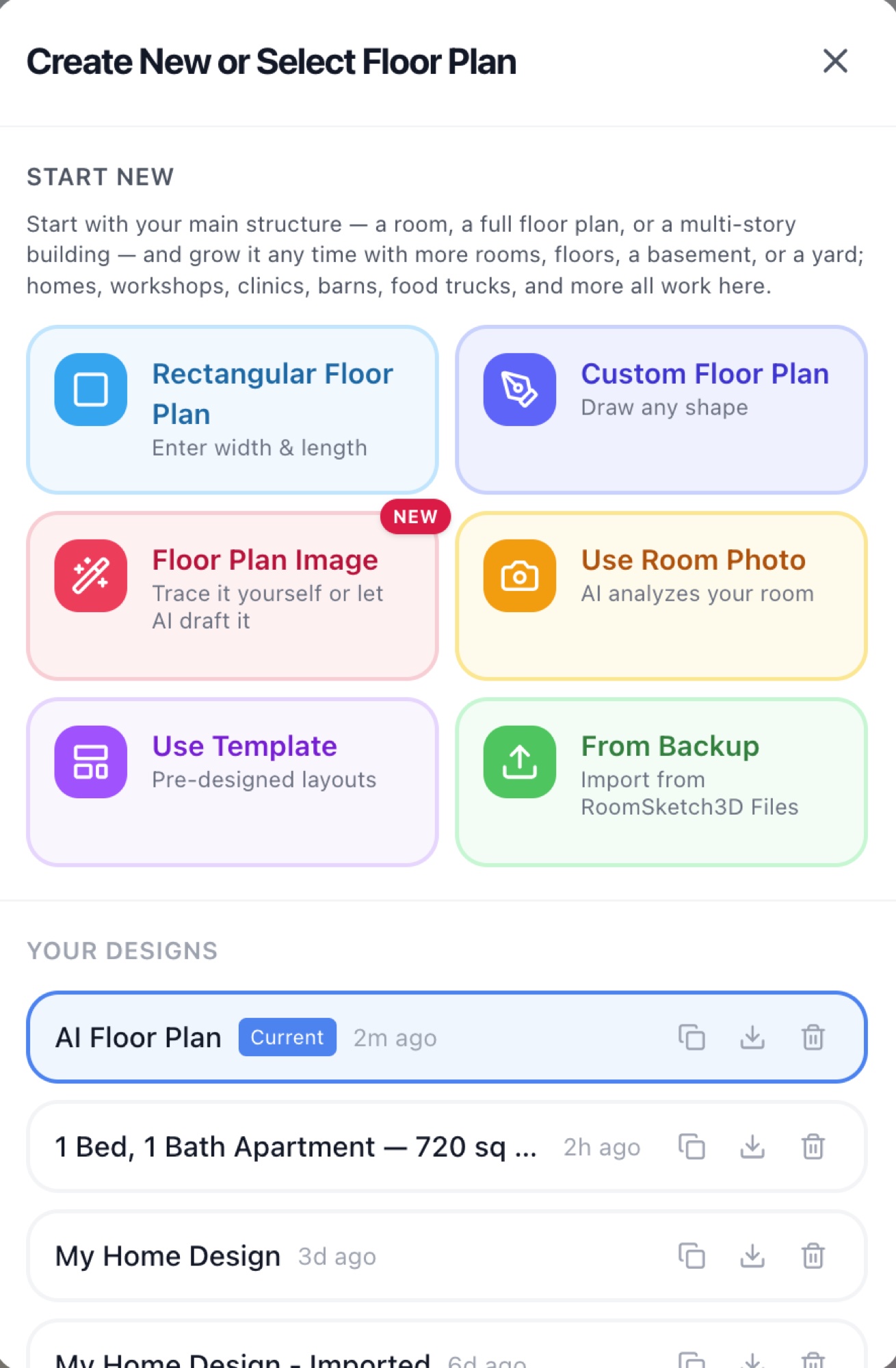

    On Home, under Start a new floor plan, tap Floor Plan Image or PDF (Trace it yourself or let AI draft it). Your device's file picker opens straight away: choose a JPG, PNG or WEBP picture, or a PDF. In the editor, the house button at the top left takes you to Home.

    Floor Plan Image or PDF: pick your file right from Home.
  2. 2

    Check the picture, crop it, then tap Next

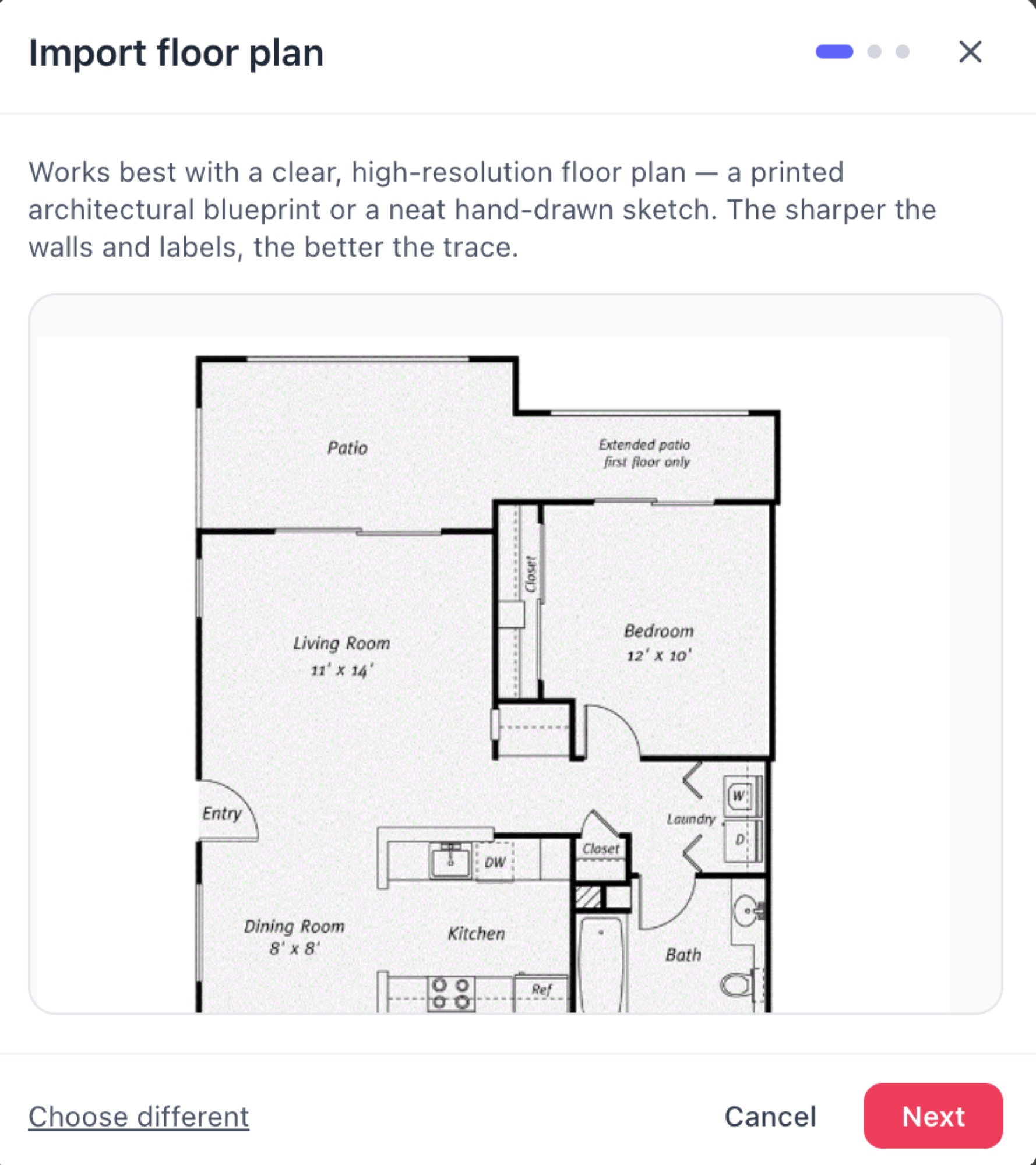

    The Import floor plan window shows your picture. It works best with a clear, high-resolution plan: the sharper the walls and labels, the better the trace. - Crop it to just the plan you want. Leave out other floors, titles and the edges of a screenshot; a screenshot with two floors side by side should be cropped to one. - For a PDF with several pages, use ‹ › under the picture (Page 1 of 3) to go to the page with your plan. - Wrong file? Choose different. Then tap Next.

    Crop to just the plan you want, then Next.
  3. 3

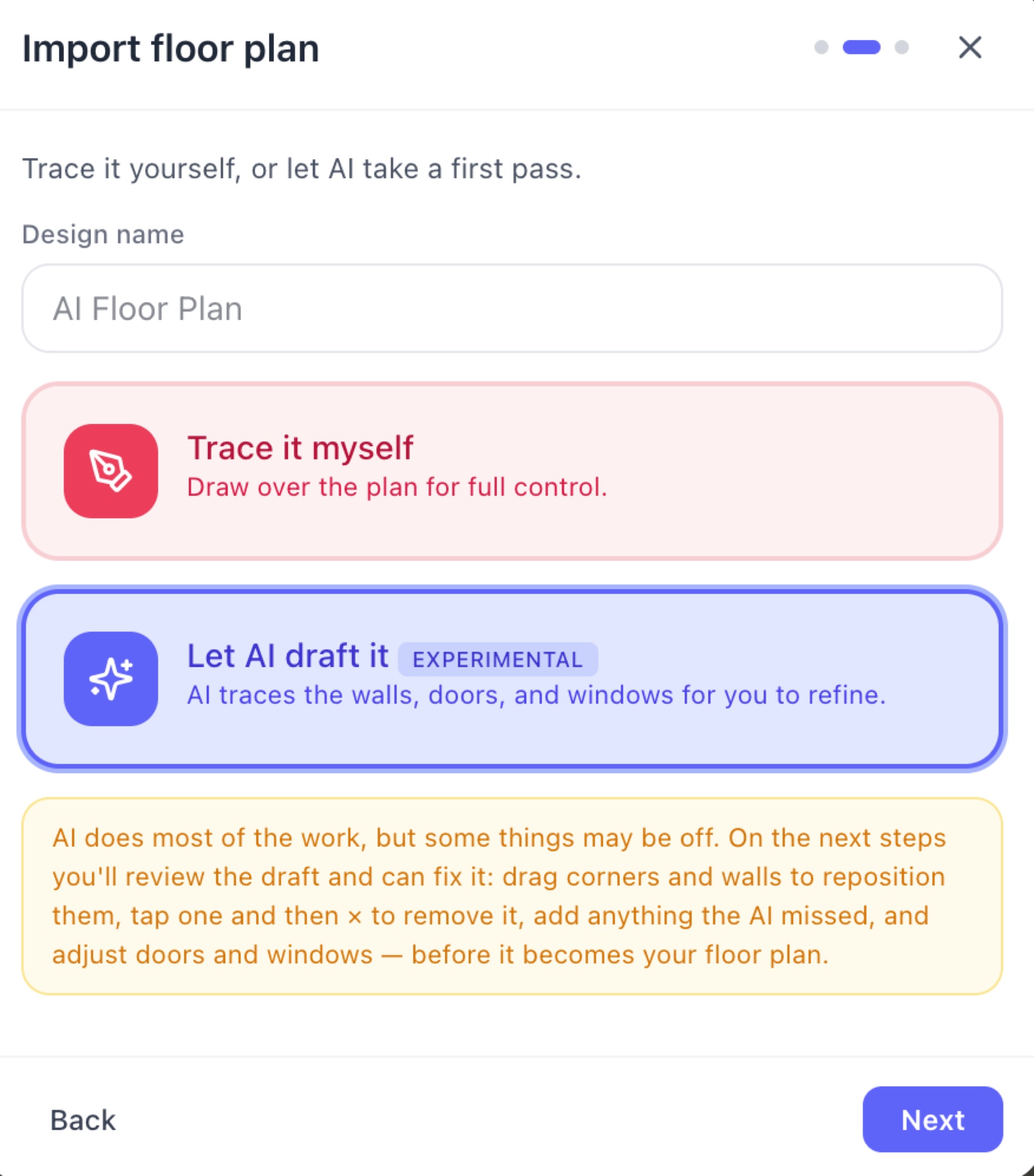

    Name it, choose Let AI draft it, tap Next

    Type a Design name (you can change it later), tap Let AI draft it (AI traces the walls, doors, and windows for you to refine) and tap Next. Prefer to draw it yourself? Pick Trace it myself instead: see trace a floor plan yourself.

    Let AI draft it, or Trace it myself.
  4. 4

    See what the AI reads, and choose whether to read the furniture

    The next page tells you what the AI looks for on your plan: - The outline: the outside walls and their corners - Interior walls, including partial and angled ones - Doors, windows and openings on those walls, with their widths - Fireplaces and stairs Under the list is one option, off unless you tick it: Also read the furniture drawn on the plan. Tick it when your plan shows furniture and fixtures (a listing plan, a designer's layout, a plan exported from another app): the AI then also reads the sofas, beds, tables, toilets, tubs, kitchen counters, cabinets, appliances and room names drawn on it (the page says This read runs alongside the walls, so it adds little waiting), and you get a Furniture page at the end to drop any you don't want. Leave it off for a bare plan, a builder's drawing or a sketch with only walls: you'll get the walls, openings, fireplaces and stairs exactly as before. Tap Next to start the read (Back returns to the choice of AI or tracing).

    One optional box: also read the furniture drawn on your plan. It starts unticked.
  5. 5

    Wait while the AI reads your plan

    You'll see Reading your floor plan… with a timer (Working for 0:09). A simple plan takes well under a minute; a detailed one can take a few minutes. The reading carries on even if you switch apps or your phone's screen locks: come back to this screen and the result is waiting. With the furniture box ticked, the furniture is read by a second pass that runs at the same time as the wall read, so it adds little waiting, which is what the page itself now says. On our one-bedroom sample with 24 drawn pieces, the whole read took under a minute. If the furniture pass fails for any reason, your walls, doors and windows still come through and the Furniture page is simply skipped. If something goes wrong with the wall read, the screen says what happened, with Try again or Trace it myself instead.

    The timer shows how long the AI has been working.
  6. 6

    Calibrate: tap a room whose size you know

    The header reads Step 1 of 3 · Calibrate (Step 1 of 4 when the AI found furniture), and the Calibrate scale panel opens on Room size. This one measurement is what makes every wall come out at its real size, and a room is the easiest thing to measure: most plans print each room's size inside it, and if yours doesn't, a tape measure across the real room gives you the number. Every room the AI's walls enclose has a marker on the plan: the room's name when the AI read one off the drawing, otherwise Tap here. Room names are read only by the furniture pass, so with Also read the furniture drawn on the plan left unticked (as in this picture) every marker says Tap here: here one each in the living room, the bedroom, the laundry closet and the bathroom. The panel shows three numbered steps, and the one to do now is outlined in blue. Step 1 says Tap the room whose size you know. Tap that room's marker; the room is shaded and two arrows appear, one side to side and one top to bottom, each running from wall to wall. The arrows follow the walls drawn on your plan (not the AI's lines), so a slightly tilted photo still measures straight across, and labels or dimension lines inside the room don't stop them. Pick a room whose size you're sure of, ideally a big, plain rectangle: a 15-foot bedroom spreads any small error over more of the plan than a 4-foot closet does.

    Room size: every room has a marker. Tap the one whose size you know.
  7. 7

    Pick Side to side or Top to bottom, type the inside size, Set scale

    Step 2 asks Which size do you know? Tap ↔ Side to side or ↕ Top to bottom (or tap that arrow on the plan). When only one direction could be measured it's picked for you. Step 3 says Type it — measured inside, wall to wall. Type the size in the ft and in boxes (switch to m/cm for metres and centimetres) and tap Set scale →. Why inside: the number is the clear space between the two wall faces, which is what a tape measure reads in the room and what most plans print as the room size (12.7′ × 10.2′ on our sample). The app works out the scale so that, once the walls are built at their real thickness, that room measures exactly what you typed. On our sample we typed 12 ft 8.4 in for the bedroom (12.7 ft) and the finished plan read 12′ 8.5″ inside, the nearest half inch. If the plan prints a room as 12′ x 10′ make sure you know which number is which: listing plans usually give width (side to side) first. If a marker you tap says No walls found around that spot. Tap nearer the middle of a room, or use the tape measure., do just that.

    Side to side picked, the inside size typed. Set scale.
  8. 8

    No room size? Use the Tape measure

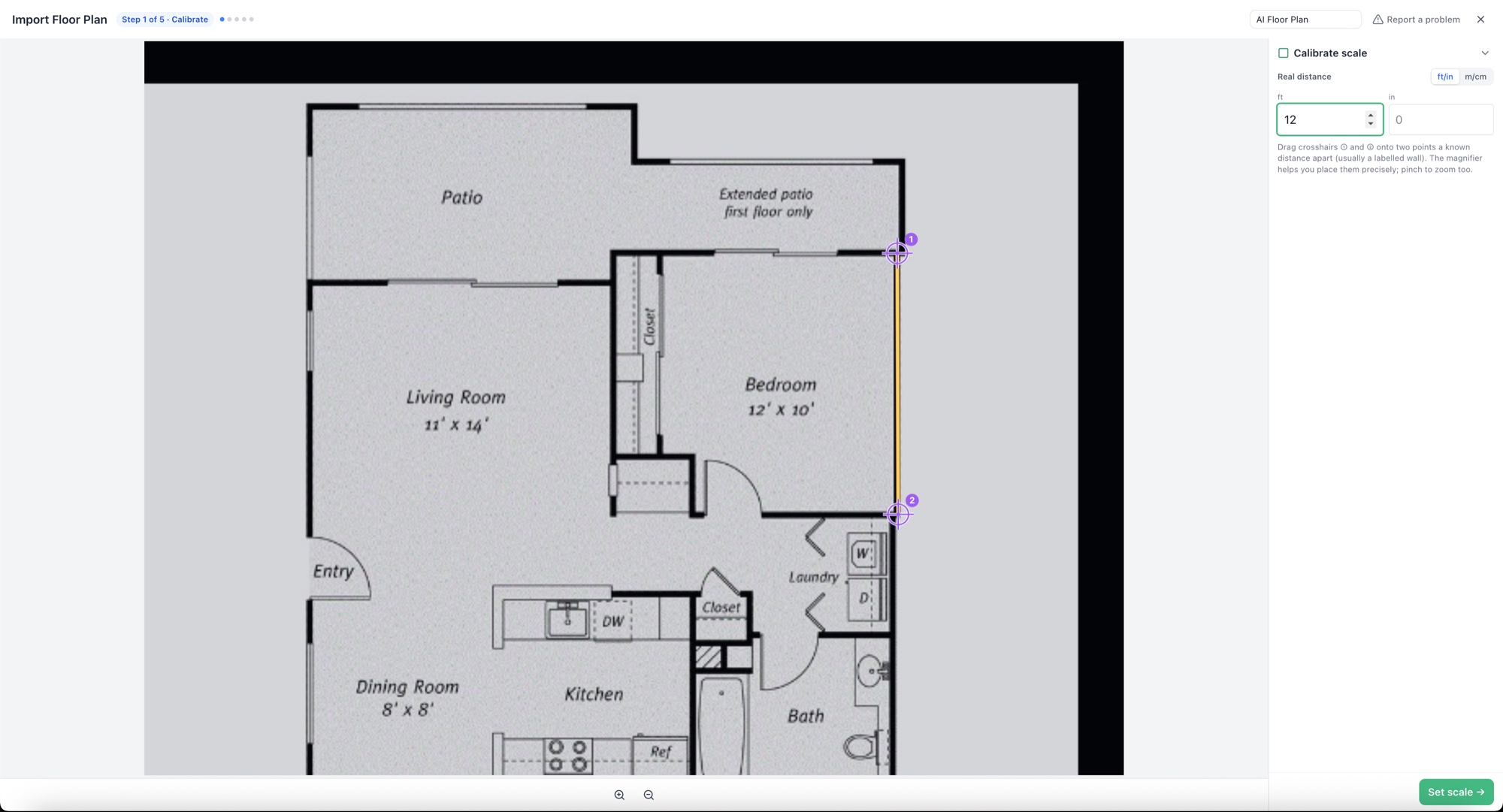

    For any other known length, tap Tape measure at the top of the panel. You get the two markers ① and ②: drag them onto the ends of something whose length you know, usually a wall or dimension line with its measurement written on the plan (the plan's 30-foot overall width, say). A magnifier shows while you drag. Type that length under Real distance (ft/in or m/cm) and tap Set scale →. If you'd already picked a room size, switching to Tape measure carries it over: the markers sit on the ends of that arrow, with your typed size, so you can fine-tune the ends by hand. The tape measure measures exactly between the two points you place, so put them where the written number starts and ends (on a dimension line, its tick marks).

    Tape measure: two markers you place yourself. A room size you picked carries over.
  9. 9

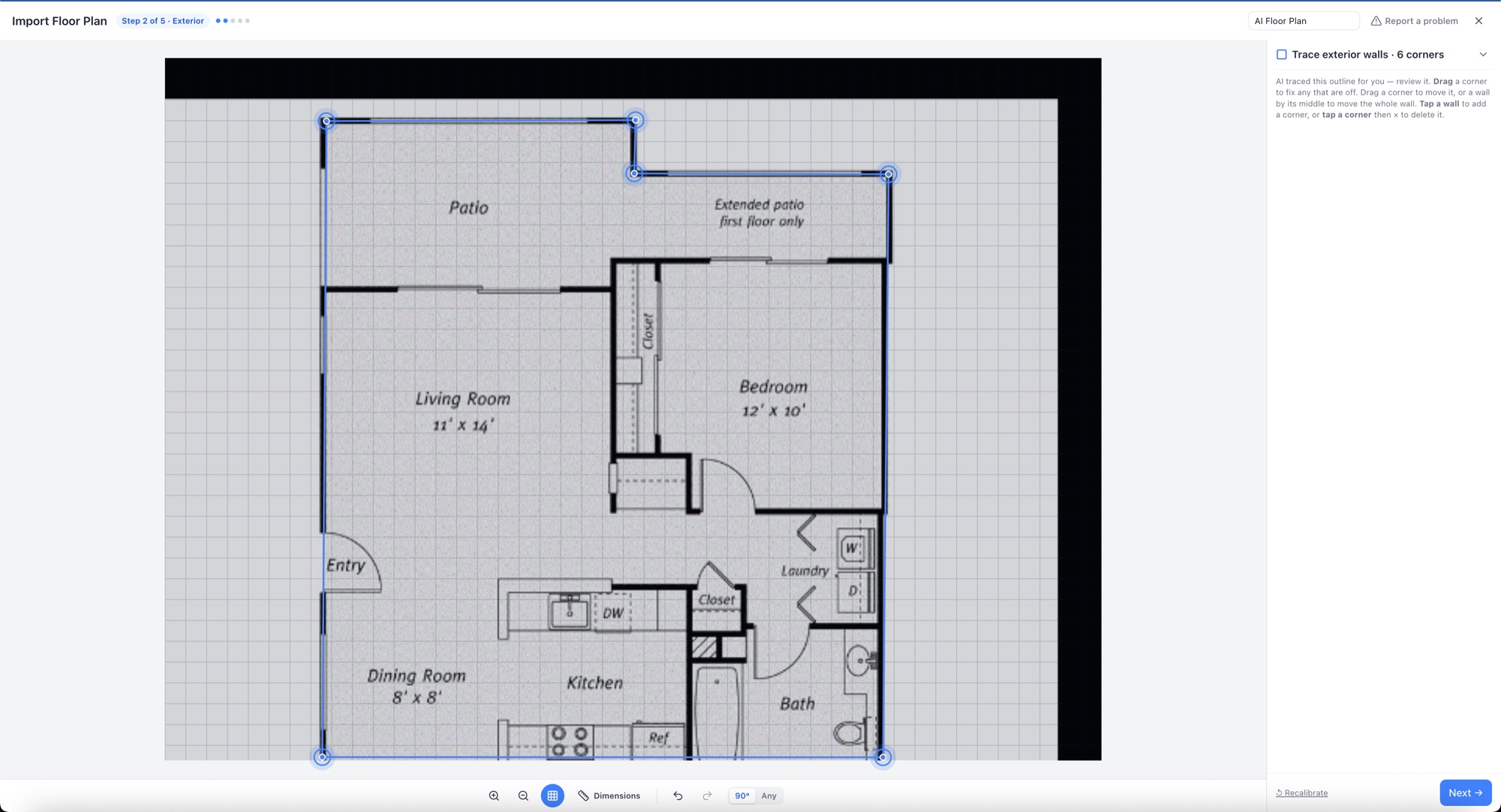

    Walls: check the AI's walls

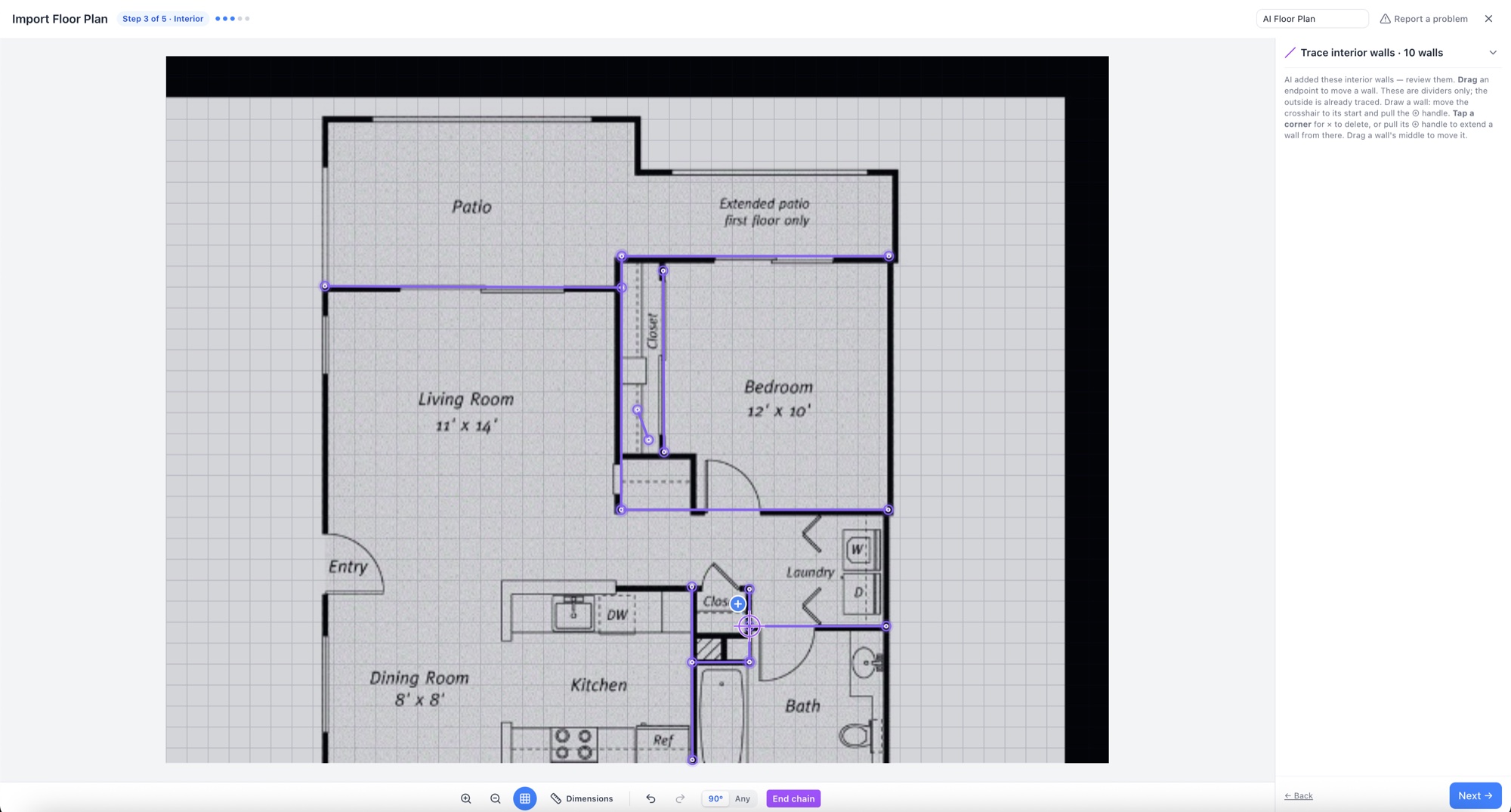

    The AI drew the exterior walls in blue and the interior walls in purple, on top of your plan. The heading counts them (Walls · 4 exterior · 6 interior on our one-bedroom sample). When the editor opens, the AI's draft is lined up with the lines of your drawing (stretched and shifted onto the drawn walls), and once the scale is set its inside walls are joined where they meet, so most walls already sit on the drawing. Compare them with the drawing underneath: - Tap a wall to select it, then drag it to line it up. Joined walls and doors follow. A straight side the AI drew in pieces moves as one, and corners stay where you'd expect: a drag never sends a wall shooting off across the plan. - Tap a corner to select it, then drag it to move just that corner. - With one selected, the trash can deletes it and + adds a corner. - Missing an interior wall? Tap Add a wall, drag the round marker to where it starts, then drag its + tab to each corner (or tap each corner) and tap Done drawing. Draw straight through doorways; doors come next. - 90° / Any at the bottom switches between square walls and walls at any angle. ↺ Recalibrate goes back if the scale looks off. Then tap Next →.

    Blue = exterior, purple = interior. Check them against your plan.
  10. 10

    Remove or fix a wrong wall

    Tap the wall so it's selected and a red trash can appears beside it. Tap the trash can to delete it, or drag the wall to where it belongs. Undo (the curved arrow at the bottom, or Ctrl+Z / ⌘+Z) brings back anything you removed.

    Selected wall: the trash can deletes it.
  11. 11

    Only one room? Say whether its walls are inside or outside

    When the AI finds just one room's outline (a picture of a single room), the Walls step reads Room walls and asks These walls are: A room inside a home (built as thinner interior walls) or Outside walls of a building (built as thicker exterior walls). It makes a best guess from the room's size; change it if it's wrong.

  12. 12

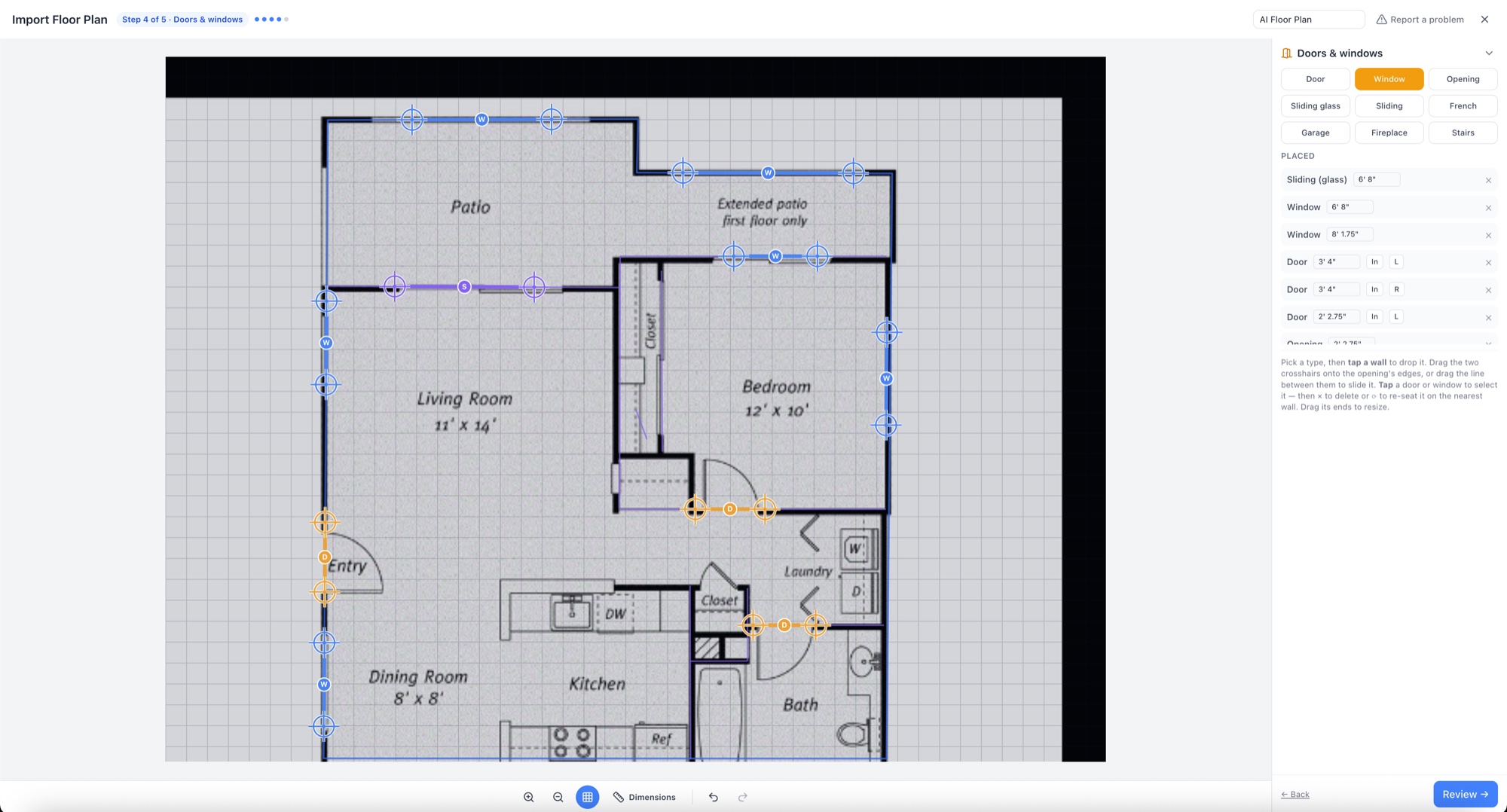

    Doors & windows: check what the AI placed

    The note at the top says what the AI found, for example The AI found 4 doors and 3 windows. Check them against your plan. They are there for you to check, not to add by hand. The AI's doors, windows, fireplaces and stairs are placed on your plan and listed under Placed. Each one has a number on the plan that matches its row: tap a row to find it on the plan, or tap one on the plan to jump to its row. In each row you can: - change the type (a door can become an opening or a window without deleting it), - tap the width to type it exactly, - for doors, flip the swing (In / Out) and the hinge side (L / R); the same buttons sit right beside a selected door on the plan (next step), - delete it with the trash can. A door or window is always kept within its wall: it can't come out longer than the wall it sits on. Missing one? Tap its type (Door, Window, Sliding window, Opening, Sliding glass door, Sliding wood door, French door, Pocket door, Barn door, Garage door, Fireplace or Stairs), then tap the wall where it goes and drag the dots at its ends to fit. Drag the middle of a selected one to slide it, even onto another wall. When it all matches, tap Create design. If the AI also read furniture, the button is Next → instead and takes you to the Furniture page.

    The numbers on the plan match the rows in the list. Without the furniture read this is the last step: Create design. With it, the button is Next.
  13. 13

    Check each door's swing: In / Out and L / R

    Every door shows its swing on the plan, drawn the same way the finished plan draws doors: the leaf and a dashed arc. The AI reads which end the hinge is on and which way the door opens from the leaf and arc drawn on your plan, and keeps its own guess where the drawing isn't clear, so check each one against the drawing underneath. Tap a door (on the plan or its row) and three buttons appear beside it, on the side away from the swing: In / Out flips which side of the wall the door opens to, L / R moves the hinge to the other end, and the red trash can deletes it. Each button shows the door's current setting and the swing on the plan changes as you tap, so tap until the arc matches the one on your drawing. Getting the swing right here saves fixing it later: a door's swing is what Flow Check uses to warn you about furniture in its way. On our sample, door 6 (the laundry closet's door) came in as Out · R, with its orange swing drawn into the closet over the washer, while the faint grey arc of the drawing underneath shows the door opening the other way, into the hall.

    Before: door 6 swings into the closet, against the arc on the drawing. Its buttons sit beside it and its row is highlighted.
  14. 14

    Tap until the swing matches your drawing

    One tap on Out turned it to In, and the swing now lies over the arc drawn on the plan, opening into the hall. Row 6 in the Placed list changes with it (Door · 2′ 6.81″ · In · R). Do the same with L / R if the hinge is on the wrong end. Check every door this way: on our sample the other three already matched the drawing.

    After: In, and the swing lines up with the arc drawn on the plan.
  15. 15

    Furniture: keep what you want

    This page appears only when you ticked Also read the furniture drawn on the plan and the AI found something. The header reads Step 4 of 4 · Furniture and the panel, Furniture & fixtures, starts with a count: The AI found 24 pieces of furniture and fixtures drawn on your plan. Each piece is a numbered blue box on your plan with a matching row in the list (24 of 24 kept). The row shows the catalog piece it will become (Front-Load Washer, Queen Bed) and, in grey on the right, the label written on your drawing (Washer + Dryer), so you can see what the AI matched it to. Room names printed on the plan are read too: 4 room names from the drawing will be added as labels. They appear on your plan as room labels you can rename. A plain Room, Area or Space printed on the plan isn't turned into a label, nor is a name the room already has, and a name read twice in the same spot comes in once, so you don't get a second pin beside the room's own label. Under the list the page says what the read doesn't look for: Not picked up: closet shelves and rods, tall pantry cabinets, lights, switches and outlets, and anything without a matching symbol. Add those in the editor. The walls, doors, windows and stairs are drawn underneath as an unnumbered guide, so you can see where each piece sits.

    Every piece the AI read is a numbered box, and the numbers match the list.
  16. 16

    Remove pieces you don't want, then Create design

    Tap a row to find its box on the plan (the plan scrolls to it), or tap a box to jump to its row. A selected piece has a red trash can beside it on the plan, and every row has its own trash can. Remove all clears the list in one go if you only wanted the walls (Nothing from the drawing will be added), and Undo (the curved arrow, or Ctrl+Z / ⌘+Z) brings items back. You can't move or resize pieces on this page; that's what the editor is for. Remove what's plainly wrong (a duplicate, a piece in the wrong room, something you're replacing anyway), keep the rest, and tap Create design.

    Select a piece, then the trash can. Remove all and Undo are there too.
  17. 17

    What the furniture looks like in the editor

    Everything you kept arrives as ordinary catalog pieces: move, turn, resize, recolor or delete them like any other furniture. How they are placed: - Position and facing come from the drawing. When the drawing doesn't show which way a piece faces, its back goes to the nearest wall. - Size: counter runs, kitchen islands, bars, rugs, dining tables and showers take the size drawn. So do the pieces whose width really varies: vanities, ranges, cooktops, fridges, dishwashers, wall cabinets, over-the-range microwaves and linen cabinets keep the width they're drawn at when it's a believable size for that piece (a 48" vanity stays 48", a 36" range stays 36"), while their depth stays the catalog's. A drawn width that isn't believable (a 17" basin read inside a vanity, a tiny DW box) falls back to the usual size. Beds, sofas, chairs and the rest take the catalog piece's usual size, because the symbols on a plan are only sketches; type the real size in a piece's panel when it matters. - Wall cabinets and microwaves hang above the counter in 3D, and the counter below stays against its wall. - Tidying: chairs drawn tucked under a table are pulled out to its edge, anything drawn across a wall line comes off the wall (a counter run drawn through a wall is cut at it), and a dishwasher or range drawn inside a counter run splits the run around itself. Door swings and walking space are left to you on purpose, because the drawing decides them. Open Flow check after the import and fix what it lists: on our sample it flagged one piece, the loveseat.

    The kept pieces are real catalog items, placed and facing the way the drawing shows.
  18. 18

    You've got a real, editable floor plan

    The design opens in the editor: rooms are tinted, every wall, door and window is editable, and the full catalog is ready for furnishing. Create design builds exactly what you saw in the import: the walls where you lined them up, the doors opening the way you set them. The only tidying is small: walls within about 3° of straight are made exactly straight and corners round to the nearest ½ inch (1 cm in metric); if most of the outline leans by the same small angle (a photo taken a little crooked), the whole plan is turned level without changing any angle between walls. Like a plan you draw yourself, it starts with Plan Settings → Walls → Exterior Wall Placement on Outside, so the room sizes are inside clear sizes; nothing on the plan moves to do that. From here it works exactly like a plan you drew by hand. To set a wall's exact length, tap the wall and type it (see Edit walls on the plan). To see your original drawing under the plan, turn on View & Layers → Show original plan (traced photo) (in the Drawing aids group).

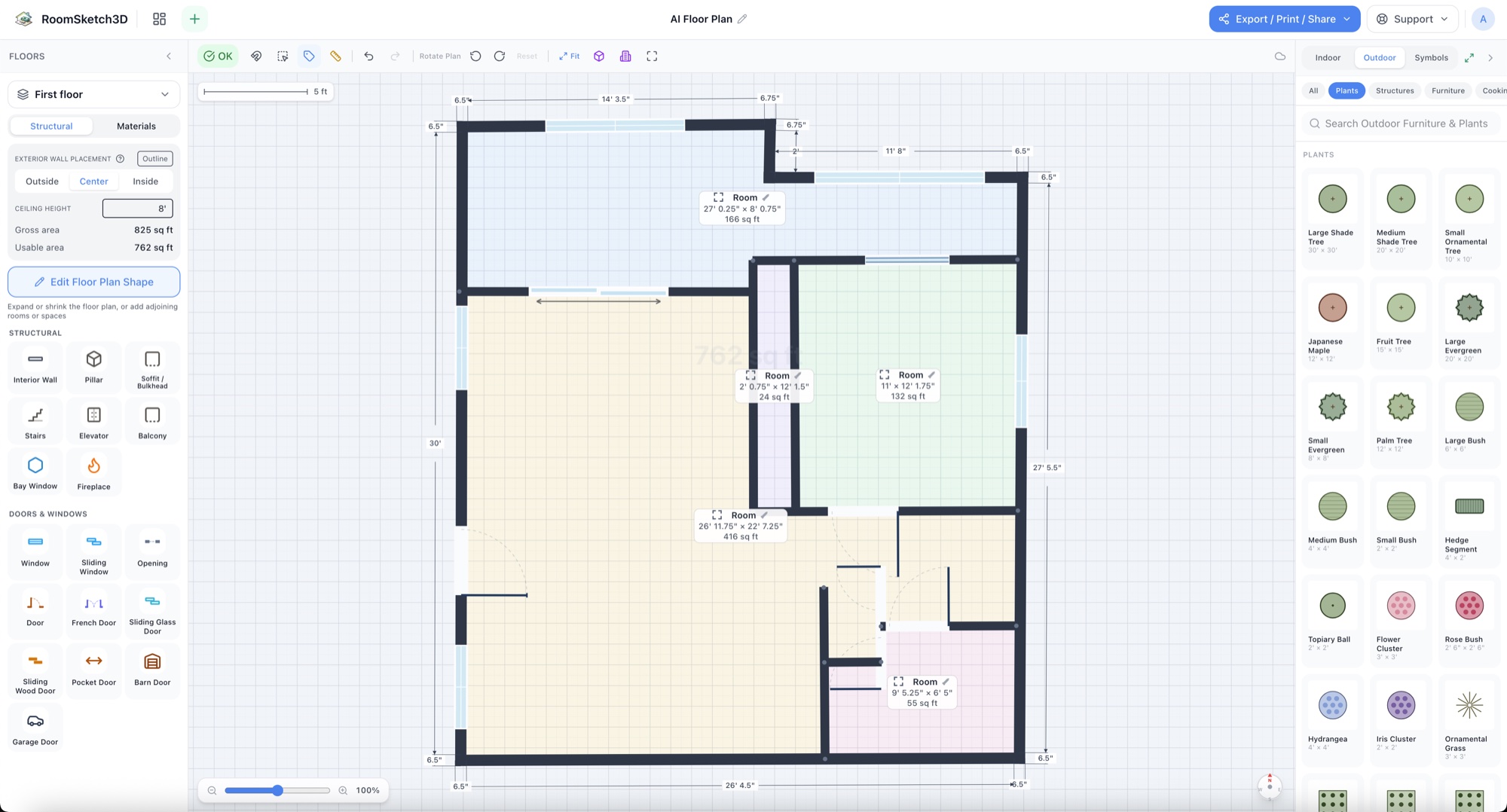

    The import as a normal design: every wall and door editable.
  19. 19

    Check the size you calibrated

    A quick check that the scale took: the room you calibrated on should read the size you typed. Here the bedroom we typed as 12 ft 8.4 in reads 12′ 8.5″ inside, the bedroom door swings into the room as it was set in the import, and the laundry closet's door opens into the hall the way we flipped it. This is the AI draft from the steps above, after Create design, with nothing changed in the editor. If a size is off, tap the wall and type the right length; if everything is off by the same factor, use Re-scale (see the tips).

    The calibrated room reads the size typed; the walls and doors are where you left them in the import.
  20. 20

    Check it in 3D

    Tap View in 3D (the purple cube in the toolbar) and the imported plan stands up, with the doors and windows where your plan put them, and any furniture you kept. It's a good final check that the trace matches the plan you started from. Dollhouse cuts the front walls away so you can see into every room.

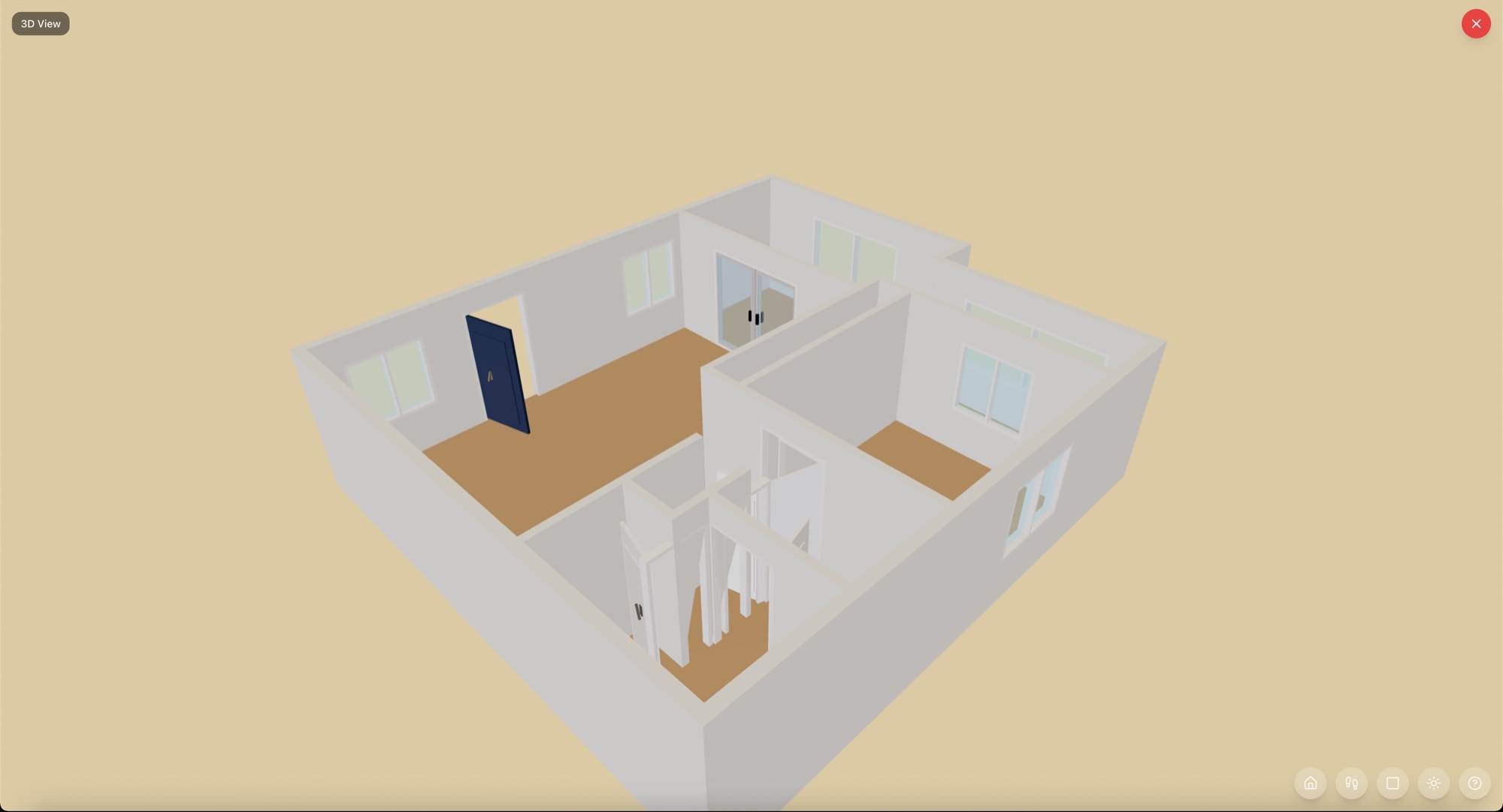

    The furnished import in 3D, Dollhouse on.
  21. 21

    Stopped part-way? Continue from Home

    Your import is saved on this device as you go. If you close it before tapping Create design (the × at the top right; once you've changed something it asks first, so choose Leave — keep my progress), Home shows Continue your floor plan import with a picture of your plan. Tap Continue to carry on where you stopped, or Discard to drop it. One thing to know: if you had already set the scale, the import you continue reopens on Step 1 · Calibrate with the Tape measure showing, its two markers on the ends of the size you used and that size still typed (seen on production, November 7, 2026; reported as a bug). Your scale is kept: tap Set scale → to go on. To use the room markers again, tap Room size at the top of the panel and they're back.

    Home keeps an unfinished import for you.

Tips

Leave and come back later

The saved import lives on the device you started it on, so finish it there. Once you tap Create design, the design is saved to your account like any other and opens on every device.

PDF works too: pick the page

The import takes PDF files as well as pictures. Use the page arrows under the preview to go to the sheet with your plan, crop it if needed, and it goes through the same steps. No need to screenshot or convert the PDF first.

Wrong size after import? Re-scale, don't redraw

If the scale was off and the plan came in too big or too small, open Plan Settings → Layout → Outline Editor and tap Re-scale. Put the two crosshairs on a span you can measure and type the real distance; the plan re-scales while furniture keeps its size. With several floors, choose This floor or All floors. See Re-scale a floor plan.

Outline takes in a yard or a neighbour's space? Remove the floor behind a gap

If the plan came in with floor that isn't part of the house (the outline ran round a yard, a courtyard or the next flat, and the real outside wall came in as an interior wall), you don't have to redraw it. Tap each outside wall around that floor and its trash can so it becomes a dashed gap, then select one of the gaps and tap the red trash can on its bar (Take the floor behind this gap off the plan; until November 9, 2026 this was a Remove area button). The floor that goes is shown in red first; tap Delete to confirm and it comes off the plan, your rooms stay, and the interior wall along the cut becomes the outside wall. See Gaps in an outside wall.

Upper floors import the same way

Floors → Add floor → Import from image or PDF traces an upper floor from its picture, then asks you to pin two matching corners so it sits exactly over the floor below. See Add an upper floor from a picture.

Calibrate on a big room, or the longest labelled length

Any known size works, but a big one spreads any small error over more of the plan. With Room size, pick the largest plain room whose size you trust (a living room or main bedroom rather than a closet). With the Tape measure, use a long distance such as the building's overall width or the longest labelled wall.

Room sizes on listing plans are often rounded

A plan that prints 12.7′ × 10.2′ is rounded to a tenth of a foot (1.2 inches), and some listing plans round to the nearest foot. If you can, measure the real room with a tape (wall to wall, at floor level, away from baseboards) and type that. If the plan prints exact feet and inches on a dimension line, the Tape measure on that line is the more precise choice.

Zoom in for precise work

Pinch or scroll to zoom in, and drag an empty spot to move around. The fit button at the bottom shows the whole plan again.

Something clearly wrong? Tell us

Report a problem at the top of the import sends us your plan picture and the current trace, with a note about what's off. Every report is read; it's how the AI gets better.

Common mistakes

Rushing the scale

Every wall inherits the scale's error. With Room size, check the arrows run from wall face to wall face across the room you meant, and type the inside size, not the outside or centre-of-wall size. With the Tape measure, land the markers (with the magnifier) on two crisp points with a written distance. It's the one step worth being fussy about.

Mixing up side to side and top to bottom

A plan's 12′ × 10′ usually means width first, but not always. Look at the room's shape on the plan: the longer arrow goes with the bigger number. Typing 12 ft against the 10 ft arrow makes the whole plan 20% too big.

Importing a picture with two floors side by side

The AI reads everything in the picture. Crop to the one floor you want on the first screen, and import the other floor afterwards with Add floor.

Expecting furniture without ticking the box

The furniture read is off unless you tick Also read the furniture drawn on the plan before tapping Next. Already imported without it? Run the import again with the box ticked, or furnish from the catalog.

Trusting every piece's size and match

The AI picks the closest catalog piece. Counters, islands, rugs, dining tables, showers, vanities, ranges, cooktops, fridges, dishwashers, wall cabinets, microwaves and linen cabinets keep their drawn width; beds, sofas, chairs and most other pieces take their usual catalog size. Check the pieces that matter against the plan's numbers. Closet shelves and rods, tall pantry cabinets, lights, switches, outlets and small decor aren't read, so add those from the catalog.

Frequently asked questions

My Calibrate step only shows the two markers, no rooms to tap. What do I do?

Tap Room size at the top of the panel: the room markers usually come straight back. Or use what you see: that is the Tape measure, and it sets the scale just as well. Drag ① and ② onto the ends of a length you know (a dimension line, or a wall you measured), type it and tap Set scale. Calibrate opens on the Tape measure instead of Room size when you continue an import you had already calibrated (we saw this on production on November 7, 2026: the markers sat on the ends of the bedroom size we had used, with 12 ft 8.4 in still typed, and tapping Room size brought the four Tap here markers back). If Room size shows no markers (the draft's walls don't close any room), step 1 reads Tap inside a room on the plan whose size you know.: tap the middle of the room and the arrows are read from the drawing itself, as in a hand trace. If tapping a room flips you to the Tape measure on its own, the picture couldn't be read for arrows, and the Tape measure is the way to go.

Can the AI import the furniture drawn on my floor plan?

Yes, if you ask for it. After Let AI draft it, tick Also read the furniture drawn on the plan before tapping Next. The AI reads sofas, armchairs, beds, nightstands, dressers, wardrobes, dining tables and chairs, desks, kitchen counter runs, islands, fridges, ranges, dishwashers, sinks, toilets, tubs, showers, vanities, washers and dryers and more (about 70 kinds), plus the room names written on the plan. Since November 3, 2026 it also reads wall cabinets, over-the-range microwaves and linen cabinets, and vanities, ranges, cooktops, fridges and dishwashers keep the width they're drawn at. A Furniture page then lets you remove any piece before you create the design. It doesn't read closet shelves and rods, tall pantry cabinets, lights, switches, outlets or decor.

Does reading the furniture cost extra or use credits?

No. AI floor-plan import is part of the full app (it needs the one-time purchase), and the furniture read is included. There are no credits per import; credits are only for photorealistic AI renders.

My import came in without furniture. Why?

Three possible reasons: the box Also read the furniture drawn on the plan wasn't ticked (it starts off), the plan had no furniture symbols the AI recognised, or the furniture read failed, in which case the walls, doors and windows still import and the Furniture page is skipped. Import the plan again with the box ticked; if it still finds nothing, use Report a problem at the top of the import.

What files can I import?

JPG, PNG and WEBP pictures, and PDF files. A straight-on photo of a paper plan works well: good light, no tilt. For a multi-page PDF, pick the page with the plan in the preview.

How is this different from “Use Room Photo”?

Use Room Photo analyzes a photo of the room itself and estimates a plan from it. Floor Plan Image or PDF starts from an existing plan drawing (a blueprint or a sketch) and traces it, which is the right tool when the plan already exists on paper.

How accurate is the AI draft?

It's experimental: it usually gets the shape and most openings, and it can miss or misplace some. That's what the Walls and Doors & windows steps are for. Every wall, corner and opening is fixable before you tap Create design, and afterwards you can tap any wall in the editor to type its exact length.

How long does the AI take?

Usually under a minute; a busy plan can take a few minutes. Reading the furniture as well runs alongside the walls, so it adds little waiting. The screen shows how long it has been working. You can switch apps or let your screen lock while it reads; come back to the import and the result is there.

Why are some lengths slightly different from the plan I imported?

When you tap Create design, the plan is squared up lightly: walls that are within about 3° of straight become exactly straight, so corners meet square, and corners round to the nearest ½ inch (1 cm in metric). A length can therefore differ a little from the trace, usually by a fraction of an inch. Walls you drew at a clear angle, like a 45° corner, stay angled, and nothing else is reshaped: AI drafts used to be straightened much harder at this point, which could move corners you had lined up, and they no longer are. To change one, tap the wall on the plan and type its length.

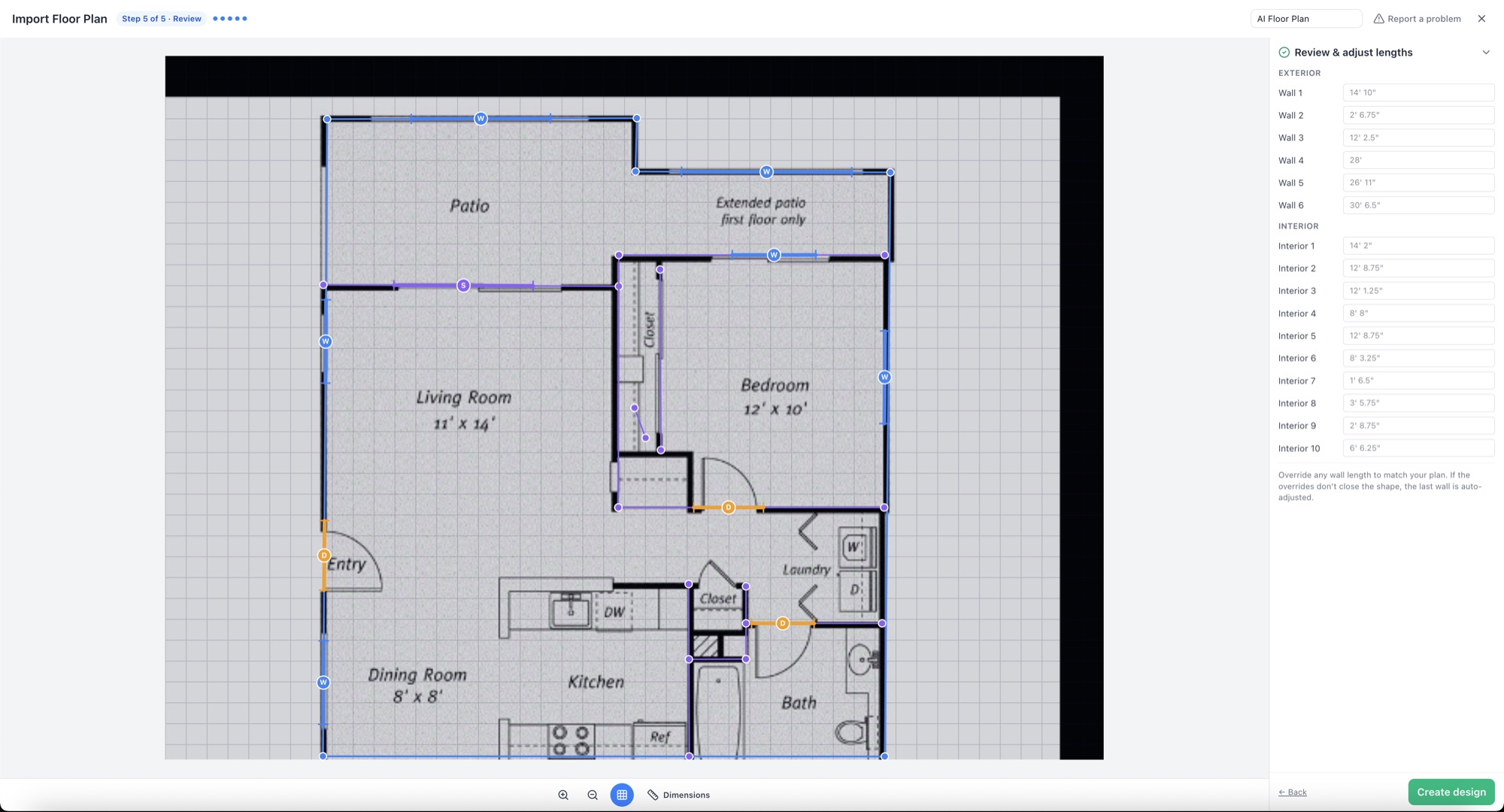

Where did the step for adjusting wall lengths go?

It's gone: the old list of lengths didn't show which wall each number belonged to. Create the design, then tap a wall on the plan and type its length. See Edit walls on the plan.

Can I trace the plan myself instead?

Yes: choose Trace it myself on the second screen. You get the same tools, starting from a blank trace instead of an AI draft, with an extra step to draw the outline. See Trace a floor plan yourself.

Does it work in metric?

Yes. On the Calibrate step, switch the ft/in / m/cm toggle to m/cm (with Room size or Tape measure) and type the size in metres and centimetres.

How do I set the scale if no room size is printed on my plan?

Measure one room yourself: run a tape from wall to wall, inside the room, and use Room size with that number. Or switch to Tape measure and use any length written on the plan, such as a dimension line along a wall or the overall width. A scale bar printed on the plan works too: put the two markers on its ends and type the length it shows.

Can I change the scale after setting it?

Yes. ↺ Recalibrate on the Walls step takes you back to Calibrate with your walls kept, and the room markers are there to tap again. After Create design, use Plan Settings → Layout → Outline Editor → Re-scale instead. See Re-scale a floor plan.

What does “drag its + tab” mean when I add a wall?

After Add a wall, a round marker appears. Drag it to where the wall starts (it snaps to nearby walls). A small + tab sits beside it: drag the tab to the next corner and let go, and that draws the wall. Keep going corner to corner, then tap Done drawing. You can also just tap each corner. If you don't see the tab, zoom in a little.

How do I delete a wrong wall without starting over?

Tap the wall so it's selected, then tap the red trash can beside it. Undo brings it back if you change your mind. You never need to restart the import.

The PDF shows a black page or never finishes loading. What now?

The PDF is drawn in your browser, and a very large, password-protected or unusual file can fail. Try a smaller file, or take a screenshot of the page and import that picture instead; the result is the same. Full checklist: Troubleshooting loading problems.
