Drawing interior walls
The full how-to for interior walls in RoomSketch3D — the cross-hair + pull-handle drawing workflow, start distances you can type, the angles a wall snaps to, the five styles (Full / Pony / Glass / Railing / Divider) with 2D + 3D rendering, thickness defaults, load-bearing context, and the one rule people miss: doors and windows are cut INTO existing walls, not placed in empty space.
Interior walls are the spine of every multi-room floor plan. Unlike doors or windows or fireplaces — which you place by tapping a tile and clicking a target — interior walls have their own placement mechanic in RoomSketch3D: a cross-hair anchor plus a pull handle that you drag to extend a segment, then drag again to chain another segment.
This page walks through the workflow end-to-end: drawing a wall (and starting it exactly where you want, at any angle), picking one of the five styles (Full / Pony / Glass / Railing / Divider), setting thickness, what load-bearing means in floor planning, and the single most common confusion in residential design — that doors and windows are openings cut INTO an existing wall, not free-floating items placed in empty space.
For the conceptual full / railing / open comparison, see wall types full railing open. For interior-vs-exterior wall fundamentals (construction, sound, insulation), see internal walls vs exterior walls. For thickness specifications, see wall thickness conventions.
In this guide
- 1
The placement workflow — cross-hair + pull-handle

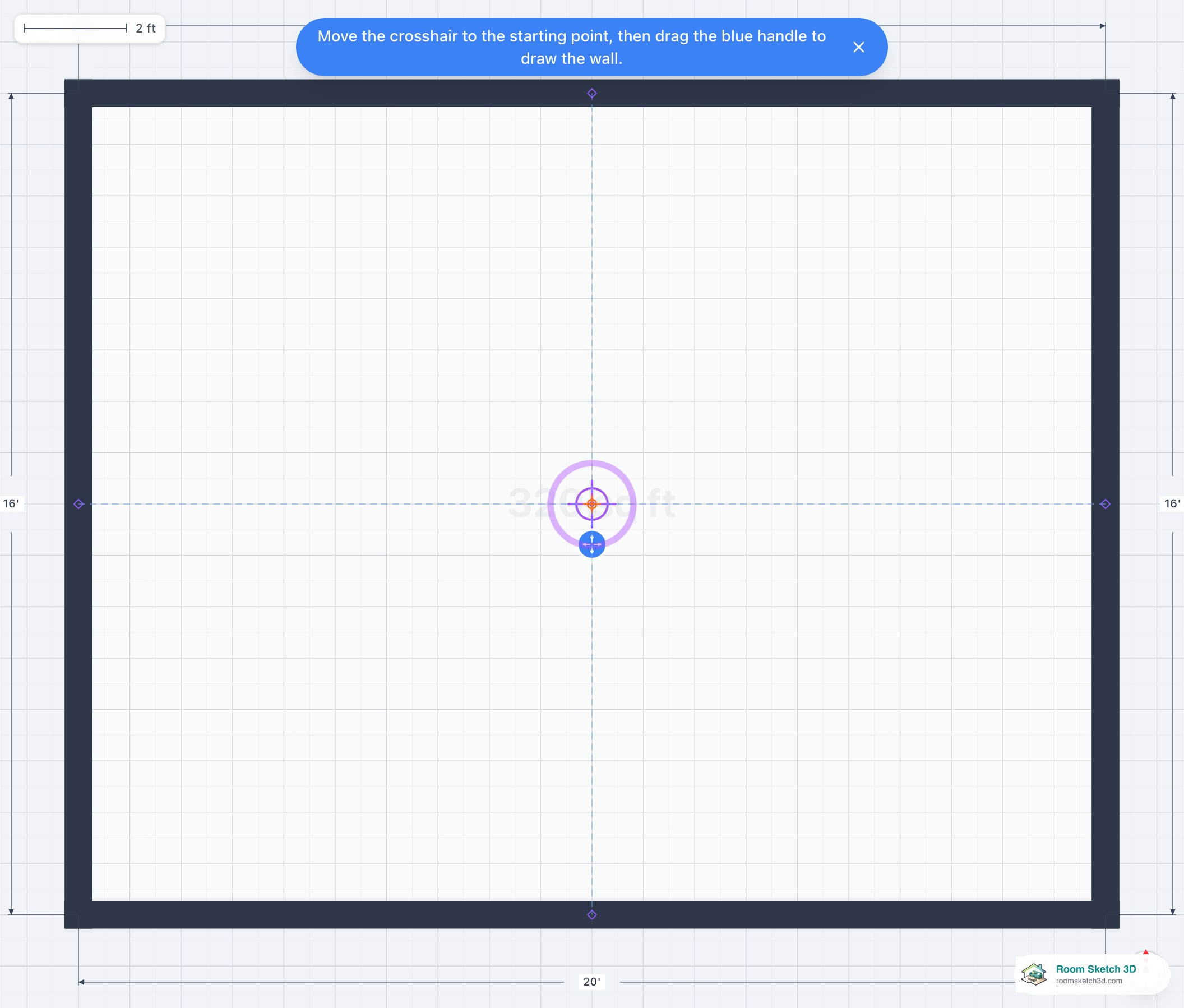

Tap the Interior Wall tile in the Build Panel (Structural tab). The canvas enters placement mode and renders two new things: - A purple cross-hair (chain anchor) at the plan center. This is where the next wall segment will start. It turns orange while you drag it. - A blue pull handle (+ ›) beside the cross-hair. This is the handle you drag to draw the wall. A blue tip at the top of the plan spells it out: "Move the crosshair to the starting point, then drag the blue handle to draw the wall." The two-handle UI separates where the wall starts (cross-hair position) from where it ends (handle drag destination). It's deliberate — the workflow scales from a single segment to a chain of connected walls without ever leaving placement mode. (Closing the tip with its × leaves the tool.)
- 2
Step 1 — Move the cross-hair to your starting point
Tap-and-drag the purple cross-hair to position the chain anchor wherever the wall should start. It snaps onto walls and corners as you get close. You can re-anchor it any time before pulling a wall — it doesn't commit anything by itself. Starting on a wall? Type the distance. When the cross-hair sits on a wall, the plan hides that wall's other measurements and shows just two: the start point's distance from each end of that wall, measured to the face of the wall you're about to draw (the clear gap a tape measure gives, and the number the plan shows once the wall is in). Tap either distance to type it and the cross-hair moves there, or tap Center to put it exactly in the middle between the two ends. So "the bathroom wall starts 3′ from the corner" is: drag the cross-hair onto the wall, tap the distance, type 3, Enter.
- 3
Step 2 — Drag the blue handle to draw the wall
Tap-and-drag the blue pull handle in the direction the wall should run. A green dashed preview with its live length shows where the wall will land as you drag; release to commit the segment. Snapping is gentle, not forced: - The wall snaps onto horizontal and vertical, and onto straight on, square and 45° off the wall it's connected to, when you're within a few degrees of them. It lets go once your finger or mouse is clearly off the line (about a finger-width), so any other angle goes exactly where you point. Aimed square at a wall ahead, the preview turns a brighter green with a right-angle mark; locked on horizontal / vertical / 45°, it turns blue-green. - The end lands on the near face of a wall it meets (an outside wall or another interior wall), never on its centre line, so the lengths between walls are always face to face. Pull further and it still stops on that face. - Corners and wall ends win when you're near them: a green ring means the end will join a corner or a wall's end, a bar or T that it will join the side of a wall. To place the end with no snapping at all (not to walls, not to those angles), hold Ctrl (⌘ on a Mac) while you pull, or tap the magnet on the wall's bar so it reads Free. A wall pulled across another wall becomes separate walls on each side of it, each running face to face. Shift does nothing here.
- 4
Step 3 — Chain another segment (or stop)
After the first segment commits, the wall is selected and a fresh pull handle (+) sits at each of its ends. Drag one to extend the chain — useful for L-shape rooms, U-shape corridors, or any zig-zag interior layout. While you pull, the new wall's angle to the wall it comes from shows under the live length (0° straight on, 90° square; blue when it has settled on one of the snap angles). The new wall butts against the first one, so the corner is solid and the first wall keeps its exact length. It also takes after the wall it came from: same thickness, height, style (divider, railing, load-bearing) and paint. Right after you draw a wall, its length box is highlighted: on a computer just start typing the exact length and the wall grows or shrinks in the direction you drew it (on a phone, tap the length). Drew the wrong wall? Ctrl+Z (⌘Z on a Mac) or the Undo button takes it off and you carry on from where it started. When you're done, press Escape or tap another tool to leave placement mode.
- 5

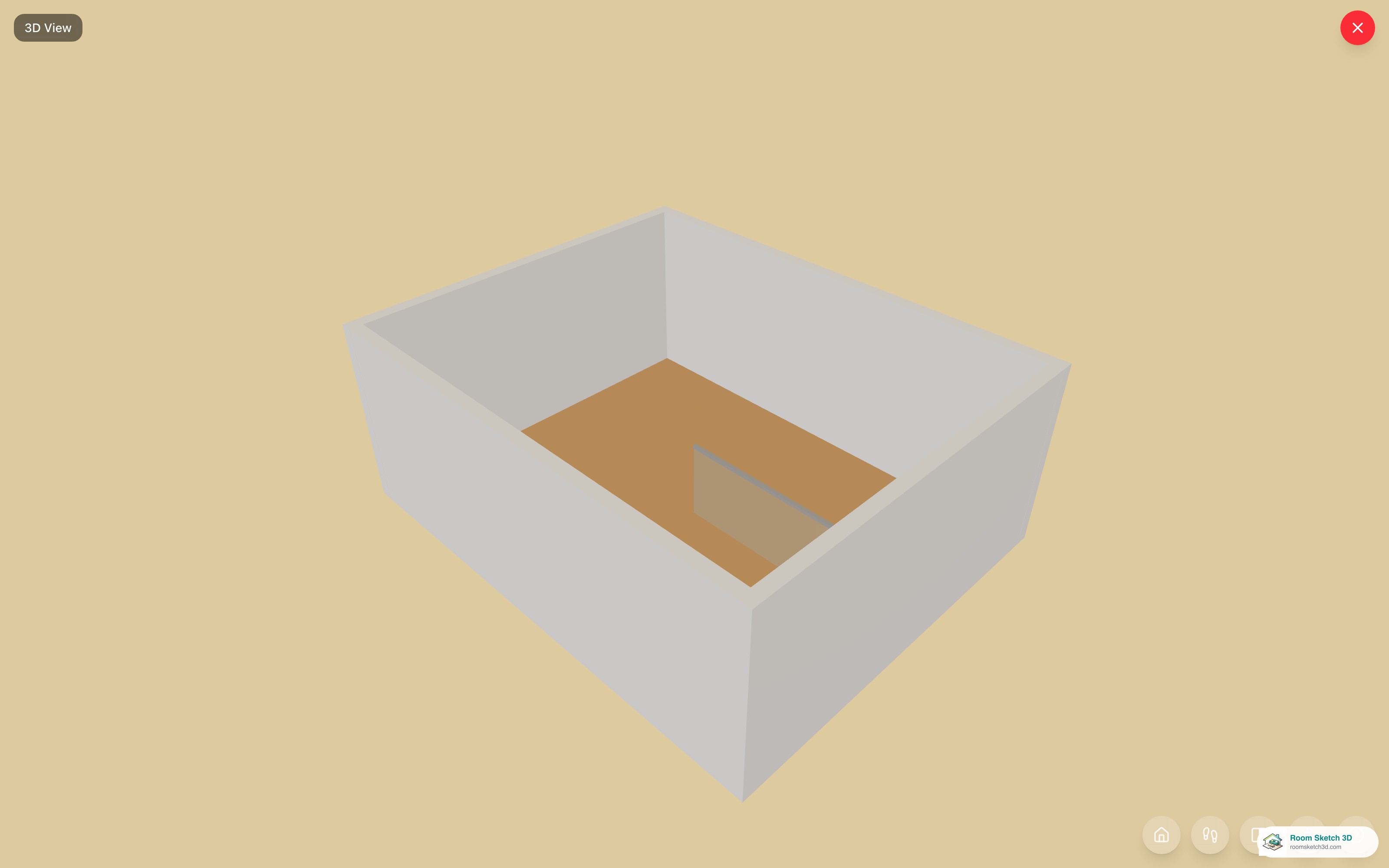

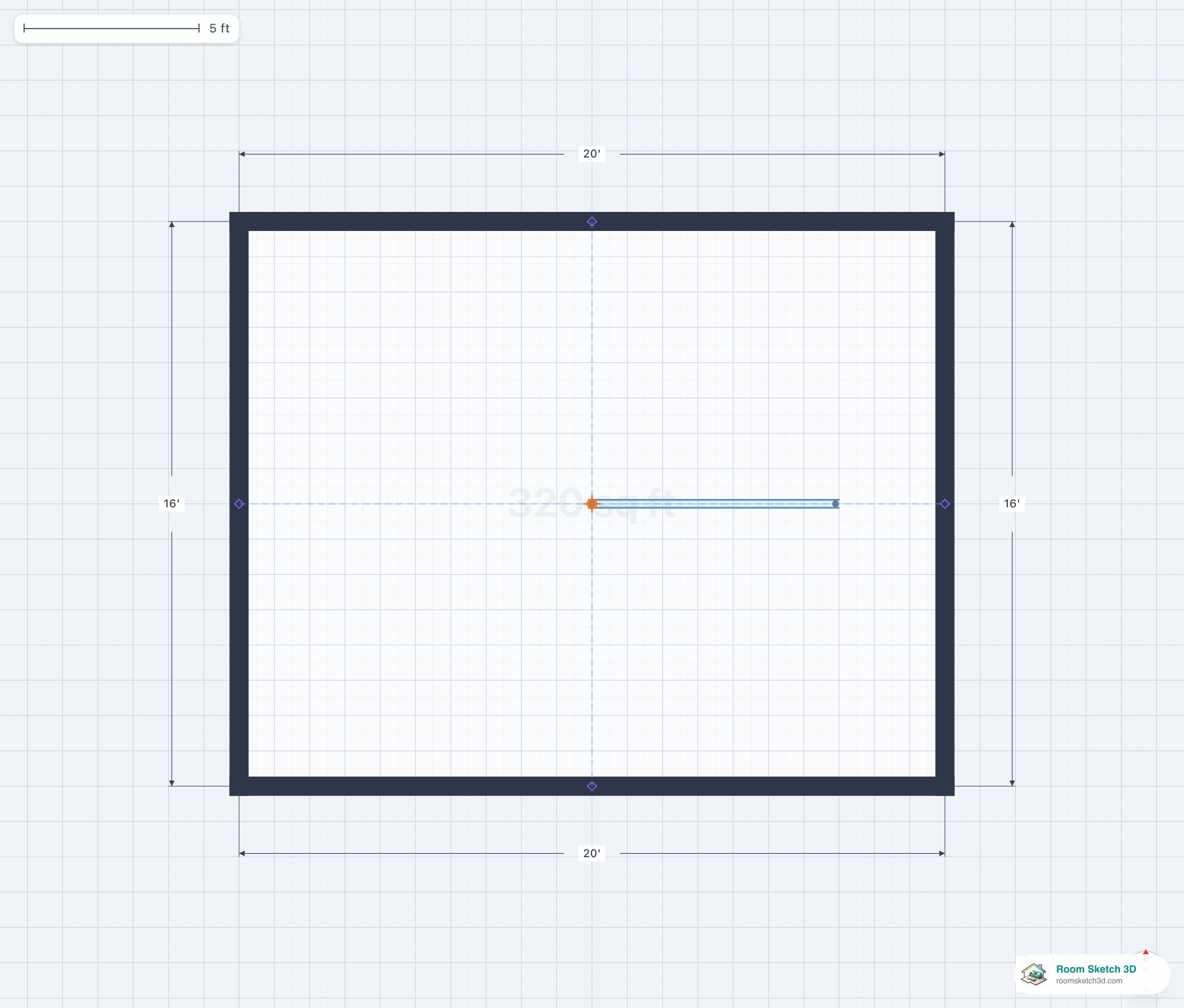

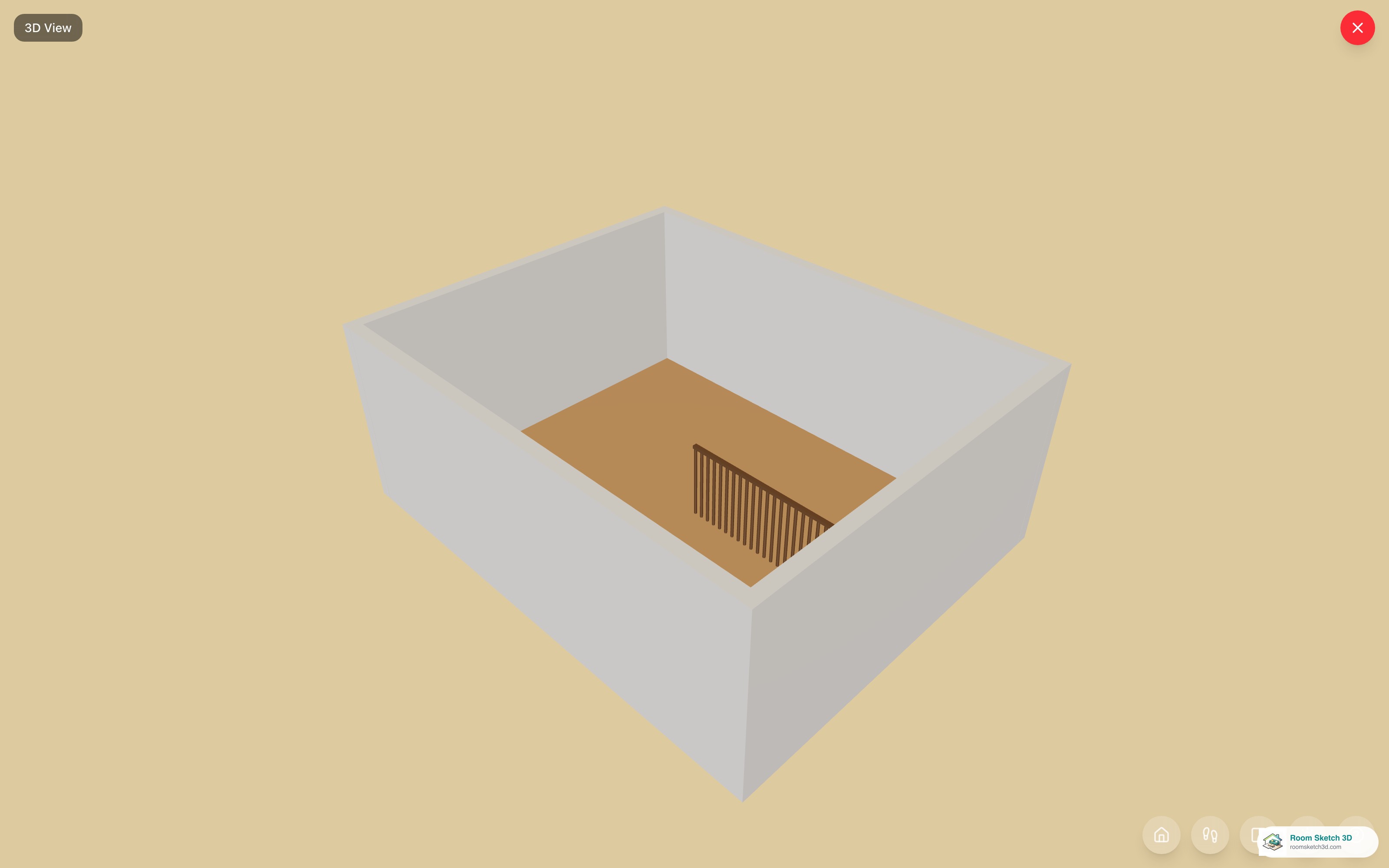

The five styles — Full, Pony, Glass, Railing, Divider

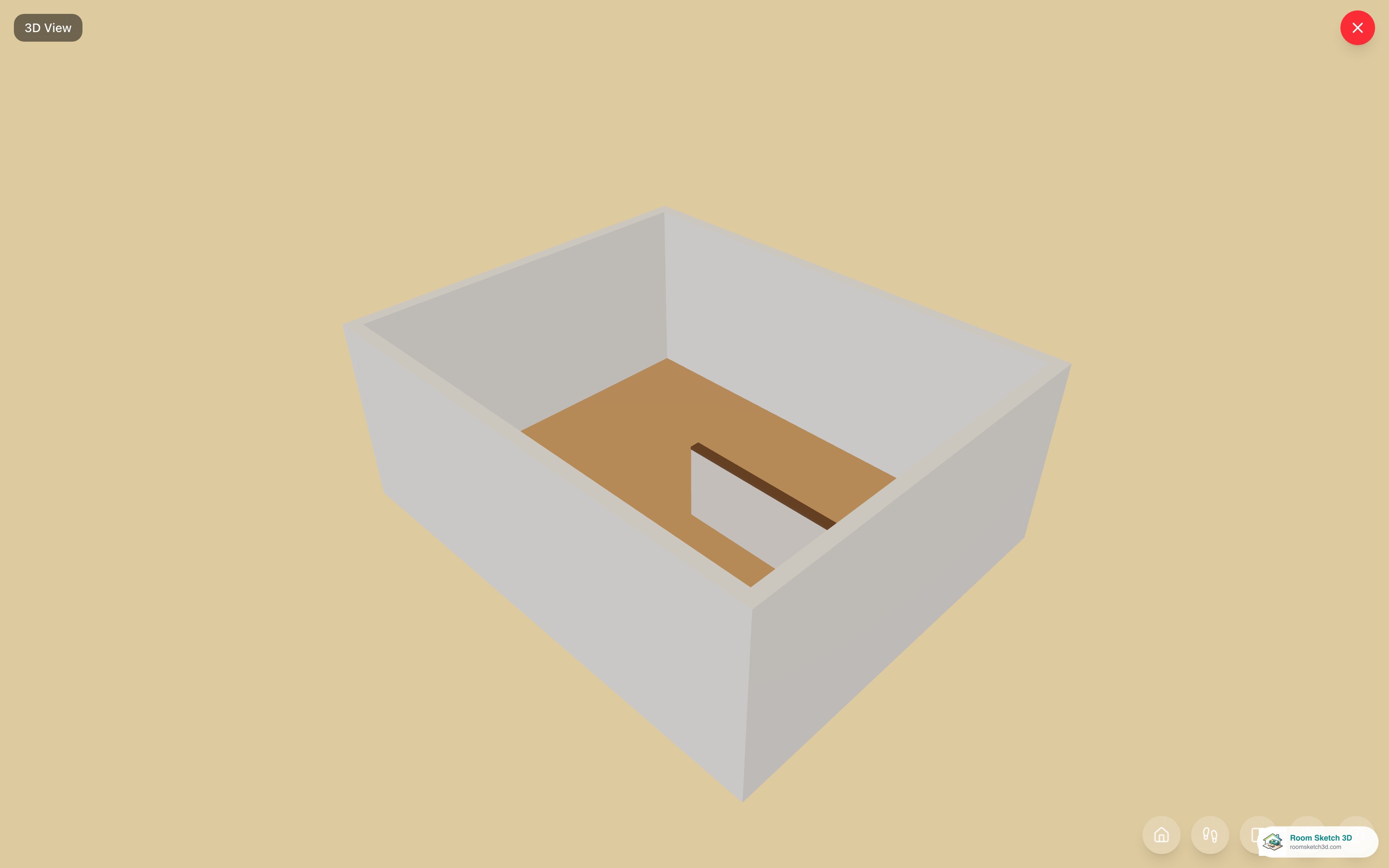

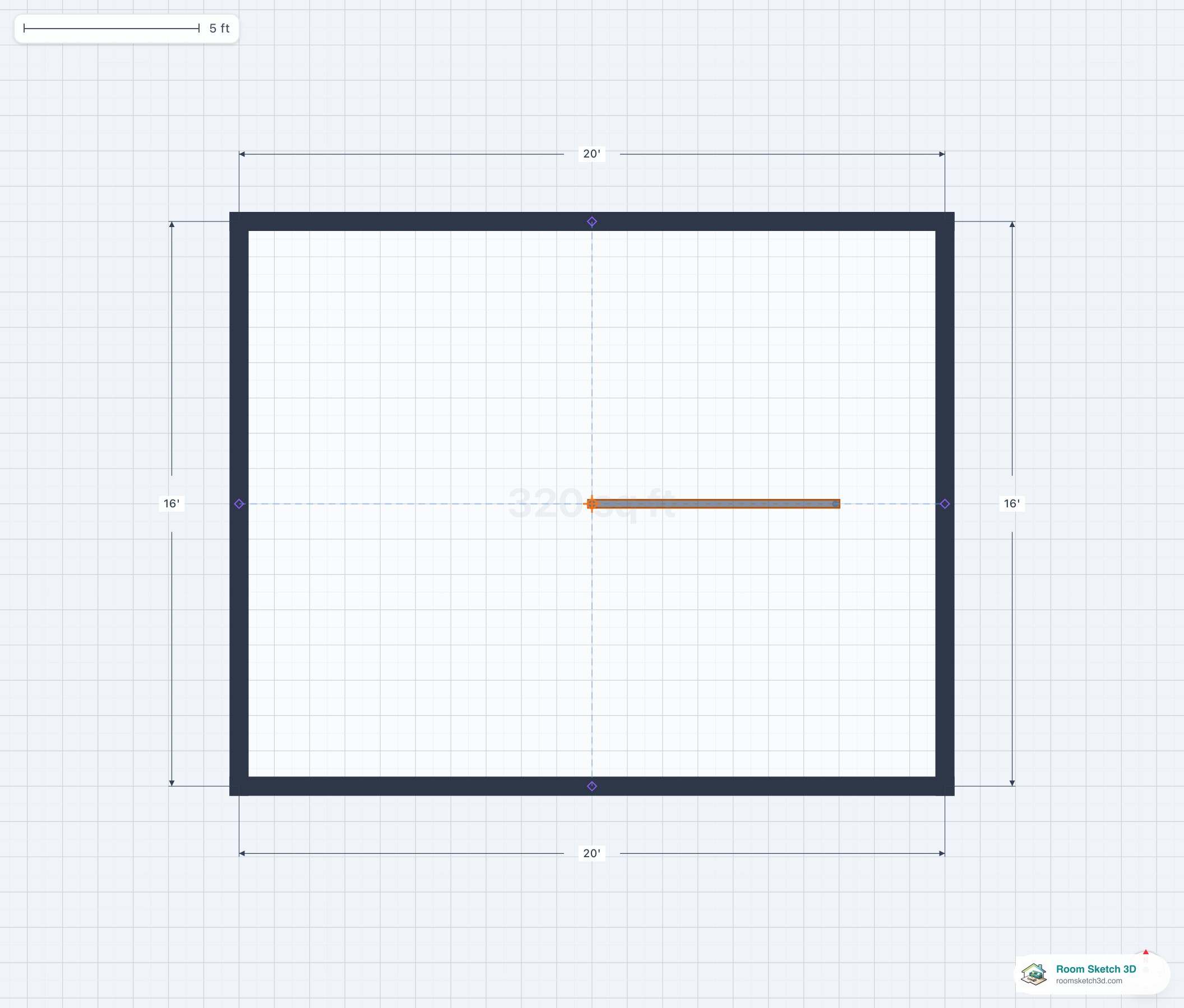

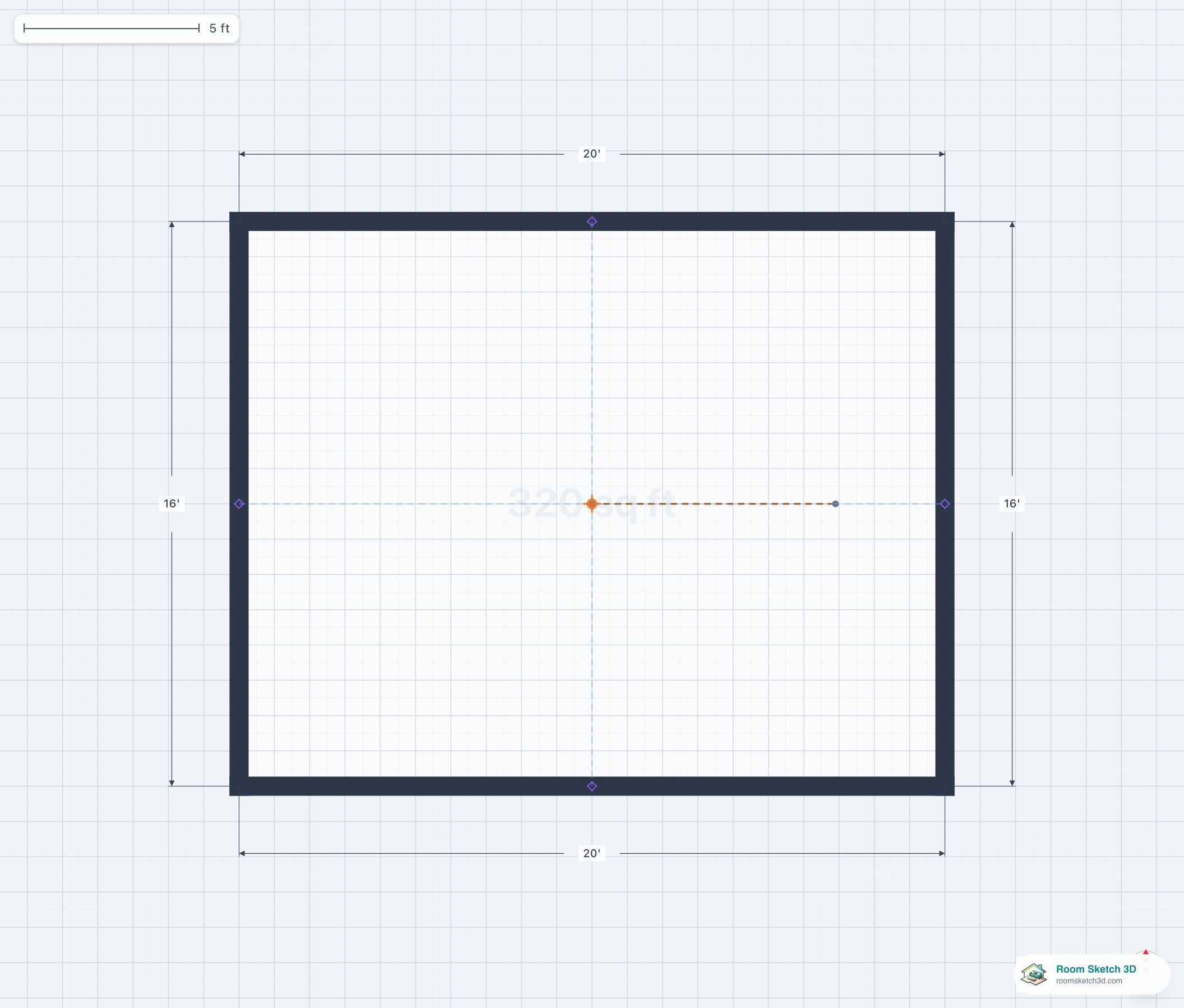

Select any interior wall and the Inspector exposes a Style chip group with five options: - Full — solid floor-to-ceiling wall. The default. Standard residential framing, drywall both sides, 4–5 inches thick. - Pony — half-height knee wall (typically 36–42 inches). Open above. Defines space without full closure; common between living + dining, around stair landings, and at counter-height kitchen dividers. - Glass — glass panel partition. Shower doors, sunroom dividers, contemporary office walls. Renders as a transparent panel in a slim frame in 3D. - Railing — spindle balusters with a top rail. Loft edges, mezzanine perimeters, stair openings. Safety barrier without visual barrier. - Divider (called Partition until November 2026) — zero-thickness dashed line that bounds rooms without a wall: splits an open kitchen, dining area and hall into separate rooms indoors, or a yard into zones outdoors. Does not render in 3D, and prints and exports as a dashed line. Its panel then shows only name, length and Make it a wall. To draw one from scratch, use the Room divider tile. Different walls in the same room can have different styles. Tap each wall and pick its style independently.
- 6
Thickness — defaults and overrides
Interior walls default to 4.5 inches thick in RoomSketch3D — standard residential 2×4 framing with ½-inch drywall on both sides. You can change the default for new walls in Settings → Measurements & Defaults → Floor plan defaults → Interior wall thickness. The wall's panel has a Thickness field (1 to 24 inches) so you can override a single wall: - 2 inches — thin glass partition or low-profile divider. - 4.5 inches (default) — standard interior wall. - 6 inches — plumbing wall (accommodates drain stack), sound-isolated wall. - 8–10 inches — demising wall between condo units, fire-rated separation, double-stud sound assembly. Thickness is mostly cosmetic in the floor plan — affects how the wall renders in 2D plan view and how doors / windows land on it. For sound and construction implications, see internal walls vs exterior walls and wall thickness conventions.
- 7
Load-bearing context
RoomSketch3D doesn't model structure — every wall you draw is treated as a generic partition for floor-plan purposes. But the real-world distinction matters when you're translating your plan into a build or a renovation: - Load-bearing walls carry structural load from roof, floor joists, or beams above. They're often in line with the building's structural grid, run perpendicular to floor joists, or have other walls / posts directly above them. - Non-load-bearing (partition) walls carry only their own weight. They can be removed or relocated without structural concern. If you're planning to remove a wall during a renovation, don't assume it's non-load-bearing from the floor plan alone — verify with a structural engineer. Removing a load-bearing wall typically requires a header beam (steel, glulam, or LVL) and runs $3,000–15,000+ to do properly.
- 8
Adding doors and windows on interior walls — they cut INTO the wall

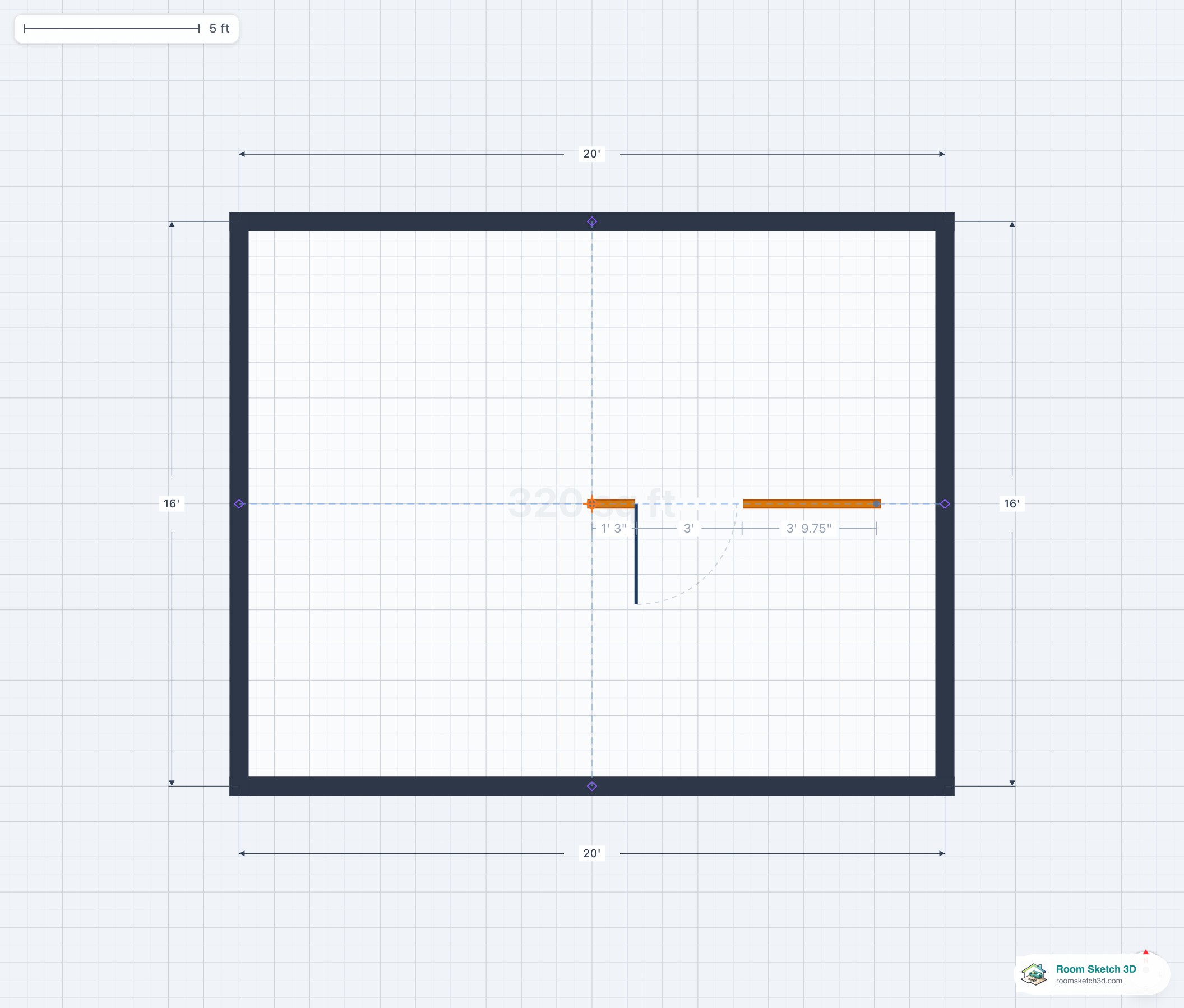

The single most common confusion in floor-plan editing: you tap the Door tile, click somewhere in the middle of the room, and nothing appears. The reason — doors, windows, and openings are made INTO an existing wall. They aren't placed in empty space. If there's no wall where you tapped, there's nothing for the door to cut into. To add a door (or window, opening, French door, pocket door, sliding glass door, etc.) on an interior wall: 1. Draw the interior wall first using the workflow above. 2. Tap the Door tile (or Window / Opening / French Door / Sliding Glass Door / Pocket Door / Barn Door). 3. Tap on the wall at the position where the door should be cut. The door snaps to the wall, splits it into two segments, and renders the door opening with its swing arc in 2D and its panels in 3D. The "Door cut into an interior wall" screenshot in the gallery above is the canonical illustration — the orange interior wall is split into two stub segments where the door opening was cut, the swing arc is drawn between them, and dimension labels appear for each segment plus the door width. This applies to every wall-cut fixture: - Door, French Door, Sliding Glass / Wood Door, Pocket Door, Barn Door (all door variants). - Window, Sliding Window, Bay Window, Corner Bay Window (all window variants). - Opening (doorless passageway). - Fireplace, Dual / See-Through Fireplace (the firebox cuts into the wall). - Mirror, Light Switch, Outlet, Wall Safe (wall-mounted items). All of these need a wall to exist first. If you want an opening in an open-plan space with no wall, you don't actually want a door — you want a Room divider (logical boundary, no 3D render) or you want to draw a real wall first and then cut an Opening into it.
Tips
Cross-hair first, handle second
Position the cross-hair before pulling. Walls drawn from a misplaced anchor are tedious to drag-fix; resetting the anchor is one extra step that saves the cleanup later.
Any angle you like
Diagonal interior walls are rare but real (under-stair triangles, angled bathrooms). Aim clearly off horizontal, vertical, square or 45° and the wall follows your pointer. For an exact angle, draw it roughly, select it and type the angle at its start: see See and type a slanted wall's angle.
Chain instead of restarting
After committing a segment, a + handle sits at each end of the new wall — drag one for the next segment. Going back to the tile and re-entering placement is wasted clicks.
Pick the style after drawing
Draw all your interior walls as Full first, then switch the ones that should be Pony / Glass / Railing / Divider. Picking style at draw-time slows the layout pass; bulk-converting at the end is faster.
Use a Room divider for logical-only boundaries
If you want auto-room-detection to recognize a boundary but don't want a physical wall, draw a Room divider (or set a wall's Style to Divider). It's dashed in 2D and in exports, invisible in 3D, and still bounds rooms for area calculation.
Duplicate a wall instead of redrawing it
Got a wall at the exact thickness, height, and style you want and need another like it? Select it and tap ⋯ on its bar, then Copy (or Duplicate at the top of the Interior Wall panel) — the copy comes in with every property matched, ready to drag into place. A wall pulled out of another wall's end copies its properties too.
Flag the walls that hold the house up
Use Is Load-bearing? in the wall Inspector (interior or exterior) to mark a structural wall — it's drawn with a hatch on the plan so you and your contractor can see at a glance which walls not to touch. It's a label, not a simulation: RoomSketch3D doesn't calculate loads, so still confirm with an engineer before removing one.
Common confusions
Trying to drop a door in empty space
Doors cut into existing walls. If you tap Door and click in the middle of an empty room, nothing happens. Draw the interior wall first, then cut the door into it.
Drawing a wall and expecting it to be load-bearing automatically
RoomSketch3D doesn't model structure. Any wall you draw is a partition for floor-plan purposes. Load-bearing distinctions matter for real-world construction — verify with a structural engineer before assuming a wall in the plan is structural.
Confusing a Divider with an Opening
A Divider is a logical-only boundary line; the room is open in 3D. Opening is a real architectural passageway with header and jambs cut into a real wall. If you want an actual finished opening, draw a wall and then tap Opening; if you just want a logical boundary, use Room divider.
Drawing all walls Glass because it looks cool in 3D
Glass walls have specific use cases (shower partitions, sunrooms, contemporary office dividers). They don't replace standard interior walls in bedrooms, bathrooms, or anywhere privacy matters.
Frequently asked questions
How do I draw an interior wall in RoomSketch3D?
Tap the Interior Wall tile, drag the purple cross-hair to your starting point, then drag the blue pull handle to where the wall should end. Release to commit. If the start sits on a wall, tap one of the two distances shown there to type exactly where it starts (or tap Center). Drag the + handle at either end of the new wall to chain another segment, or press Escape to finish.
Why won't my door land on the wall?
Doors are cut INTO existing walls — they don't get placed in empty space. Make sure you've drawn the interior wall first, then tap Door, then tap on the wall where the opening should be. The door splits the wall into two stubs with the door (and its swing arc) between them.
What's the difference between Pony and Divider (formerly Partition)?

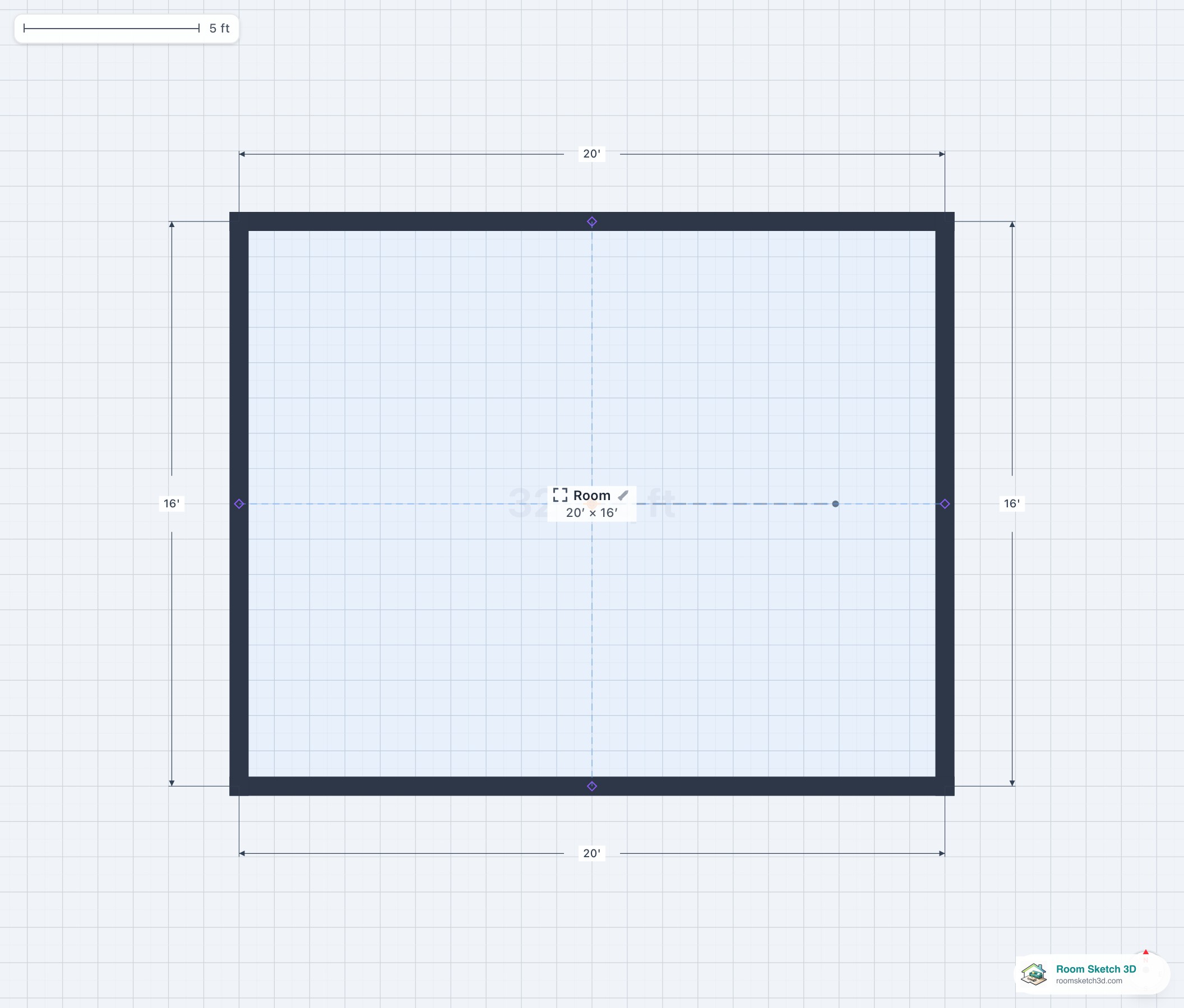

Pony is a physical half-height knee wall (typically 36–42 inches) — solid below, open above; renders in 3D. Divider (called Partition until November 2026) is a zero-thickness logical-only boundary — dashed in 2D and in exports, invisible in 3D; used to split open-plan rooms, for yard zoning and for area-calculation boundaries.
How thick is an interior wall?
4.5 inches by default in RoomSketch3D (standard 2×4 framing + ½-inch drywall both sides); change the default in Settings → Measurements & Defaults → Floor plan defaults. Override a single wall in its panel for plumbing walls (6"), sound-isolated walls (6–8"), demising walls (8–10"), or thin glass partitions (1–2").
Can a RoomSketch3D wall be load-bearing?
You can mark a wall as load-bearing — select it and toggle Is Load-bearing? in the Inspector (available on both interior and exterior walls). The wall then shows a hatch on the plan so you and your contractor can see which walls are structural. It's a label for your own reference, not a structural simulation: RoomSketch3D doesn't calculate loads, so for renovations still verify with a structural engineer before removing any wall.
Can I draw a diagonal interior wall?
Yes. Snapping is gentle: the wall only holds horizontal, vertical, straight on, square or 45° while you're within a few degrees of them, and lets go once you're clearly off the line. Aim where you want it and it follows. For an exact angle, draw it roughly, select it and type the angle at its starting end. To turn snapping off completely for the pull, hold Ctrl (⌘ on a Mac) or tap the wall's magnet so it reads Free. Shift does nothing for interior walls.
How do I start a wall an exact distance from the corner?
Drag the cross-hair onto the wall you're starting from. Its distance from each end of that wall appears (measured to the face of the wall you're about to draw). Tap the distance, type the number, press Enter. Tap Center to start exactly halfway.
I drew the wrong wall. Can I undo it and keep drawing?
Yes. Press Ctrl+Z (⌘Z on a Mac) or tap Undo: the wall you just drew goes and you carry on from where it started.
Why is my new wall amber instead of dark?
It isn't touching any other wall. A wall that touches nothing is drawn in amber as a reminder; drag an end onto a wall and it turns dark. A wall joined to another wall counts as connected, however thick the walls are.
