Dual / double-sided fireplaces

A fireplace embedded in an interior wall with openings on both sides — visible from two rooms.

5 min readUpdated 2026-11-16

A dual or double-sided fireplace is embedded in an interior wall with firebox openings facing both sides. Sometimes called a 'see-through' fireplace — you can see flames from two rooms simultaneously. Signature of open-plan modern architecture.

Quick answer: it goes in a wall between two rooms (never an outside wall), is usually 36–60 inches wide per face, and needs the same hearth and clearance space on each side as a one-sided fireplace. Plan furniture on both sides with that in mind.

Below: when it works, the numbers, the code rules that apply to each face, and how the Dual fireplace behaves in RoomSketch3D.

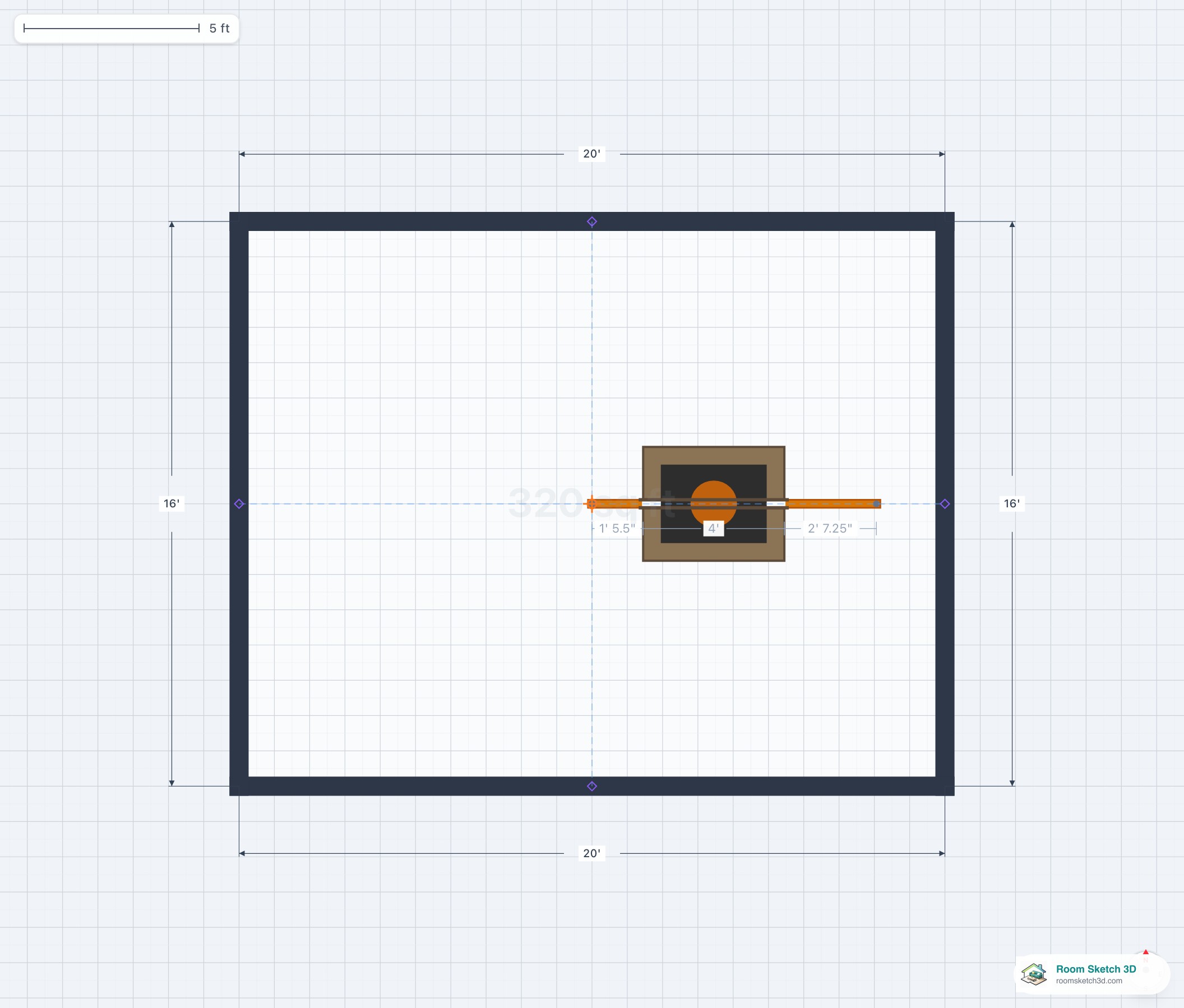

Dual fireplace in an interior wall: the hearth comes out on both sides, so both rooms see the fire. Width, Depth (Flat / Std / Deep) and Height are in its panel.

In this guide

  1. 1

    When to use a dual fireplace

    Open-plan houses where a wall divides two living areas — living and dining, living and kitchen, master bedroom and en-suite. You want spaces connected but distinct — fireplace creates a visual divider that doesn't divide. View into multiple rooms — fire becomes a focal point from more than one room.

  2. 2

    Wall and construction requirements

    Wall depth: the unit's depth sets the wall: see-through units commonly need a chase or wall section 16–24 inches deep at the fireplace. Special construction: most residential see-through fireplaces are factory-built units (gas direct-vent or wood-burning) listed for two-sided use; a masonry see-through fireplace is possible but needs careful design for draft. Hearth and mantle: often present on both sides; sometimes only on the more public side. A factory-built fireplace must be listed and labeled and installed exactly as its listing says (2021 IRC R1004.1, tested to UL 127) — the installation manual sets the hearth, clearances and venting, so read it before you fix the furniture layout.

  3. 3

    Standard dimensions

    Face width (each side): 36-60 inches. Wall depth (total): 16-24 inches. Hearth height: 6-18 inches. Because firebox is embedded in wall, unit doesn't project into either room — both rooms see only the face.

    CompactStandardLarge
    Face width36 in48 in60 in
    Typical roomBedroom / en-suiteLiving / diningGreat room

    These are common catalog ranges; check the model you're considering.

  4. 4

    Hearth and clearance on both sides

    Whatever burns in it, each open face needs a non-combustible hearth in front and clearance to combustible trim. For masonry fireplaces the 2021 IRC sets the hearth extension at 16 inches in front and 8 inches beyond each side of the opening, or 20 inches and 12 inches when the opening is 6 sq ft or larger (R1001.10). Combustible trim may not sit within 6 inches of the opening, and within 12 inches it may project no more than 1/8 inch per inch of distance (R1001.11). Factory-built units follow their listing instead. Code minimums; local codes vary. On a see-through fireplace that means two hearth zones to keep clear — one in each room.

  5. 5

    In RoomSketch3D

    In the left panel's Structural section tap Fireplace and choose Dual from the menu. The banner reads Tap an interior wall to place: tap an interior wall between the two rooms (a tap on an outside wall is ignored, so you can just try again). Select the fireplace and its settings show Width (36", 48", 60" or your own), Depth (Flat, Std or Deep: how far the hearth comes out on each side of the wall) and Height (the overall fireplace height, capped at the wall height). There is no separate hearth-height setting. The two Along wall distances (↑ ↓, or ← → on a wall that runs across the plan) place it along the wall.

    Dual fireplace: Width, position, Depth (Flat / Std / Deep) and Height.
  6. 6

    See it from both rooms

    In 3D the dual fireplace shows a firebox face and mantel in each room. Orbit to each side to check the furniture: the sofa on one side and the chairs on the other should both face it with the hearth clear. On the plan, Smart Flow Check does the same check for you on both faces and lists any piece on either hearth or within 36 inches of either face.

    One side: the sofa room.
  7. 7

    The other side

    Turn the camera to the second room. Two accent chairs angled toward the fireplace make a reading corner that shares the fire with the living room.

    Other side: two chairs facing the same fireplace.

Tips

Center on the wall

Double-sided fireplace works best dead-center on the wall it occupies. Off-center reads accidental.

Let Flow Check watch both hearths

Flow Check checks a Dual fireplace on both faces, the way it checks a regular one on its single face. Furniture standing on either hearth (the Depth it comes out into each room, across its Width) is flagged in red (… blocks fireplace), and anything within 36 inches in front of either face gets an orange … crowds the fireplace. Rugs don't count. The 36-inch strip covers the 16–20 inch hearth extension; for the 8–12 inches the hearth must reach past each side of the opening, use the Tape measure.

Common confusions

Dual fireplace on an exterior wall

Exterior wall has only one room facing it. Dual fireplaces need walls between two rooms.

Furnishing only one side

The second face is still a fireplace: its hearth zone needs the same clearance, even if that room is a bedroom or en-suite. Flow Check warns about furniture in front of either face, so a warning about the room you weren't looking at is real.

Frequently asked questions

What is a double-sided fireplace?

A fireplace embedded in an interior wall with firebox openings on both sides — visible from two adjacent rooms.

Can I add a dual fireplace to an exterior wall?

No — dual fireplaces need a wall between two rooms. In RoomSketch3D a Dual fireplace only places on an interior wall; for an outside wall use Fireplace → Regular.

How do I add a see-through fireplace in RoomSketch3D?

Left panel → Structural → Fireplace → Dual, then tap the interior wall between the two rooms. Select it to set Width, Depth and Height.

How much hearth does a see-through fireplace need?

For masonry, the 2021 IRC asks for a hearth extension 16 in in front and 8 in to each side of each opening (20 in and 12 in for openings of 6 sq ft or more). Factory-built units follow their listing.

Does Smart Flow Check check a dual fireplace?

Yes, on both sides. It flags furniture standing on the hearth in either room in red (… blocks fireplace) and warns about anything within 36 inches in front of either face (… crowds the fireplace). A TV hung on the wall above the mantel doesn't count as blocking it; one hung low across the firebox does.
