Line things up — alignment guides, live distances, and Snap

Guides appear the moment edges or centres align, the gap reads out in your units, and Snap gently clicks pieces into place.

5 minUpdated 2026-11-17

Two chairs that are almost in line look wrong from across the room, and a row of cabinets that wanders by an inch shows in 3D. RoomSketch3D lines things up while you drag: dashed guides appear the moment a piece's edge or centre matches a neighbour's, the gap between them reads out live, and with Snap on the piece clicks into alignment.

Alignment is what makes a room look designed rather than filled. The eye reads shared lines — the fronts of two armchairs, the centre of a sofa and the coffee table in front of it, a rug with the same overhang on both sides — long before it reads the furniture itself. Guides give you those lines without measuring; the live readout gives you the spacing (18″ from sofa to coffee table and 36″ for a walkway are the usual comfort guidelines); Snap seats pieces flush against walls and each other so nothing floats an inch off a wall in 3D.

There are three tools, each for a different job: guides (see when things line up), the distance readout (see how far apart they are) and Snap (make them click together). A fourth, the Arrange menu, lines up a whole selected group in one step.

Step by step

  1. 1

    Drag near another piece

    Drag a chair toward the other chair. As their top edges, centres, or bottom edges line up, dashed guide lines appear — all matching lines at once (top, centre, and bottom, or left, centre, and right) — together with a live readout of the distance to the nearest piece in your units, switching to inches or centimetres when you're close. Only nearby pieces show guides, so a busy plan stays clean.

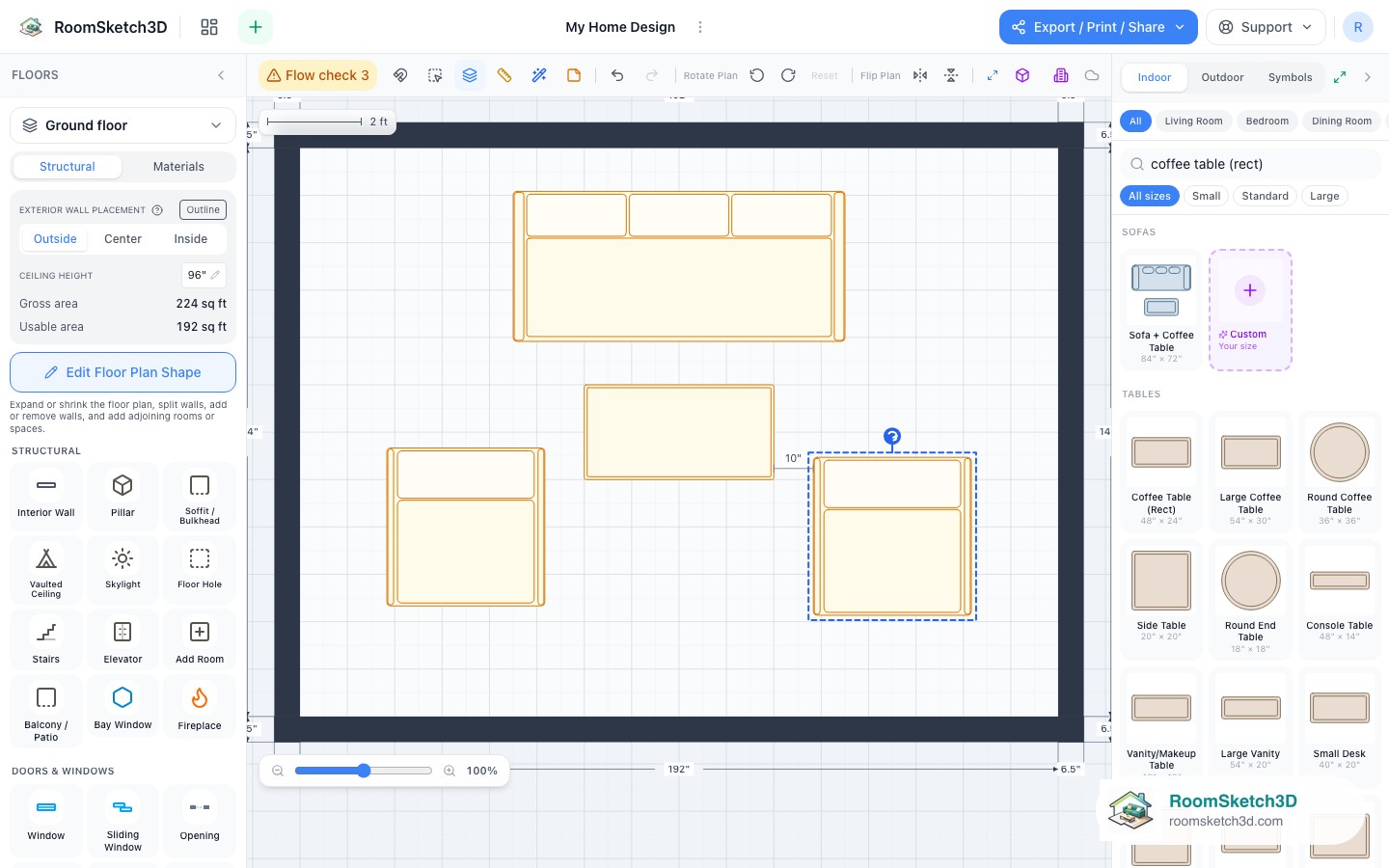

    Guides plus a live gap readout, mid-drag.
  2. 2

    Read the guides over the pieces

    Guide lines draw over the furniture, so a shared centre line is easy to see even across a rug or a table. Alignment stays accurate at any zoom — a line that shows at one zoom won't vanish when you zoom in.

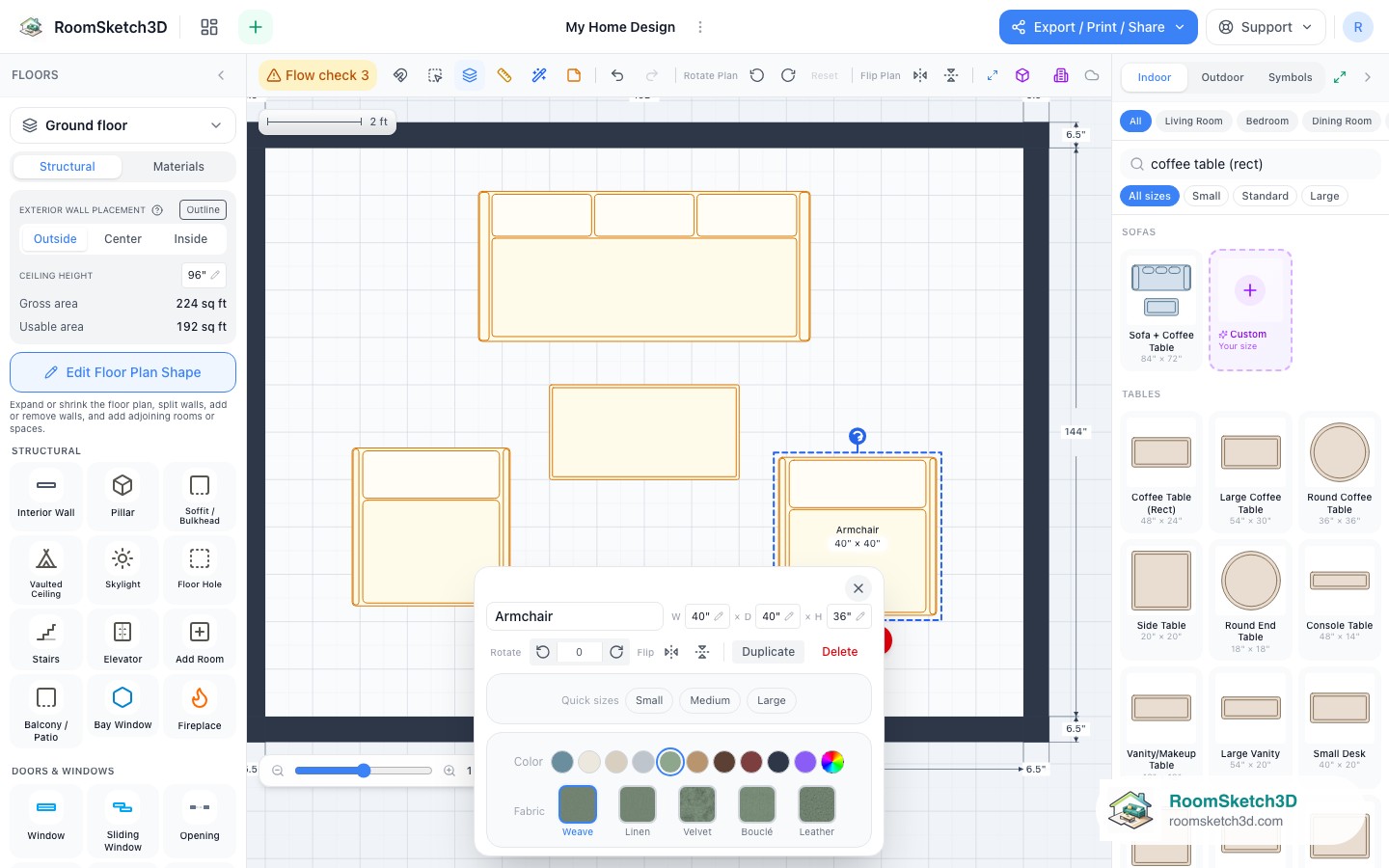

    Guides draw on top, so centre lines read clearly.
  3. 3

    Turn on Snap

    Tap the magnet in the toolbar (Enable snapping). Now pieces gently click into alignment as they get close — to walls, the grid, and each other. Tap it again (Disable snapping) for free-hand placement.

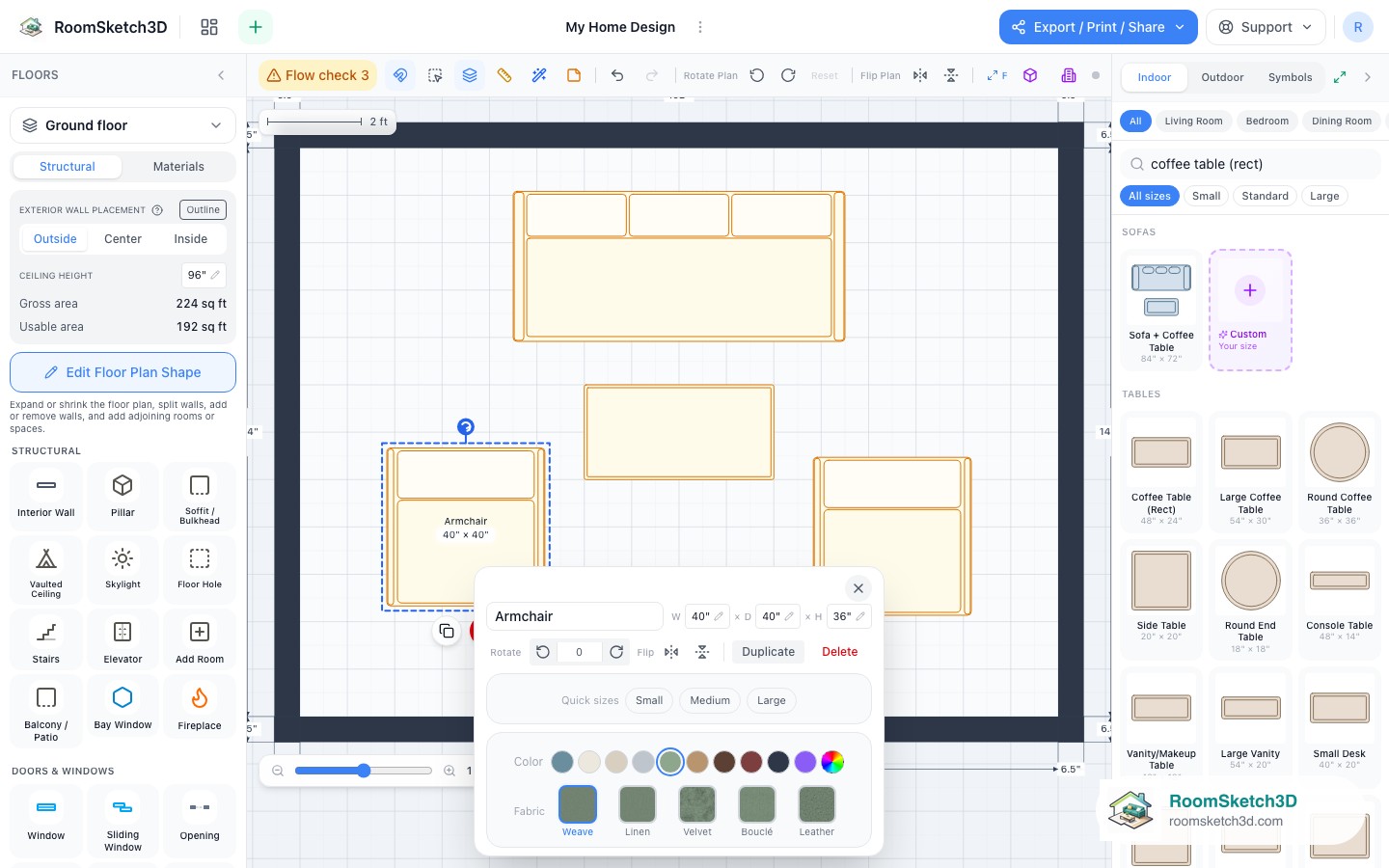

    Snap clicks the piece into line.
  4. 4

    What Snap does, exactly

    With Snap on, three things happen as you drag: - Walls: when a piece's edge comes within about 6 inches of a wall's inside face, it snaps flush against it — no more sofas floating an inch off the wall. - Neighbours: furniture that belongs side by side (cabinets, appliances, sofas and chairs, beds, nightstands and dressers, desks, vanities, toilets and tubs, and more) snaps against a neighbour's back line when you bring it within a couple of inches, so a cabinet run stays straight. It lets go as soon as you pull away. - What doesn't snap to neighbours: rugs (they're meant to slide under other pieces), decor and lighting, which would feel jumpy. When you want a deliberate gap — a chair angled off a wall, a sofa 4″ out for a lamp cord — switch Snap off, place the piece, and switch it back on.

  5. 5

    Line up a group with Arrange

    To align pieces that are already placed, select them together: turn on Select multiple (the dashed-box button) and click each piece, or, with a mouse, hold Shift (or ⌘ on a Mac, Ctrl on Windows) and click them; then open Arrange in the blue bar. Line up in a row puts them on one horizontal line and Line up in a column on one vertical line, sharing a back line, so three dining chairs or a row of desks line up in one step. The same menu can flip the whole group left to right or top to bottom. See select multi select copy paste delete.

  6. 6

    Guides are a layer

    Open View & Layers (the stacked-sheets button, first in the toolbar) and use Show alignment guides, in the Drawing aids group, to switch the drag guides on or off (the centre / wall-midpoint guides have their own switch). Guides belong to no view, so ticking Floor plan, Interior design or Electrical plan leaves them as you set them, and the choice is saved with the design. The zoom slider now goes as far in as the scroll wheel or pinch, so you can fine-tune a gap at high zoom.

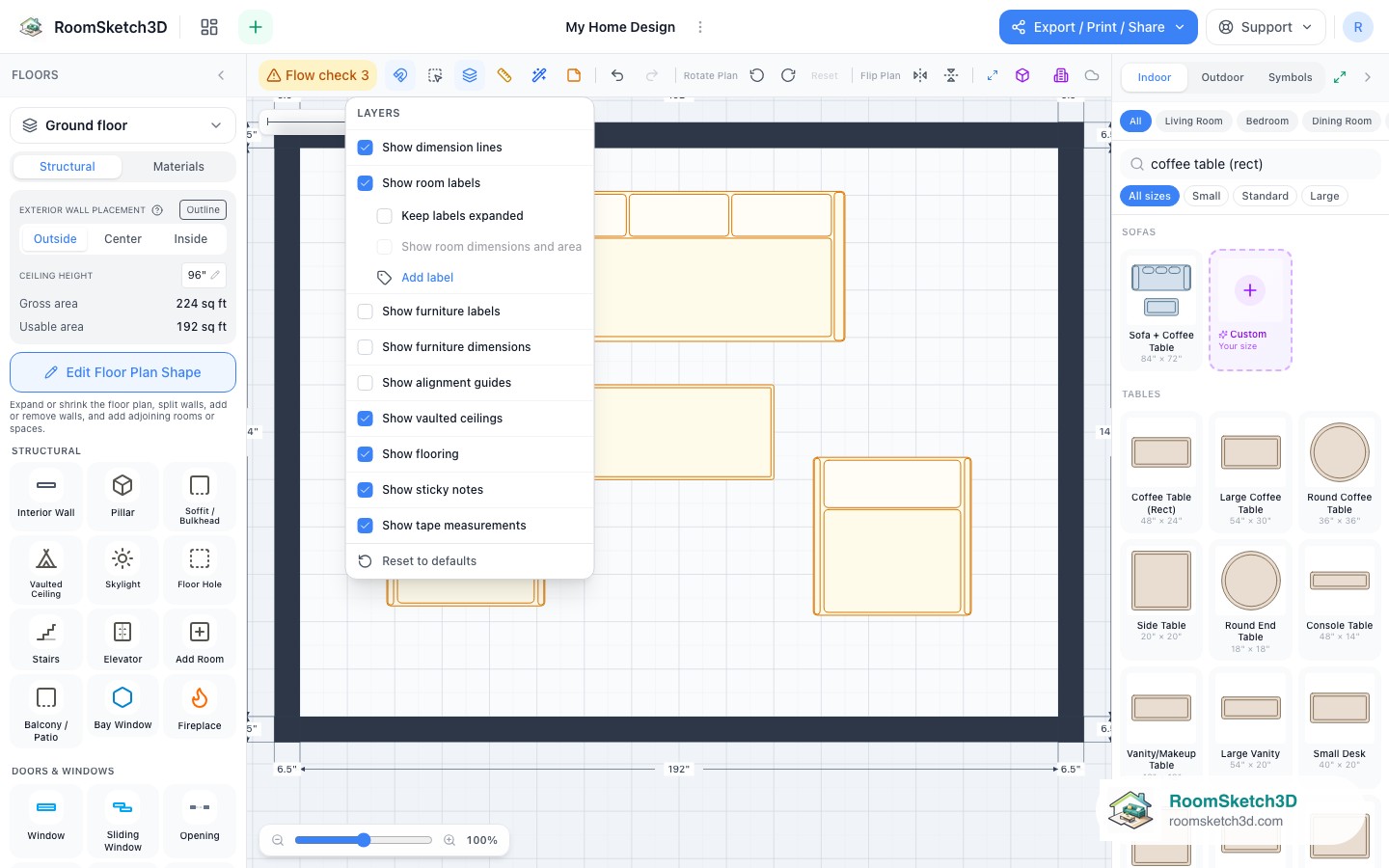

    View & Layers → Drawing aids → Show alignment guides.

Tips

Align a whole run

Place the first cabinet, then bring each next one in along the wall — the edge guide catches, and Snap seats it flush.

Centre a rug under the sofa

Drag the rug until the vertical centre guide lines up with the sofa's; the readout confirms equal overhang.

Arrow keys for the last inch

With a piece selected, the arrow keys nudge it without triggering guides on neighbours.

Space the gaps, not just the lines

Lining edges up is half of it. Use the readout to keep equal gaps too: the same 2″ between nightstand and bed on both sides, the same distance from each armchair to the coffee table.

Check it in 3D

Misalignment you can't see on the plan shows in 3D: a cabinet run that steps by an inch, a chair turned 2° off. Open the 3D preview or View in 3D after lining things up.

Common mistakes

Fighting Snap when you want an offset

Turn Snap off for deliberately staggered pieces, then back on.

Reading the readout as clearance

The readout is the gap to the nearest piece; for walkway clearances use the tape measure.

Aligning to the wrong neighbour

When several pieces are nearby, the guide may catch the one you didn't mean. Check which piece the dashed line runs to before you let go, or move the piece closer to the one you want.

Frequently asked questions

Why do guides only show for some pieces?

Guides appear only for nearby pieces, so the plan stays readable. Move closer to a piece and its guides light up.

Can I turn the guides off?

Yes. View & Layers → Show alignment guides (in Drawing aids). Snap has its own toggle in the toolbar.

Do guides work with walls?

Snap aligns to walls and the grid as well as other pieces; the dashed drag guides are for piece-to-piece edges and centres.

How do I line up several pieces at once?

Turn on Select multiple and pick the pieces (or Shift-click / ⌘-click them with a mouse), then open Arrange in the blue bar: Line up in a row or Line up in a column puts them on a shared line.

Why does a piece jump to the wall?

With Snap on, a piece whose edge comes within about 6 inches of a wall's inside face snaps flush to it. Turn Snap off (the magnet in the toolbar) to leave a gap, or nudge it away with the arrow keys afterwards.
