Measure anything on your plan with the tape measure
A draggable tape measure for any distance on your plan. The ends snap to walls and furniture, and an Area mode gives live square footage. Tap the pin to keep a measurement on the plan as your own dimension, and it prints with your export.
More videos
How to Add Your Own Measurements to a Floor Plan (Tape Measure)
Measure a distance, keep it on the plan with the pin, show or hide it in Layers (now View & Layers), and print it with your plan.
RoomSketch3D measures the plan for you. Every wall shows its length, rooms are measured wall face to wall face, and the inspector shows the width and depth of the piece you select. Sometimes you need a distance the plan doesn't show: sofa to TV, bed to door, the walkway between the island and the counter. That's what the tape measure is for. Drop it anywhere, drag its ends, and read the true distance in your units.
The tape does more than lengths. Its ends snap onto wall faces, corners, and the edges of furniture, so you measure a real gap exactly. It locks square: the tape turns green when it's perfectly horizontal or vertical. An Area mode drags out a rectangle with live square footage. And when you want a measurement to stay, you keep it with the pin. A kept measurement becomes your own dimension on the plan, saved with the design and included in your exports.
Step by step
- 1
Open the tape measure

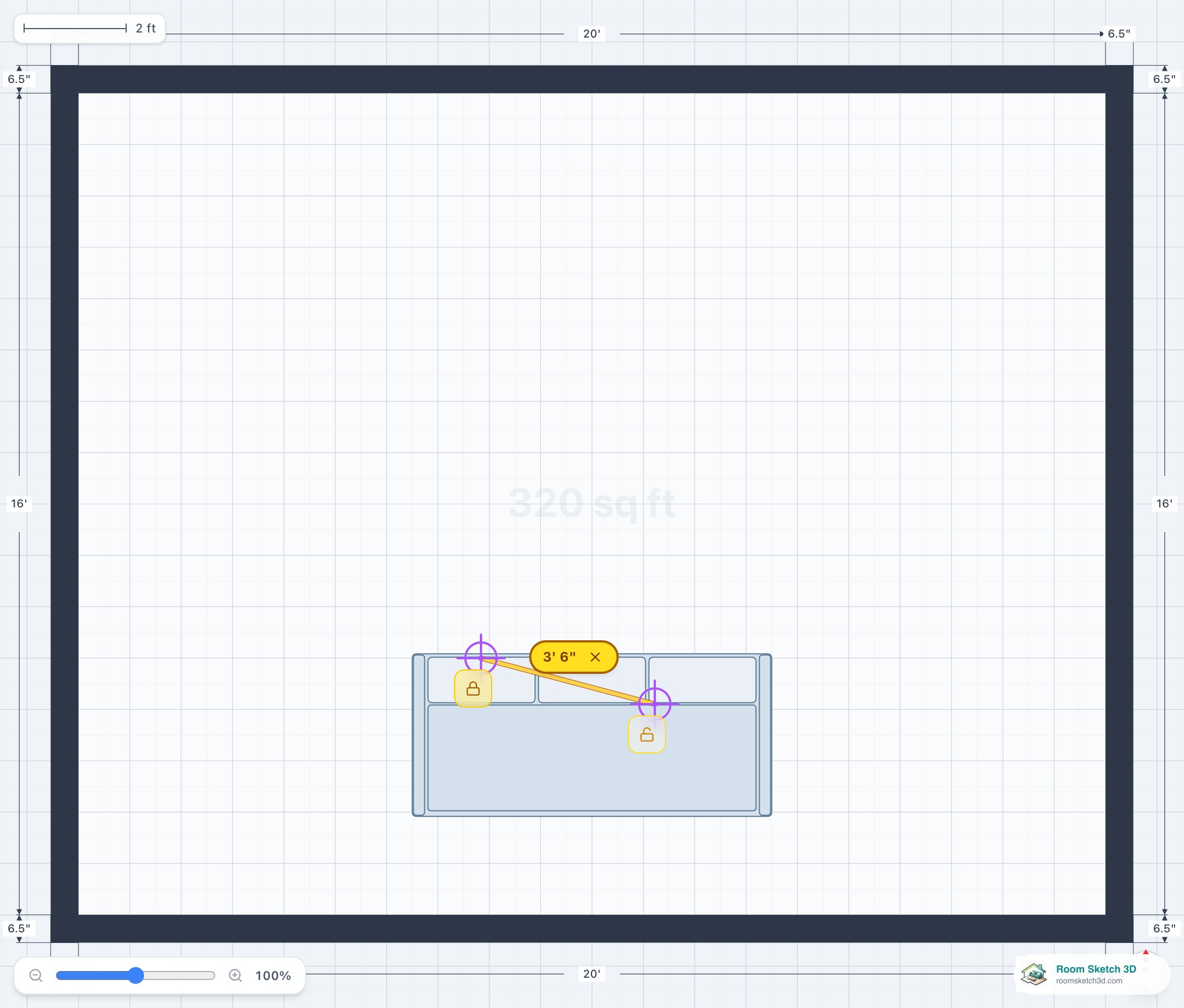

Click the Tape measure button (the yellow ruler icon) in the toolbar above the plan, after View & Layers (the stacked sheets), the magnet and Select multiple. A tape appears on the plan with its length in the middle, and the button turns yellow while the tape is open.
The ruler button opens the tape, and clicking it again closes the tape. - 2
Drag the ends where you need them
Grab either end, the purple crosshair, and drop it on the exact spot: a furniture edge, a wall face, a doorway. Drag the middle of the tape to move the whole thing without changing its length.
Drag either end. The reading updates live in your units. - 3
Let the ends snap
Drag an end toward a wall, a corner, or the edge of a piece of furniture and it snaps onto it, so sofa-to-wall is measured face to face, not roughly. Keep dragging in a straight line and the tape turns green when it's exactly horizontal or vertical, so there's no accidental angle in the reading.
- 4
Lock an end for precision
When an end sits on a piece of furniture, a small lock button appears next to it. Lock it and that end travels with the piece. Move the sofa and the reading updates live, which is handy for trying a few positions.
- 5
Measure while you rearrange
With the tape open you can still grab and move furniture. Pin one end to an object, slide another piece, and watch the distance update live.
- 6
Switch to Area mode
Tap Area at the top of the plan (next to Length). A rectangle with four draggable corners appears. The corners snap to your walls and square up to right angles, and the square footage (or square metres) updates as you shape it. Use it for the size of a rug, a tiled zone, or a closet floor.
- 7
Save measured distances: tap the pin
This is how you add your own dimension to the plan. When the tape reads the distance you want, tap the pin in the yellow reading (its label is Keep this measurement). The measurement is now kept, and a fresh tape appears so you can measure the next thing. Kept areas work the same way: tap the pin on the area reading.
88″ of walkway between counter and rug. Tap the pin to keep it. - 8
Close the tape: the measurement stays
Click the tape button again, or the × in the reading, to put the tape away. Every measurement you kept stays on the plan in blue, with its length written on it, and it's saved with your design for next time and on your other devices. A kept measurement is fixed where you measured it. If you later move the furniture, it doesn't follow, so measure again and delete the old one.
The kept measurement stays on the plan after the tape is closed. - 9
Show or hide kept measurements in View & Layers
Open View & Layers (the stacked-sheets button, first in the toolbar above the plan) and, in the Dimensions group, untick Show tape measurements to hide every kept measurement, for example while you arrange furniture. Tick it to bring them back. Hiding doesn't delete them. The choice is saved with the design, so it's the same on your phone and your computer. The layer starts off in a new design; keeping a measurement switches it on automatically, and so does opening a plan that has kept measurements (unless you hid them yourself). None of the three built-in views (Floor plan, Interior design, Electrical plan) includes tape measurements, so ticking a view won't bring them back: tick the row itself. A view you save yourself with + Save current as view… can include them. See View & Layers for the other switches.
View & Layers → Dimensions → Show tape measurements hides or shows all kept measurements. - 10
Delete a kept measurement
Tap a kept measurement to select it. This works with the tape closed or open; with the tape open, tap a spot on the measurement that isn't on a piece of furniture, because a tap on furniture goes to the furniture. A red trash button (Delete measurement) appears on it. Tap the button to remove it. To deselect without deleting, tap anywhere else on the plan or press Escape (computer).
Tap the measurement, then the red trash button. - 11
Kept measurements print with your plan
In Export / Print / Share → PNG/JPG/PDF or Print, the Tape measurements option starts ticked when View & Layers → Show tape measurements is on, so your kept lengths and areas appear on the PNG, PDF, or printout. Hide them in View & Layers and the box starts unticked; you can still tick it for one export. The open tape itself never prints, only measurements you kept.
Export / Print → Tape measurements, ticked when View & Layers shows them.
Tips
Area mode is a tile and rug calculator
Drag the rectangle over the zone, read the square footage, and buy that much. Then plan the exact cuts in the Tile Planner.
Keep the measurements you'll argue about
Sofa-to-TV, island clearance, the hallway width: keep them on the plan so they're in the export you send.
Check walking clearances
Stretch the tape across your main walking path and aim for at least 36 inches (90 cm). Flow Check doesn't measure the gap between pieces, so this one is on you.
Common mistakes
Closing the tape without tapping the pin
The open tape is temporary. Only measurements you keep with the pin stay on the plan. If one disappeared, measure again and tap Keep this measurement before closing.
Ticking the export box after hiding the layer
With View & Layers → Show tape measurements off, the export dialog starts with Tape measurements unticked. If kept measurements still print, the box was ticked in the dialog: untick it there.
Moving furniture after you kept a measurement
A kept measurement stays where you measured it. After rearranging, delete it and measure again.
Frequently asked questions
How do I manually add a dimension to my floor plan?
Use the tape measure. Open it from the toolbar, drag its ends to the two points, and tap the pin (Keep this measurement). The length stays on the plan as your own dimension, is saved with the design, and prints with your exports.
What's the difference between the automatic dimensions and a kept tape measurement?
Automatic dimensions are the wall lengths and room-by-room measurements RoomSketch3D draws around every wall. They update as you edit, and you show or hide them with View & Layers → Show exterior dimensions (the overall outside lengths) and Show interior dimensions (the room-by-room measurements). A kept tape measurement is a distance you chose yourself, between any two points. It stays exactly where you measured it, and you show or hide it with View & Layers → Show tape measurements.
My kept measurement disappeared. Where did it go?
Check View & Layers → Show tape measurements (in the Dimensions group). It's saved with each design: it starts off in a new design and switches on when you keep a measurement, so if you hid it once, tick it again. Ticking a view won't bring it back, because none of the three built-in views includes tape measurements. If it's ticked and the measurement still isn't there, it was probably never kept. Only measurements you pin with Keep this measurement stay after the tape closes.
Do kept measurements show in exports and printouts?
Yes, when Tape measurements is ticked in the Export / Print dialog. It starts ticked while View & Layers → Show tape measurements is on and unticked while it's off; change it there for one export. The live tape itself never prints.
Why doesn't a selected piece show its size on the plan anymore?
So the label doesn't cover the piece you're placing. The inspector shows the selected piece's width and depth. To write sizes on every piece, turn on View & Layers → Show furniture dimensions.
Can I select a kept measurement while the tape is open?
Yes. Tap the kept measurement (not a piece of furniture under it) and its red trash button appears. Escape deselects it on a computer.
Can I edit a kept measurement?
Not directly. Delete it (tap it, then the red trash button) and measure again with the tape.
