Bulkheads and soffits — the boxes above your cabinets

Add the ceiling-hung boxes real kitchens have — over cabinets, ductwork, or plumbing runs — and see how much head height is left under them.

5 min readUpdated 2026-11-16

A soffit (in kitchens) or bulkhead (in basements and bathrooms) is a boxed-in section that hangs below the ceiling: over the wall cabinets, around a duct, a beam, a drain pipe or recessed lighting. It matters for planning because it lowers the headroom where it runs and decides how tall the cabinets or shelving under it can be.

RoomSketch3D draws one with the Soffit / Bulkhead tool: a box with a footprint on the plan and a Drop below the ceiling, shown dashed on the plan (the drafting sign for something overhead) and solid in 3D. This page walks through both common cases on the L-Shape Kitchen template: a soffit over the wall cabinets and a duct chase across the room.

Step by step

  1. 1

    Pick Soffit / Bulkhead and drag out its footprint

    Open the Build panel (on a phone, Structural & Interior) and tap Soffit / Bulkhead in the Structural section. The prompt reads Drag a rectangle for the soffit: press where one corner goes and drag to the opposite corner. A single click places nothing. When you let go, the box is placed and selected. Drawing it from wall face to wall face is the quickest way to get the length right.

    The tool turns blue while it's active; drag over the area the box covers on the ceiling.
  2. 2

    Set the footprint: Width and Length

    The soffit's settings (name box Soffit) have Width (the run along the wall) and Length (how far it comes out into the room). Tap a value to type it, or drag the box and its corner handles on the plan. For a kitchen soffit, match the wall cabinets: here the run is 11' 4" along the back wall and the Length is 13", a 12"-deep cabinet plus about an inch. The box can be 4" to 50 ft each way, and Rotation turns it in 90° steps.

    On the plan a soffit is a dashed outline (the drafting sign for something overhead), drawn over the wall cabinets with its size pill, 11' 6" × 1' 1" · ↓1'.
  3. 3

    Set the Drop: how far it hangs below the ceiling

    Drop is the height of the box, measured down from the ceiling, from 2" to 8 ft. The clear height under it is the ceiling height minus the Drop. This kitchen has an 8 ft ceiling, so a 12" soffit leaves its underside at 7 ft, flush with the top of 30" wall cabinets hung at the usual 54" above the floor. The second box is a duct chase across the room, renamed Duct chase in the name field, with a 1' 2" Drop: 8 ft − 14" leaves 6' 10" of headroom. A selected soffit shows its size on the plan as W × L · ↓Drop. Under a vaulted ceiling the settings also have Underside, the height of the box's flat bottom above the floor.

    The label on the plan, 8' 4" × 11" · ↓1' 2", reads width × length · drop.
  4. 4

    Check it in 3D

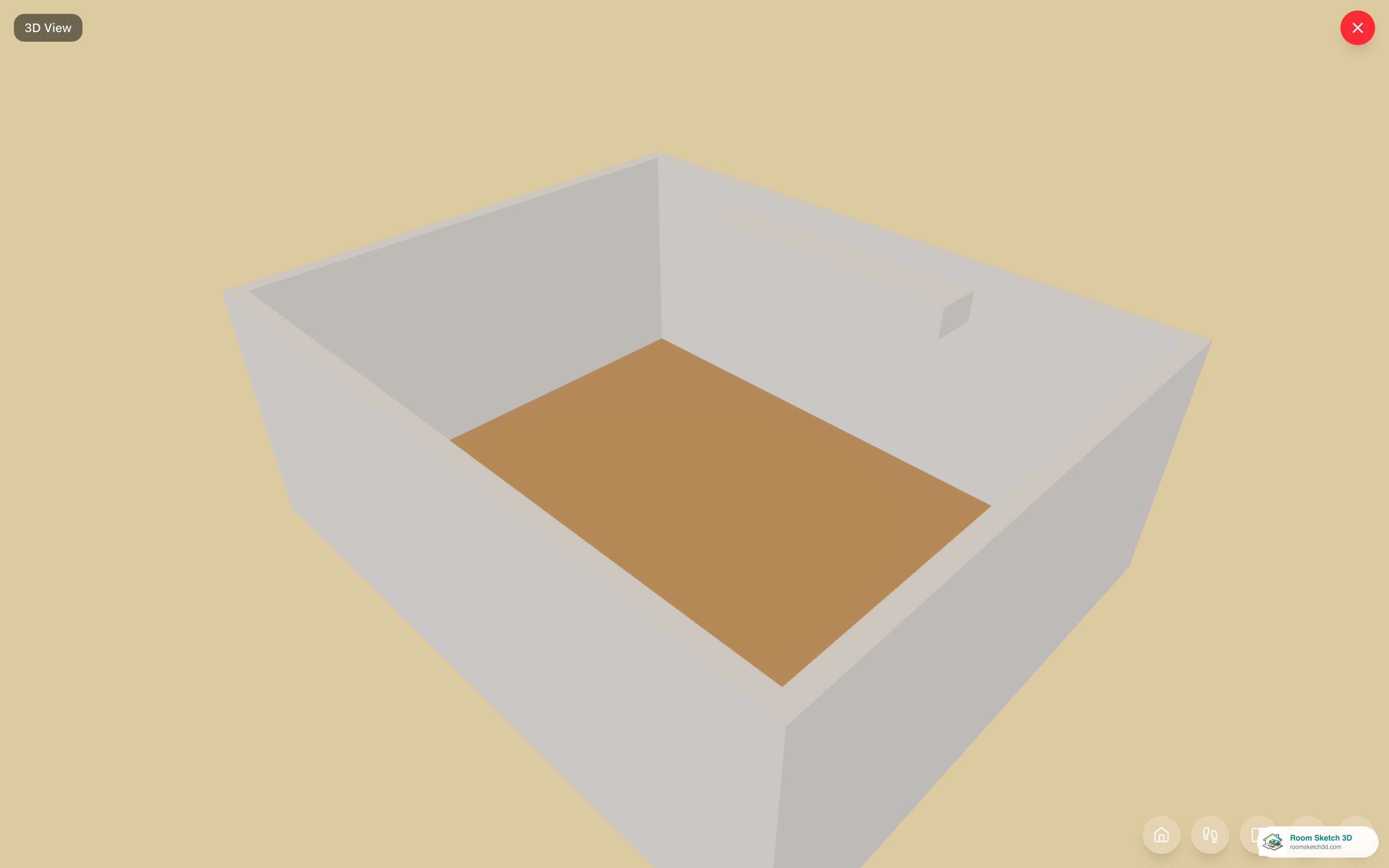

    Open View in 3D (the cube above the plan) and tick Dollhouse to look into the room from above: the soffit fills the gap over the wall cabinets and the chase hangs across the ceiling. Walk through to judge head height from eye level. The Elevation views show only the outside of the building, so a soffit appears there only as a band at the top of an outside wall it touches.

    In 3D the soffit closes the space above the upper cabinets and the 14" chase hangs across the room.

Tips

Size a kitchen soffit from the cabinets

Common setup on an 8 ft ceiling: 36" counters, about 18" of backsplash, then 30" wall cabinets whose tops sit at 84". That leaves 12" to the ceiling, so a 12" Drop closes the gap exactly. Make the Length the cabinet depth (12" is typical) plus an inch or two. With 36" or 42" wall cabinets the gap shrinks or disappears, which is why many new kitchens skip the soffit.

Work out the headroom first

Clear height = ceiling height − Drop. 8 ft − 12" = 7 ft; 8 ft − 14" = 6' 10"; 9 ft − 12" = 8 ft. Write the result in the box's name (for example Duct chase 6'10" clear) so it shows when you select it.

Name each box

Type a name such as Duct chase or Beam in the name field of its settings. It's easier to find later and tells a contractor what's inside.

Turn on Dimensions to see every size

With the Dimensions layer on, every soffit shows its W × L · ↓Drop label on the plan, and PNG/PDF exports print it the same way. The DXF export puts soffit outlines on its STRUCTURE layer.

Common mistakes

Confusing a soffit with a lower ceiling

A soffit is a box over part of the room. To lower the whole ceiling, change the ceiling height in Plan Settings → Ceiling instead.

Dropping a bulkhead over a walkway too low

Codes set minimums for headroom under ducts and beams (see the FAQs), and anything much lower than door height feels cramped. Check ceiling height − Drop before you commit, and walk under it in 3D.

Expecting Flow Check to catch tall furniture

Smart Flow Check doesn't compare furniture heights with a soffit, so a 7 ft wardrobe under a 6' 10" chase won't be flagged. Look at it in 3D.

Expecting it in the elevation views

Elevations show the four outside faces of the building. A soffit in the middle of a room doesn't appear there; use 3D or the plan label.

Frequently asked questions

What's the difference between a soffit and a bulkhead?

In RoomSketch3D they're the same tool. Soffit is the usual word for the box over kitchen cabinets; bulkhead is common for boxed-in ducts and beams in basements and bathrooms. Some regions use the words the other way round.

How low can a bulkhead be?

Under the International Residential Code (R305.1), habitable rooms and hallways need at least 7 ft of ceiling height, and bathrooms, toilet rooms and laundry rooms at least 6 ft 8 in. In a basement with living space, beams, girders, ducts and other obstructions may come down to 6 ft 4 in above the finished floor; in basement areas without living space the ceiling minimum is 6 ft 8 in, and obstructions may also come down to 6 ft 4 in (R305.1.1). These are code minimums; local codes vary, so check with your building department.

How deep should a kitchen soffit be?

Usually the depth of the wall cabinets plus a little: about 12"–14" out from the wall, with the Drop set to the gap between the cabinet tops and the ceiling (often 12" on an 8 ft ceiling with 30" cabinets). That's a common guideline, not a code rule.

Can I put one anywhere, not just along a wall?

Yes. Drag the box wherever the real soffit or bulkhead runs, along a wall or across the room, and rotate it in 90° steps.

Does it work under a vaulted ceiling?

Yes. Its Drop is measured from the highest ceiling point over its footprint, the underside stays flat, and its settings add Underside so you can type the height of that flat bottom above the floor. See vaulted ceilings.

Does a soffit show in exports?

Yes. PNG, PDF and print show it as a dashed outline with its size label (when labels are on), and the DXF puts its outline on the STRUCTURE layer.
