Setting wall and ceiling heights

Set the ceiling height for the whole floor, then give single walls their own height for half-walls and sloped ceilings — and see the result in 3D.

Updated 2026-11-02

Wall height (which is also the ceiling height) defaults to 8 feet, the residential standard. Change it for the whole floor at once, or for one wall at a time. A ceiling that slopes one way comes from walls of different heights; a vaulted or cathedral ceiling has its own tool, Vaulted Ceiling.

Getting the height right matters more than it looks. It decides whether a tall bookcase, a bunk bed or a ceiling fan fits, how big the room feels in 3D, and whether a door or window in the wall can be as tall as you planned. Below: where each height setting lives, the numbers builders use, what the building code requires as a minimum, and how Flow Check tells you when an opening no longer fits.

Step by step

  1. 1

    Set the ceiling height for the floor

    Open Plan Settings and its Ceiling tab. Tap the height and type the new one (typically 8, 9 or 10 feet), then tap the check. It applies to the whole floor: every wall on this floor is set to that height. If you've already given some walls their own height, the app first asks Overwrite all wall heights?, because those heights are cleared too. So set the floor height first, then adjust single walls. You can undo it. Each floor of a multi-floor design has its own ceiling height. The box is labelled CEILING HEIGHT; in feet and inches it splits into ft and in boxes, so 8 ft 6 in is 8 and 6. You also choose a ceiling height when you create a plan, so most people only come here to change it.

    Plan Settings → Ceiling: type the height for the whole floor.
  2. 2

    When it asks to overwrite wall heights

    If any wall on the floor already has its own height, the new ceiling height doesn't go in straight away. Overwrite all wall heights? explains that it sets every wall on this floor to the new height and clears any heights you set on individual walls. Set ceiling height goes ahead; Cancel leaves everything as it was. Going ahead is safe if you meant to start over: Undo restores the old heights.

    Changing the floor height resets walls you set by hand, so the app asks first.
  3. 3

    Per-wall height override

    Select a specific wall. The Inspector shows its Height — 8 feet by default, with quick presets (8' to 12') or a custom value. Use this for half-walls, partial walls, or walls that step up/down. The presets run 8', 9', 10', 11' and 12'; tap the height box itself to type any other value. The line at the top of the panel reads, for example, 16' 6.5" long · 11' tall, and says (room default) while the wall still follows the floor's ceiling height. Default puts a changed wall back to the floor height.

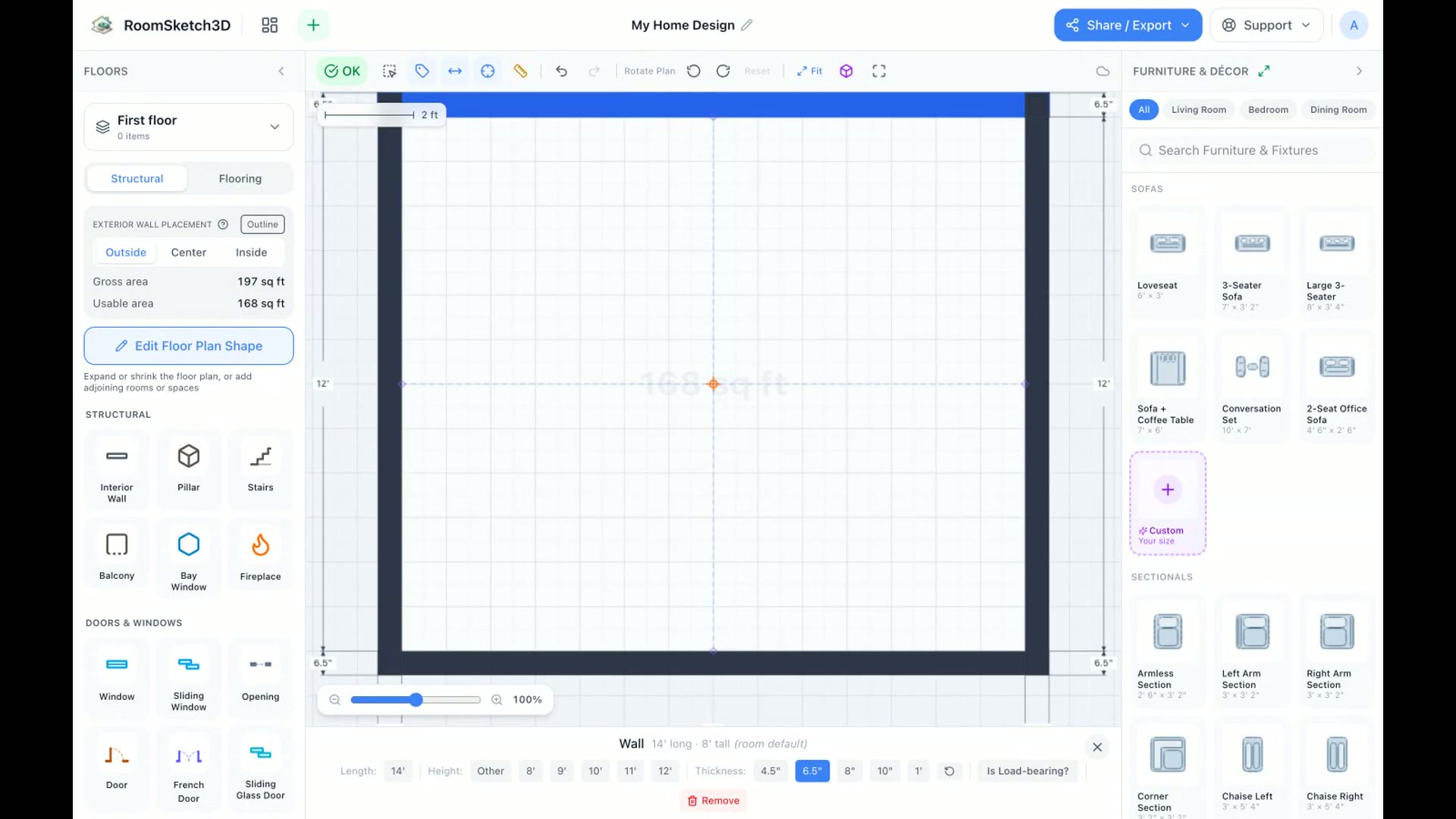

    Select a wall, tap a height preset (here 11') or type your own; Default resets it.
  4. 4

    Sloped and vaulted ceilings

    There are no separate corner heights: where walls of different heights meet, the corner takes the lower one. So raising walls along one side gives a shed ceiling that slopes one way across the room (see ceiling heights and sloped roofs). For a vaulted, cathedral or pyramid ceiling with a ridge, use Build → Vaulted Ceiling and drag a rectangle over the area; set its Eave and Ridge heights in its settings (see vaulted ceilings). Under a slope, think about what goes on the low side. The building code (below) lets part of a sloped room be lower than 7 ft, but a wardrobe or bunk bed won't fit there; put tall pieces where the ceiling is high, and beds, desks and low storage under the slope.

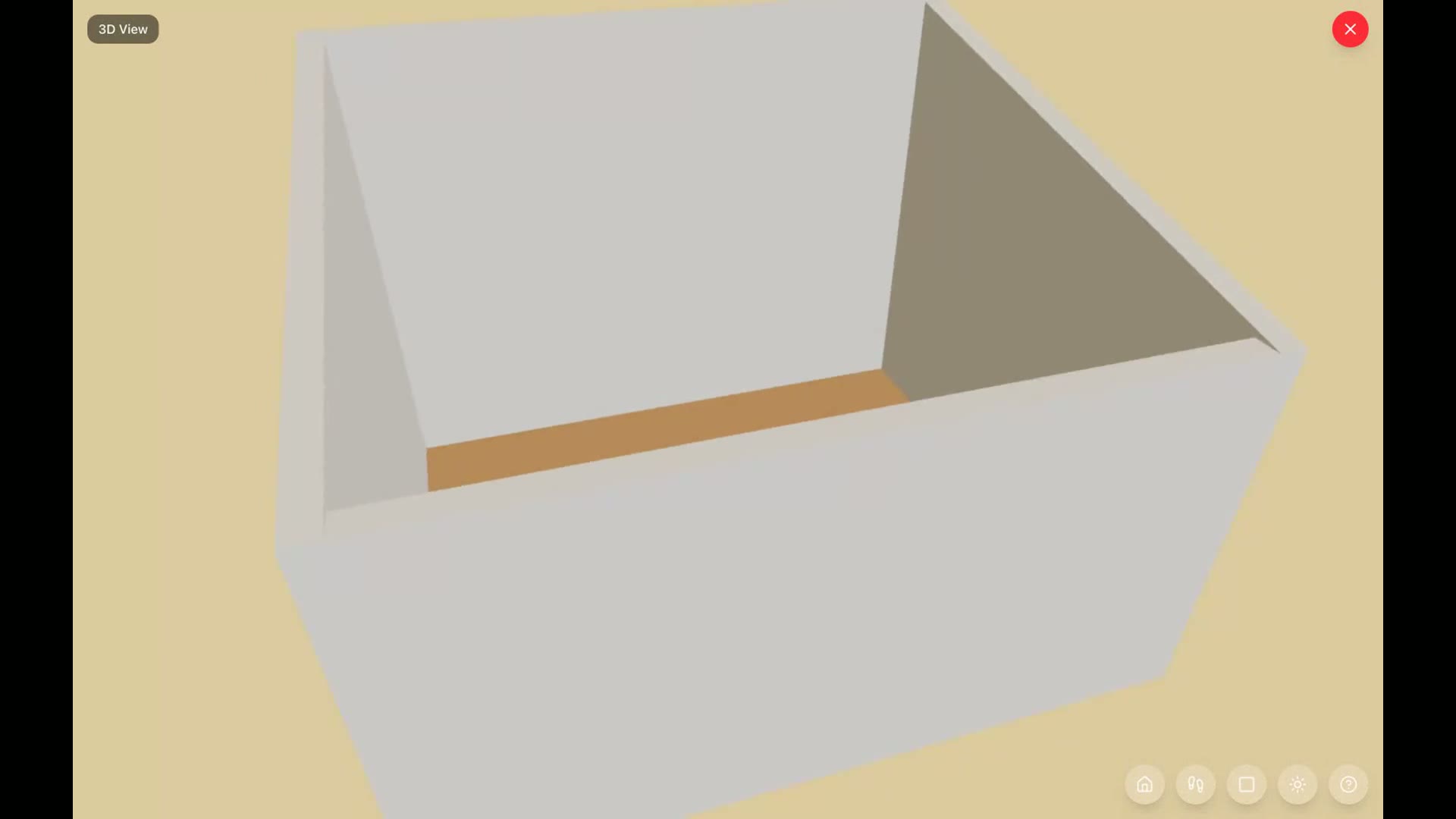

    Raising walls on one side makes the ceiling slope up to meet them: a shed ceiling, in 3D.
  5. 5

    Check doors and windows still fit

    Lower a wall and the doors and windows in it may no longer fit: a RoomSketch3D door is 80 in (6 ft 8 in) tall unless you change it, the common US door height, so a wall cut to 6 ft 6 in can't hold it. Flow Check catches it straight away. The button turns amber with a count, and the list reads A door or window is taller than the ceiling here: Its top edge rises above the ceiling at this point on the wall, so no opening can be cut. Raise that wall, or lower the opening's height or mount. The same check runs under a vaulted ceiling, where the ceiling is lower near the eaves: a window near the low side may need to move toward the ridge.

    Door wall lowered to 6' 6": Flow Check warns that the 80-inch door no longer fits.

Tips

8 feet for standard residential

Old homes and tract houses. 9 feet for new construction first floor. 10+ for high-end or formal.

Measure at more than one spot

Old houses settle and floors aren't level. Measure floor to ceiling in two or three places and use the lowest; that's the height a tall cabinet or bunk bed has to clear.

Check what has to fit under it

Tall pieces need space above them too: a ceiling fan needs room below the blades, a bunk bed needs sitting room on the top bunk, a tall wardrobe needs space to tilt it upright when you assemble it. Compare the ceiling height with the piece's height in its panel before you buy.

Each storey has its own height

On a multi-floor design, set the ceiling height on each floor (switch floors in the Floors panel first). A basement is often lower than the main floor.

Common mistakes

Half-walls need a height, not a delete

For a pony or half wall, lower the wall's height (say to 42 in) — don't delete it. It stays in the plan as a real half-wall.

Dropping a wall below its openings

If a wall's height falls below the top of a door or window in it, the opening no longer fits and Flow Check flags it. Raise the wall or lower the opening.

Setting single walls first, then the floor height

Typing a new ceiling height in Plan Settings resets every wall on the floor, including the ones you raised or lowered by hand. Set the floor's height first; adjust single walls after. If you've done it the other way round, the app asks before overwriting, and Undo brings them back.

Using wall heights for a vaulted ceiling

Different wall heights only make a ceiling that slopes one way (a shed). For a ridge in the middle, a cathedral or a pyramid, use Build → Vaulted Ceiling instead.

Frequently asked questions

What's the standard residential ceiling height?

8 feet (most common). 9 feet for newer construction; 10+ for high-end.

Can I make a vaulted ceiling?

Yes, with Build → Vaulted Ceiling: drag a rectangle over the area, then set its Eave and Ridge heights (Cathedral, Angled or Pyramid). Different wall heights give only a one-way (shed) slope. See vaulted ceilings.

How do I make a half-wall?

Select the wall and lower its height — about 42 in for a pony wall. It stays in the plan as a real half-wall rather than being deleted.

Do wall heights show in 3D and elevation views?

Yes. The 3D view shows them, and the elevation views (the four outside faces of the building) show each wall at the height you set.

What's the minimum ceiling height allowed by code?

Under the International Residential Code (IRC R305.1), habitable rooms and hallways need at least 7 ft; bathrooms, toilet rooms and laundry rooms at least 6 ft 8 in. In a room with a sloped ceiling, at least half of the required floor area must be 7 ft or higher, and no part counted toward it may be under 5 ft. Local codes vary, so check with your building department; these are minimums, not comfortable heights.

Why did my wall heights reset?

You (or a template) changed the floor's ceiling height in Plan Settings → Ceiling, which sets every wall on the floor. Undo brings the individual heights back; otherwise select each wall and set it again.

Can one wall be taller than the ceiling height?

Yes. A wall's own height overrides the floor height; that's how a shed (one-way sloped) ceiling is made. Where it meets a lower wall, the corner takes the lower height.
