Sloped ceilings from wall heights
Raise the walls on one side and the ceiling slopes across the room. For a ridge (vaulted or cathedral), use the Vaulted Ceiling tool.
By default every floor has a flat 8-foot ceiling, but the ceiling meets each wall at that wall's height. Raise the wall on one side and the ceiling slopes one way across the room: a shed or lean-to ceiling, the classic look for an addition, a sunroom, a loft under a single-pitch roof or a modern great room. Each corner sits at the lowest height you've set on the walls that meet there; walls you leave on the floor's default don't pull it down.
Wall heights can't make a ridge. For a vaulted, cathedral or pyramid ceiling, use Build → Vaulted Ceiling instead (see vaulted ceilings). This page shows how to build the slope step by step, the one setting that flattens it by accident, the floor-wide ceiling height, and how to check headroom in 3D.
Step by step
- 1

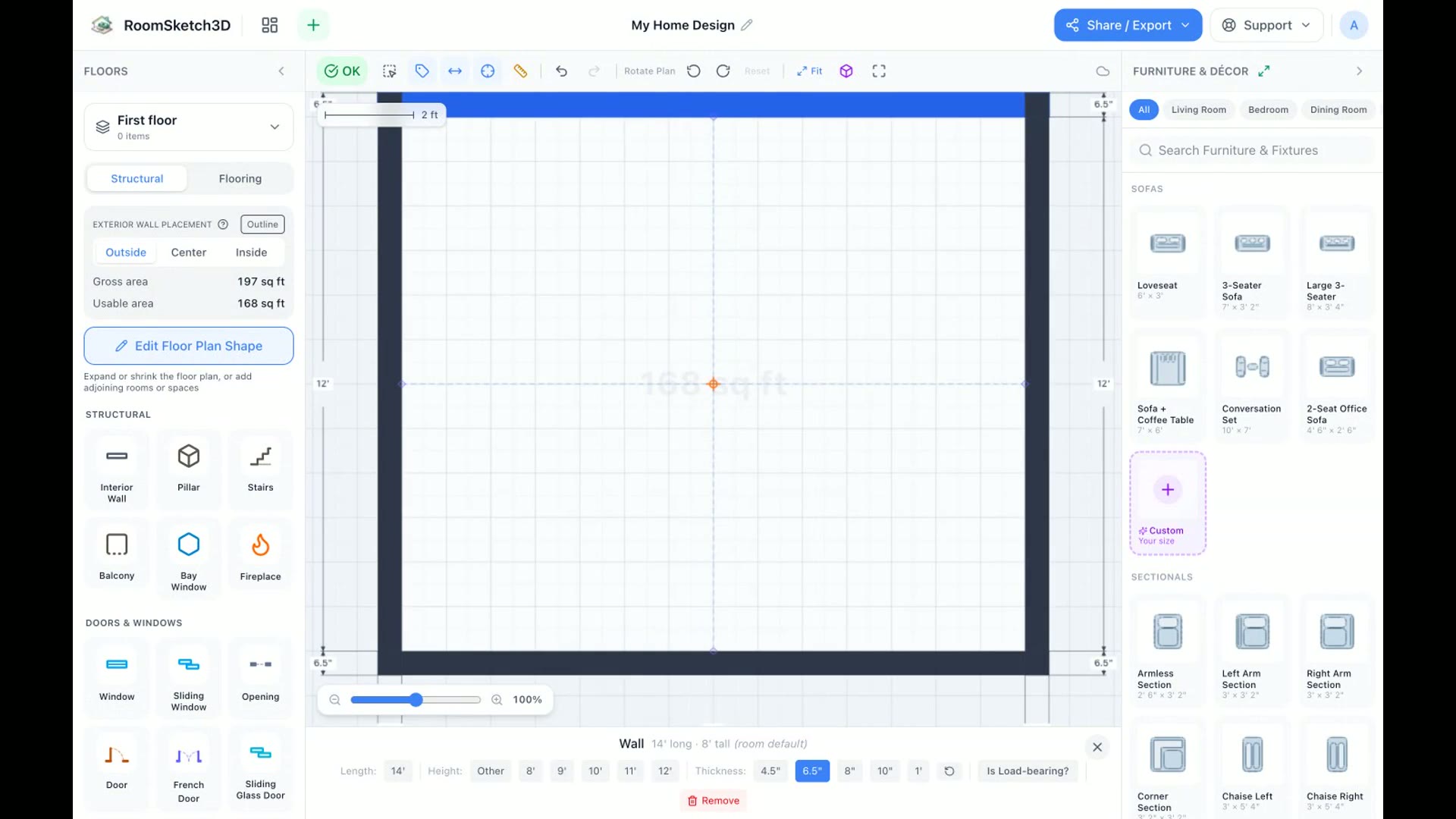

Select a wall and set its Height
Tap or click a wall on the plan. Its panel shows Height with presets 8′ 9′ 10′ 11′ 12′, plus a box with a pencil where you type any other height. A new wall follows the floor's ceiling height (the panel says room default); once you set a height, the panel shows it (for example 12′ tall) and a Default button appears that puts the wall back on the floor's height. Each wall sets the height of the ceiling along its own edge, so the walls you change are what tilt the ceiling.
Height presets run 8′ to 12′; Default puts the wall back on the floor's height. - 2
Raise one side for a shed ceiling
Raise the wall on the side you want high and leave the opposite wall alone. The two walls that run between them become sloped (lower at one end, taller at the other) and the ceiling tilts one way across the room: a shed or lean-to ceiling. How the corners are worked out: each corner takes the lowest height you've set on the walls that meet there. Walls you haven't set don't count, and a corner with no set walls sits at the floor's ceiling height. So in the Cozy Living Room template (about 14½ × 16½ ft), setting the back wall to 12′ lifts both back corners to 12′ while the front corners stay at 8′: the ceiling climbs 4 ft over about 16 ft, a slope of roughly 3 in per foot.
Back wall at 12′, front at 8′: the side walls slope and the ceiling tilts one way. - 3
Check the slope from outside

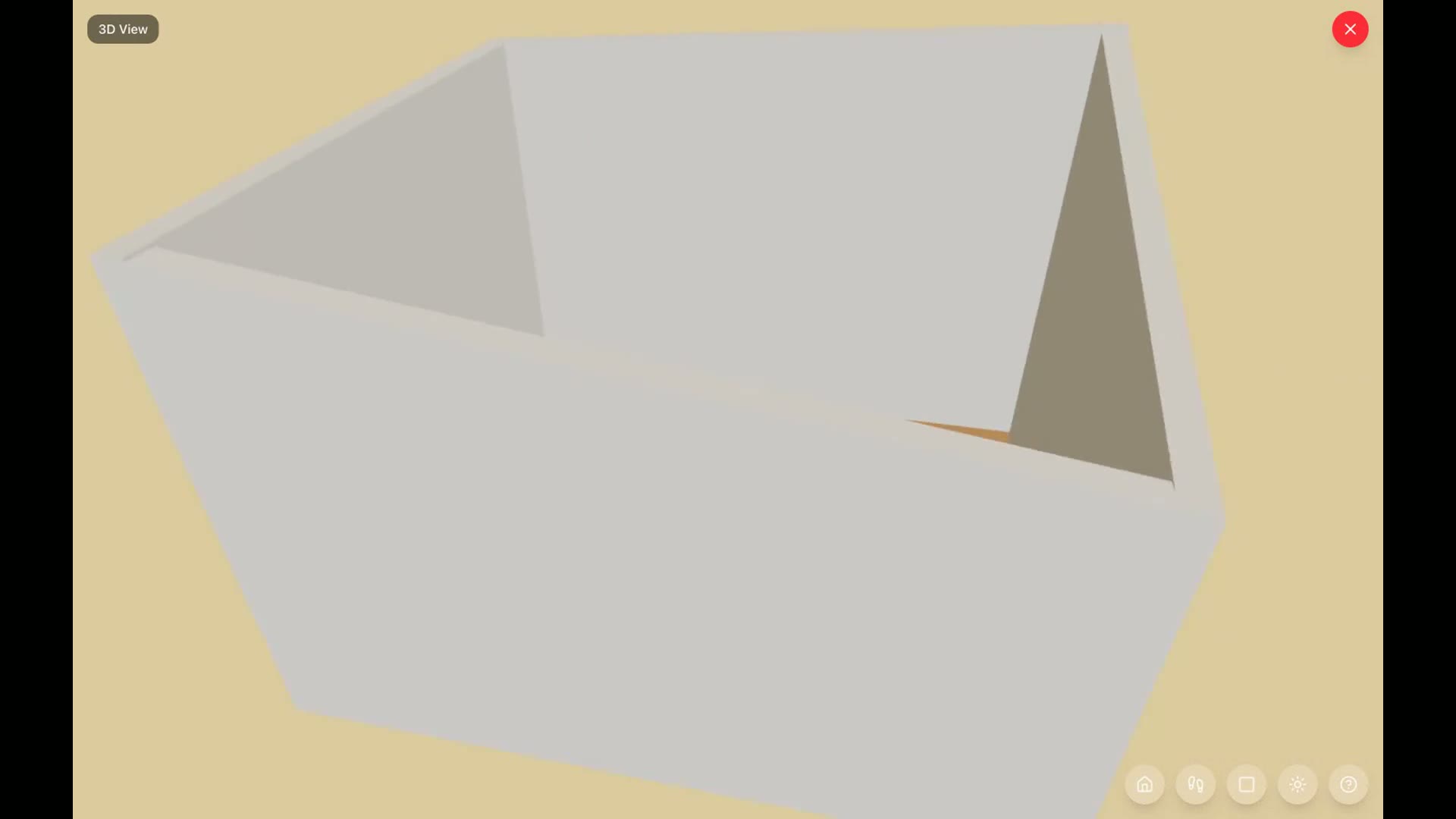

Orbit the 3D view round to a side wall. A shed ceiling is easiest to read from outside: the side wall is a slanted shape, short at the front and tall at the back. Open View options at the bottom right of the 3D view and tick Ceiling to show the ceiling itself, or use the walk-through to stand under it.
From outside, the side wall rises from the low wall to the high one. - 4
Leave the low walls on Default
If you also tap 8′ on the side walls, their height is now set, so the corners where they meet the 12′ wall drop to 8′ and the slope disappears (the high wall comes down to meet them). Keep the side walls on Default for a shed ceiling. To make the low side lower than the rest of the floor, set the low wall (for example 7′) and keep the side walls on Default.
- 5
For a ridge, use Vaulted Ceiling
Raising two opposite walls does not make a peak: every corner touches a raised wall, so the ceiling comes out flat at the new height. For a vaulted, cathedral or pyramid ceiling, use Build → Vaulted Ceiling, drag a rectangle over the room and set its Eave and Ridge. See vaulted ceilings.
- 6
Change the whole floor's ceiling instead
To make every room on a floor taller or shorter, open Plan Settings → Ceiling and type a new Ceiling height (6′ to 30′). Because it applies to the whole floor, the app asks first: Overwrite all wall heights? Tapping Set ceiling height sets every wall on the floor to that height and clears the heights you set on single walls, which also flattens any shed slope. Set the floor height first, then raise single walls. It can be undone.
A floor-wide ceiling height replaces every wall's own height, so it asks first. - 7
Check headroom under the low side
Flow Check doesn't test furniture height under a slope made with wall heights, so walk the low side in 3D and keep tall pieces (bookcases, wardrobes, bunk beds) toward the high side. Doors and windows are checked: if one is taller than its wall, Flow Check flags it. As a planning guideline, US house codes commonly ask for at least 7 ft of ceiling height in habitable rooms, with allowances for the low part of a sloped ceiling; the exact rules vary, so check with your local building department before you build.
Tips
Shed roof in two heights
For a shed (single-slope) ceiling, raise the walls on one side and leave the opposite side low. The ceiling tilts one way across the room.
Want a ridge? Use Vaulted Ceiling
Raising two opposite walls doesn't make a peak: every corner touches a raised wall, so the ceiling just comes out flat. For a ridge, drag a Vaulted Ceiling from the Build panel and set its Eave and Ridge. See vaulted ceilings.
Common mistakes
Expecting a warning under the low side
Smart Flow Check doesn't check furniture height under a slope made with wall heights, so a tall bookcase can poke through the low side without a warning. Check tall pieces in 3D and slide them toward the high side. (Under a Vaulted Ceiling, Flow Check does warn.)
Dropping a wall below its openings
If a wall's height falls below the top of a door or window in it, the opening no longer fits and Flow Check flags it. Raise the wall or lower the opening.
Frequently asked questions
What's the default ceiling height?
8 feet (96 in). Change single walls to create a slope, or set a different flat height for the whole floor in Plan Settings → Ceiling.
How do I make a vaulted ceiling?
Use Build → Vaulted Ceiling: drag a rectangle over the area, then set its Eave and Ridge (Cathedral, Angled or Pyramid). Different wall heights only make a one-way slope. See vaulted ceilings.
Why did my slope disappear?
Usually one of two things: you tapped a height on the low or side walls (a set height pins those corners, so the high wall comes down to meet them; tap Default on them), or you changed Plan Settings → Ceiling, which sets every wall on the floor to one height and clears single-wall heights. Undo brings it back.
Does the slope show in 3D and elevation views?
The slope shows in 3D. The elevation views show the four outside faces of the building, so you see the different wall heights from outside, not a cut through the ceiling.
Can each corner have its own height?
Not directly. Height is set per wall, and each corner takes the lowest height you've set on the walls that meet there (walls on Default don't count). That's why wall heights give a one-way slope, not a peak; for a peak use Vaulted Ceiling.
