Kitchen cabinets, configured like the real thing
Every cabinet's front is configurable — doors, bifold, drawers, a drawer over doors, glass, open shelving, handle side — plus curved end cabinets and L-shaped islands with a depth for each leg.
A kitchen reads right only when the cabinet fronts do. Base and wall cabinets in RoomSketch3D are fully configurable: pick the front style, the number of doors and drawers, which side the handles sit on, and how many shelves live inside — the door count even fills in automatically from the cabinet's width.
Step by step
- 1
Place a cabinet
Search the catalog for cabinet and add the size you need — base cabinets from 12" to 36", plus wall, tall, corner, sink, and appliance cabinets.

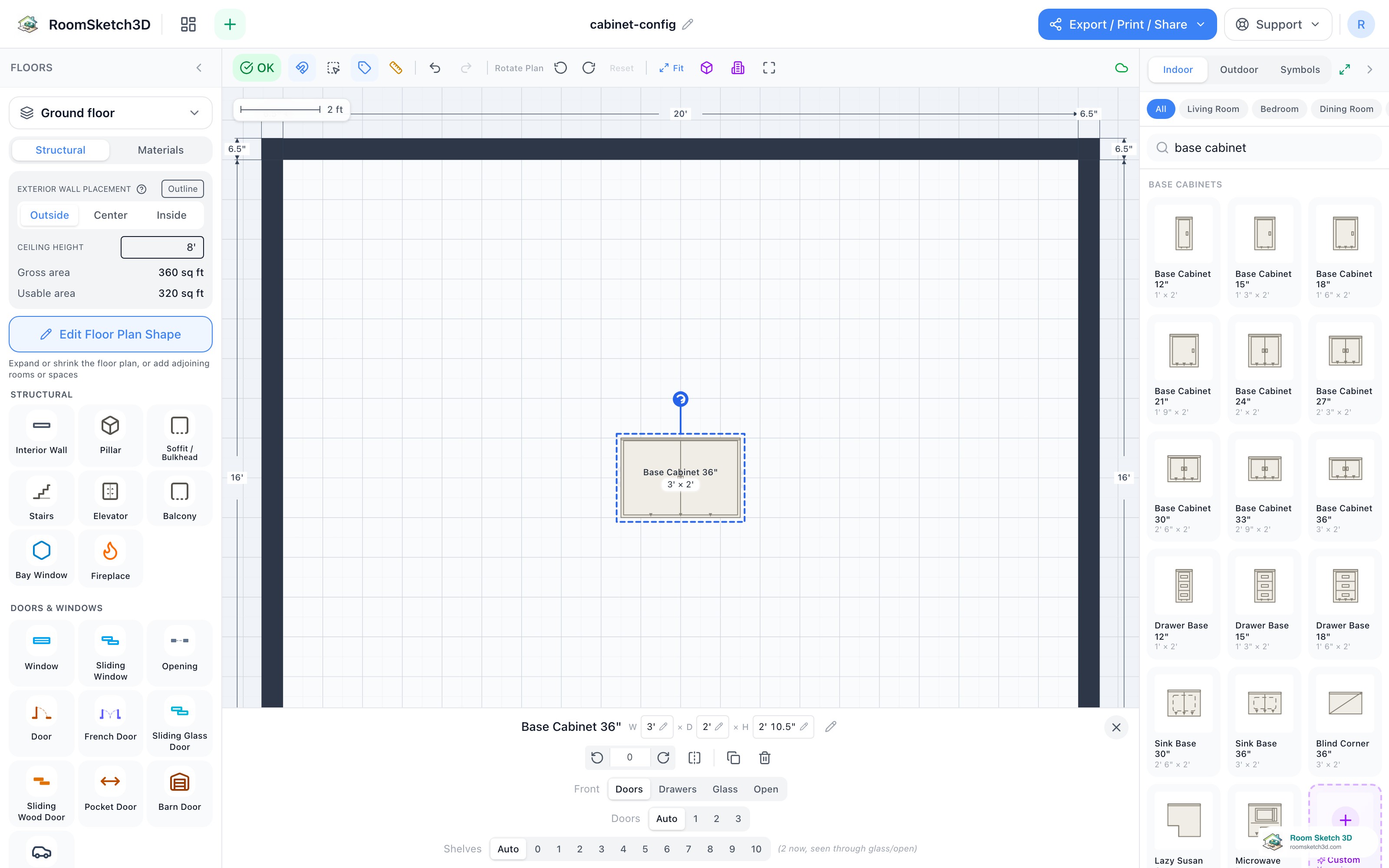

Select any cabinet to open its configuration options. - 2
Pick the front
Open the cabinet's Doors & Shelves tab. Front offers Doors, Bifold, Drawers, Glass and Open. A 36-inch base shows two doors automatically; switch it to Drawers for a pot-drawer run, or Bifold for doors that fold in pairs (drawn with a fold mark on the plan and as folding pairs in 3D).
- 3
A drawer over doors
For the classic base cabinet with a drawer across the top and doors underneath, set Front to Drawers, then turn on Doors below (Drawers on top, doors below). You get one drawer on top (pick two with the drawer count) and doors under it that follow the cabinet's door count and handle side. Base cabinets only; wall cabinets don't have it.
- 4
Set handles and shelves
Choose the handle side for single-door cabinets (think about which way you'll stand) and the number of interior shelves — visible through glass fronts.
- 5
Corner cabinets too
Corner (lazy-susan) cabinets take their own door styles — bi-fold double, single angled panel, glass, or open — and the cabinet reshapes to match.
- 6
Microwave cabinets
The microwave wall cabinet holds a real microwave you can Show or Hide in its inspector, and the microwave-drawer cabinet sits in a proper base cabinet at counter height — not floating. Use them to place the appliance exactly where it goes in the run.
- 7
Curved ends: quarter-round and half-round
To finish a run with a curve instead of a square end, search curved, half round or half moon. The kitchen has a Quarter-Round End Base and a Half-Round Base (both with countertop) and matching Quarter-Round End Wall and Half-Round Wall cabinets. Their front choices are two curved doors meeting in the middle, one curved door, a curved glass door, or open curved shelves. Size them like any cabinet: a 4 ft × 4 ft quarter-round makes a curved bar end. For other rooms there's a Quarter-Round Corner Cabinet and a Half-Moon Cabinet.
- 8
L-shaped islands: a depth for each leg
Select an L-Shaped Island and its panel shows Leg A and Leg B (the length of each arm) and Depth A and Depth B (how deep each arm is), so a deep seating side can sit next to a narrower work side. The plan marks which side is Leg A and which is Leg B while it's selected. L-shaped desks work the same way. Small / Medium / Large quick sizes are hidden for L-shaped pieces, and Flow Check sees the L exactly as drawn, so a stool tucked into the open corner isn't flagged.
- 9
Appliance garage & angled ends
For the awkward spots: an appliance garage (a counter-top cabinet with a roll-up front to hide the toaster and kettle), angled end cabinets in chamfered or diagonal styles to soften the end of a run, and a corner pantry for the deep corner. Drop them in like any cabinet and they carry the same front and finish options.
- 10
Choose the countertop
A base cabinet's panel has a Counter Top tab next to Finish, Hardware and Doors & Shelves (on a phone, tap More options first). Tap the Countertop button there to pick from 16 materials — quartz, marbles, granites, travertine, terrazzo, butcher blocks, concrete, stainless, laminate — and Apply it to that cabinet or Apply countertop to all cabinets & islands for the whole kitchen. Islands and sinks show the Countertop button straight in their panel. Full walkthrough: change the countertop material.
- 11
Review in 3D
Switch to 3D — fronts, handles, glass and countertops render exactly as configured, so the kitchen elevation you show a cabinet maker matches your spec.
Tips
Mix door and drawer bases
Real kitchens alternate: doors under the sink, drawers by the range, a drawer over doors everywhere else. Configure each base separately for a kitchen that reads professionally.
Frequently asked questions
How do I change the countertop?
Select a base cabinet or island and open its Counter Top tab (islands show the Countertop button straight in the panel). Tap Countertop, pick a material in the gallery and tap Apply, or Apply countertop to all cabinets & islands to re-top the whole kitchen. See the countertop guide for the full walkthrough, including vanities.
Can a base cabinet have a drawer above the doors?
Yes. In Doors & Shelves set Front to Drawers and turn on Doors below. One drawer goes across the top (or two), with doors underneath.
Are there bifold cabinet doors?
Yes: Bifold is one of the Front options on base and wall cabinets. For closets, wardrobes, tall pantries and vanities it's the Door style choice (Hinged or Bifold).
Can I make a curved end on a cabinet run?
Yes. Search curved or half round: the Quarter-Round End Base and Half-Round Base (and their wall-cabinet twins) finish a run with a curve.
How do I make one arm of an L-shaped island deeper?
Select the island and set Depth A and Depth B separately; Leg A and Leg B set the length of each arm. The plan labels which leg is which.
How do I add upper (wall) cabinets, and why does Flow Check flag them?
Wall cabinets are their own items — Kitchen tab → Wall cabinets — with a mount height, so they hang above the base run and don't collide with it. An overlap warning between two cabinets means both are floor-standing (two base cabinets, or a base cabinet under a countertop item); swap the upper one for a Wall Cabinet and the warning goes. Wall cabinets show in 3D and in elevation views at their mounted height.
How do I add a kitchen island?
Kitchen tab → Islands (or search 'island'), drop it in, then set its exact width and depth in the inspector and rotate it to run with the room. Keep 36–48 inches of walkway on every working side — measure it with the tape-measure tool. Islands take the same fronts, handles, and finishes as the other cabinets. Sizing and clearance guidance is in the Kitchen island placement guide.
