Exact sizes for anything — furniture, windows, doors, fireplaces
Nothing in your plan is stuck at a preset size: select any piece or fixture and type its real measurements.
Real rooms hold real furniture: the 78-inch sofa you already own, the 30-inch vintage dresser, the odd-sized window in a 1920s house. Every furniture piece, window, door and fireplace in RoomSketch3D takes exact measurements, typed in feet and inches or metres and centimetres (whichever units your design uses). Nothing is locked to the catalog size.
Why it matters: catalog sizes are typical, not yours. A sofa listed at 7 ft that really measures 6 ft 6 in gives you 6 more inches of walkway, and Smart Flow Check judges every clearance from the footprint you enter. Typing the true size is what makes the answer to will it fit? trustworthy.
This page covers where the size fields are, how the two-box feet-and-inches entry works (and the one slip that turns 24 inches into 24 feet), windows and their sill height, doors and fireplaces, and how to double-check a size in the elevation view.
What you'll need
- •A design with at least one furniture piece or wall fixture
- •A tape measure and the real sizes of the pieces you own
Step by step
- 1
Select the piece

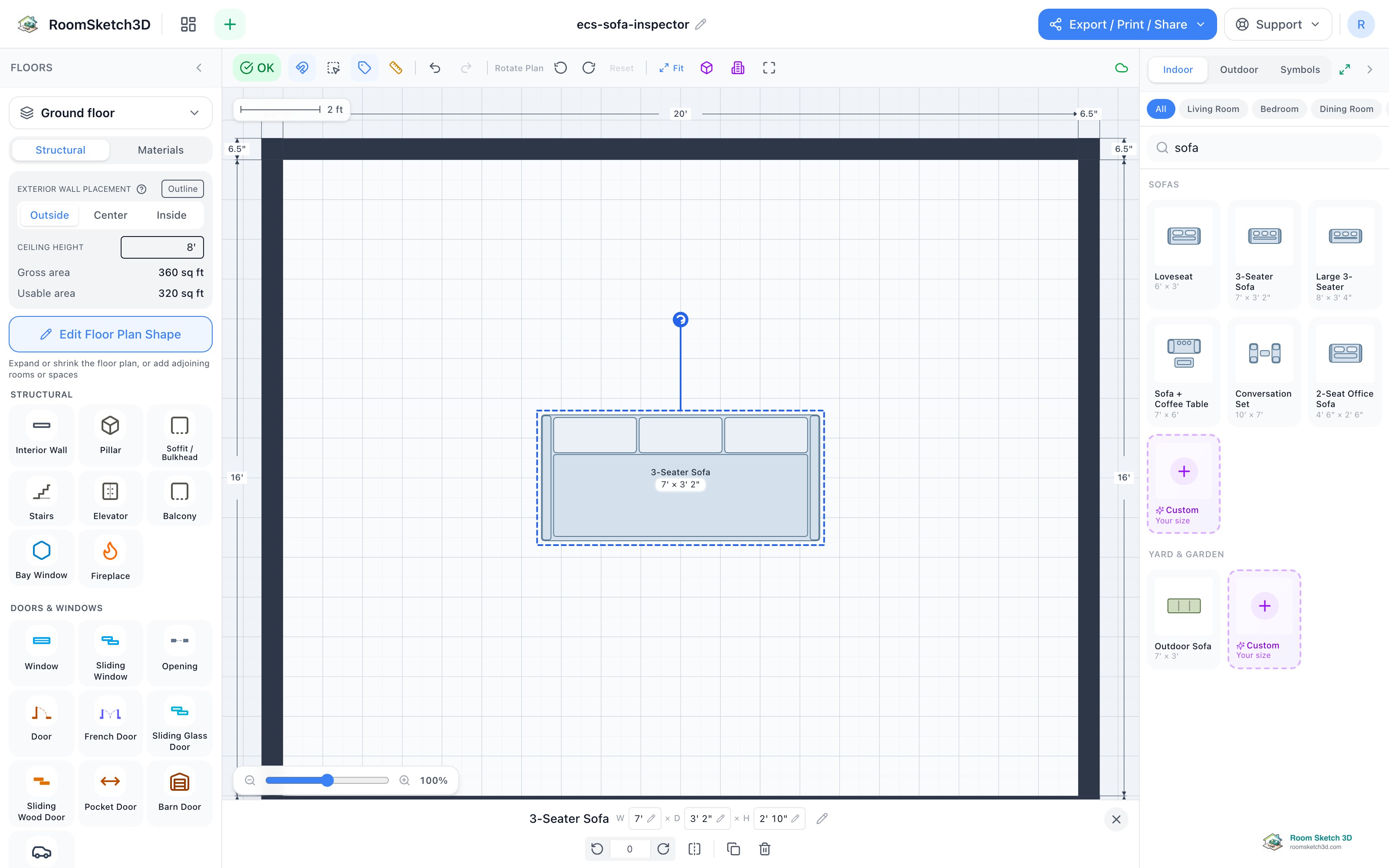

Tap the piece on the plan. If several items overlap at that spot (a sofa standing on a rug, say), a Select item list pops up: pick the one you mean. The inspector opens with the piece's name and three size pills: W (width), D (depth) and H (height), each showing the current size next to a pencil icon.
W × D × H sit at the top of the inspector; the pencil means you can type over it. - 2
Type the real measurements
Tap a pill and it opens as two boxes: ft and in (or m and cm in a metric design). Type each part, then press Enter or tap the green tick; the cross cancels. To make a 7 ft sofa 6 ft 6 in (78 in), type 6 in the ft box and 6 in the in box. A value outside the range allowed for that kind of object shows Min or Max with the limit instead of saving.
Feet in the first box, inches in the second: 6 ft + 6 in = 78 inches. - 3
Check the result on the plan
The piece redraws at the new size in 2D and 3D straight away, and the pill now reads 6' 6". Quick sizes (Small, Medium, Large) jump to the catalog's preset sizes; once you type your own size none of them stays highlighted, which is a quick way to see that a piece has a custom size. Smart Flow Check re-checks clearances against the new footprint.
The sofa is now 6' 6" wide on the plan, and no Quick size is highlighted. - 4
Windows: width and height

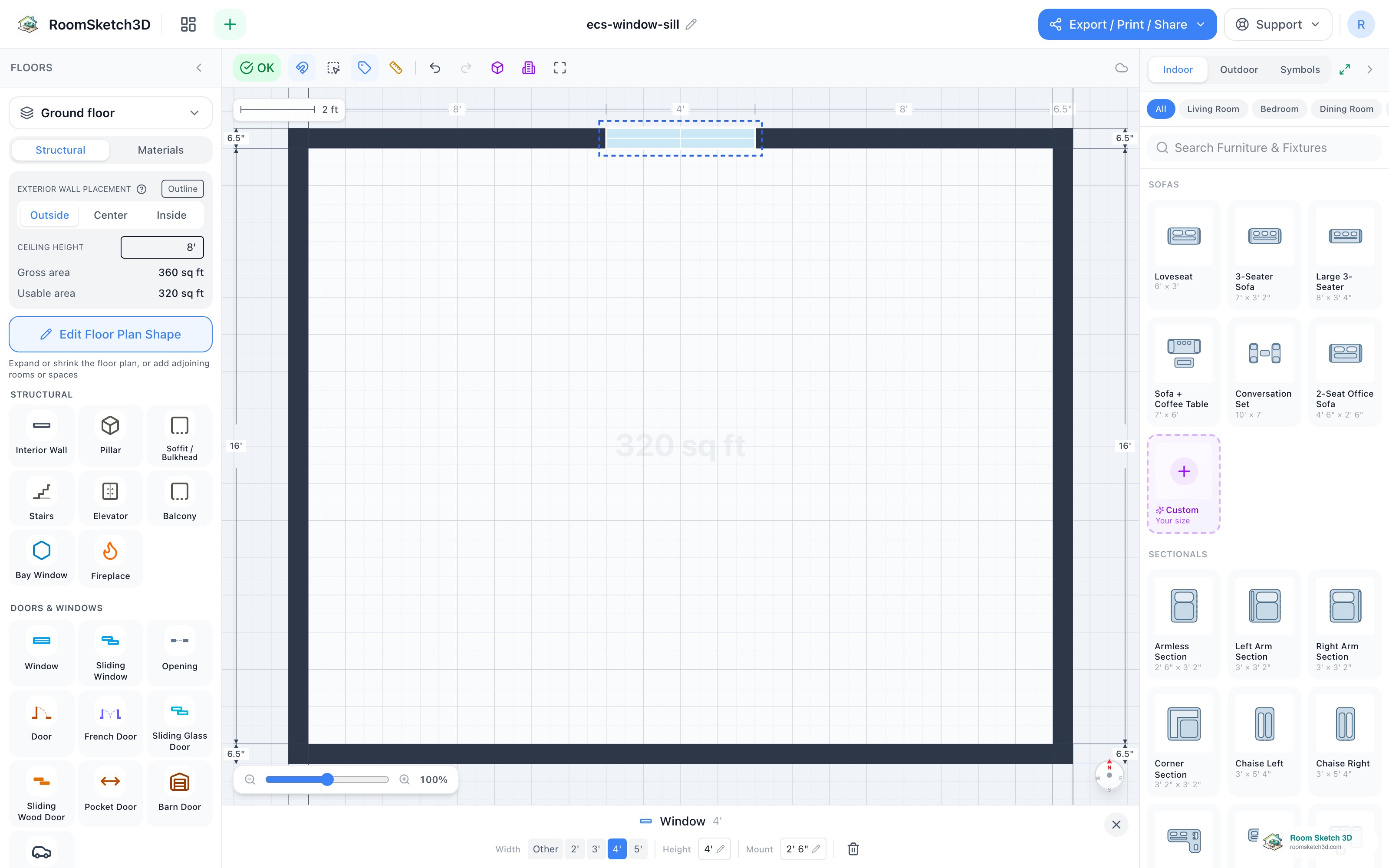

Tap a window and its settings open (a floating card on a tablet or computer, a panel along the bottom on a phone). Width offers quick buttons (2', 3', 4', 5') plus Other for any size: tap Other and type feet and inches as above. Height is the height of the window opening. Measure the opening inside the frame, not the outside of the trim.
Other opens the ft + in boxes for a window that isn't a stock width. - 5
Windows: sill height (Mount)
Mount is the sill height: how far the bottom of the window sits above the floor (its tooltip reads Window sill height from the floor). The two Along wall boxes (with arrows ← → or ↑ ↓) place the window along the wall. Living-room windows often sit about 2 to 3 ft up; over a kitchen counter (36 in tall) the sill has to clear the counter and backsplash; bathroom windows go higher for privacy. A bedroom window that serves as the emergency escape opening has a maximum sill height under US codes based on the International Residential Code (commonly 44 in above the floor), so check your local code before you set it high.
Mount = sill height. Here the window sits 2' 6" off the floor. - 6
Doors and fireplaces too
Every door type (hinged, French, sliding, pocket, barn, garage) takes a custom height as well as a width, and fireplaces accept custom dimensions. The 3D view and your exports use the exact sizes.
- 7
Double-check in the elevation view
Open Elevation views (the building icon in the toolbar above the plan) and pick the side with the window. The straight-on drawing dimensions the window's width, its sill height and its head height, so a typo shows up at once. In this example the 3' 10" window sits 2' 6" off the floor with its head at 6' 6". See Elevation views.
One look confirms the width, the sill and the head height.
Tips
Measure twice, type once
For furniture you own, measure the widest points: arms on a sofa, handles on a dresser, the overhang of a tabletop. That's the footprint that matters for fit.
Depth includes everything that sticks out
A sofa's depth runs from the back to the front of the seat cushion; a recliner needs its reclined depth too. Enter the real depth so the walkway Flow Check measures is the one you'll actually have.
Think in inches? Switch the format
If you'd rather type 78 than 6 + 6, set Settings → Measurements & Defaults → Measurement format → Inches only. Size fields then have a single box, and a plain number means inches.
Use Quick sizes to explore, then type
Small / Medium / Large are a fast way to try options while planning a purchase. Once you buy, type the real dimensions from the product page.
Common mistakes
Typing inches into the feet box
With Feet and inches, the first box is feet: 24 there means 24 ft (288 in). Put 2 in the ft box and 0 in the in box, or switch to Inches only.
Forgetting the sill height after resizing a window
A window with the wrong Mount looks fine from above but wrong in 3D and in elevations, and furniture under it may not fit. Check Mount every time you change a window's height.
Measuring the trim instead of the opening
Window and door casings add a few inches on each side. Type the opening size; the trim is drawn for you.
Frequently asked questions
Do custom sizes survive in exports?
Yes. 2D exports, PDFs, the AutoCAD (DXF) file and the 3D model all use your exact dimensions.
I typed 24 and the window became 288 inches. Why?
Your measurement format is Feet and inches, so the first box is feet: 24 became 24 feet, which is 288 inches. Type 2 in the feet box and 0 in the inches box for a 24-inch piece, or switch Measurement format to Inches only (Settings → Measurements & Defaults → Measurement format) if you think in inches. The same applies to furniture and doors.
Where are the size fields on a phone?
Tap the piece and the inspector opens as a sheet at the bottom of the screen. The size chips (W, D, H, or width, height and Mount for a window) are in that sheet; tap a chip, type the value, and tap Done or the tick to commit it. Swipe the sheet up if a field is hidden.
Is there a size limit?
Each kind of object has a sensible minimum and maximum. Go past one and the box shows Min or Max with the limit instead of saving, so nothing ends up at an impossible size by accident.
Can I get the catalog size back?
Yes. Tap Small, Medium or Large under Quick sizes to snap back to a preset, or use Undo.
