Wall-mounted air conditioning — mini-splits and PTAC units
Model the AC you'll actually install: high-wall mini-split heads, low floor consoles, or through-wall PTAC units.
Ductless air conditioning takes up wall space you should plan around: a mini-split head high on the wall, a floor console down low, or a PTAC through the wall under a window. RoomSketch3D has each one as a wall unit you tap onto a wall, with its own width, height, depth and mounting height, so you can see in 2D and 3D whether art, shelving, curtains and furniture still fit.
This page covers finding the units, placing them, setting the mounting height, putting a PTAC under a window, and the clearances to keep. The heights and gaps below are common guidelines; the installation manual for your exact model has the numbers your installer must follow.
Step by step
- 1
Find the unit in the catalog
In the furniture catalog, search mini split, PTAC, ductless or air conditioner. The Air Conditioning group shows four units: Mini-Split (Wall) 2' 9" wide, Mini-Split (Floor Console) 2' 4" wide, PTAC Unit 3' 6" wide and Portable AC. Tap the one you'll install, then +Add. The first three are wall units; Portable AC is an ordinary floor piece you drag into place.
Each tile shows the unit's width × height. - 2
Tap the wall where it mounts
A wall unit goes into placing mode, with the prompt Mini-Split AC: tap a wall to place it (or PTAC Unit: …). Move over a wall and a green preview with its name and distances follows the pointer; tap to place it. It works on outside and interior walls. Pick the spot with airflow in mind: a mini-split head throws air across the room, so aim it along the room rather than straight at the bed or sofa, and keep tall furniture from boxing it in.
The green bar shows where the head will go before you tap. - 3
Set the mounting height and size
Once placed, the unit's settings (a floating card on a tablet or computer, a panel along the bottom on a phone) have Width presets (2' 4", 2' 9", 3' 6" for the wall head) and Other, the two Along wall distances to the nearest wall or opening on each side (boxes marked ← → or ↑ ↓) to type an exact position, Height, D (how far it sticks out, 4"–24"), Mount (the height of the unit's bottom edge above the floor) and Side (This or Other face of an interior wall). The wall head starts with Mount 6' 8": on an 8 ft ceiling the top of its 12"-tall body sits 4" under the ceiling (heads placed before November 3, 2026 started at 7' and touch an 8 ft ceiling; lower those). Here it's 6' 6", leaving 6" clear.
Mount is the bottom edge; the top of the unit is Mount + Height. - 4
Check the height in 3D
Open View in 3D: each unit is a box with a louvred front, standing out from the wall by its D at its Mount height. The wall head sits up near the ceiling, clear of the dresser and the art zone below it, which is the check that matters: anything you plan to hang on that wall has to fit under the head.

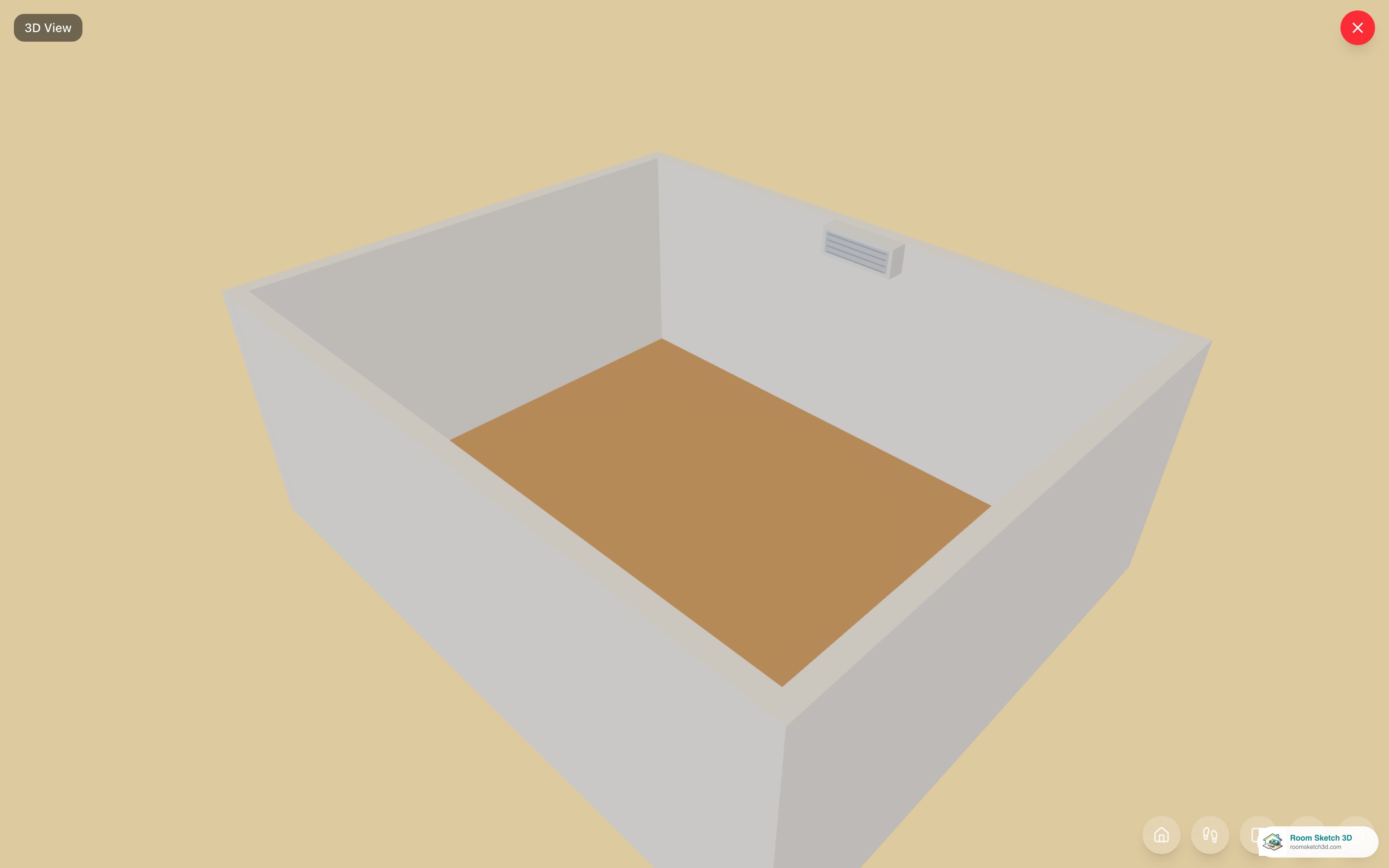

The head at 6' 6" to its bottom edge, with 6" of open wall above it. - 5
Put a PTAC under a window
A PTAC Unit (packaged terminal air conditioner, the hotel-room type) goes through the wall near the floor, usually under a window. To put it there, tap the wall right below the window while placing it, or type its Along wall distance: it starts at Mount 6", 16" high and 16" deep, so it fits under a window with a 30" sill, and the typed distance is accepted (a distance that would put it on a door is still refused). Keep the floor in front of it clear: the bed here is close enough to block its airflow. Flow Check flags furniture that overlaps a wall unit, but not a gap that's merely too small, so look in 3D.
The PTAC under the window, 6" off the floor. The bed beside it is too close for good airflow. - 6
Type the position, and let Flow Check catch overlaps
In the Medium 2-Bedroom Apartment, a 3' 6" PTAC placed on the top wall of the left bedroom was moved under the window by typing 2' 3" in the ← box under Along wall (the box splits into ft and in; tick ✓). Flow Check then flagged an issue: the bed, outlined red, stands where the unit sits. Move the furniture, or the unit, until it's clear.
Along wall ← 2' 3" puts the PTAC under the window; Flow Check flags the bed it overlaps.
Tips
Leave space above a mini-split head
Wall heads draw room air in through the top, and installation manuals ask for clear space above them (a few inches; your model's manual gives the figure). The app's head is 12" tall and starts with its bottom at 7 ft, which meets an 8 ft ceiling, so set Mount to about 6' 6" there. With a 9 ft ceiling the default 7 ft leaves a foot of space.
Keep the sides and front clear
Leave several inches of open wall at each side of a head (manuals list a minimum for each side), and don't put tall shelving right under or in front of it. A floor console and a PTAC need open floor in front: no sofa, bed or desk against the grille.
Measure the PTAC to the sleeve
Most PTACs fit a standard wall sleeve about 42" wide and 16" high, which matches the app's default PTAC Unit. Check your sleeve and use the Width presets (3', 3' 6", 4') or Other for a different size.
Use Side on interior walls
On an interior wall, Side puts the unit on This face or the Other face, so a head can serve the room on either side of a partition.
Common mistakes
Leaving an older head touching the ceiling
A new wall head starts at Mount 6' 8", so its 12" body tops out 4" under an 8 ft ceiling. Heads placed before November 3, 2026 started at 7 ft and keep it, which puts the top right at an 8 ft ceiling; real heads need a gap for air intake, so lower Mount on those.
Hanging art where the head goes
Place the head first, then plan art, TVs and shelves below it. In 3D it's easy to see whether a frame or a tall bookcase runs into it.
Blocking a console or PTAC
Both blow air out low. A bed, sofa or dresser pushed against the front cuts the airflow, and Flow Check flags a piece that overlaps the unit, but not one standing a few inches in front of it, so check in 3D.
Typing a position that lands on a window
Typing an Along wall distance is refused when it would put the unit on a door or overlapping a window at the same height. A PTAC (6" to 22" off the floor) fits under a window with a 30" sill, so typing its distance there now works, like tapping that spot does.
Frequently asked questions
How do I find the AC units?
Search the catalog for mini split, PTAC, ductless, heat pump or air conditioner. The Air Conditioning group has Mini-Split (Wall), Mini-Split (Floor Console), PTAC Unit and Portable AC.
How high does a mini-split go?
In the app, the wall head starts with its bottom edge at 6' 8" and is 12" tall (4" clear under an 8 ft ceiling); change Mount to match your plan. Installers commonly mount heads near the top of the wall with a few inches of space above for air intake; your model's installation manual gives the exact clearances.
What are the default sizes?
Mini-Split (Wall): 33" wide, 12" high, 8" deep, bottom at 6' 8". Mini-Split (Floor Console): 28" wide, 24" high, 8" deep, 6" off the floor. PTAC Unit: 42" wide, 16" high, 16" deep, 6" off the floor. Portable AC: 18" × 15", 30" tall, on the floor.
What's a PTAC?
A packaged terminal air conditioner: a self-contained unit that sits in a sleeve through the outside wall, the type used in hotel rooms. It mounts low, usually under a window, and vents outdoors through the wall.
Is there an outdoor condenser in the catalog?
No. A mini-split's outdoor unit isn't in the catalog yet; mark its place outside with a note or a box from the catalog.
Do the units show in exports?
They show on the plan, in PNG/PDF exports and in 3D, and since November 3, 2026 the DXF (CAD) export puts them on their own HVAC layer.
Does Flow Check look at AC units?
Yes. Furniture that reaches up to a wall unit is flagged (Full/Double Bed & PTAC Unit overlap); a low piece under a high mini-split isn't.
Is there an air purifier?
Yes, two, in the same Air Conditioning group: Air Purifier (Tower), 16" × 9" and 24" tall, and Air Purifier (Compact), an 8.5" round canister 8" tall. Search purifier, air filter, HEPA or air cleaner. They stand on the floor; resize either in its panel to match your own unit.
