Adding and positioning windows
Place windows on any wall and size them — they show up in the 2D plan and the 3D view, and Flow Check keeps space in front of them.
Place windows on any wall in two clicks. Set width and position; Smart Flow Check keeps clearance in front of them.
Windows decide more of a layout than people expect: where the sofa can go without its back to the light, which wall a bookcase or wardrobe can stand on, where the bed goes in a small bedroom. Getting them in the right place, at the right size and sill height, is worth doing before you furnish. This page covers adding each kind, typing an exact position and size, what Flow Check checks in front of a window, and the building-code numbers (light, ventilation and bedroom escape windows) worth knowing while you plan.
Step by step
- 1
Pick a window type
Open the Build panel (on a phone, tap Structural & Interior under the plan). A standard Window and a Sliding Window (horizontal slider) are in the Doors & Windows section. A bay window is the Bay Window tile in the Structural section: tap it and pick Regular (bumps out from one wall) or Corner (wraps two walls at an outside corner). Bay windows go on outside walls only. See bay and corner bay windows.
Tile Section Use it for Window Doors & Windows Casement, double-hung, picture or any hinged/fixed window Sliding Window Doors & Windows A horizontal slider; the plan shows which way it slides Bay Window → Regular / Corner Structural A window that pushes out of the wall, with its own alcove Window and Sliding Window are in Doors & Windows; Bay Window is in Structural. - 2
Click the wall
Click on the wall where the window goes. The window lands at a default position; drag along the wall to reposition it. While you place, move or select it, the plan hides its other measurements and shows just its distance to the nearest corner (or wall meeting this one) on each side. A new standard window is 4 ft wide and 4 ft tall with its sill 2 ft 6 in above the floor (Mount), a common living-room size; change any of them in the next steps.
A standard window placed on the wall, drawn to scale and dimensioned. - 3
Put it an exact distance from the corner
Select the window and tap one of its two distances on the plan, type the one you want (for example 2 ft 0 in, or 60 cm) and press Enter: the window moves so that side reads exactly that. The box that opens also has a Center button, which puts the window halfway between the two ends. In the window's settings the same numbers sit under Along wall, each box with an arrow pointing the way it measures: ← / → on a wall that runs across the plan, ↑ / ↓ on a wall that runs up and down it. Tap one to type it. Typing a new number of feet resets the inches to 0. See the same steps for doors, with pictures. In the picture, the 4 ft window on the top wall of the left bedroom in the Medium 2-Bedroom Apartment is typed 2 ft from the left corner; the app works out the other side for you (4 ft 6½ in, to the bedroom wall). Measure your real window the same way: from the inside corner of the room to the edge of the window opening (not the trim).
Along wall ← 2': the plan shows 2' on one side and 4' 6.5" on the other. - 4
Set width and height
Select the window and, in its settings, tap Width or Height and type the value. Mount is the sill height above the floor. A bay window's settings name its size differently: Chord is its width along the wall and Project is how far it pushes out. Width has quick buttons for 2', 3', 4' and 5', and Other to type any size. On a wall that runs up and down the plan the Along wall arrows point ↑ and ↓ instead of ← and →. The same settings have Treatments: pick curtains, a blind, a shade or a valance and tap Add treatment to hang it on this window (see window treatments curtains blinds shades).
On an up-and-down wall the Along wall arrows point up and down. - 5
Sliding windows
A Sliding Window places the same way. On the plan it's drawn with arrows showing which way the sash slides, so you can see which half opens. Sliders open only about half their width, which matters for ventilation and for a bedroom's escape window (below): a 5 ft slider gives roughly a 2½ ft wide opening.

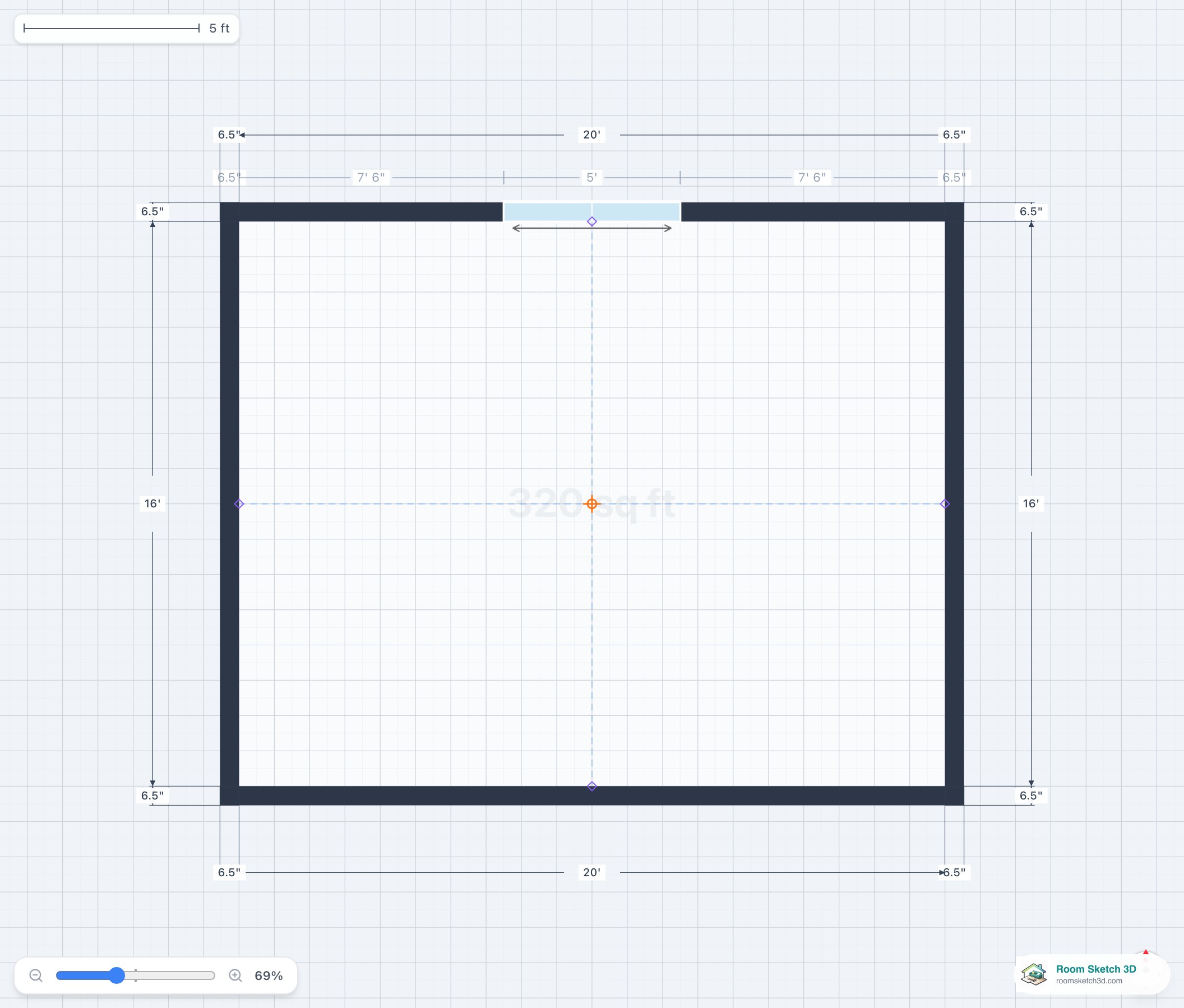

A sliding window sized to 5 ft — the arrows show which way it slides. - 6
Keep the window clear (Flow Check)
Smart Flow Check watches the strip in front of every Window and Sliding Window: the window's width, 18 in deep into the room. A piece 48 in tall or more standing in that strip (a bookcase, wardrobe, tall cabinet) gets the warning Tall Bookshelf blocks a window: Tall furniture covers a window — natural light and views are limited. Low pieces (a sofa, a bench, a desk, a radiator) don't trigger it, and curtains and blinds never do. It covers Sliding Window too, and bay windows: a tall piece inside a bay's alcove or within 18 in of the opening the bay cuts in the wall gets the same warning. In the picture a 7 ft tall bookshelf has been pushed against the wall right under the new window (and onto the TV console, the second warning). Slide it along the wall past the window's edge and both warnings clear.
A tall bookshelf in front of the window: Flow Check warns that it blocks the light. - 7
Verify in 3D
Switch to 3D View. Windows render with glass and frame; daylight changes how the room reads. Adjust position if it feels wrong. The 3D view is where a blocked window really shows: here the same bookshelf covers most of the glass. Check sill heights too: a window that looked fine on the plan may sit right behind a sofa back or a desk lamp.
In 3D the problem is obvious: the bookshelf covers most of the window.
Tips
10–20% of floor area as glazing
Total window area should be 10–20% of the room's floor area for normal daylight. Below 10% feels dark; above 20% gets glass-heavy. (That's a common design guideline; the code minimum for a habitable room is 8%, see the FAQ.)
Mind bedroom egress
Bedroom windows must meet egress requirements (usually 5.7 sq ft openable). Sliding windows commonly do; small fixed windows don't.
Plan furniture against the window wall last
Put the windows in first, then furnish. Low pieces (a bench, a sofa, a desk) are fine under a window; keep tall ones on solid wall, and Flow Check tells you when one strays in front of the glass.
Line windows up with the room
Use Center in the distance box to centre a window on a wall, or type matching Along wall values so windows on the same wall line up. It reads much calmer from outside and inside.
Common mistakes
Measuring to the trim instead of the opening
Window positions and widths are the opening in the wall. Casing and trim add a few inches each side; measure from the corner to the edge of the glass frame or rough opening, or your furniture spacing will be off by the trim.
Forgetting the sill height
A window 2 ft 6 in off the floor sits behind a sofa back (about 30–34 in tall); one at 3 ft clears most desks. Set Mount to the real sill height before you plan what goes under it.
Frequently asked questions
What window types can I add?
Window and Sliding Window (Build → Doors & Windows), plus bay windows, Regular or Corner (Build → Structural → Bay Window). See windows overview for the full guide.
How do I add a bay window?
Build → Structural → Bay Window → Regular, then tap an outside wall. For a Corner bay, tap one outside wall, then the adjoining wall that lights up. The bay carves the wall for you and renders in 3D with its alcove. See bay and corner bay windows.
How do I remove a window without deleting the wall?
Select the window and press Delete, or tap the trash button in its inspector. Only the window goes — the wall is untouched. To move it to another wall instead, drag it; it snaps to the new wall.
How much window does a room need by code?
The International Residential Code (R303.1) asks habitable rooms for glazing of at least 8% of the floor area, and an openable area of at least 4% for natural ventilation (there are exceptions with mechanical ventilation and artificial light). A 12 × 14 ft bedroom (168 sq ft) needs about 13.4 sq ft of glass, roughly one 4 × 4 ft window. Local codes vary; check with your building department.
What makes a bedroom window an escape (egress) window?
Under IRC R310, every sleeping room and basement needs at least one emergency escape and rescue opening: a net clear opening of at least 5.7 sq ft (5 sq ft at grade-floor level), at least 24 in clear height and 20 in clear width, with the sill no more than 44 in above the floor. In RoomSketch3D set the window's Mount to its real sill height and check it's 44 in or less. Local codes vary.
Does Flow Check flag a sofa under a window?
No. Only pieces 48 in tall or more within 18 in of the window are flagged. A sofa, bench or desk under a window is a normal layout.
Sources
- 2021 International Residential Code — R303.1 habitable rooms (natural light and ventilation) — Glazing at least 8% of floor area; openable area at least 4%. Unamended 2021 IRC as adopted by Colorado, read on UpCodes. Local codes vary.
- International Residential Code (IRC) 2021, R310 — emergency escape and rescue openings (Boulder County Building Publication B10) — 5.7 sq ft net clear opening (5 sq ft at grade floor), 24 in clear height, 20 in clear width, sill no more than 44 in above the floor.
