Garage doors
The overhead-track door that defines a garage's frontage. Three layouts (single, double, triple), standard widths, and where they live in RoomSketch3D — exterior wall only, because the inside-vs-outside boundary is what they bridge.
A garage door is the largest opening on most residential exterior elevations. A two-car garage's main door is typically 16–18 feet wide, and a 3-car garage can run 30+ feet of continuous door across the front. Beyond width, the choice between one wide door and multiple narrower doors is structural, aesthetic, and functional all at once.
RoomSketch3D supports 1-, 2-, and 3-door garage layouts on a single tile. Pick the count with the Doors buttons (1 / 2 / 3) in the garage door's settings; each door's width can be edited on its own, so a realistic asymmetric layout (one wide two-car door plus a smaller single-car door beside it) is one tap and two widths. Garage doors live on outside walls only, because a garage door bridges the inside/outside boundary by definition.
Detached garage? Build it first with Build → Detached unit: tap an outside wall of the house and a separate unit appears in front of it, with open ground between. Its walls are ordinary outside walls, so the Garage Door goes on its front wall like on the house. See Add a detached garage, ADU or shed.
In this guide
- 1

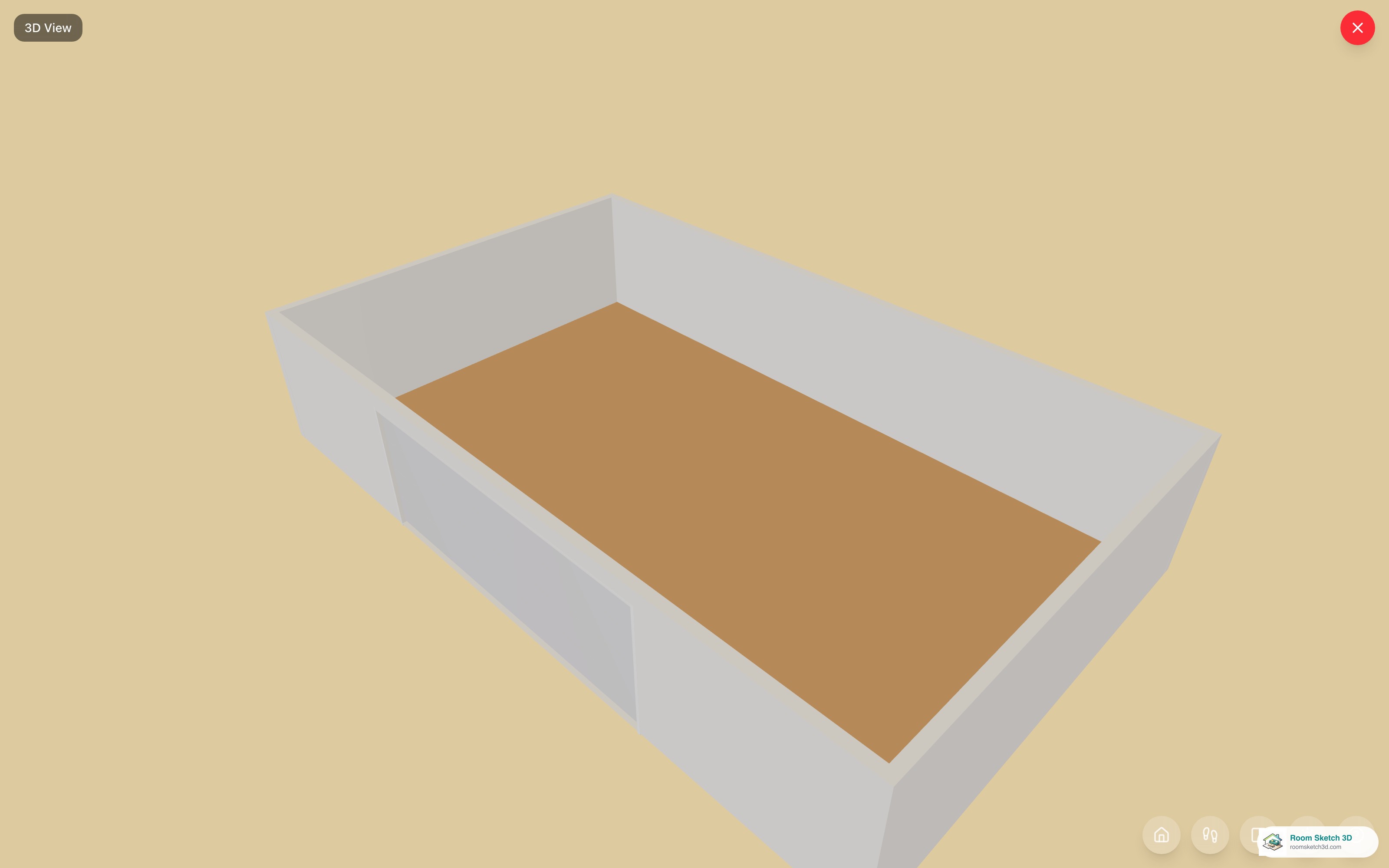

Single wide door — the two-car standard (1-door)
Width. 18 feet (216 inches) is the realistic residential default — wide enough to fit two cars side-by-side under one continuous door. The narrower 16-foot single door is also common; 9–10 feet covers compact one-car garages. When to use. - Standard two-car garage with one wide door instead of two doors with a pier between. - One-car garage with a single 9–10 foot opening. - Workshop garages with a single wide vehicle opening. - Modern / contemporary architecture where the unbroken horizontal line of one door reads cleaner than two doors with a center post. Pros. Simpler framing; fewer moving parts; cleaner modern aesthetic. Cons. Wider header beam required (steel I-beam, glulam, or LVL) to span 16–18 feet. Both cars exposed when the door is open.
1 door, plan view: one 16 ft door for a two-car garage (the 16′ width button). One header, one opener, one continuous opening. - 2
Two doors side-by-side (2-door)
Typical residential layout: one 18-foot main door (two-car bay) plus an 8-foot secondary door for a third vehicle, motorcycle, or workshop access. Total: 26 feet across. Equal-width alternative: two 9-foot doors for a balanced two-car layout with a structural pier between them. When to use. - Three-vehicle households where the third vehicle (or motorcycle, ATV, lawn tractor) gets its own narrower bay. - Two-car garages where a center pier is the aesthetic intent (traditional residential look). - When the header beam over the main door is sized for 18 feet but a smaller secondary opening is easier framing. Pros. Independent operation (one open, one closed); flexible vehicle assignment; traditional / transitional residential look. Cons. Two openers, two motors, two sets of springs — more maintenance.
2 doors, plan view: tap 2 and the 16 ft opening splits into two 8 ft doors. Type each door's width to make them different (e.g. 18 ft + 8 ft). - 3

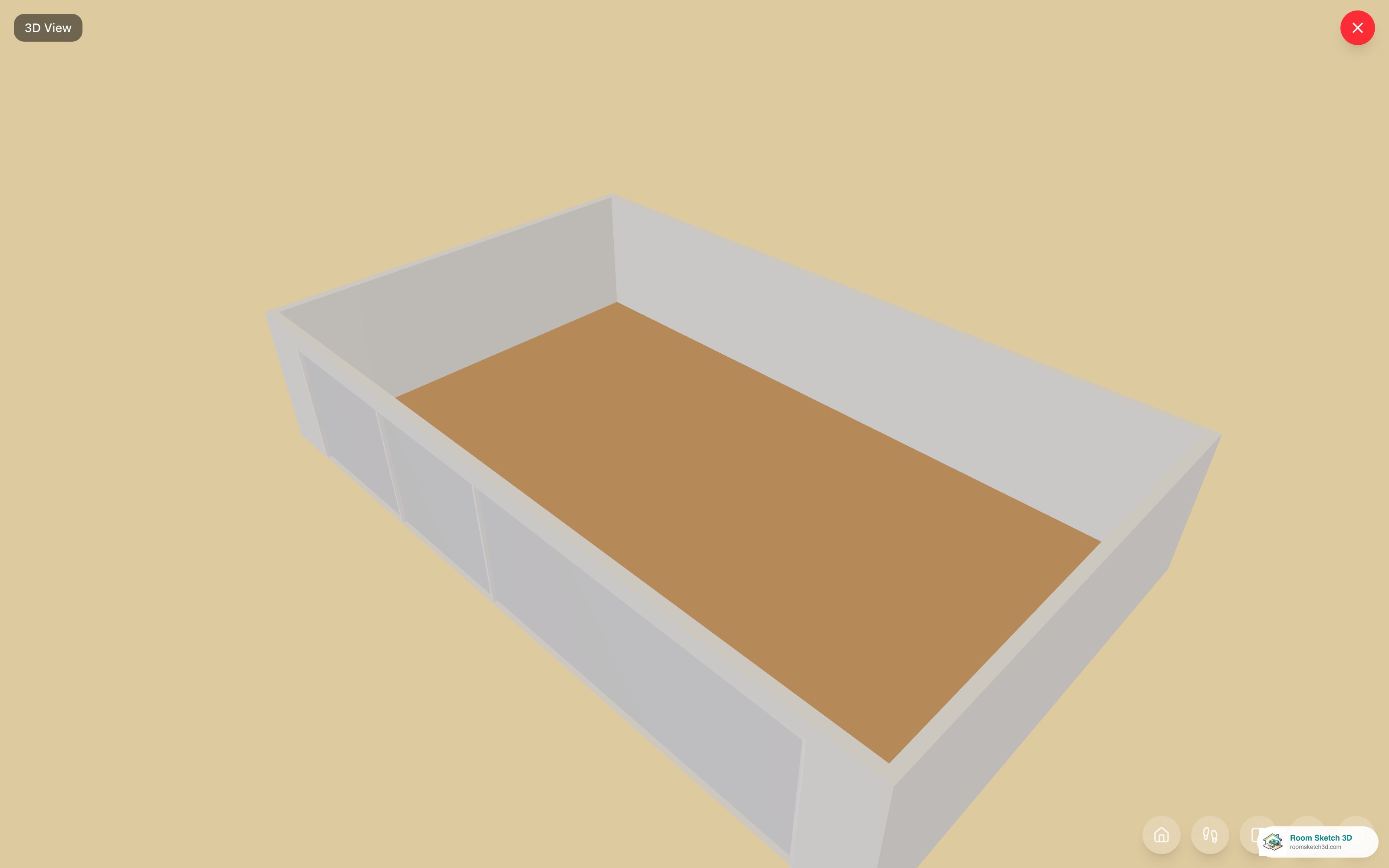

Three doors side-by-side (3-door)
Typical layout: one 18-foot main door (two-car bay) plus two 8-foot secondary doors. Total: 34 feet across — needs a wall at least 35 feet long. Use cases. - Four-vehicle households (two cars in the main bay + two smaller vehicles). - Workshop + multi-car garage where one bay is the daily-driver pair, one is the shop, and one is a project vehicle. - Estate homes with a 3+ car program where the façade can absorb 34+ feet of door. Pros. Maximum vehicle / workshop space; each bay assignable to a specific use. Cons. Eats 34+ feet of the front elevation; needs careful design (windows above, stepped massing, second-story features) to keep the façade balanced. Three openers and three sets of springs.
3 doors, plan view: three 9 ft doors, 27 ft in all, across a 30 ft wall. - 4
Standard sizes (US residential)
Door type Width Notes Single, compact 8 ft (96") Smallest standard — fits compact vehicles only Single, standard 9 ft (108") Default residential single door Single, wide 10 ft (120") Trucks, SUVs, accessibility Double, single-door span 16 ft (192") One wide door over both bays Double, two-door 2 × 8–9 ft Most common two-car layout Triple, three-door 3 × 8–9 ft Three-car garage default Height. 7 ft (84 inches) standard residential; 8 ft (96 inches) for tall vehicles, truck beds, or workshop access.
- 5
Placement and code
Exterior wall only. RoomSketch3D rejects taps on interior walls when the Garage Door tile is selected — the door is a boundary between inside (garage) and outside (driveway), so an interior wall doesn't make sense for it. Setback. Most jurisdictions require the garage door face to sit at least 18–25 feet behind the property line (so the driveway is long enough to park a vehicle outside without overhanging the sidewalk). Check local zoning. Slope. The driveway approach should slope away from the garage so water runs off — typically ¼ inch per foot away from the door. Egress. Garage doors don't count as code egress — bedrooms above garages still need their own egress windows. Fire separation. The wall between an attached garage and the house's living space must be fire-rated (typically 5/8-inch fire-rated drywall on the garage side). The garage door itself isn't part of this — the fire-rated wall is the interior wall between the garage and the conditioned space.
- 6
Garage door styles — Panel, Flat, Windows on top, Full glass
Select the garage door and pick its look in the Style row of its settings. The four styles cover the common sectional-door designs:
Style Looks like Good for Panel (to start) Four horizontal sections, the classic sectional door Most houses; the look garage doors always had in RoomSketch3D Flat One smooth face with no section lines Modern and minimalist fronts Windows on top The sections with a row of small windows across the top one Daylight in the garage while the windows stay above eye level for privacy Full glass Glass in every section, in a light metal frame (a full-view door) Modern homes, garage gyms and workshops that want daylight, or a garage opening onto a patio Things to weigh:
- Light versus privacy and security. Windows on top bring light in without showing what's stored inside; a full-glass door shows everything unless the glass is frosted. - Heat and cold. Glass insulates less than an insulated steel section, so a full-glass door makes a garage harder to keep warm. That matters most for a garage gym, workshop or a garage below a bedroom. - The style is the whole door. With 2 or 3 doors side by side, every door shares the one style.
The style only changes the 3D view: the plan still draws the door as an opening with its GD labels, and the width, height and door count are unchanged. Garage doors placed before November 16, 2026 are Panel and look as before.
The same 8 ft garage door in each style, left to right: Panel, Flat, Windows on top and Full glass. - 7
In RoomSketch3D
Build panel → Doors & Windows → Garage Door tile (Car icon). On a phone, the Build panel is the Structural & Interior pill. 1. Tap the tile. 2. Tap an outside wall where the door should sit. It starts as a single 9 ft door, 7 ft tall. 3. In its settings, tap 1, 2 or 3 next to Doors to pick the door count. 4. For 2 or 3 doors, each door gets its own width boxes (#1, #2, #3, in ft + in or m + cm) so you can set different widths (e.g. one 8-foot and one 10-foot side by side). 5. The width buttons (8′, 9′, 10′, 12′ and 16′, the double-car size, or Other to type any width, such as 18 ft) set the total opening; the doors' widths add up to it. 6. Style sets the door's look in 3D: Panel (to start), Flat, Windows on top or Full glass. See Garage door styles above. 7. The blue Garage Door ⌄ chip at the top of its settings is the door's type. Tap it to turn the garage door into a swing, Dutch, French, sliding, pocket or barn door or an opening in the same spot, or to turn an existing door on an outside wall into a garage door (a 9 ft door unless its width is already 8–16 ft). See change a door type. Height changes the door height, and the two Along wall boxes place it exactly: each has an arrow (← →, or ↑ ↓ on a wall that runs up and down the screen) pointing the way it measures, to the nearest wall or opening on that side. Building a detached garage? Add it with Build → Detached unit first (see detached garage adu shed), then put the garage door on the unit's front wall. In 2D plan view, the door is rendered as a thin opening in the wall with GD labels (one per door panel) and dimensions for each. The 3D view shows the overhead-track door panels with the right segmentation.
The garage door's settings: the type chip, Width (8′ to 16′, or Other), Height, the Along wall distances, Style and Doors 1 / 2 / 3. With 2 or 3 doors, a width box appears for each door.
Tips
18 ft is the realistic single-door width for a two-car garage
8–10 ft handles a one-car garage. For a two-car garage with a single continuous door, 16–18 ft is the right range; 18 ft gives comfortable clearance for full-size SUVs and trucks side-by-side.
Add an 8-foot secondary door for that third vehicle
Pairing an 18-foot main door with an 8-foot secondary door (26 ft total) gives a two-car bay plus a third-vehicle / motorcycle / workshop bay without the cost of three full-size doors.
8-foot height for trucks and workshop
Standard 7-foot height fits most cars and SUVs. If you have a tall vehicle, a truck with a bed cover, or want workshop clearance, spec 8-foot height.
Triple doors need a balanced façade
Three garage doors eat 24+ feet of front elevation. Balance with second-story windows, columns, or stepped massing so the house doesn't read as 'garage with a house attached'.
Common confusions
Trying to put a garage door on an interior wall
Garage doors bridge inside and outside — they only make sense on an exterior wall. The app rejects interior-wall taps because there's no inside/outside boundary to bridge.
8-foot single door for an SUV-sized vehicle
8-foot (96") garage doors are tight for full-size SUVs and pickups with mirrors out. Spec 9-foot (108") unless you're sure the vehicle stays compact.
Spacing two doors with no pier between them
Two adjacent garage doors normally have a structural pier between them — that's how the header above gets supported. A continuous opening with no pier requires a deep header beam.
Frequently asked questions
What's the standard garage door size for a two-car garage?
16–18 feet wide × 7 feet tall for a single continuous door — 18 ft is comfortable for full-size SUVs / trucks side-by-side. For a one-car garage, 9–10 feet wide is standard.
Single wide door or two doors for a two-car garage?
Either works. One 16–18 ft door reads modern / contemporary and uses a single header beam; two 8–9 ft doors with a center pier read traditional residential and reduce the header span. Pick by architecture and budget.
Can I put a garage door on an interior wall in RoomSketch3D?
No. Garage doors are bridges between inside (garage) and outside (driveway), so the app only accepts taps on exterior walls. If you need a door between rooms, use a regular interior Door, French Door, or Pocket Door instead.
How wide is a triple garage door?
24–27+ feet total across three side-by-side doors. Each individual door is typically 8–9 feet wide; you can edit each panel's width independently in the Inspector for asymmetric layouts.
How do I add a garage door in RoomSketch3D?
Build panel → Doors & Windows → Garage Door tile (Car icon). Tap an outside wall. Pick a width (8, 9, 10, 12 or 16 ft, or Other) and the door count (1 / 2 / 3) next to Doors in its settings; each door's width can be edited on its own for asymmetric layouts. For a garage that stands apart from the house, add a Detached unit first and put the door on its wall (see detached garage adu shed).
Can I turn a door into a garage door, or a garage door back into a door?
Yes, on an outside wall. Select the door, tap the blue chip beside its name and pick Garage Door (or, on a garage door, pick Swing Door, Opening or another kind). It stays centred in the same spot. The Doors 1 / 2 / 3 split doesn't carry over. See change a door type.
Can I show a garage door with windows or a glass garage door?
Yes. Select the garage door and pick Windows on top (a row of windows across the top section) or Full glass (glass in every section) in its Style row; Panel (to start) and Flat are the other two. With 2 or 3 doors, all of them take the same style. The style shows in the 3D view; the plan symbol doesn't change.
