Adding balconies

Two balcony types: rectangular (one wall) and L-shaped (two walls at a corner). Both start from the Balcony / Patio tile.

5 min readUpdated 2026-11-16

A balcony extends a room out past the exterior wall — a rectangular one off a single wall, or an L-shape that wraps a building corner for a larger deck. RoomSketch3D draws the railing for you and shows the whole thing in 3D, so you can judge the view and how much usable depth you really have.

Both start from the Balcony / Patio tile. This page covers placing each, setting the length and depth, and what a balcony does and doesn't add to your plan.

Size matters more than style here. A balcony that's too shallow ends up as a place to stand, not sit; the guide below gives the depths that fit real outdoor furniture, the railing heights the building code asks for, and shows a 10 × 5 ft balcony with a bistro set on the Cozy Living Room template, from the plan to the view through the sliding door.

Step by step

  1. 1

    Pick the type

    Open the Build panel (on a phone, Structural & Interior). In the Structural section tap Balcony / Patio, then pick Regular (off one wall) or L-Shape (wraps a corner). The same tile makes a ground-level patio or deck: it's the same object, and what makes it a balcony is the railing and the floor it's on.

    Balcony / Patio sits in the Structural section; tap it, then pick Regular or L-Shape.
  2. 2

    Tap the wall (or two walls)

    Balconies attach to outside walls only. Regular: tap the outside wall it projects from. L-Shape: tap the first outside wall, then the adjoining wall that lights up (the prompt reads Pick an adjoining wall (highlighted)). A new rectangular balcony is centred on the wall, 8 ft long (or the wall's length less 12 in, if that's shorter) and 4 ft deep, with a 42-inch spindle railing and a composite floor. An L-shape starts with legs up to 6 ft long, each 4 ft deep.

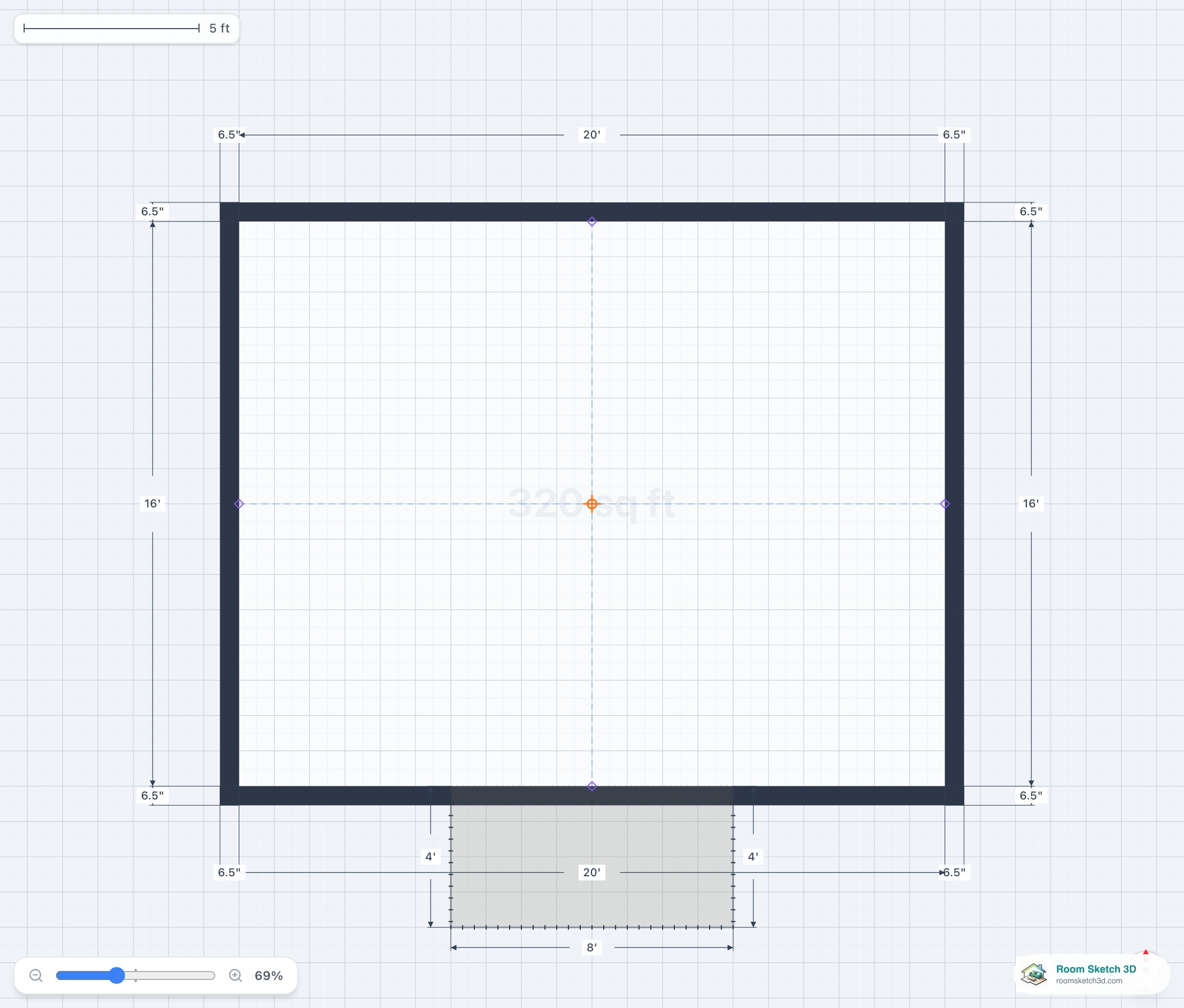

    A rectangular balcony projects from a single wall.
  3. 3

    Set dimensions

    Select the balcony. On a tablet or computer its settings open in a floating card over the plan (drag it by the dots at the top left to move it out of the way; × closes it); on a phone they're in the panel along the bottom. Set Length (along the wall) and Depth (outward); an L-shape has Leg 1 and Leg 2 length and depth. Stretch across wall runs it exactly the full length of the wall, Covered adds a roof slab, and Railing, Rail height and Floor set the look. The railing renders automatically.

    The choices in the card:

    SettingOptions
    Length2 ft up to the wall's length; a Regular balcony or patio can run up to 20 ft past an outside corner (next step)
    Depth18 in to 12 ft
    RailingOpen, Spindle, Pony Wall, Glass, Horizontal Slat, Cable, Wrought Iron, Picket
    Rail height3', 3' 6" (the default), 4', or type 24–72 in
    FloorComposite, Wood, Tile, Concrete

    Here a 10 × 5 ft balcony sits off the living room of the Medium 2-Bedroom Apartment template; the left panel adds a Balcony / Patio line (50 sq ft) under Gross and Usable area.

    Select the balcony: its card holds Length, Depth, Covered, railing style, rail height and floor.
  4. 4

    Run a patio or balcony past the corner of the house

    A Regular balcony or patio isn't stuck at the end of its wall. Where its wall ends at an outside corner (the house turns away, with open ground beyond), it can carry on past the corner, the way a long deck or wraparound porch runs beyond the house. Two ways: - Type a longer Length than the wall. It fills the wall and runs on past whichever end is an outside corner. - Drag its end (the oval handle on the short side) out past the corner. A drag lands on odd lengths (22' 11.76" in our test), so type the round number afterwards if you want one. It stops at anything in the way, such as another wing of the house further along, and at most 20 ft past each corner: typing more shows Max … (on the ranch below, Max 58': the 38 ft wall plus 20 ft). At an inside corner, where the next wall comes out across it (a garage that sticks out, say), it still stops at the wall. In the example, the Ranch House with 2-Car Garage template has a covered patio along the 38 ft back wall of the house, between the outside corner on the left and the garage on the right. Typing 50' runs it 12 ft past the left corner, while the right end stays against the garage. The area updates (300 sq ft) and 3D draws the deck, railing and roof past the corner too. Stretch across wall puts it back to exactly the wall's length. This is for a Regular balcony. An L-Shape wraps a corner along both walls instead (next step); each of its legs stays within its own wall. Balconies drawn before November 16, 2026 don't change until you lengthen them.

    Length 50' on a 38' wall: past the outside corner on the left, stopped by the garage on the right.
  5. 5

    Check the overhang in 3D

    Open View in 3D: the floor, the railing and (with Covered) the roof run on past the corner of the house, so you can see how a wraparound porch or a long deck will look from the garden.

    In 3D the patio's floor, railing and roof carry on past the corner.
  6. 6

    L-shaped balconies

    An L-shape wraps an outside corner with two legs, each with its own length and depth (Leg 1, Leg 2). Use it for a wraparound deck or a corner balcony that catches sun on two sides. Everything else (railing, rail height, floor, Covered) works the same as on a rectangle.

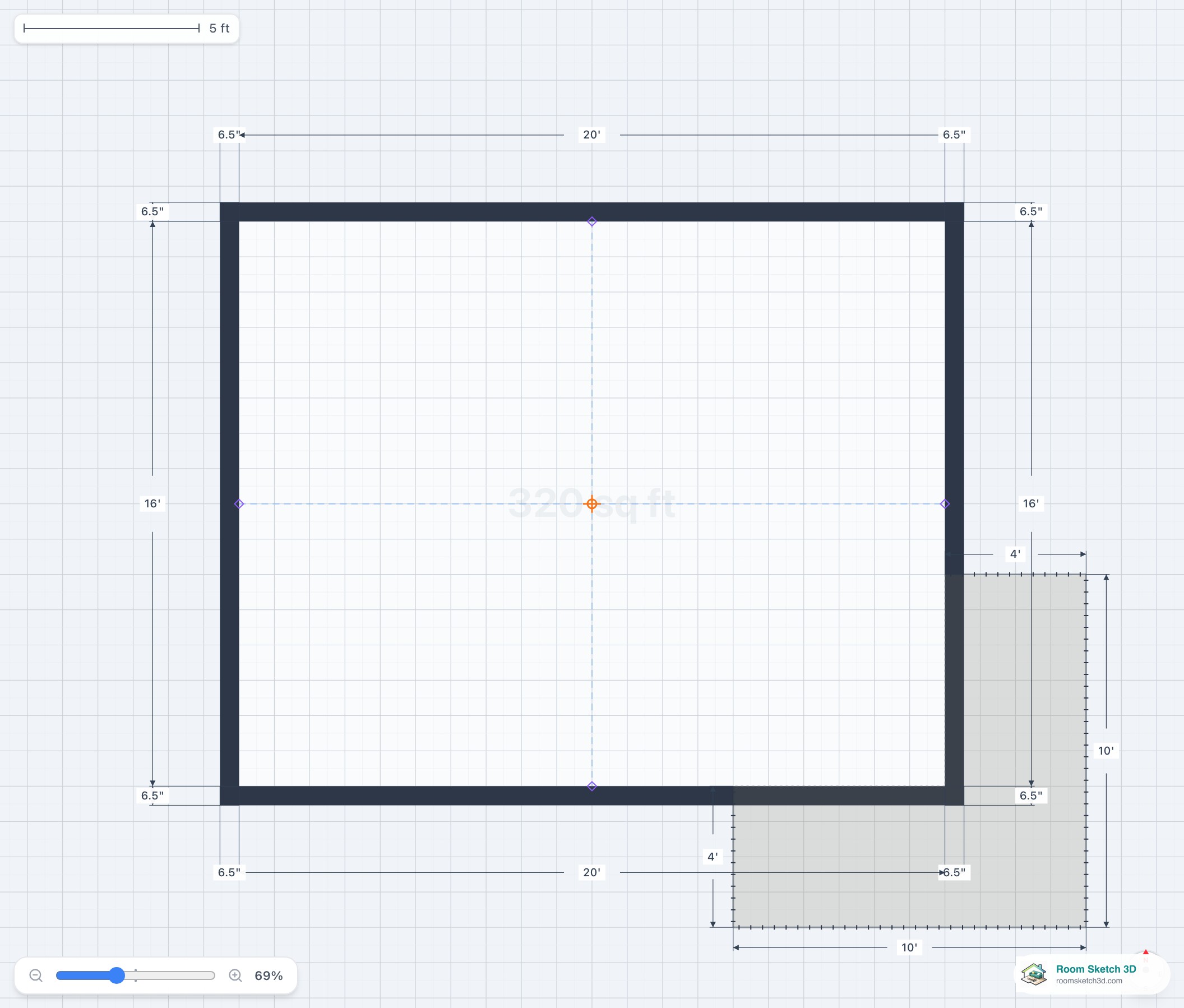

    An L-shaped balcony wraps a corner — tap one wall, then the one beside it.
  7. 7

    Add the door and furnish it

    A balcony needs a way out: put a Sliding Glass Door, French Door or Door in the wall it's attached to (Build → Doors & Windows). Then add outdoor furniture from the catalog's Outdoor tab and drag it onto the balcony, as you would inside. Check it fits with the real sizes: a round 42-inch patio table and two 28 × 30 in patio chairs, as here, need about 5 ft of depth once the chairs are pulled out. The plan shows the length and depth along the balcony's edges so you can read the clearances.

    A 10 × 5 ft balcony off the living room, with a 42-inch table and two chairs.
  8. 8

    Check it in 3D

    Open View in 3D. The balcony floor, railing and furniture appear outside the wall, and through the sliding door you can judge the view from the sofa and whether the table really fits. Switch the railing to Glass or Cable to see how much more open it feels. To leave a gap in the railing (for steps down to a garden, say), use the Opening tool and tap the railing edge; the openings are then listed in the balcony's settings, each with an × to remove it.

    From the living room in 3D: the balcony and its bistro set through the sliding door.

Tips

Make the depth usable

A depth under about 3 ft is really a Juliet balcony — enough to open a door onto, not to stand on. For a bistro table and two chairs, aim for 4–6 ft of depth.

Depth by use

As a common guideline: about 3 ft lets you step out and stand; 4–5 ft fits a bistro table and two chairs; 6 ft or more fits a lounge chair or a small dining table for four. Lay the real furniture in and check the chairs can pull out before you settle on a depth.

Pick the railing for the view

Glass and cable railings keep the view open from a seat; spindle, picket and pony-wall railings add privacy. Try two styles and compare them in 3D from the sofa.

Wrap the sunny corner

Use the L-shape at the corner that catches morning or evening sun, so the longer leg faces the light.

Common mistakes

Projecting into a setback

On a real lot the balcony has to clear the property line and any required setback. Draw the lot first, then size the balcony to fit inside it.

Forgetting the door onto it

A balcony needs a door or sliding door leading out. Add the opening in the same wall so the approach stays clear.

Setting the rail too low

Rail height is part of safety, not just looks. Where a balcony floor is more than 30 in above the ground, the International Residential Code asks for a guard at least 36 in high; 42 in (the app's default) is a common choice and is what the International Building Code generally sets for guards outside single homes. Check your local code before you lower it.

Frequently asked questions

How do I change a balcony's size after placing it?

Select it and edit Length (along the wall) and Depth (outward) in its settings; an L-shape has Leg 1 and Leg 2 length and depth. Stretch across wall makes it run exactly the full wall. The railing re-draws to match.

Can a balcony or patio be longer than its wall, or run past the corner of the house?

Yes, a Regular one, since November 16, 2026. Where the wall ends at an outside corner with open ground beyond, type a longer Length or drag its end past the corner: it runs on up to 20 ft past that corner and stops at anything in the way, such as another wing. At an inside corner it still stops at the wall. Stretch across wall brings it back to the wall's length. For a porch that turns the corner along a second wall, use L-Shape.

Why does my patio stop at the corner?

That corner is an inside corner: the next wall of the house comes out across the patio (a garage or a wing), so there's nothing to run onto. Past an outside corner it can go on. If typing a length shows Max …, that's as far as it can go: the wall plus whatever room there is past the corner, up to 20 ft.

Does a balcony count toward my floor area?

It's reported separately as balcony/patio area, not folded into the interior usable area — the same way a real plan lists it apart from conditioned space.

Can I change the railing style?

Yes. The railing renders automatically, and you can choose a style in the Inspector while the balcony is selected.

What's the difference between the rectangular and L-shaped balcony?

Regular projects from one wall; L-Shape wraps two walls at a corner. To place the L, tap one outside wall, then the adjoining wall that lights up.

Can I put furniture on the balcony?

Yes — add outdoor pieces from the catalog and drop them onto the balcony footprint, just like any floor area.

How high does a balcony railing have to be?

Under the International Residential Code (R312.1.1–R312.1.2), a guard is required where the floor is more than 30 in above the floor or grade below, and it must be at least 36 in high; openings in it must not let a 4-in sphere through (R312.1.3). Buildings under the International Building Code generally need 42 in, with exceptions inside dwelling units. The app's default rail is 3' 6" (42 in); presets are 3', 3' 6" and 4', or type any height from 24 to 72 in. Local codes vary.

Can I make a patio or deck at ground level instead?

Yes. It's the same Balcony / Patio tile: set the railing to Open for a patio with no rail, or keep one for a raised deck.

Can I put a gap in the railing for steps?

Yes. Use the Opening tool and tap the railing edge; the gap appears in the 3D railing and is listed under Openings in the balcony's settings, where × removes it.
