Adding an elevator that travels between floors

Drop an elevator into a multi-floor design, set the floors it serves, and it appears on every level it reaches.

6 min readUpdated 2026-11-16

Some plans need an elevator: a multi-story home, an accessible design, a duplex, a basement apartment. RoomSketch3D drops a real shaft through the building: pick the size, place it on one floor, and set the range of floors it serves. The shaft then appears in the right spot on every level, and in 3D you can see it rise through the house.

Before you draw, know what a real home elevator needs. One manufacturer's widely sold model, the Savaria Eclipse, comes with cabs from 36 × 48 in to 40 × 54 in inside, carries 950 or 1,000 lb, travels up to 50 ft with up to five stops (more where code permits), moves at about 40 ft per minute, and needs a pit about 8 in deep and at least 96 in of overhead above the top landing. The shaft around the cab is bigger than the cab itself, which is why RoomSketch3D's presets are shaft footprints.

This page covers adding the floors, placing and sizing the shaft, choosing the door side and the floors it serves, keeping the footprint clear on every level, and checking it in 3D. Home elevators are regulated by the elevator safety code adopted where you live: confirm the exact hoistway size with the manufacturer's planning guide and your local building department before you build.

What you'll need

  • •A design with at least two floors (an elevator can sit on one floor, but it's built to connect several)

Step by step

  1. 1

    Add the floors first

    An elevator connects floors, so start with at least two. Open the floor menu at the top of the left panel (it shows Ground floor), tap Add floor, then Add above for an upper floor or Add below for a basement. Copy ground floor starts the new floor with the same outline; press Add floor, then Update Floor Plan to keep the outline. See Multi-floor designs.

    Add above stacks a new floor on top; Add below makes a basement.
  2. 2

    Pick the elevator tool and a size

    In the left panel's Structural tools, tap Elevator and choose Small · 2-person, Medium · 4-person, Large · 6-person, Custom size, or Round for a circular glass shaft. The sizes are shaft footprints, the outside of the box, which is bigger than the car you stand in:

    PresetShaft footprintCar inside (about)
    Small · 2-person54 × 60 in (4' 6" × 5')46 × 52 in
    Medium · 4-person66 × 66 in (5' 6" × 5' 6")58 × 58 in
    Large · 6-person68 × 84 in (5' 8" × 7')60 × 76 in

    Pick the closest one now; you can type the exact size later.

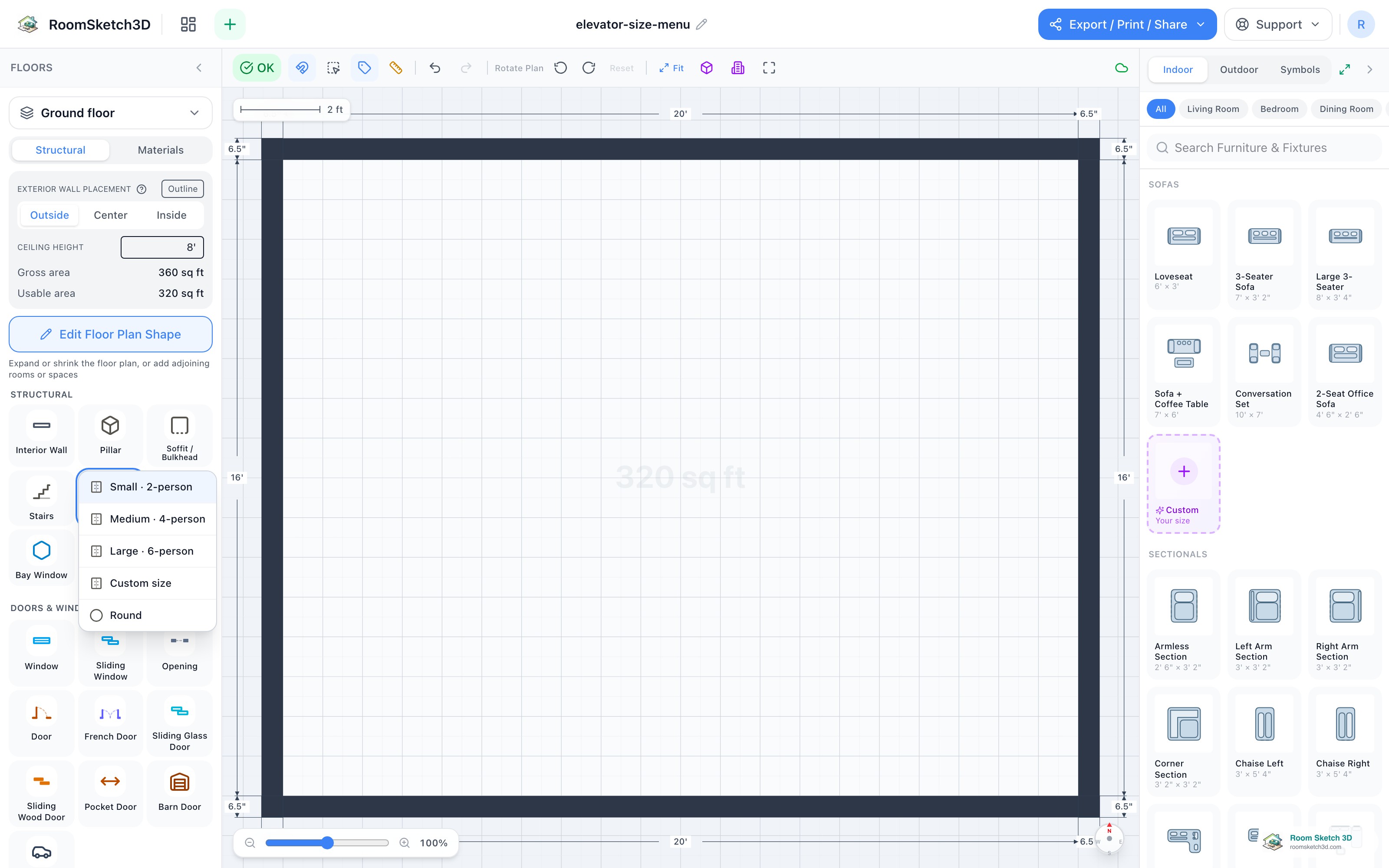

    Pick a capacity preset, a custom footprint, or a round shaft.
  3. 3

    Place it on the plan

    Click where the shaft goes. Put it where the same footprint works on every floor it serves: next to the staircase, in a stacked closet or pantry, or against an exterior wall. Drag it later to fine-tune, like any item.

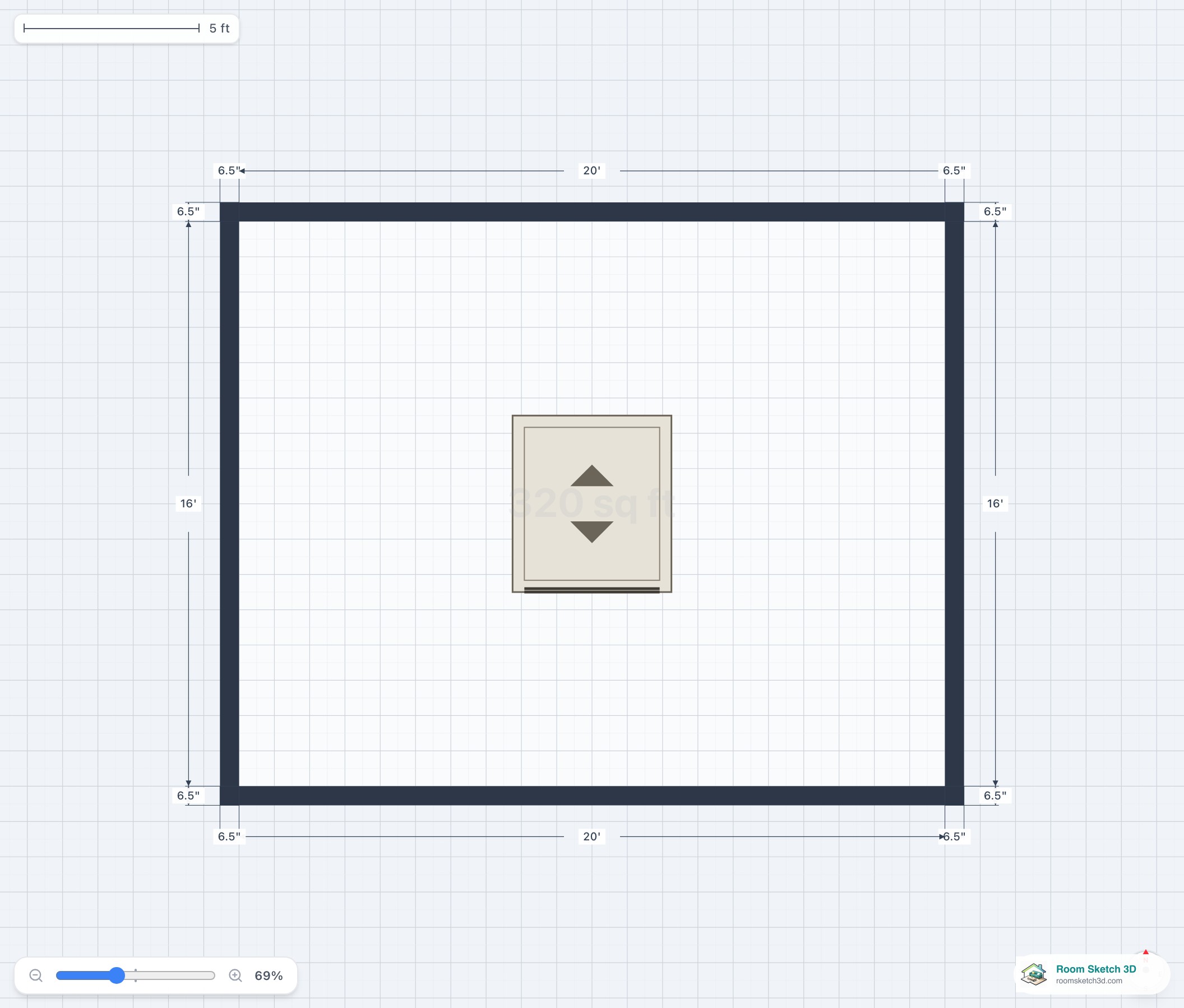

    The shaft on the plan: the arrows mark it as an elevator, the bar marks the door side.
  4. 4

    Set the size, doors and floors it serves

    Tap the shaft to open its settings (a floating card over the plan on a tablet or computer; a panel along the bottom on a phone). Size switches between S, M, L and Custom; typing a Width or Depth (3 ft to 10 ft) switches to Custom automatically. Turn rotates it 90°. Doors sets which side the car opens on: Front, Back, Left or Right. Bottom and Top set the range of floors it serves, and the shaft appears on every floor in between.

    Bottom and Top set the floors it serves; Doors sets which side the car opens on.
  5. 5

    Keep the shaft clear on every floor

    On the floor where you placed the elevator, Smart Flow Check flags any furniture inside the shaft (… overlaps the elevator shaft). On the other floors it serves, the shaft appears as a faint, read-only outline: Flow Check doesn't check those floors, and furniture or a rug drawn over the spot can hide the outline. Place the elevator on the floor with the most furniture so Flow Check guards it there, and check the other floors in 3D.

  6. 6

    Check it in 3D

    Click View in 3D (the cube in the toolbar). On a multi-floor design the shaft rises through every floor it serves, and a Floors button appears at the top left of the 3D view. The elevator is included in your image, PDF and 3D-model exports.

    Here the shaft lands on the ground-floor coffee table, a clash the 3D view makes obvious: move one of them.

Tips

Beside the stair is the classic spot

An elevator usually sits next to the staircase, sharing the vertical core. Stacked closets also work well: two closets of the same size, one above the other, become a shaft without moving any rooms.

Size the shaft from the spec sheet

The Small preset (54 × 60 in) is a reasonable starting point for a 36 × 48 in cab. When you choose a model, type its hoistway width and depth from the manufacturer's planning guide; the preset switches to Custom automatically.

Leave a turning circle at each door

For a wheelchair user, plan a clear 60 in circle in front of the car door on every floor, the turning space in the 2010 ADA Standards (304.3.1). ADA rules don't apply to most private homes, but the number is the standard way to make a landing usable. A minimum wheelchair parking spot is 30 × 48 in (305.3).

Point the door where people arrive

Use Doors (Front, Back, Left, Right) so the car opens onto a hallway or landing on every floor, not into the back of a sofa or a bedroom.

Common mistakes

Placing it on only one floor

The elevator serves a range of floors: set Bottom and Top in its settings. If the shaft only shows on one level, the range isn't set.

Checking only the floor you placed it on

Flow Check flags furniture in the shaft only on the floor that owns the elevator. On the other floors the shaft is a faint outline that a rug or furniture can hide. Look at every floor in 3D.

Forgetting the pit and the overhead

A home elevator needs a shallow pit below the lowest stop and extra height above the top one (about 8 in and 96 in for the model above). A shaft that starts on a slab or ends under a low roof may need structural work.

Drawing the cab size as the shaft

A 36 × 48 in cab needs a bigger hoistway around it for rails, gate and walls. Enter the hoistway size, not the cab size.

Frequently asked questions

How do I choose which floors the elevator serves?

Tap the shaft and set Bottom and Top in its settings. The shaft then appears on every level in that range, basements included.

What sizes are there?

Small · 2-person (54 × 60 in shaft), Medium · 4-person (66 × 66 in), Large · 6-person (68 × 84 in), Custom size (any width and depth from 3 ft to 10 ft), and Round for a circular shaft set by its diameter.

How big is a home elevator?

Cabs on popular residential models run from about 36 × 48 in to 40 × 54 in inside; the hoistway around the cab is larger. Get the exact hoistway size from the manufacturer's planning guide for the model you choose.

Which way do the elevator doors face?

Choose Front, Back, Left or Right under Doors, and use Turn to rotate the whole shaft 90°. The bar drawn on one edge of the shaft marks the door side.

Does the elevator show in exports?

Yes. The shaft is in the image, PDF and 3D-model exports, on every floor it serves.

Where should I put the elevator?

Beside the staircase is the usual spot, sharing the core. Stacked closets, a corner of a garage, or an exterior wall (where the shaft can be built outside the rooms) also work. Place it on one floor and it stacks through the building.
