Design a media corner — movie night, properly set up
A media corner is geometry: the screen at one end, the sectional at the right distance, the table in reach, the light behind the viewers. Six catalog pieces on an 8×10 rug — get the distances right on the plan and movie night takes care of itself.
Watch it
Design a media corner in 40 seconds
Every piece at its true size, clearances checked, then a walk around it in 3D. The list, sizes, and steps are below.
Movie night fails on geometry, not equipment: the screen too close, the lamp glaring off it, the snacks out of reach. This corner fixes the distances first — screen, seat, table, light — and the equipment slots in after.
Search the exact names in the Furnish panel, measure the viewing distance with the tape-measure tool, and let Flow Check flag a coffee table that crowds the sectional.
Or let the app place it: tap the Auto-furnish wand in the toolbar, drag a box over the area you want to use, type Media Corner in the search box and pick its card. Every piece lands against your walls, with a Fits or Tight badge for the space you drew — then edit anything. More in Auto-furnish.
What you'll need
- •Entertainment Center (84″ × 20″, 72″ tall)
- •L-Sectional (Compact) (96″ × 68″)
- •Round Coffee Table (36″)
- •Subwoofer
- •Floor Lamp
- •Area Rug 8x10
- •A 12×14 ft corner of the living or family room
Step by step
- 1
The screen wall
Search Entertainment Center and set it on the far wall — seven feet of storage that holds the screen at sitting eye height, with the clutter behind doors. The Subwoofer sits beside it, off-center on purpose (bass doesn't care, and symmetry wastes the corner).

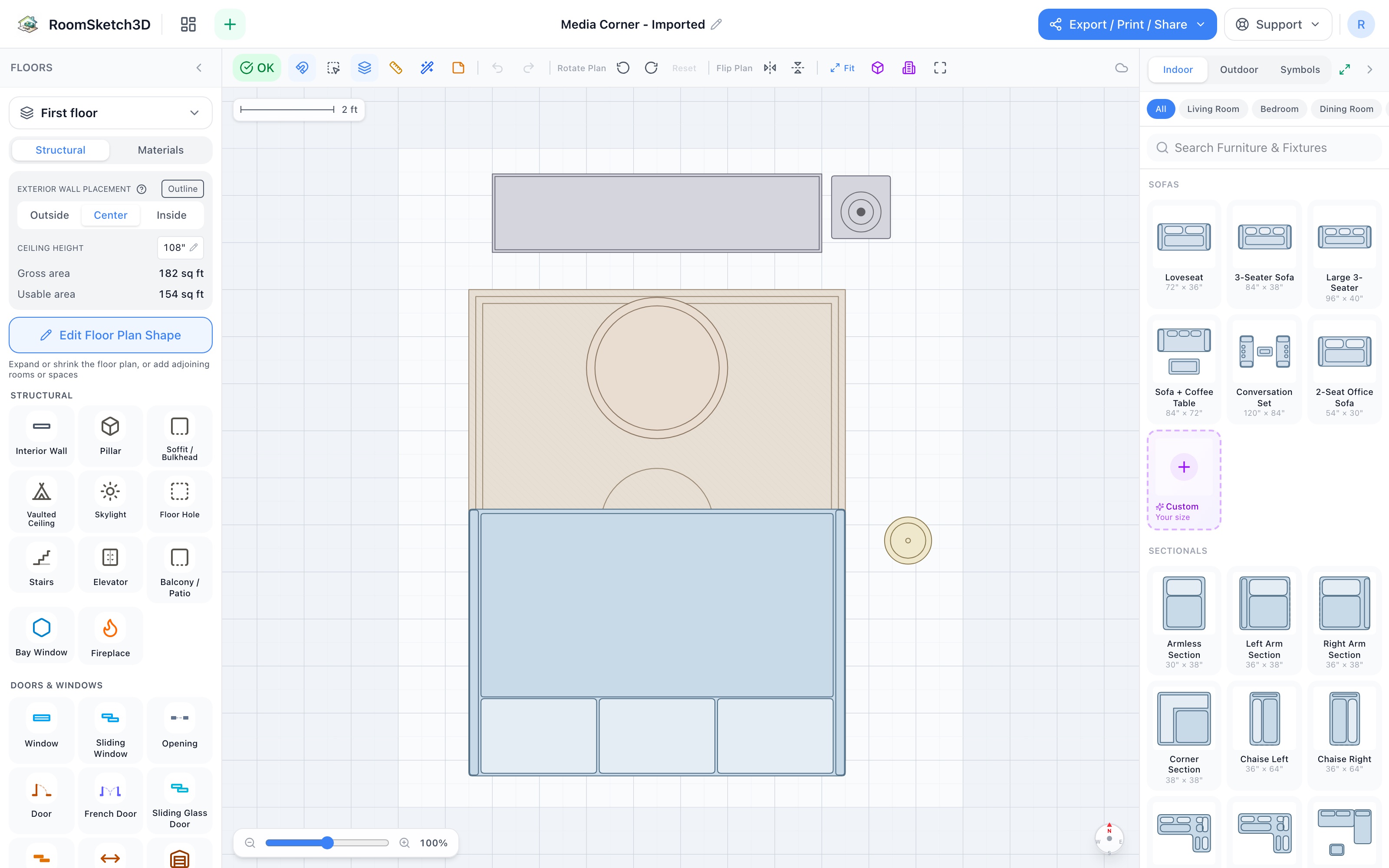

The corner on the plan — screen at one end, sectional at viewing distance, light behind the seats. - 2
Sectional at viewing distance
Search L-Sectional (Compact) and face it at the screen from about 7 feet — right for a 55–65″ screen. The L's chaise goes wherever the room's traffic isn't.
- 3
Table in reach, not in the way
Search Round Coffee Table and center it with 18 inches to the sectional — close enough for the popcorn, far enough to walk through. Round, because shins in the dark.
- 4
Light behind the viewers
Search Floor Lamp and stand it at the sectional's shoulder, behind the sight line. Movie-watching light comes from behind you — never between you and the screen.
- 5
The rug ties the zone
The Area Rug 8x10 goes under table and sectional front legs — it marks where the media corner ends and the rest of the room begins, and it kills the echo that hard floors add to dialogue.
- 6
Check the sight lines in 3D
Switch to 3D, sit in every seat, and look at the screen. No lamp in the sight line, no glare angle from a window, table reachable without standing. That's the whole test.

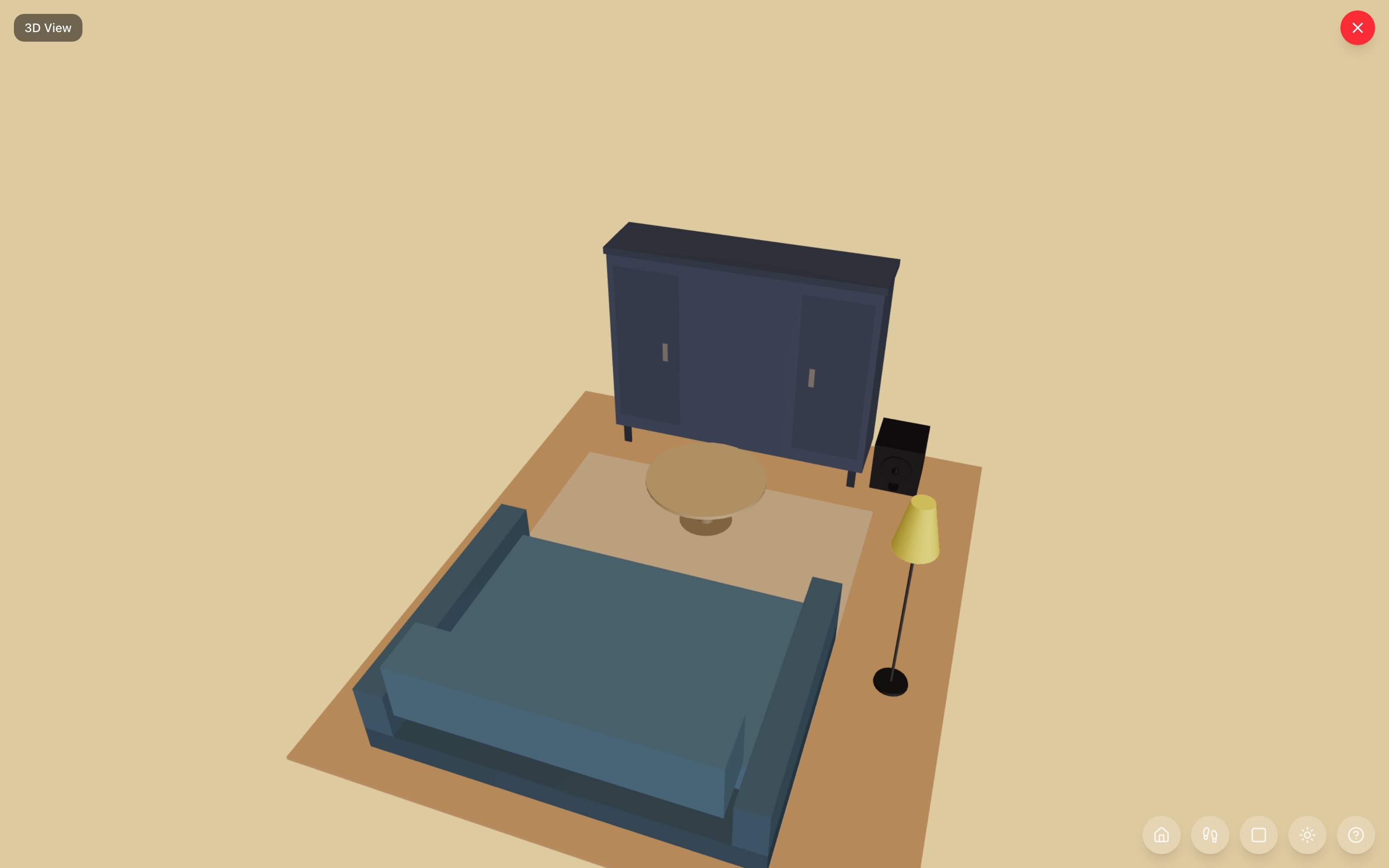

The corner in 3D — every seat sees the screen, the light stays behind the viewers. - 7
Or let Auto-furnish place the Media Corner for you
Everything above can also be done in one go. Open your plan, tap the Auto-furnish wand in the toolbar and drag a box over the spot, tracing the walls you want the pieces against — at least 12 × 14 ft for this layout. In the Ideas list, type Media Corner in the search box and pick its card; if it isn't among the first six cards, tap Show more. A Fits badge means the layout fits the box you drew, Tight means it is up to about 12% too big and a piece may sit a little past an edge. The six pieces land against your walls, and Variation 1–5 offer other arrangements — mirrored, turned to another wall or corner, or with a piece swapped for a similar one; where it can, it skips arrangements that would land on furniture already in your plan. If the plan still looks empty after you pick the card, tap Variation 2 (or any other variation) and the pieces appear — a known glitch can leave the first variation undrawn. Tap View in 3D to check it, then Done: the whole placement is one undo step, and every piece stays editable. More in Auto-furnish.
Drawn over the top-left corner of a plain 16×18 ft room, the Media Corner lands in a few taps — six pieces, a choice of variations, every piece still editable.
Tips
Wall-mounting instead?
With a real wall, the TV 65" (Wall) + Soundbar + a low TV Console replace the entertainment center — same sight-line rules, screen center at seated eye height.
Distance rule of thumb
Seat-to-screen ≈ 1.2–1.5× the screen diagonal. A 65″ screen wants roughly 7–8 feet — which is exactly what this layout gives.
Add the bean bag for the overflow row
A Bean Bag Lounger in front of the sectional is the kids' row for movie night and disappears against the wall after.
Common mistakes
Screen too high
The center of the screen belongs at seated eye height — about 40 inches. A screen over a fireplace is a neck exercise, not a home theater.
Lamp in the sight line
Any light source between seats and screen reflects in it. Behind the sofa, always.
Sofa against the screen wall's opposite wall by default
Distance should come from the screen size, not the room. If the room is deeper than the viewing distance, float the sectional on the rug and let the space behind it breathe.
Frequently asked questions
What furniture makes a media corner?
Six pieces: Entertainment Center, L-Sectional (Compact), Round Coffee Table, Subwoofer, Floor Lamp, and an Area Rug 8x10.
How far should the sofa be from the TV?
About 1.2–1.5× the screen's diagonal: 65″ screen → 7–8 feet. This layout holds 7 feet between the entertainment center and the sectional, with 18 inches of table clearance inside it.
Does this work in an open-plan room?
Yes — the rug does the job walls would. Keep the sectional's back to the open space to define the boundary, and see the open-concept layout guide for the room-level zoning.
