TV mounting and viewing distance

Sit about 1 to 1.5× the screen diagonal away from a 4K TV (about 2× for older HD sets), and mount it so the center of the screen is near seated eye level, about 42 inches off the floor. Above a fireplace the TV usually ends up 70+ inches to center, so tilt it or pick another wall.

7 min readUpdated 2026-11-04

The short answer: for a 4K TV, sit about 1 to 1.5 times the screen diagonal away (a 65-inch TV: about 5½ to 8 feet); for a 1080p HD TV, about 1.5 to 2.5 times (8 to 13½ feet). Mount the TV so the center of the screen is near your seated eye level, about 42 inches above the floor. These are comfort guidelines, not code; no building code sets a TV height or distance.

The reliable way to get TV viewing distance right is to place the TV and your seating, then measure between them with the tape measure tool. The walkthrough below mounts a 55-inch wall TV and a 3-seater sofa about 9 ft apart; the charts that follow cover every screen size, and the last steps show the same TV hung at different heights, seen from the sofa in 3D.

In this guide

  1. 1

    Place a wall-mounted TV

    In Furnish, search TV, tap TV 55" (Wall), then +Add. A note says tap a wall to place it — tap the wall the TV hangs on. Its panel has a Mount (bottom edge) field for how high it hangs. As the label says, Mount is the height of the TV's bottom edge, not its center. A new wall TV starts at seated eye level: the TV 55" (Wall) (28 inches tall) starts at 2' 4" (28 inches), which puts its center at 42 inches, and the TV 65" (Wall) (33 inches tall) at 2' 2", a center of about 42½ inches. To move the center somewhere else, set Mount to center height − half the TV's height. TVs placed before November 3, 2026 started at a 4 ft Mount (a 55-inch TV's center at 62 inches) and keep the height they were saved with: if yours hangs high, lower its Mount.

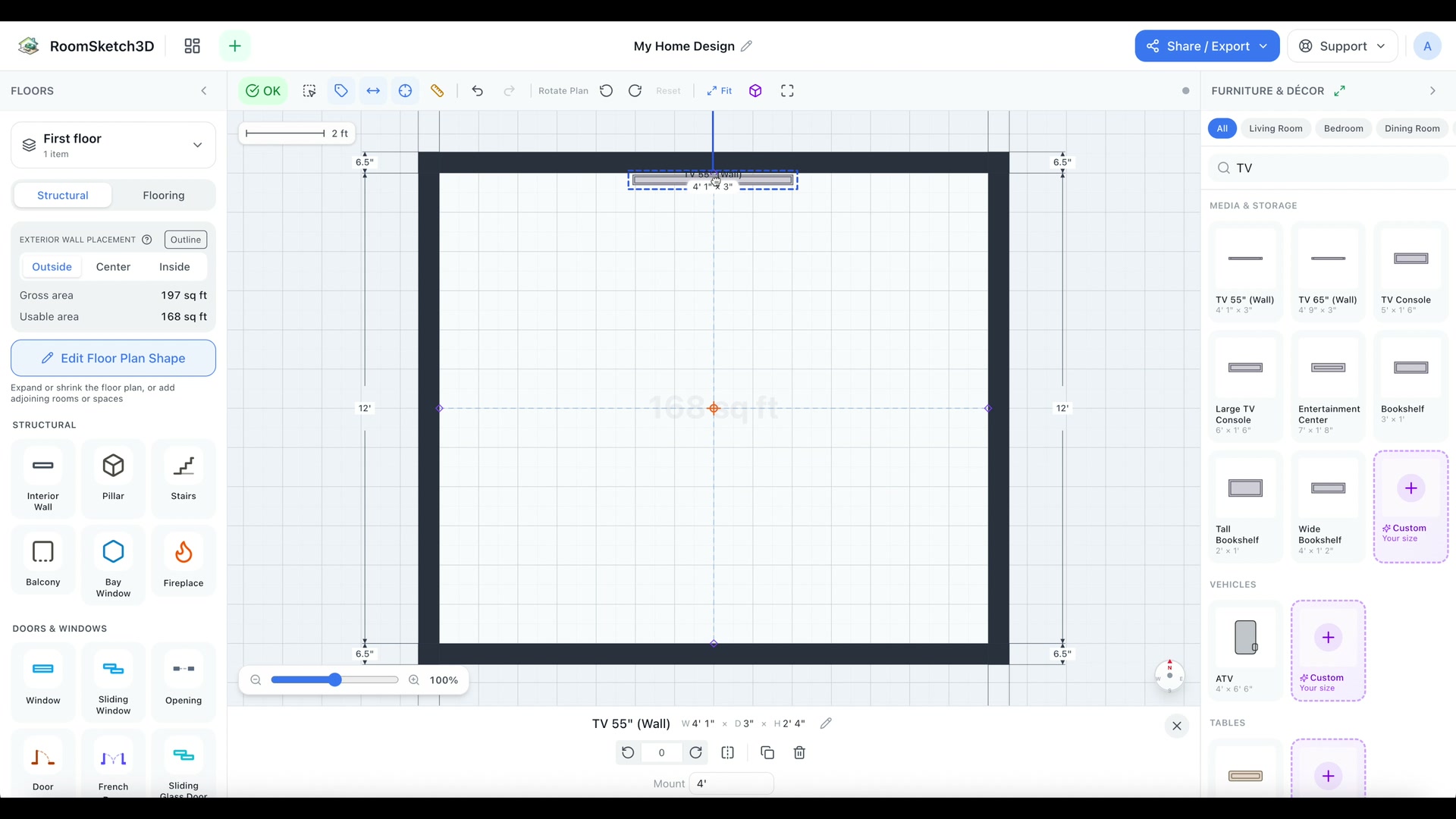

    Cozy Living Room: the new 55" wall TV starts at Mount (bottom edge) 2' 4", a 42" center, just above its console.
  2. 2

    Add a sofa facing the TV

    Search sofa, add a 3-Seater Sofa, and turn it to face the TV — tap 90° in its panel twice (180°) — then drag it to the far side of the room.

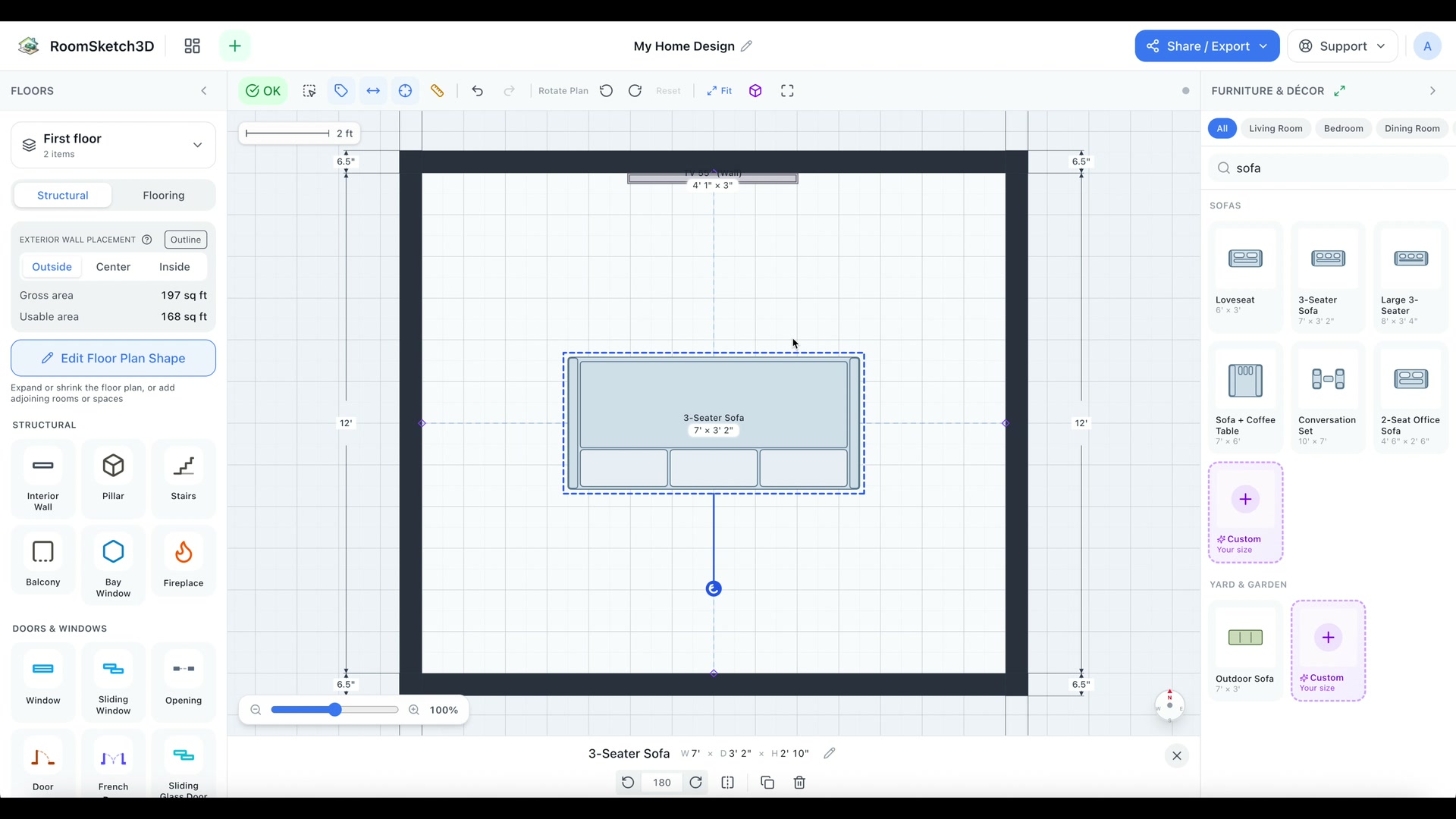

    Add a 3-seater sofa and rotate it to face the TV.
  3. 3

    Measure the viewing distance

    Tap the tape measure in the toolbar (it starts in Length mode). Drag one end onto the TV and the other onto the middle of the sofa — each end locks onto the piece (a padlock shows), so the reading updates as you slide the sofa. Move it until the tape reads your target — about 9 ft for a 55-inch screen by the relaxed rule, or 5 to 7 ft if you want the screen to fill more of your view (see the chart below). Measure to the middle of the seat, roughly where your eyes are, not to the sofa's front edge.

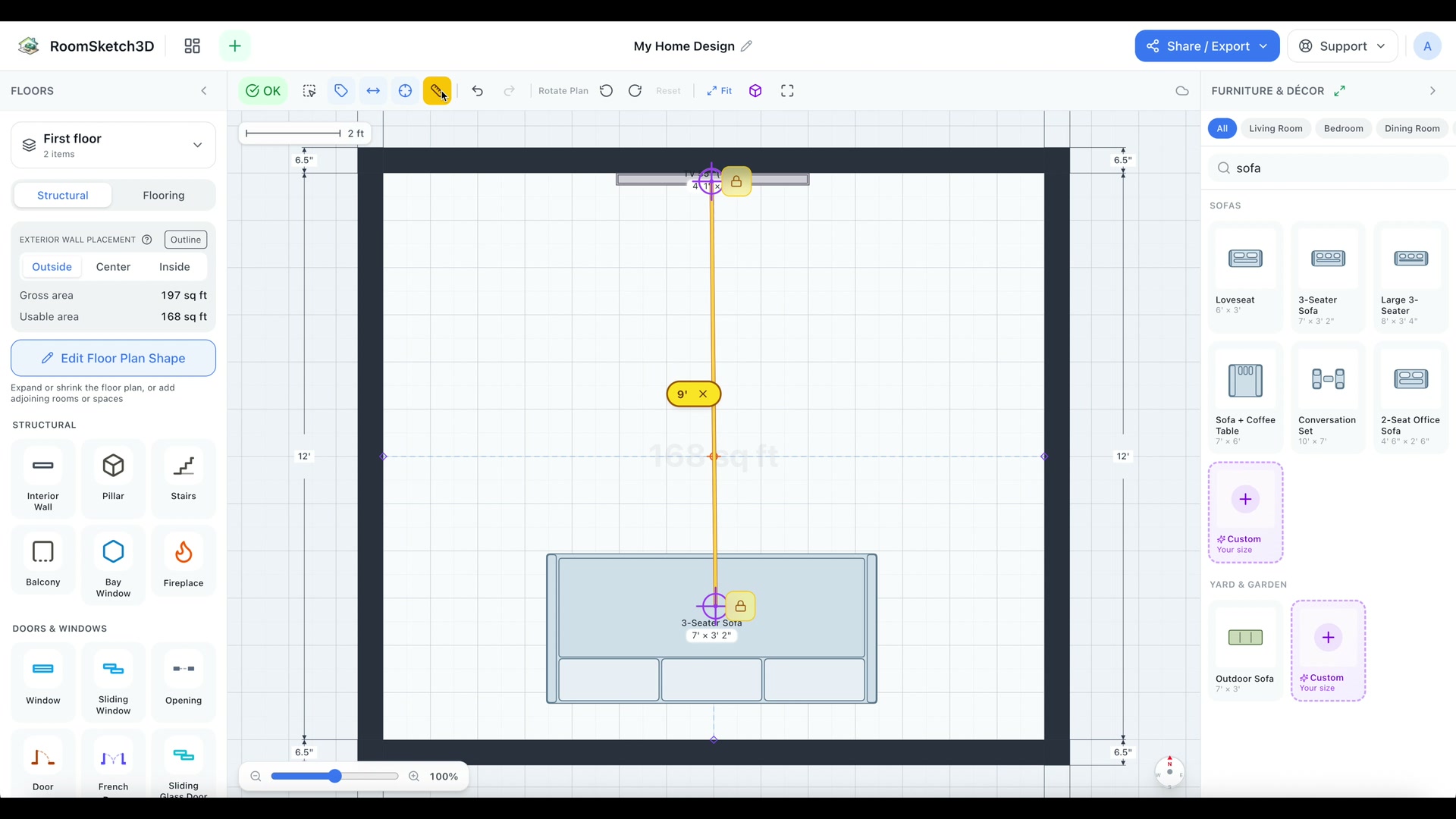

    Lock the tape to the TV and the sofa — here it reads 8' 9", right around the 9 ft that suits a 55-inch TV by the relaxed rule.
  4. 4

    Check it in 3D

    Tap the tape measure again to put it away, then open 3D View to see the TV and seating together in the room (tick Dollhouse to look in over the walls). For the real test, tap Walk through, face the sofa and tap the blue Sit marker on it: you see the TV from the seat, at seated eye height.

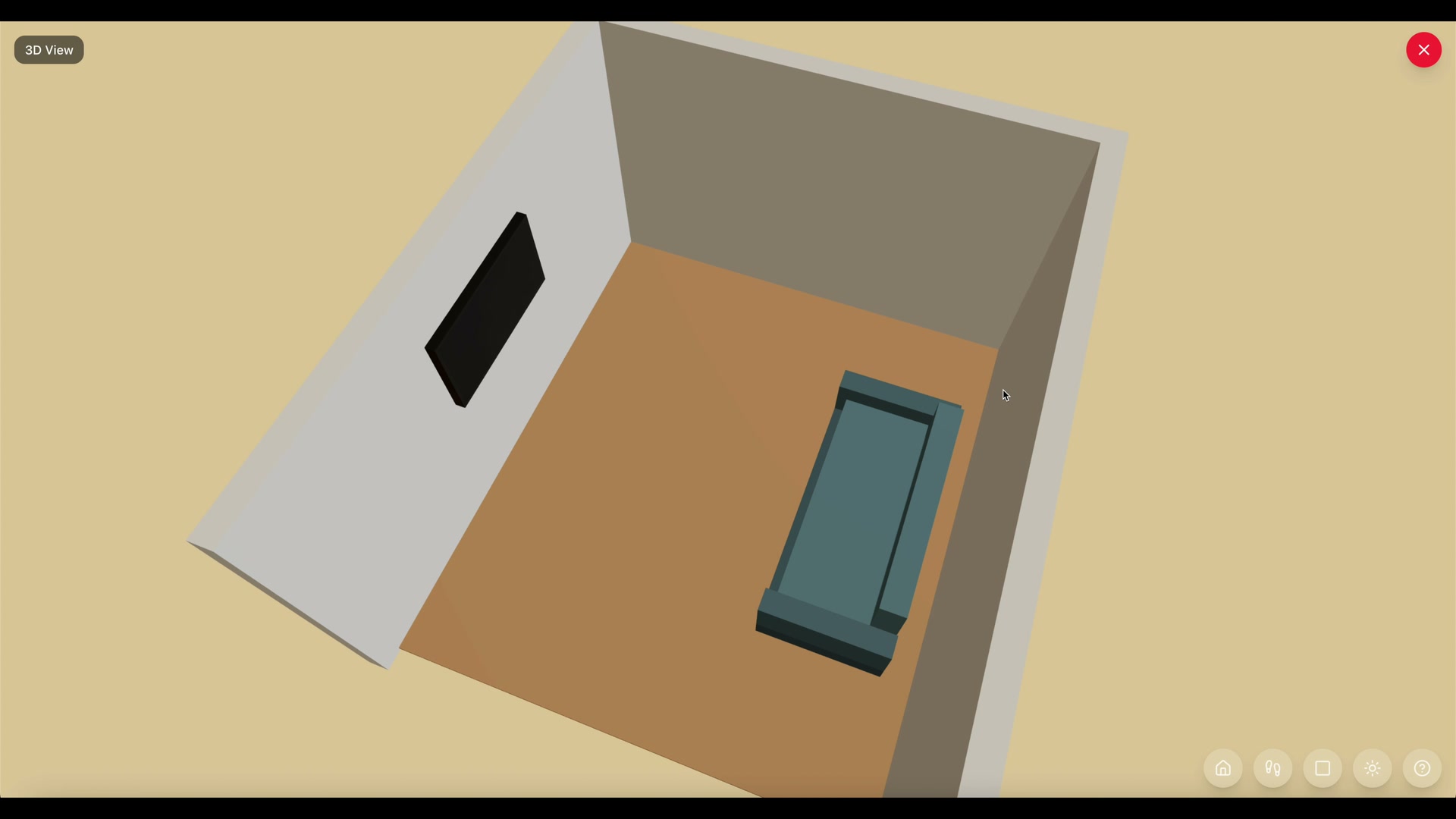

    Switch to 3D to see the layout in the real room. At the 2' 4" default the screen sits just above the console, centered near seated eye level.
  5. 5

    TV size by viewing distance

    Two things decide the right distance: how much of your view the screen fills, and whether you can see its pixels. A 4K screen has four times the pixels of a 1080p one, so you can sit closer before the picture looks grainy.

    TV size4K (1–1.5× diagonal)1080p HD (1.5–2.5×)Relaxed (about 2×)
    43-inch3' 7" – 5' 4"5' 4" – 9' 0"6–8 ft
    50-inch4' 2" – 6' 3"6' 3" – 10' 5"8–10 ft
    55-inch4' 7" – 6' 11"6' 11" – 11' 6"9–11 ft
    65-inch5' 5" – 8' 1"8' 1" – 13' 6"10–13 ft
    75-inch6' 3" – 9' 5"9' 5" – 15' 8"12–15 ft
    85-inch7' 1" – 10' 8"10' 8" – 17' 8"14–17 ft
    100-inch8' 4" – 12' 6"12' 6" – 20' 10"17–20 ft

    Rule of thumb, the other way round: best TV size (inches) ≈ viewing distance (inches) ÷ 1.25 for 4K, or ÷ 2 for the relaxed rule. A 10-foot (120-inch) couch-to-TV distance suits a 4K TV of about 96 inches by the immersive rule, or a 60-inch TV by the relaxed rule; most people land in between (65 to 85 inches).

    Why those multiples: a 16:9 screen is about 0.87 × its diagonal wide. At 1× the diagonal the screen fills about 47° of your horizontal view; at 1.5× about 32°; at 2× about 25°. Home-theater guides often quote 30 to 40 degrees as the immersive target, which lands between 1.2 and 1.6 × the diagonal. These are common guidelines; pick by taste (movies and games closer, news and sports with the lights on farther).

  6. 6

    Measure a real room and pick the size from it

    Measure from the screen to where your eyes are (the middle of the seat cushion, or about 18 inches behind the sofa's front edge), then read the chart backwards. In the Cozy Living Room template (14×16 ft) the sofa sits against the far wall, 12' 2.5" (146 inches) from the TV wall: - Relaxed rule: 146 ÷ 2 ≈ 73 inches (a 75-inch TV). - 4K rule: 146 ÷ 1.5 ≈ 97 inches up to 146 inches; a 65-inch 4K TV looks small from there. To make a 65-inch TV feel right in that room, either bring the seating forward (a 7- to 8-foot distance) or go up to a 75- or 85-inch screen. To compare, select the TV and swap it for TV 65" (Wall) or change its width in its panel; the pinned tape (Keep this measurement) stays put.

    Cozy Living Room template with a 65" wall TV: 12' 2.5" from the TV to the middle of the sofa seat. By the relaxed rule that suits 70–75 inches; by the 4K rule, an 85" or larger screen.
  7. 7

    Mounting height

    TV center should be at seated eye level — typically 42 inches above floor when watched from a standard sofa (a 17- to 18-inch seat plus about 24 inches to the eyes; low lounge sofas put eyes nearer 38 inches). For a console-mounted TV, the bottom edge sits about 4-12 inches above the console. For a wall-mounted TV with no console, mount center at 42 inches.

    Setting it in RoomSketch3D. The Mount (bottom edge) field is the height of the TV's bottom edge; new wall TVs already start at a center near 42 inches (55": Mount 28"; 65": Mount 26"). For any other TV or target, Mount = 42 − (TV height ÷ 2):

    TVScreen height (16:9, about)Mount for a 42" center
    43-inch21"31"
    50-inch24½"30"
    55-inch27–28"28"
    65-inch32–33"25½"
    75-inch37"23½"
    85-inch42"21"

    With a console under the TV, the console wins: on a 24-inch console, a 55-inch TV can't go lower than about Mount 28–30 inches, putting its center at 42–44 inches. That's what the left half of the picture shows. Large TVs (75 inches and up) on a console end up with the center a little above 42; that's fine.

    Bedrooms: you watch lying down or propped up in bed, so eyes are higher (about 40–50 inches over a 24-inch-high mattress); a center around 50–55 inches works. Check it with Walk through in 3D before drilling.

    Keep the angle small. A common comfort guideline is to keep the screen center no more than about 15° above your eye line. At 10 feet that's about 32 inches above eye level (a center near 74 inches); at 8 feet, about 26 inches.

    From the sofa, Walk through → Sit: left, Mount 2' 6" (screen center 44", just above the 24" console); right, Mount 4' (center 62"), the old default before November 3, 2026, which tips your head back.
  8. 8

    Above the fireplace — yes or no?

    Contested. Pro: free wall space below; double focal point becomes single. Con: TV ends up too high (often 60+ inches center) — neck strain. If you must, use a tilt mount and aim for center at 50-55 inches max. What the numbers look like: a typical mantel sits 54 to 60 inches off the floor, and the TV needs a few inches above it, so its bottom edge is at about 60 inches and a 55-inch TV's center at about 74–76 inches, more than 30 inches above seated eye level. From a sofa 10 feet away that's about 15° up, the edge of comfortable; closer seating makes it worse. Ways to make it work: - A tilt or pull-down mount angles the screen toward the seats (pull-down mounts can lower it to eye level while you watch). - Sit farther back; the viewing angle drops as distance grows. - Choose a slightly smaller TV so the center isn't pushed higher. Heat and clearances: follow the fireplace maker's instructions and the TV's operating temperature limits. For a masonry fireplace the code keeps combustible mantels and trim at least 6 inches from the opening, and anything within 12 inches may only project 1/8 inch per inch of distance (IRC R1001.11). A gas or wood fire sends heat up the wall, so a mantel or hood that deflects it helps the TV. In RoomSketch3D: set the TV's Mount above the mantel and check it from the sofa with Walk through → Sit. Flow Check knows the difference: a wall TV hung above the mantel is not reported as blocking the fireplace (since November 3, 2026), while one hung low enough to cover the firebox still is, so a blocks fireplace warning means the screen really is in front of the fire. In 3D, a TV whose height band meets the fireplace surround is drawn on the surround's face; one that clears the mantel stays on the wall above it.

    Modern Open Living template, TV above the fireplace at Mount 5' 2" (center about 76"): seen from the sofa it sits well above eye level.

Tips

Measure to your eyes, not the sofa's edge

Your eyes are about 18 inches behind the front edge of a typical sofa. Measure from the screen to the middle of the seat, or add 18 inches to a front-edge measurement.

Mount is the bottom edge

In RoomSketch3D the TV's Mount (bottom edge) field sets its bottom edge. Subtract half the TV's height from 42 inches to get the Mount for a 42-inch center: 28 inches for a 55-inch TV (the app's default), 25½ for a 65-inch (the app starts it at 26).

Sit down in 3D before you drill

Walk through → tap Sit on the sofa shows the TV at seated eye height. Try two Mount heights and keep the one where you look straight ahead.

Mind windows opposite the screen

A window behind your seats reflects on the screen during the day. If you can, put the TV on a wall that's perpendicular to the windows, or plan blackout shades.

Common confusions

Leaving an older TV at the old 4-foot Mount

TVs placed before November 3, 2026 started at Mount 48 inches and keep it. At 48 inches a 55-inch TV's center is at 62 inches, about 20 inches above seated eye level. Lower it to about 28 inches (or the console height plus a few inches).

Buying the TV before measuring the room

A 65-inch TV 12 feet away looks small on a 4K set; the same TV 6 feet away fills the view. Measure the seat-to-wall distance first, then pick the size from the chart.

Mounting over a fireplace without checking the angle

Over a mantel the screen center is usually 70+ inches high. Check the view from the sofa in 3D and plan a tilt or pull-down mount, or a different wall.

Frequently asked questions

How far should I sit from a 65-inch TV?

About 5½ to 8 feet for a 4K TV (1 to 1.5× the diagonal); 10-13 feet by the relaxed older rule (about 2×), which suits 1080p sets or casual viewing.

How high should a TV be mounted?

Center at 42 inches above floor for typical sofa viewing. In RoomSketch3D, Mount sets the bottom edge, so a 55-inch TV (28 inches tall) gets Mount 28 inches.

What size TV for my living room?

For 4K: viewing distance (inches) ÷ 1.25 is a good middle; the relaxed rule is distance ÷ 2. A 10-foot couch-to-TV distance = about a 96-inch 4K TV for an immersive view, or a 60-inch TV by the relaxed rule; most rooms land at 65-85 inches. 12 feet = 72-inch TV by the relaxed rule.

How high should a TV be above a fireplace?

As low as the mantel and the fireplace maker's clearances allow, usually a bottom edge around 60 inches and a center around 75 inches for a 55-inch TV. Use a tilt or pull-down mount, and follow the fireplace and TV manufacturers' heat instructions.

How high should a bedroom TV be?

Higher than in a living room: about 50-55 inches to center, because you watch from the bed with your eyes higher. Check it from the bed in 3D.

Is there a code for TV height or distance?

No. These are viewing-comfort guidelines. Code only comes in for things like fireplace clearances, wiring and secure mounting to the wall structure.
