Build a family gear room — every helmet has a home
A gear room is the end of the 'where's my helmet' era: a 10×9 corner — usually of the garage — where every category of sports gear has a fixed slot. One locker bay per athlete, one rack hook per bike, a bench with cleat cubbies to lace up on, a boot tray where the mud surrenders, and a tote that is simply The Ball Bin. Five catalog pieces, two-foot walkways, and the car still fits in the garage.
Watch it
Build a family gear room in 40 seconds
Every piece at its true size, clearances checked, then a walk around it in 3D. The list, sizes, and steps are below.
Sports gear has a season and a smell, and left to itself it forms one migrating pile — helmets in the trunk, cleats on the stairs, four bikes leaning on the car. The fix isn't more storage; it's fixed slots: a locker bay per person, a rack hook per bike, one tray for mud, one tote for balls. When every category has an address, the pile stops forming — and the car gets the garage back.
This template is drawn as a 10×9 zone with all four walls open — it's a corner of the garage, not a room you build. Search the exact names in the Furnish panel, place the five pieces where the plan puts them, and check the walkways before you commit a Saturday to it.
Or let the app place it: tap the Auto-furnish wand in the toolbar, drag a box over the area you want to use, type Gear Room in the search box and pick its card. Every piece lands against your walls, with a Fits or Tight badge for the space you drew — then edit anything. More in Auto-furnish.
What you'll need
- •Mudroom Lockers (60″ wide, 84″ tall) — one bay per athlete
- •Bike Rack (4) (48″ × 24″) — four bikes up off the floor
- •Storage Bench with Cubbies (48″ long) — sit to lace up, cleats below
- •Boot Tray (32″ × 16″) — where the mud stops
- •Storage Tote (24″ × 18″) — the ball bin
- •A 10 × 9 ft corner — a garage bay end, a basement wall, a wide landing
Step by step
- 1
Lockers on the top wall — one bay per athlete
Search Mudroom Lockers and run them along the top wall, backs to the wall, open bays facing into the zone — five feet wide, 18 inches deep, and 84 inches tall, set toward the left so the corner to their right stays free for the ball bin. This is the spine of the system: one labeled bay per person — helmet on the hook, pads on the shelf. Keep 24 inches clear in front so a bag can swing in and out.
- 2
Four bikes on the right wall
Search Bike Rack (4) and center it on the right wall, turned so the bikes face into the zone. It claims 48 inches of wall and stands 24 inches off it — four bikes stacked on four square feet of floor instead of leaning across ten. One slot per bike ends the domino topple for good.

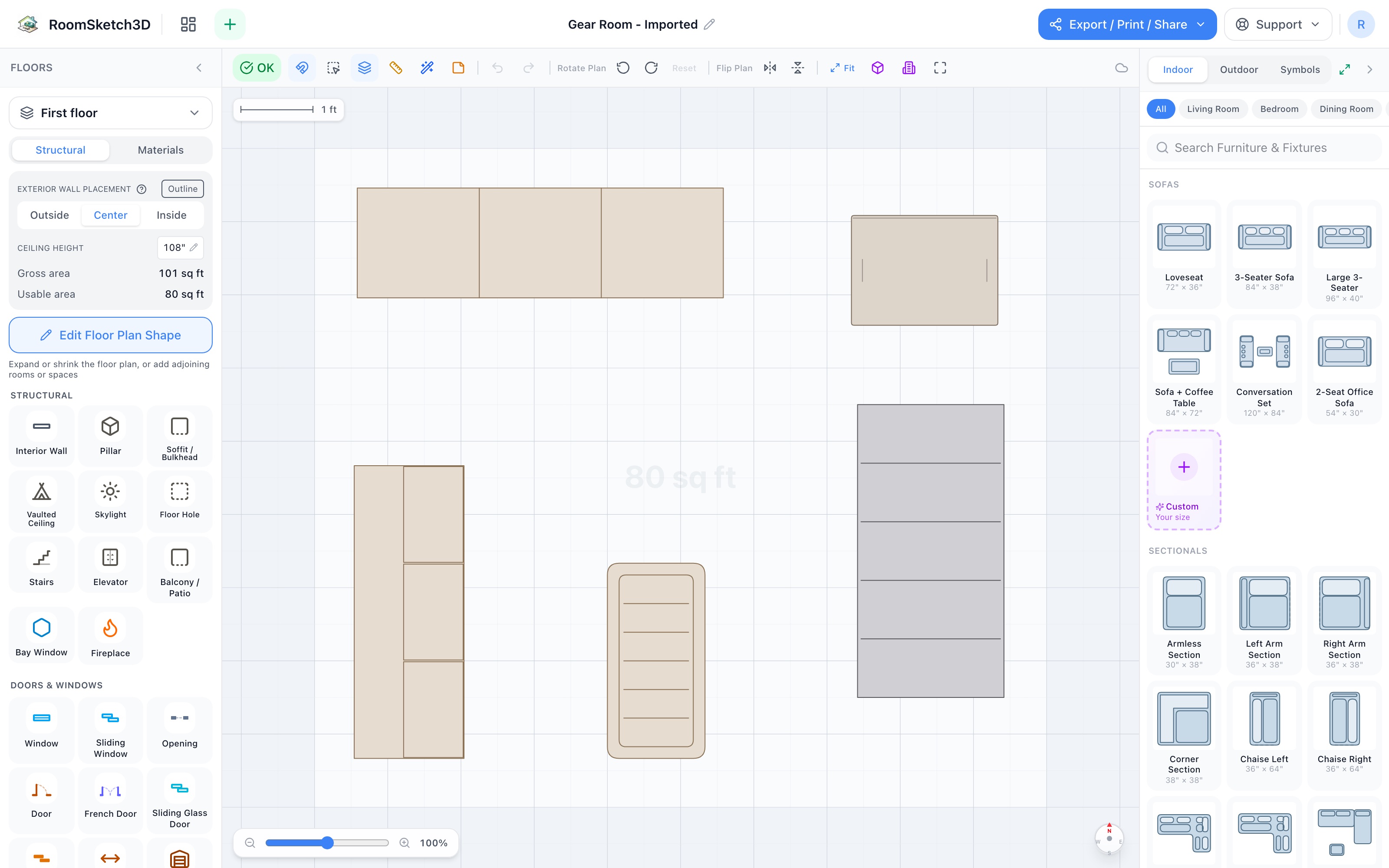

The gear room on the plan — lockers up top, bikes right, bench left, the mud line down the middle. - 3
A bench on the left — sit down, lace up
Search Storage Bench with Cubbies and set it against the left wall, seat facing the bike rack across the zone. Four feet of bench seats two kids tying cleats at once, and the cubbies under the seat are where those cleats live the other six days. From the bench's front edge to the boot tray there's about two feet of walkway — enough to pass a hockey bag through.
- 4
The mud line and the ball bin
Search Boot Tray and drop it at center-bottom, turned sideways so its 32-inch length runs front-to-back along the walking line — it's the first thing muddy cleats cross coming in, with about two feet of clearance to the bench on one side and the bikes on the other. Then place the Storage Tote in the top-right corner, a hand's reach past the last locker bay: this is the ball bin, and every ball in the house gets dumped there, no sorting required.
- 5
Prove it in 3D
Switch to 3D and orbit the corner. The seven-foot lockers set the back line, the bikes hang at handlebar height on the right, and the bench sits low across from them — confirm you can walk from the open bottom edge, over the tray, to any locker bay without turning sideways. If the walkways read tight on the plan, they're tighter with a bike on your shoulder.

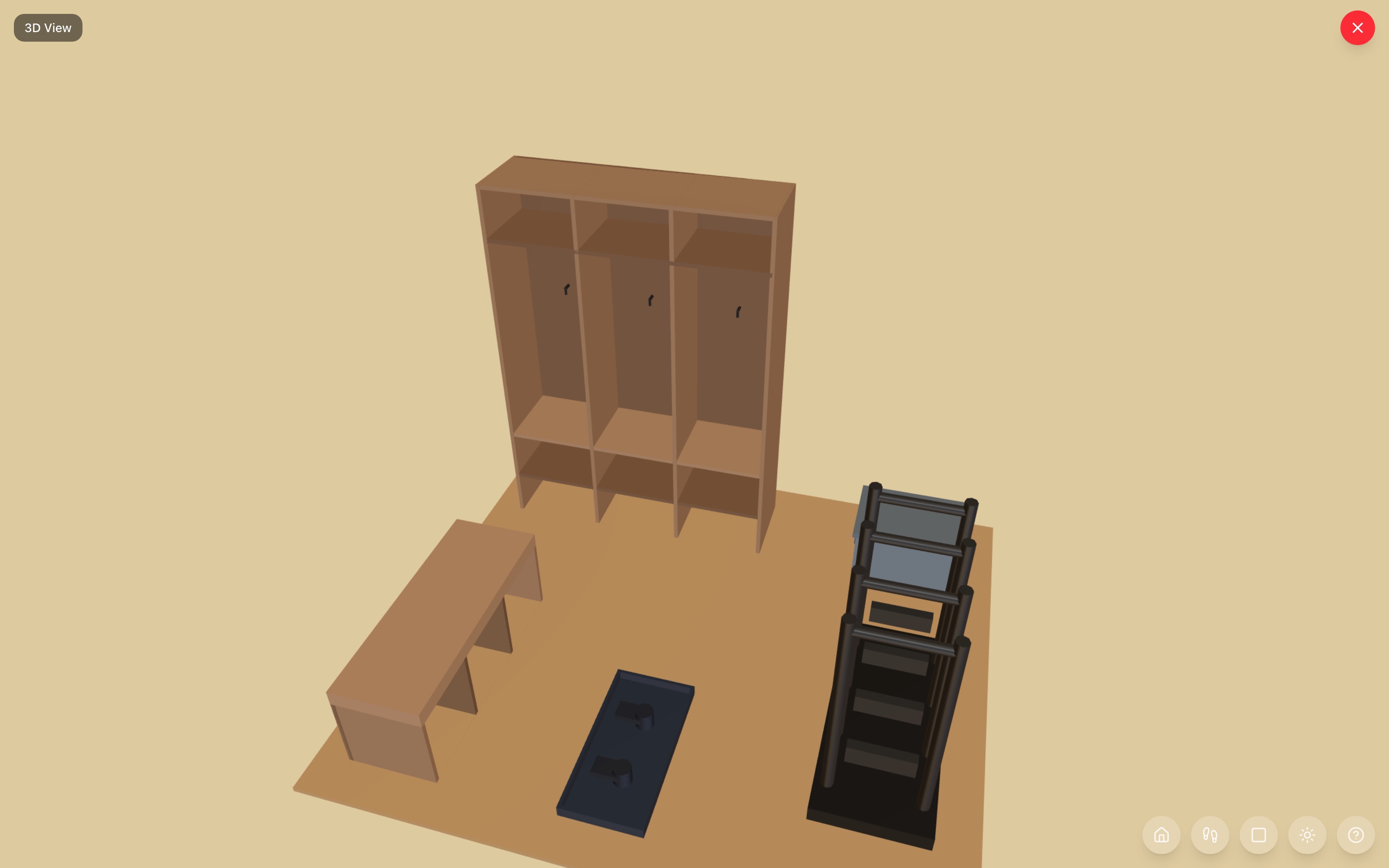

The gear room in 3D — every category with an address, and the floor still clear for feet. - 6
Or let Auto-furnish place the Gear Room for you
Everything above can also be done in one go. Open your plan, tap the Auto-furnish wand in the toolbar and drag a box over the spot, tracing the walls you want the pieces against — at least 10 × 9 ft for this layout. In the Ideas list, type Gear Room in the search box and pick its card; if it isn't among the first six cards, tap Show more. A Fits badge means the layout fits the box you drew, Tight means it is up to about 12% too big and a piece may sit a little past an edge. The five pieces land against your walls, and Variation 1–5 offer other arrangements — mirrored, turned to another wall or corner, or with a piece swapped for a similar one; where it can, it skips arrangements that would land on furniture already in your plan. If the plan still looks empty after you pick the card, tap Variation 2 (or any other variation) and the pieces appear — a known glitch can leave the first variation undrawn. Tap View in 3D to check it, then Done: the whole placement is one undo step, and every piece stays editable. More in Auto-furnish.
Drawn over the top-left corner of a plain 14×12 ft room, the Gear Room lands in a few taps — five pieces, a choice of variations, every piece still editable.
Tips
Hooks above the bench for the drip-dry gear
A row of plain wall hooks four to five feet up, over the Storage Bench with Cubbies, is where shoulder pads and gloves hang to air out — off the bench seat, above the cubbies, dripping onto floor you can mop. No catalog piece needed; just leave that stretch of wall unclaimed.
The off-season swap is a twice-a-year ritual
Each locker bay holds the current season only; everything else lives boxed above or beside the Storage Tote. Twice a year — when the seasons flip — the family swaps bays over in twenty minutes. The bays stay usable because they never hold two sports at once.
Let the gear breathe
The smell is trapped moisture. Open-front locker bays beat closed doors, damp gear hangs on the hooks before it's stowed, and a garage corner earns its keep here — cracking the garage door for an hour after practice does more than any spray.
Common mistakes
One communal pile instead of one bay each
A shared heap is how helmets go missing — nobody owns the mess, so nobody ends it. The Mudroom Lockers work because each bay has a name on it: one athlete, one address, and the argument is over.
Parking the bikes on the floor
Four bikes on kickstands sprawl across half the 10×9 zone and topple in a chain. The Bike Rack (4) holds all four on 48 inches of wall, standing just two feet out — that's the difference between a gear room and a bike pile with shelves.
Crowding the lockers' loading zone
The 24 inches in front of the locker bays is where bags swing in and out — park the tote there, or let the tray drift up from center-bottom, and the whole system jams at its busiest spot. Keep the middle of the zone bare floor on purpose.
Frequently asked questions
How much space does a family gear room need?
This layout does it in 10 × 9 feet: a 60-inch locker unit on one wall, a four-bike rack standing 24 inches off the opposite wall, a 48-inch bench, a boot tray, and a ball-bin tote — with roughly two-foot walkways between everything. Tighter than that, drop the bike rack first; the lockers and bench are the pieces that end the morning scramble.
Can I set this up in a garage corner?
That's exactly how the template is drawn — all four walls are open, so it's a zone you mark inside a bigger space, not a sealed room. Put the locker wall and bike wall against the garage's two real walls, keep the open edges toward the car, and check that the car door still swings clear of the bench before you commit.
How do I stop sports gear from smelling?
Moisture is the culprit, so build the routine into the layout: mud stops at the tray, wet pads hang on hooks above the bench until they're dry, and only dry gear goes into a bay or cubby. Open-front lockers let air through, and in a garage an hour of open door after practice clears what closed cabinets would trap.
