Adding pocket and barn doors
Pocket doors slide into the wall; barn doors slide across it. Both eliminate the swing arc; here's how to add each.
Pocket and barn doors save the floor space a swinging door would waste — ideal for tight spots and closets. A pocket door slides into the wall cavity and disappears; a barn door rides a track on the face of the wall. Neither has a swing arc to keep clear, so Flow Check doesn't reserve one.
This page covers placing each type, setting the width and the Pocket or Rail length, switching a door you've already placed to another kind, and checking the hardware in 3D. The rule of thumb for both: the door needs a stretch of clear wall beside the opening at least as long as the door is wide, and a barn door's track runs about twice the door width.
Step by step
- 1
Pick the door type from the Build panel
Open the Build panel (on a phone, tap Structural & Interior under the plan) and scroll to Doors & Windows. Tap Pocket Door or Barn Door. Which one? A pocket door disappears into the wall, so it suits new walls, tight bathrooms, closets and halls where even a track would be in the way. A barn door hangs on a track on the wall's face: no wall cavity needed, so it's the easy choice for an existing wall, and the door itself becomes a feature. Compare them in pocket vs barn door.

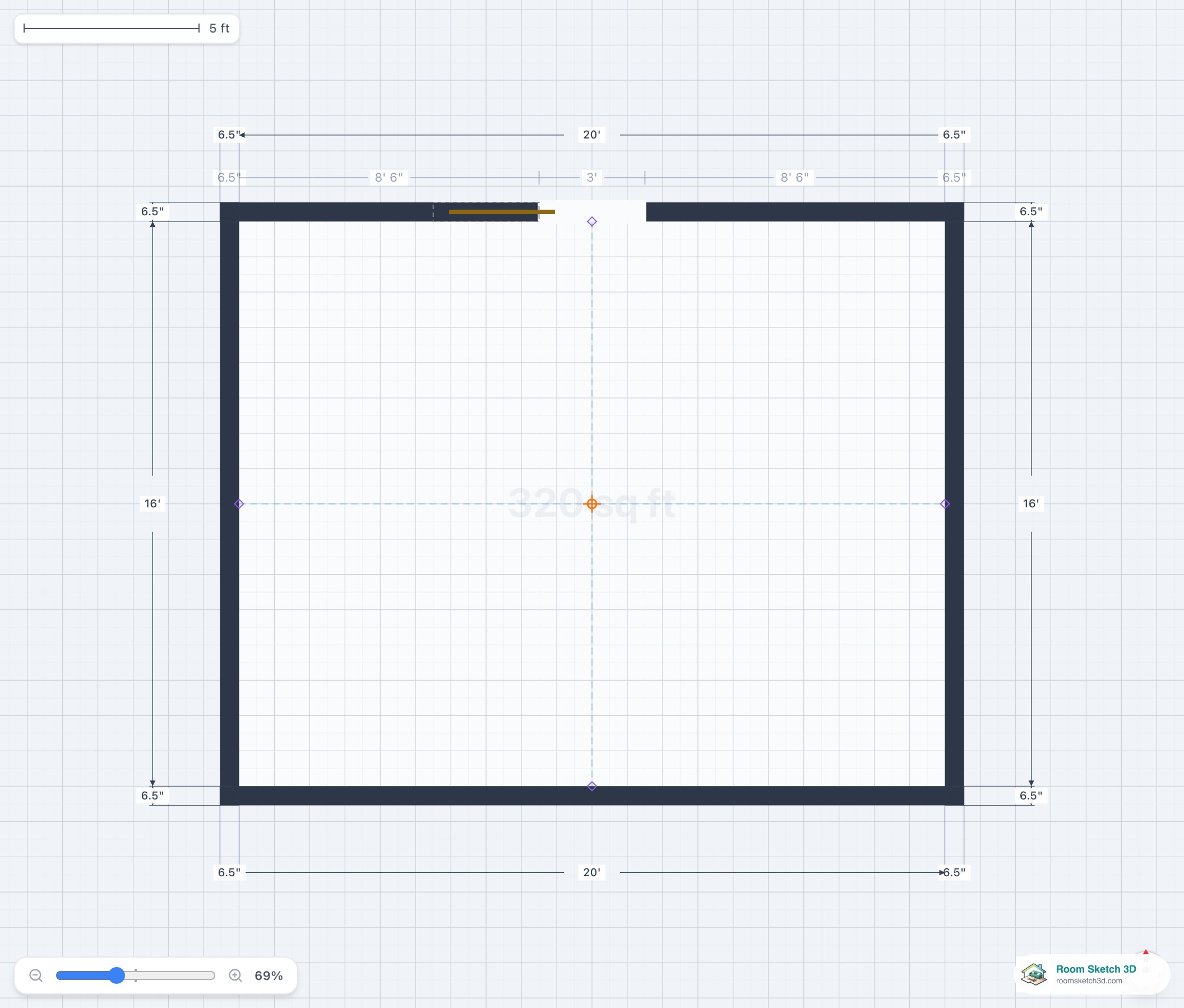

Pocket Door and Barn Door sit in Doors & Windows. - 2
Click the wall
Click on the wall where the door goes. The door lands at a default position; drag along the wall to reposition. For an exact spot, select the door and tap one of the two distances shown beside it: type the distance from the corner (for example 20 cm) and press Enter, or tap Center to put it halfway along. The door's settings show the same two numbers under Along wall, each box with an arrow pointing the way it measures (← / →, or ↑ / ↓ on a wall that runs up and down the plan). On a tablet or computer those settings are a floating card over the plan; on a phone, a panel along the bottom. Leave room for the slide. The door needs clear wall beside the opening as long as the door is wide: about 36 in next to a 36 in door, more for a barn door's track. Place it so that stretch of wall is on the side you want it to open towards.
- 3
Pocket door: width, side and pocket length
Select the door. Its panel shows Width (presets 3′ 4′ 5′, or Other for any size; most interior doors are 28 to 36 in), Height (starts at 6′ 8″, the standard interior door height), L / R for which side the pocket is on (the door slides that way), and Pocket: the length of the cavity in the wall, shown in your own units. Pocket starts at the door's width, which is what the door needs to disappear completely. Open shows the door slid away into the wall; Closed shows it across the opening. The Hardware dots set the metal finish (matte black to start). If the pocket is longer than the wall it's in, Design Check tells you.
Pocket starts at the door's width: 3′ (36 in) for a 3′ door. - 4
Barn door: width, rail, side and face
Select the door. Width and Height work as for a pocket door (a barn door starts at 7′ tall). L / R is the way it slides open. Rail is the track length, shown in your own units: it starts at about 2.1 × the door width (76 in for a 36 in door), so the open door clears the opening completely. Make it longer for a bigger door overlap, but keep it shorter than the wall: if the rail runs past the wall, Design Check warns you. In hangs the door on the room side of the wall (the default); Out hangs it on the other face. Open / Closed and the Hardware finish work as for a pocket door. Keep switches, outlets and art off the stretch of wall the door slides across.

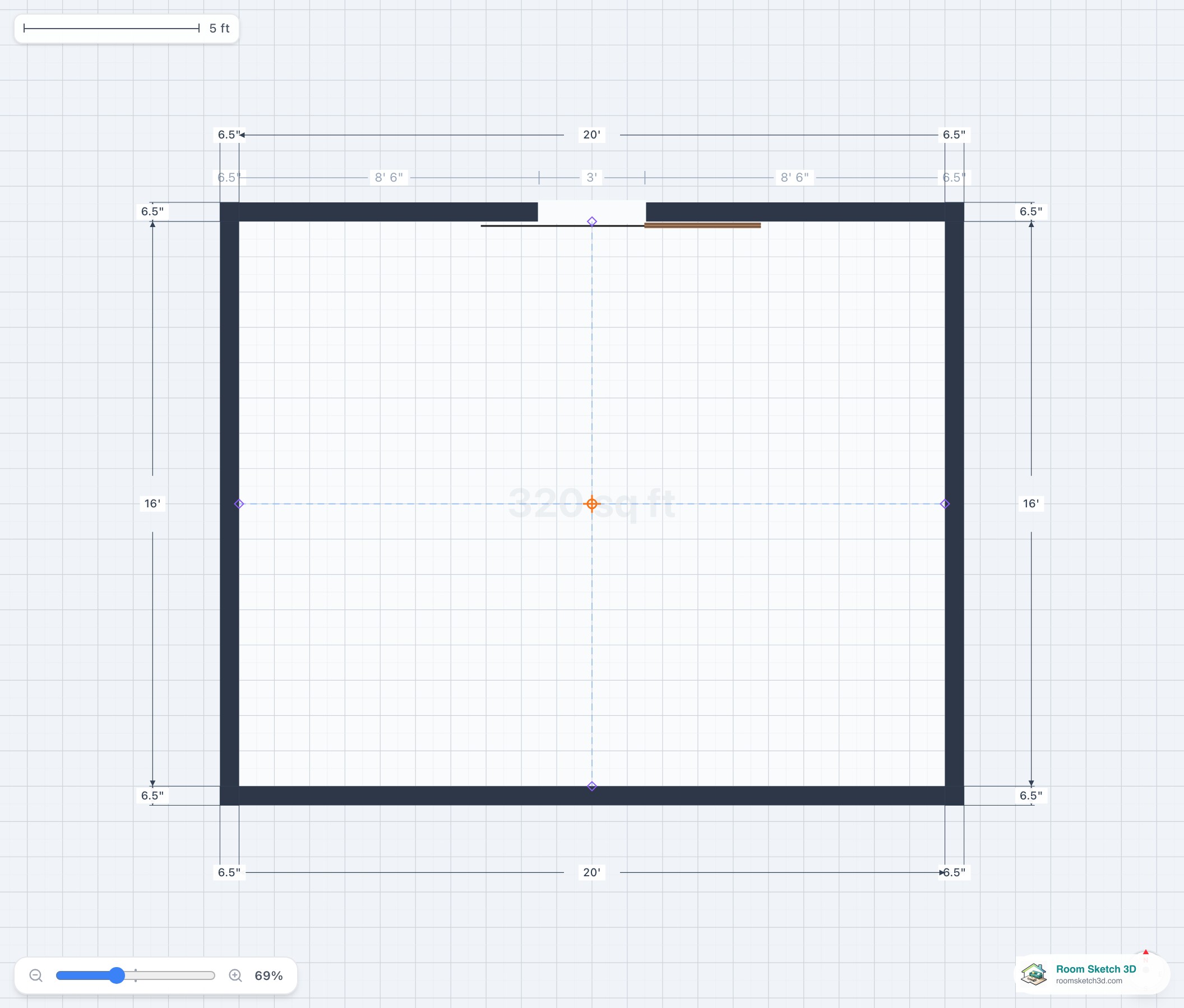

The rail starts at about twice the door width: 76 in for a 3′ door. - 5
Change a placed door's type
Tried a swing door and it doesn't fit? You don't have to delete it. Select the door and tap the blue type chip at the left of its panel (it shows the current kind, for example Pocket Door). A row of kinds opens: Swing Door, Dutch Door, French Door, Sliding Glass Door, Sliding Wood Door, Pocket Door, Barn Door, Opening and, on an outside wall, Garage Door. Tap one and the door switches in place: it keeps its spot, name and hardware finish, its settings reset to the new kind's defaults, and the width stays when it fits. If the new kind can't fit there, the door stays as it was and the app says why.
Tap the type chip to switch a placed door to another kind, in place. - 6
Verify in 3D
Switch to the 3D view. A barn door shows the slab with its track and hangers on the wall face; a pocket door shows slid into the wall (Open) or across the opening (Closed). Walk through in 3D to check that the open barn door doesn't cover a window or a light switch.
In 3D the barn door hangs from its track on the wall face.
Tips
Pocket doors need a clear stud bay
A pocket door slides into the wall, so that run has to be deep enough and free of plumbing. On the plan, keep that stretch of wall clear of other fixtures.
Rail length for a barn door
A barn door needs roughly double its width in wall to slide onto. The Rail starts at about 2.1 × the door width; make it longer if you like, but keep it shorter than the wall it hangs on.
Common mistakes
A barn door over a switch or outlet
The door and its track cover the wall face when open. Keep switches and art off the wall the barn door slides across.
Expecting a swing clearance
These doors have no swing arc, so don't leave the quarter-circle clear the way you would for a hinged door — that space is yours to use.
Frequently asked questions
What's the difference between a pocket and a barn door?
A pocket door slides inside the wall cavity and disappears; a barn door slides across the face of the wall on an exposed track.
Do they need swing clearance?
No — neither has a swing arc, so Flow Check doesn't reserve the quarter-circle a hinged door needs.
How do I set the barn door's track length?
Select it and type the length in the Rail box of its settings (in inches). It starts at about twice the door width, which is what the open door needs to clear the opening.
Can I use a pocket door in any wall?
On a real build the wall must be deep enough and clear of plumbing where the door pockets. On the plan, keep that run of wall free of other fixtures.
Can I turn a swing door I already placed into a pocket or barn door?
Yes. Select the door, tap the blue type chip at the left of its panel and pick Pocket Door or Barn Door. It switches in place, keeping its position, name and hardware finish; the width stays when it fits, and the other settings reset to the new kind's defaults.
What width should a pocket or barn door be?
Most interior doors are 28 to 36 in wide; 36 in (the starting width) gives the most comfortable passage. Pick 3′, 4′ or 5′ in the door's panel, or Other to type any width. Remember the wall beside it must be at least as long as the door for the pocket, and about twice as long for a barn door's track.
Can I change the hardware finish?
Yes. Select the door and pick a swatch under Hardware in its settings: brushed nickel, matte black (the starting finish for pocket and barn doors), brass, chrome, oil-rubbed bronze or white. The door's metal hardware shows the finish in 3D.
Can I switch a door I already placed to a pocket or barn door?
Yes, in place. Select the door, tap the blue chip beside its name (e.g. Swing Door) and pick Pocket Door or Barn Door. It stays in the same spot; a 30–42 in door keeps its width. Switching between pocket and barn keeps the slide side and the Pocket / Rail length. See change a door type.
