Wrap a yard around your home — property lines and fences

Design the lot, not just the rooms: drag the property line to match reality, style each fence edge, and view the whole property in 3D.

5 min readUpdated 2026-11-05

Your home sits on a lot, and the lot is part of the design. Add a yard around the house, drag its boundary to match your property line, and give every edge its own fence: wood, chain-link, stone or picket, at the height you'll actually build. Leave an edge Open for a gate or the driveway.

This page covers adding the yard, shaping the lot, styling and sizing the fences, and changing or removing the yard later. All of it starts in the Floors menu, whichever floor you're on.

What you'll need

  • •A ground-floor design (the yard attaches to it)

Step by step

  1. 1

    Open the Floors menu and tap Add Yard

    The Floors menu is the floor name at the top of the left panel (for example Ground floor). Open it and tap Add Yard. The yard belongs to the ground floor; if you're on another floor, the app switches to the ground floor for you.

    Add Yard sits at the bottom of the Floors menu.
  2. 2

    Shape the lot in the Yard Editor

    The Yard Editor opens with a rectangle about 15 ft out from the house on every side, and the house shown as a guide. Drag the corners to match your parcel (your plat map or the county parcel viewer has the real dimensions). Split Boundary adds a corner to an edge, Add Boundary draws new edges from a corner, and Remove Boundary takes an edge away. Tap Update Yard Plan when it looks right.

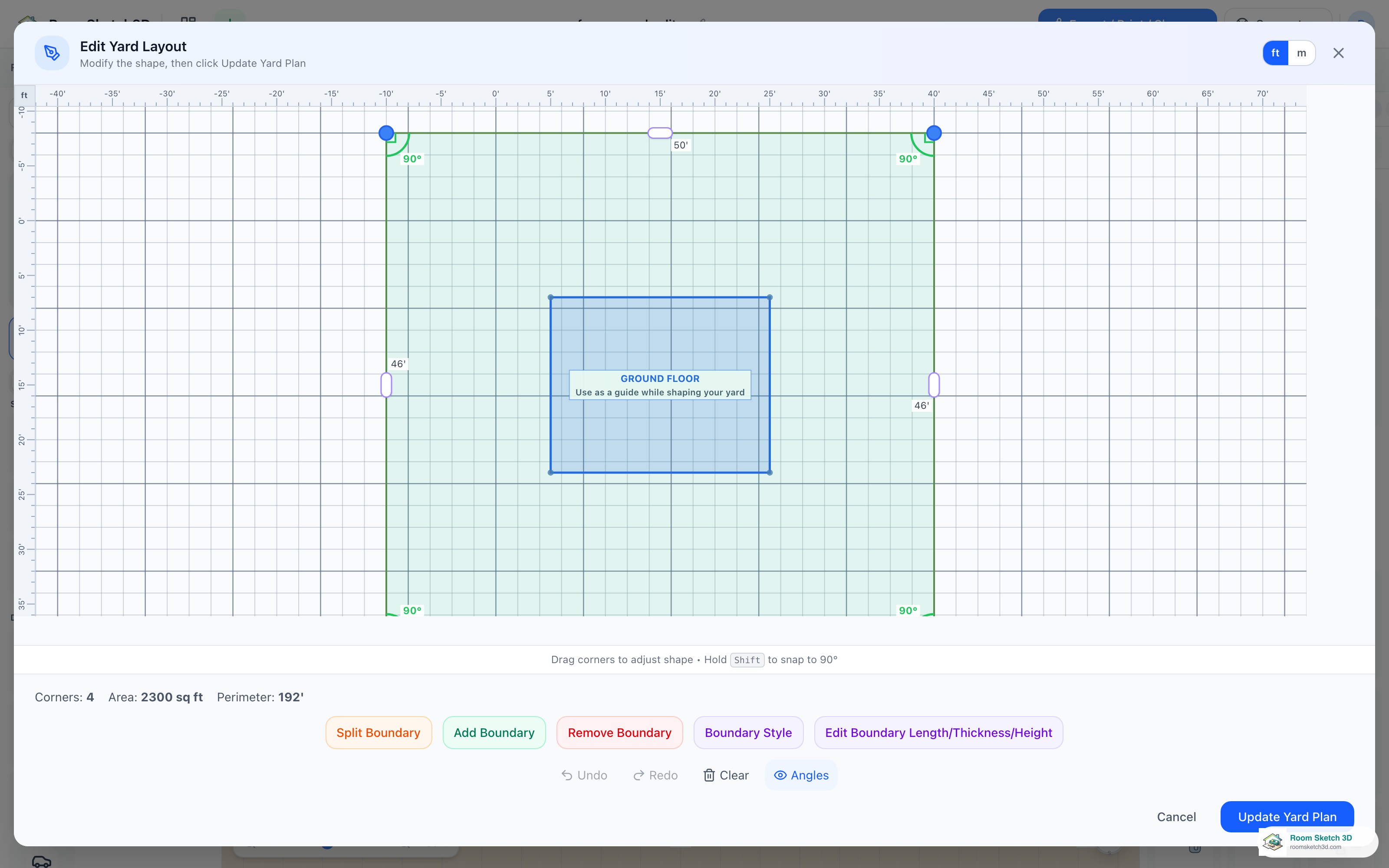

    The Yard Editor: the house stays visible while you shape the lot.
  3. 3

    Pick a fence style for each edge

    In the Yard Editor tap Boundary Style, then tap an edge. Choose Fence and a style: Wood, Chain-link, Stone or Picket. Each edge is separate, so you can put a privacy fence at the back and a low picket at the front.

    Boundary Style: tap an edge, then pick Fence and its style, or Open.
  4. 4

    Leave an opening for a gate or driveway

    In Boundary Style, tap the edge and choose Open instead of Fence. No fence is drawn there, which marks a gate or open passage. To open just part of a side, first use Split Boundary to add a corner, so the gap is its own edge.

  5. 5

    Set the fence height

    Tap Edit Boundary Length/Height, then tap an edge (the note at the top reads Tap on any boundary to edit its length or height). Type its Length (feet and inches) and tap Apply, and pick a Height: 3', 4', 5', 6' or 8', or tap Other to type your own. A new fence is 4 ft tall.

    Fence heights from a 3 ft border to an 8 ft privacy fence.
  6. 6

    Change or remove the yard later

    Once the yard exists, the bottom of the Floors menu reads Edit Yard and Remove Yard, on every floor, so you don't have to go back to the ground floor first. Edit Yard reopens the Yard Editor (and returns you to the floor you were on when you close it).

    Edit Yard and Remove Yard, here opened from the first floor.
  7. 7

    Removing the yard asks first

    Remove Yard asks before it deletes anything: Remove the yard around your house? Its boundary, fences and ground cover will be deleted. Tap Remove Yard to confirm or Cancel to keep it. The house itself is not touched.

    Remove Yard always asks first.
  8. 8

    See the whole property in 3D

    Open 3D View: the house, grounds and fences show together, with your ground covers, zones and outdoor furniture in place.

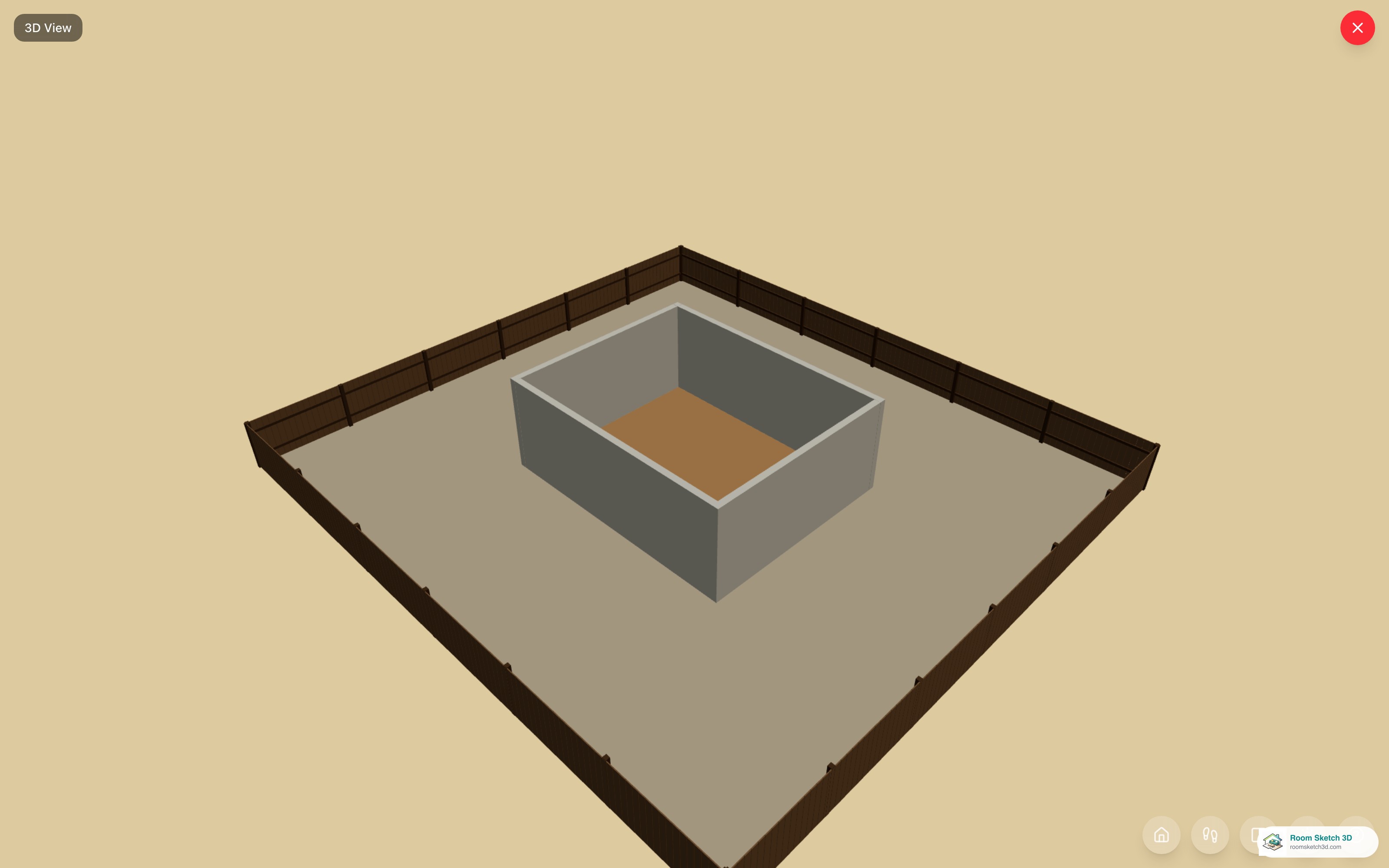

    House, grounds and fences together in 3D.
  9. 9

    Designs that are only a yard

    Some older designs are a yard on its own, with no house (the Floors menu shows Yard). There the fences are on the plan itself: tap one and the bar at the bottom offers Style (Wood, Picket, Chain-link, Stone, Brick), + Gate, fence heights 3' to 8' and thicknesses 1 in, 2 in, 4 in and 6 in. Tap a value box to type any other height or thickness.

    On a yard-only design, tap a fence for fence-sized heights and thicknesses.

Tips

Trace your plat map

Drag the boundary corners to match your parcel from the plat or survey. Use Split Boundary for lots that aren't rectangles.

Mix fence styles per edge

Every edge is separate: picket in front, wood privacy fence at the back, chain-link on a side, and one edge Open for the driveway.

Then paint the yard

After the boundary, switch the Build panel to Outdoor and use Yard Zones to draw lawn, patio, walkway, driveway and garden areas. See Yard zones.

Common mistakes

Fencing the driveway shut

Every edge is a fence until you change it. Set the driveway edge to Open in Boundary Style.

Looking for the yard on an upper floor's plan

The yard is drawn around the ground floor. From any other floor, use Edit Yard in the Floors menu; it takes you to the ground floor to edit, then back.

Forgetting setbacks

Real fences and buildings sit inside required setbacks from the property line. Draw the line to your parcel, then keep the house, decks and sheds inside the setback.

Frequently asked questions

Where is Add Yard?

In the Floors menu: tap the floor name at the top of the left panel; Add Yard is at the bottom. It works from any floor.

How do I change the yard after adding it?

Open the Floors menu and tap Edit Yard. The Yard Editor opens with your boundary, fence styles and heights.

How do I delete the yard?

Floors menu → Remove Yard, then confirm. It deletes the yard's boundary, fences and ground cover, not the house.

How tall can a fence be?

Tap Edit Boundary Length/Height, tap an edge and pick 3', 4', 5', 6' or 8', or tap Other to type a height. New fences are 4 ft.

Can I change how thick a fence is?

For a yard around your house, not yet: the Yard Editor sets each edge's length and height only, which is why its button reads Edit Boundary Length/Height. On a yard-only design, tap a fence and pick 1", 2", 4" or 6", or type a value.

How do I leave a gap for a gate or the driveway?

In Boundary Style, tap that edge and choose Open. To open part of a side, split it first with Split Boundary.

Does the yard show in 3D?

Yes. 3D shows the house, grounds and fences together.

Can I hide the yard while I work on the house?

Yes. Untick View & Layers → Show yard (or Yard in the 3D view's View options menu, the same setting). The lot, fences, zones and everything out in the garden are hidden in the plan and in 3D, and the plan zooms to the house. Nothing is deleted: tap Yard hidden on the plan to bring it back. Exports ignore the switch. See hiding the yard.
