Design a library wall — three bookcases in a run
A library wall isn't one bookcase — it's a run. Wide and standard bookshelves side by side along the wall, a tall one turning the corner, and suddenly a 10×8 patch of room holds twenty-plus feet of shelf. A reading chair faces the collection, an end table holds the current stack, and a rug marks where the library begins. Six catalog pieces — search the names, place them, and walk the stacks in 3D.
Watch it
Design a library wall in 40 seconds
Every piece at its true size, clearances checked, then a walk around it in 3D. The list, sizes, and steps are below.
A reading nook is about the chair. A library wall is about the books — the point of this corner is shelf capacity, and the trick is a run: bookcases placed edge to edge so they read as one wall of spines, not three pieces of furniture. Two shelves along the wall, a taller one turning the corner, and a 10×8 patch of room holds twenty-plus feet of shelf.
Every piece is in the RoomSketch3D catalog — search the exact names in the Furnish panel, place them in your own room, and check the run in 3D before you commit a wall to it.
Or let the app place it: tap the Auto-furnish wand in the toolbar, drag a box over the area you want to use, type Library Wall in the search box and pick its card. Every piece lands against your walls, with a Fits or Tight badge for the space you drew — then edit anything. More in Auto-furnish.
What you'll need
- •Wide Bookshelf (48″ × 14″, 72″ tall) — the run starts here
- •Bookshelf (36″ × 12″, 72″ tall) — the run continues
- •Tall Bookshelf (24″ × 12″, 84″ tall) — closes the corner
- •Reading Chair (32″ × 34″) — facing the collection
- •Round End Table (18″) — for the current stack
- •Area Rug 5x7 (60″ × 84″), turned sideways
- •A 10×8 ft stretch of wall with a corner to turn
Step by step
- 1
Start the run with the wide bookshelf
Search Wide Bookshelf (48″ wide) and set it flat against the wall, back to the wall, a couple of feet in from the corner you're going to turn. This is the widest piece, so it sets the line — every other bookcase joins it edge to edge.
The library on the plan — an L of three bookcases, and a chair that faces them. - 2
Continue it with the standard bookshelf
Search Bookshelf (36″ wide) and place it on the same wall, tight beside the first — an inch or two apart, backs to the wall. Two cases in line is what turns furniture into a library: seven feet of unbroken spines at the same height.
- 3
Turn the corner with the tall bookshelf
Search Tall Bookshelf (24″ wide, 84″ tall) and set it on the adjacent wall, rotated to face into the room, right where the run ends. The extra foot of height marks the corner instead of hiding it — and its narrow footprint fits where a wide case wouldn't.
- 4
A chair that faces the collection
Search Reading Chair and place it a comfortable step back — about 28 inches of standing room between chair and shelves — rotated to face the books. In a library the chair looks at the collection, not away from it: you browse from the seat. Then search Round End Table and tuck it at the chair's side with a few inches of clearance — that's where the current stack lives.
- 5
Rug down, then walk the stacks in 3D
Search Area Rug 5x7 and lay it sideways under the chair and table, its long edge running parallel to the shelf run — it marks the library floor without crowding the shelf fronts. Then switch to 3D and orbit: the two 72″ cases should read as one wall of shelf, the 84″ case should turn the corner, and every shelf should be reachable without moving the chair.

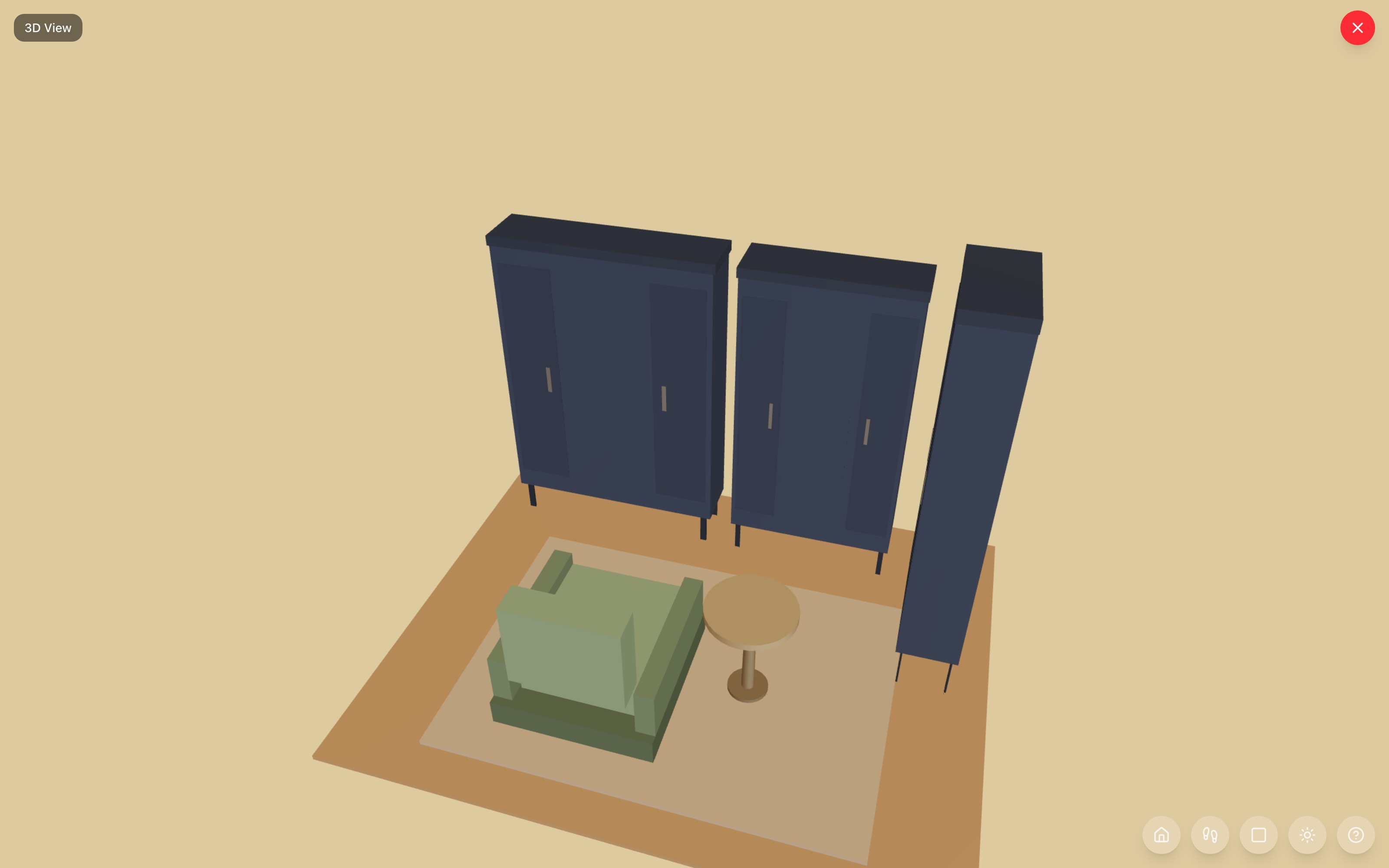

The library in 3D — the two 72″ cases filled with books in one run, the tall case at the corner, and a seat facing the shelves. - 6
Or let Auto-furnish place the Library Wall for you
Everything above can also be done in one go. Open your plan, tap the Auto-furnish wand in the toolbar and drag a box over the spot, tracing the walls you want the pieces against — at least 10 × 8 ft for this layout. In the Ideas list, type Library Wall in the search box and pick its card; if it isn't among the first six cards, tap Show more. A Fits badge means the layout fits the box you drew, Tight means it is up to about 12% too big and a piece may sit a little past an edge. The six pieces land against your walls, and Variation 1–5 offer other arrangements — mirrored, turned to another wall or corner, or with a piece swapped for a similar one; where it can, it skips arrangements that would land on furniture already in your plan. If the plan still looks empty after you pick the card, tap Variation 2 (or any other variation) and the pieces appear — a known glitch can leave the first variation undrawn. Tap View in 3D to check it, then Done: the whole placement is one undo step, and every piece stays editable. More in Auto-furnish.
Drawn over the top-left corner of a plain 14×12 ft room, the Library Wall lands in a few taps — six pieces, a choice of variations, every piece still editable.
Tips
Flush fronts make the run
Keep the depths close: the Bookshelf and Tall Bookshelf are 12″ deep and the Wide Bookshelf 14″, so with backs to the wall the fronts step by just 2 inches and still read as one line of spines. A much deeper piece breaks the run and the eye reads separate furniture again — if you swap a piece, vary the width and height, not the depth.
Do the shelf math before you build
Count linear feet of shelf, not bookcases: the Wide Bookshelf alone carries about 20 feet across its shelves, and the full run more than doubles that. An average shelf holds 10–12 books per foot — so this corner comfortably swallows a few hundred books.
Growing collection? Extend the run
The layout scales by addition: a second Bookshelf joins the run on either wall as long as you keep it in line with the others and leave the browsing lane in front. Plan the extension now, even if you place it later.
Common mistakes
Gaps between the cases
A few inches of wall between bookcases turns one library into three bookshelves. Set them side by side with only an inch or two between them — on the plan, cases pushed exactly edge to edge count as overlapping in Flow Check. The run is the whole idea.
No standing room in front of the shelves
You browse a library standing up. Keep at least 18 inches clear in front of every case — this layout leaves about 28 between the chair and the shelf fronts. Check it with the Tape measure — Flow Check only flags a chair that actually touches a shelf. If it's tight, move the chair, not the shelves.
The chair facing away from the books
Turn the chair toward the collection and the corner becomes a library; turn it away and the shelves are just storage behind your head. If you want a chair that faces out at a window instead, you're building a reading nook — a different corner with a different job.
Frequently asked questions
What furniture makes up a library wall?
Six catalog pieces: Wide Bookshelf, Bookshelf, and Tall Bookshelf in an L-shaped run, plus a Reading Chair, a Round End Table, and an Area Rug 5x7. Search each name in the Furnish panel.
How is this different from a reading nook?
Priorities. A reading nook is built around one comfortable chair, with a single bookshelf in reach. A library wall is built around the shelves — three cases, twenty-plus feet of spines — and the chair exists to sit facing them. Same corner size, opposite center of gravity. If your corner is for one album playing instead of a hundred books waiting, that's the listening corner.
How much shelf space does this actually hold?
The run is 84″ of case along one wall plus 24″ on the other — and counting every shelf level, well over 40 linear feet of shelf, with the Wide Bookshelf contributing about 20 feet on its own. At a typical 10–12 books per foot, that's a 400-book corner in 10×8.
